voron 2.4

I have a vc4, But I have a Voron 2.4 and was seeing if anyone knows how to go out setting ratos on it. i started to and got the x, y, hotend and fans and the bed working. not sure on the z motors, z endstop, and the induction probe. if anyone could help that would be grate. thank you for your time

11 Replies

TheTik•3w ago

The rest should be more of the same, did you have a specific issue with the next step?

NU77Y8UDDYOP•3w ago

Right now I don’t know how to setup the induction probe it did not give the option in wizard And I have not been able to test the Z motors yet cause I’m afraid the induction pro will not work Right now. I have it plugged into PB7 on the main board.

TheTik•3w ago

try something like this in your printer.cfg

[probe]
pin: PB7

[probe]
pin: PB7

NU77Y8UDDYOP•3w ago

I was almost thinking about getting a SuperPINDA Sensor and print out the mod that goes behind the hot end for it

TheTik•3w ago

do you know if your sensor is npn or pnp? NO or NC?

NU77Y8UDDYOP•3w ago

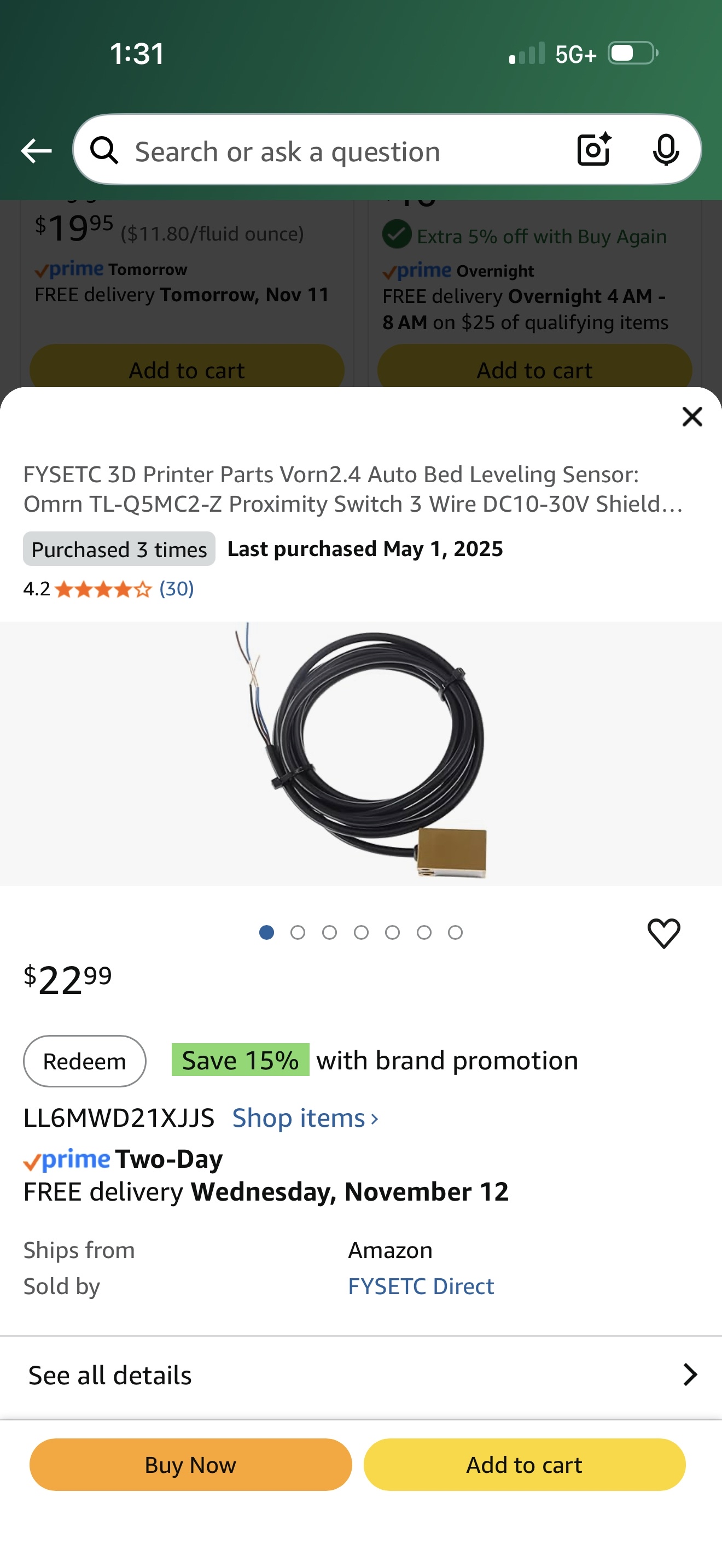

The one I have installed is

NU77Y8UDDYOP•3w ago

TheTik•3w ago

the notes in the older ratos has this. If you can figure out what your probe is, this should help

#pin: ^probe_pin # For NPN NC probes such as the Super Pinda / Vinda / SupCR / Decoprobe probes.
#pin: ^!probe_pin # NPN NO (refer to the specs on your probe)
#pin: probe_pin # PNP NO (refer to the specs on your probe)
#pin: !probe_pin # PNP NC (refer to the specs on your probe)

#pin: ^probe_pin # For NPN NC probes such as the Super Pinda / Vinda / SupCR / Decoprobe probes.
#pin: ^!probe_pin # NPN NO (refer to the specs on your probe)
#pin: probe_pin # PNP NO (refer to the specs on your probe)
#pin: !probe_pin # PNP NC (refer to the specs on your probe)

NU77Y8UDDYOP•3w ago

Just found this in my ratrig box I paid for a beacon and super Linda I guess Rat Rig "SuperPinda" probe by Pepperl & Fuchs (Inductive 5VDC Sensor

TheTik•3w ago

Then probably do pin: ^PB7

NU77Y8UDDYOP•3w ago

That’s what I was thanking I’ll let you know how it goes after a guy gets the mount printed And it was a nc by the way I installed the SuperPinda and it registered it right away I just have to wait for the printed part and I guess test the Z motors. Thank you for your help the til
