V4.1 500 IDEX
bed meshOne Question, after the 60°C Beacon calibration (took very long) I get this:

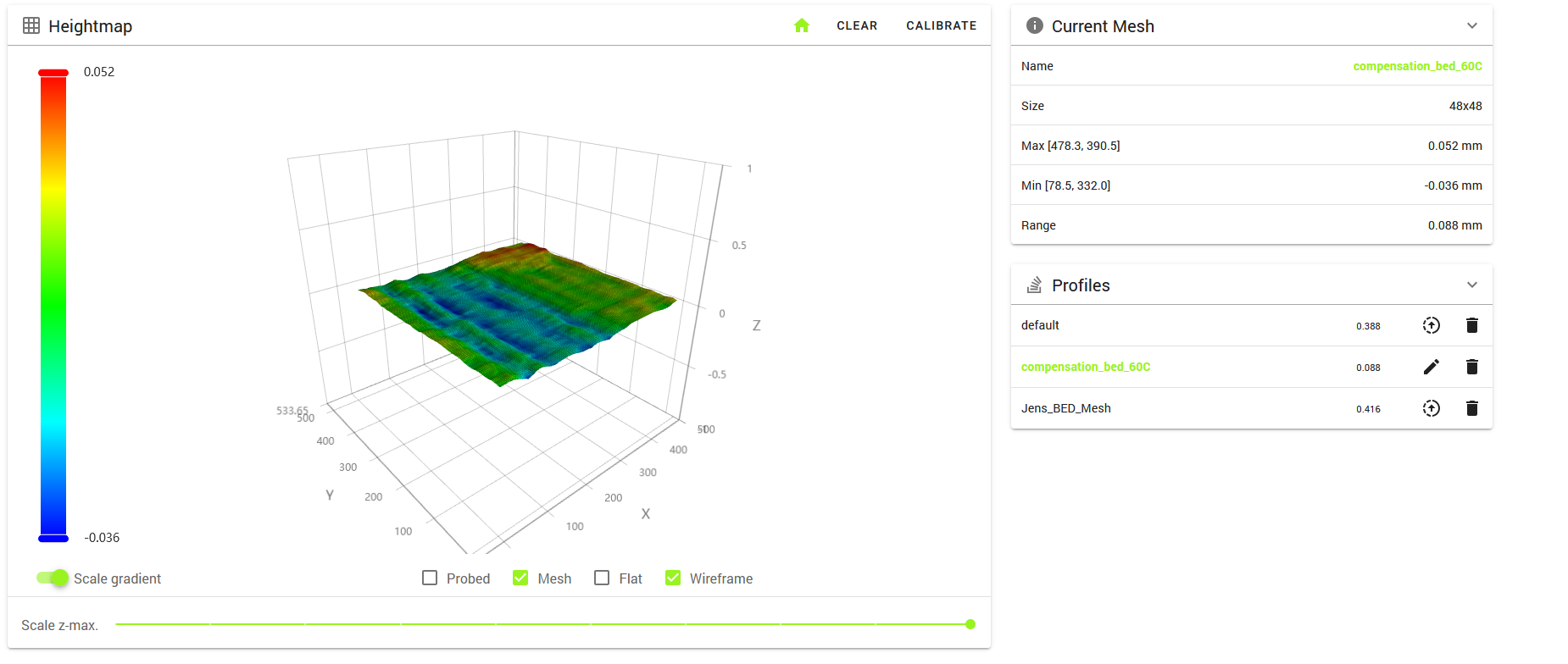

0.088 Mesh (first picture)

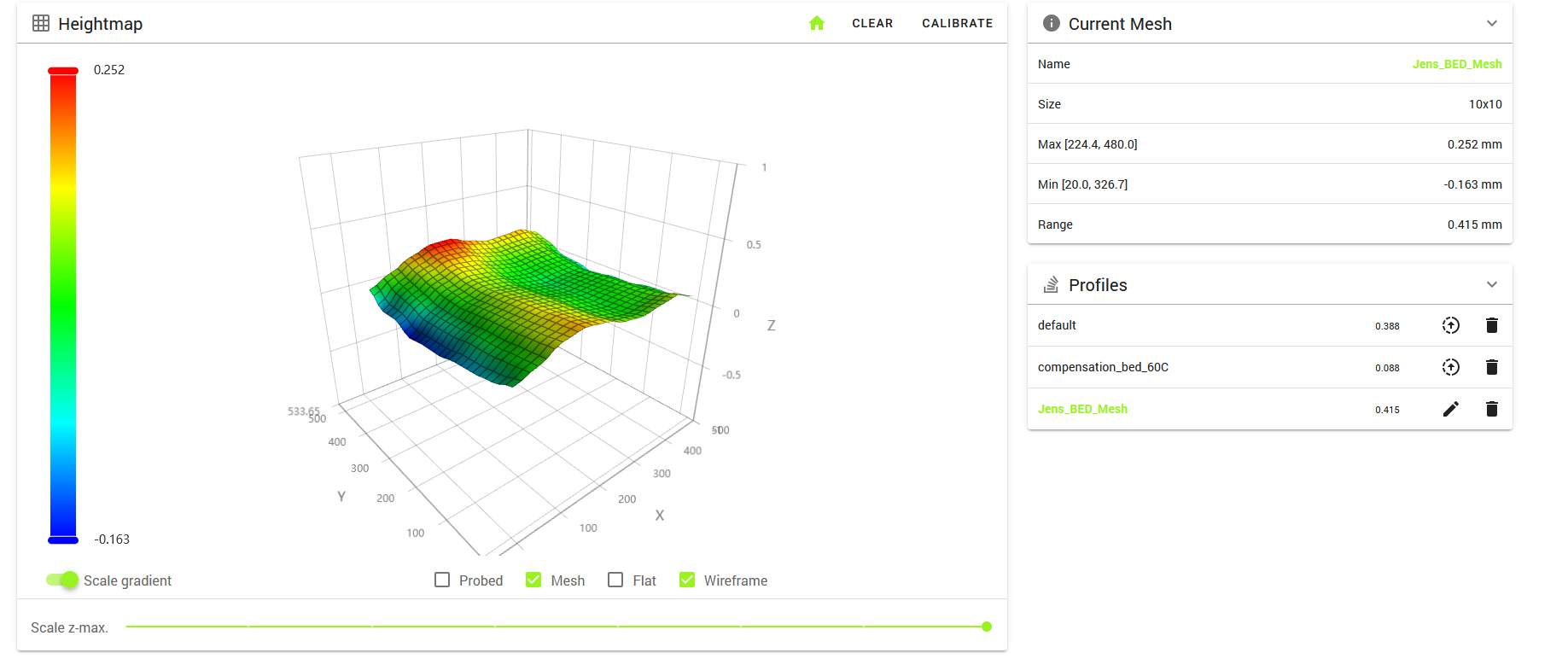

Then before prints I do a "faster mesh", 10x10 only. But it is way more extreme with regard to deviations.
What might be the reason?
[bed_mesh]
probe_count: 10,10 # Number of probe points in X and Y directions
mesh_pps: 2,2 # Points per segment between mesh probe points
algorithm: bicubic # Interpolation algorithm for mesh generation
fade_start: 0 # Z height at which to begin mesh fading
fade_end: 0 # Z height at which to stop mesh fading
fade_target: 0 # Z offset after mesh fade completes
bicubic_tension: 0.05
0.088 Mesh (first picture)
Then before prints I do a "faster mesh", 10x10 only. But it is way more extreme with regard to deviations.
What might be the reason?
[bed_mesh]
probe_count: 10,10 # Number of probe points in X and Y directions
mesh_pps: 2,2 # Points per segment between mesh probe points
algorithm: bicubic # Interpolation algorithm for mesh generation
fade_start: 0 # Z height at which to begin mesh fading
fade_end: 0 # Z height at which to stop mesh fading
fade_target: 0 # Z offset after mesh fade completes
bicubic_tension: 0.05
