hey wait net7 aot has no 32bit support how did you do this, unless you used a 64bit XP build

LLyris the Kitori hey wait net7 aot has no 32bit support how did you do this, unless you used a 64...

R

Redhacker2•10/25/22, 6:37 PM

you build it yourself, IIRC there is a 32-bit compilation path that was either removed fairly recently, or that just needs enabled during compilation of the AOT compiler but is unsupported

L

Lyris the KitoriOP•10/25/22, 6:38 PM

i couldnt even get ilc building in the first place :^)

R

Redhacker2•10/25/22, 6:39 PM

Some people just have the magic touch

R

Redhacker2•10/25/22, 6:39 PM

you and I? we are not one of them

C

ChickenSystems•10/25/22, 6:40 PM

I am in Las Vegas so I am not at my PC but that was 64bit XP. It worked on 32bit but it was much more involved iirc.

L

Lyris the KitoriOP•10/25/22, 6:41 PM

could you type out a rough step list? doesn't need to be exact or even have direct commands, i can fill in any gaps

C

ChickenSystems•10/25/22, 6:42 PM

Generally just ask your build script to produce an obj and link it using XP's dev environment.

L

Lyris the KitoriOP•10/25/22, 6:42 PM

what build script, the csproj?

C

ChickenSystems•10/25/22, 6:43 PM

No ilc and the cs compiler. I forget the proper names of them.

L

Lyris the KitoriOP•10/25/22, 6:43 PM

o

L

Lyris the KitoriOP•10/25/22, 6:44 PM

my school blocks mircosoft.com so i can't read the docs bruhhh

C

ChickenSystems•10/25/22, 6:44 PM

RIP.

L

Lyris the KitoriOP•10/25/22, 6:45 PM

jokes on them i have archive.org

C

ChickenSystems•10/25/22, 6:47 PM

That also had no real GC or other nice C# features by the way. It was basically C just for the sake of getting it on XP. If I were to port an existing project to XP I would attempt to bring the GC with me.

L

Lyris the KitoriOP•10/25/22, 6:47 PM

i have infinite free time

L

Lyris the KitoriOP•10/25/22, 6:47 PM

i just need someplace to start tbh

LLyris the Kitori i have infinite free time

R

Redhacker2•10/25/22, 6:48 PM

fix meh textures in my SilkyNVG backend

L

Lyris the KitoriOP•10/25/22, 6:48 PM

no

R

Redhacker2•10/25/22, 6:48 PM

yes

L

Lyris the KitoriOP•10/25/22, 6:48 PM

R

Redhacker2•10/25/22, 6:49 PM

no but seriously, that sounds like a rough timesink

L

Lyris the KitoriOP•10/25/22, 6:49 PM

if i have to write my own damn gc i will

R

Redhacker2•10/25/22, 6:49 PM

I wanna see that

C

ChickenSystems•10/25/22, 6:52 PM

There is a replacement GC sample in one of the dotnet repos.

L

Lyris the KitoriOP•10/25/22, 6:52 PM

oh

C

ChickenSystems•10/25/22, 6:53 PM

Unity is building their new GC from it iirc. At least they have it on their github.

LLyris the Kitori hey wait net7 aot has no 32bit support how did you do this, unless you used a 64...

F

Furball•10/25/22, 8:05 PM

well the screenshot shows the x64 command line

FFurball well the screenshot shows the x64 command line

L

Lyris the KitoriOP•10/25/22, 9:00 PM

i apologize i am blind without my glasses and can't read that on my phone

F

Furball•10/26/22, 4:58 AM

a

R

Rorschach•10/26/22, 4:18 PM

Hi guys, anyone here that can help with ImGuiNET implementation in Silk.NET?
I am trying to load a custom font but it straight up crashes the minimal example that is provided:

OnLoad():
_fontAwesome = ImGuiNET.ImGui.GetIO().Fonts.AddFontFromFileTTF(Path.Combine(assemblyPath, @"fa-solid-900.ttf"), 16);
.
.
.
OnRender():
ImGuiNET.ImGui.PushFont(_fontAwesome); // <- crashes
ImGuiNET.ImGui.Text("\uf007 User");

OnLoad():
_fontAwesome = ImGuiNET.ImGui.GetIO().Fonts.AddFontFromFileTTF(Path.Combine(assemblyPath, @"fa-solid-900.ttf"), 16);
.
.
.
OnRender():
ImGuiNET.ImGui.PushFont(_fontAwesome); // <- crashes
ImGuiNET.ImGui.Text("\uf007 User");

OnLoad():
_fontAwesome = ImGuiNET.ImGui.GetIO().Fonts.AddFontFromFileTTF(Path.Combine(assemblyPath, @"fa-solid-900.ttf"), 16);
.
.
.
OnRender():
ImGuiNET.ImGui.PushFont(_fontAwesome); // <- crashes
ImGuiNET.ImGui.Text("\uf007 User");

OnLoad():
_fontAwesome = ImGuiNET.ImGui.GetIO().Fonts.AddFontFromFileTTF(Path.Combine(assemblyPath, @"fa-solid-900.ttf"), 16);
.
.
.
OnRender():
ImGuiNET.ImGui.PushFont(_fontAwesome); // <- crashes
ImGuiNET.ImGui.Text("\uf007 User");

This works fine on the regular version of ImGuiNET so I am assuming something is wrong on Silk.NET side

L

Lyris the KitoriOP•10/26/22, 4:19 PM

wdym "crashes"

L

Lyris the KitoriOP•10/26/22, 4:19 PM

segfault?

L

Lyris the KitoriOP•10/26/22, 4:19 PM

do you get a stack trace?

R

Rorschach•10/26/22, 4:19 PM

it closes without any error

L

Lyris the KitoriOP•10/26/22, 4:20 PM

did you regenerate the font atlas?

L

Lyris the KitoriOP•10/26/22, 4:21 PM

also, specify font config on the constructor for ImGuiController

LLyris the Kitori did you regenerate the font atlas?

R

Rorschach•10/26/22, 4:21 PM

if I call

ImGuiNET.ImGui.GetIO().Fonts.Build();

ImGuiNET.ImGui.GetIO().Fonts.Build();

all fonts are gone

LLyris the Kitori also, specify font config on the constructor for ImGuiController

R

Rorschach•10/26/22, 4:22 PM

yes, I load my deafult UI font, which works fine

R

Rorschach•10/26/22, 4:22 PM

Silk.NET.OpenGL.Extensions.ImGui.ImGuiFontConfig fontConfDefault = new(Path.Combine(assemblyPath, @"Inter-Font.ttf"), 14);
_Controller = new ImGuiController(
    _Gl = _Window.CreateOpenGL(),
    _Window,
    _InputContext = _Window.CreateInput(),
    fontConfDefault
);

Silk.NET.OpenGL.Extensions.ImGui.ImGuiFontConfig fontConfDefault = new(Path.Combine(assemblyPath, @"Inter-Font.ttf"), 14);
_Controller = new ImGuiController(
    _Gl = _Window.CreateOpenGL(),
    _Window,
    _InputContext = _Window.CreateInput(),
    fontConfDefault
);

Silk.NET.OpenGL.Extensions.ImGui.ImGuiFontConfig fontConfDefault = new(Path.Combine(assemblyPath, @"Inter-Font.ttf"), 14);
_Controller = new ImGuiController(
    _Gl = _Window.CreateOpenGL(),
    _Window,
    _InputContext = _Window.CreateInput(),
    fontConfDefault
);

Silk.NET.OpenGL.Extensions.ImGui.ImGuiFontConfig fontConfDefault = new(Path.Combine(assemblyPath, @"Inter-Font.ttf"), 14);
_Controller = new ImGuiController(
    _Gl = _Window.CreateOpenGL(),
    _Window,
    _InputContext = _Window.CreateInput(),
    fontConfDefault
);

R

Rorschach•10/26/22, 4:24 PM

I tried to merge the two fonts before creating the controller but unfortunately ImGuiFontConfig does not provide any means to load a range of glyphs or merge fonts

R

Rorschach•10/26/22, 4:24 PM

however PushFont() should always work...

L

Lyris the KitoriOP•10/26/22, 4:25 PM

run the app under gdb or smthn and try to get a stack trace

LLyris the Kitori run the app under gdb or smthn and try to get a stack trace

R

Rorschach•10/26/22, 4:35 PM

how do I set this up? Im on linux in VSCode

L

Lyris the KitoriOP•10/26/22, 4:36 PM

https://www.suse.com/support/kb/doc/?id=000016799

Using gdb to get a backtrace of a failing application | Support | SUSE

LLyris the Kitori run the app under gdb or smthn and try to get a stack trace

R

Rorschach•10/26/22, 4:48 PM

New Thread 0x7fff740506c0 (LWP 27671)]

Thread 1 "test" received signal SIGSEGV, Segmentation fault.
0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) () from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so

New Thread 0x7fff740506c0 (LWP 27671)]

Thread 1 "test" received signal SIGSEGV, Segmentation fault.
0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) () from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so

New Thread 0x7fff740506c0 (LWP 27671)]

Thread 1 "test" received signal SIGSEGV, Segmentation fault.
0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) () from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so

New Thread 0x7fff740506c0 (LWP 27671)]

Thread 1 "test" received signal SIGSEGV, Segmentation fault.
0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) () from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so

R

Rorschach•10/26/22, 4:49 PM

ImGuiNET.ImGui.PushFont

ImGuiNET.ImGui.PushFont

ImGuiNET.ImGui.PushFont

ImGuiNET.ImGui.PushFont actually segfaults

R

Rorschach•10/26/22, 4:53 PM

gdb (bt)
#0  0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#1  0x00007fff41923d6c in ImGui::PushFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#2  0x00007fff7ee34a6d in ?? ()
#3  0x0000000000effd1b in ?? ()
#4  0x00007ffff7878f18 in ?? () from /usr/share/dotnet/shared/Microsoft.NETCore.App/6.0.9/libcoreclr.so
#5  0xffffffffffffffff in ?? ()
#6  0x00007fff7ed29bb8 in ?? ()
#7  0x00007ffff7fc4080 in ?? ()
#8  0x00007fffffffcac0 in ?? ()
#9  0x00007fff7ee34a6d in ?? ()
#10 0x00007fffffffcb40 in ?? ()
#11 0x0000000000050021 in ?? ()
#12 0x0000555555606030 in ?? ()
#13 0x0000555556818fc0 in ?? ()
#14 0x00007fffffffd4f0 in ?? ()
#15 0x00007fffffffd658 in ?? ()
#16 0x0000000000000000 in ?? ()

gdb (bt)
#0  0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#1  0x00007fff41923d6c in ImGui::PushFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#2  0x00007fff7ee34a6d in ?? ()
#3  0x0000000000effd1b in ?? ()
#4  0x00007ffff7878f18 in ?? () from /usr/share/dotnet/shared/Microsoft.NETCore.App/6.0.9/libcoreclr.so
#5  0xffffffffffffffff in ?? ()
#6  0x00007fff7ed29bb8 in ?? ()
#7  0x00007ffff7fc4080 in ?? ()
#8  0x00007fffffffcac0 in ?? ()
#9  0x00007fff7ee34a6d in ?? ()
#10 0x00007fffffffcb40 in ?? ()
#11 0x0000000000050021 in ?? ()
#12 0x0000555555606030 in ?? ()
#13 0x0000555556818fc0 in ?? ()
#14 0x00007fffffffd4f0 in ?? ()
#15 0x00007fffffffd658 in ?? ()
#16 0x0000000000000000 in ?? ()

gdb (bt)
#0  0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#1  0x00007fff41923d6c in ImGui::PushFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#2  0x00007fff7ee34a6d in ?? ()
#3  0x0000000000effd1b in ?? ()
#4  0x00007ffff7878f18 in ?? () from /usr/share/dotnet/shared/Microsoft.NETCore.App/6.0.9/libcoreclr.so
#5  0xffffffffffffffff in ?? ()
#6  0x00007fff7ed29bb8 in ?? ()
#7  0x00007ffff7fc4080 in ?? ()
#8  0x00007fffffffcac0 in ?? ()
#9  0x00007fff7ee34a6d in ?? ()
#10 0x00007fffffffcb40 in ?? ()
#11 0x0000000000050021 in ?? ()
#12 0x0000555555606030 in ?? ()
#13 0x0000555556818fc0 in ?? ()
#14 0x00007fffffffd4f0 in ?? ()
#15 0x00007fffffffd658 in ?? ()
#16 0x0000000000000000 in ?? ()

gdb (bt)
#0  0x00007fff41923d19 in ImGui::SetCurrentFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#1  0x00007fff41923d6c in ImGui::PushFont(ImFont*) ()
   from /home/rik/test/bin/Debug/net6.0/runtimes/linux-x64/native/libcimgui.so
#2  0x00007fff7ee34a6d in ?? ()
#3  0x0000000000effd1b in ?? ()
#4  0x00007ffff7878f18 in ?? () from /usr/share/dotnet/shared/Microsoft.NETCore.App/6.0.9/libcoreclr.so
#5  0xffffffffffffffff in ?? ()
#6  0x00007fff7ed29bb8 in ?? ()
#7  0x00007ffff7fc4080 in ?? ()
#8  0x00007fffffffcac0 in ?? ()
#9  0x00007fff7ee34a6d in ?? ()
#10 0x00007fffffffcb40 in ?? ()
#11 0x0000000000050021 in ?? ()
#12 0x0000555555606030 in ?? ()
#13 0x0000555556818fc0 in ?? ()
#14 0x00007fffffffd4f0 in ?? ()
#15 0x00007fffffffd658 in ?? ()
#16 0x0000000000000000 in ?? ()

R

Rorschach•10/26/22, 5:14 PM

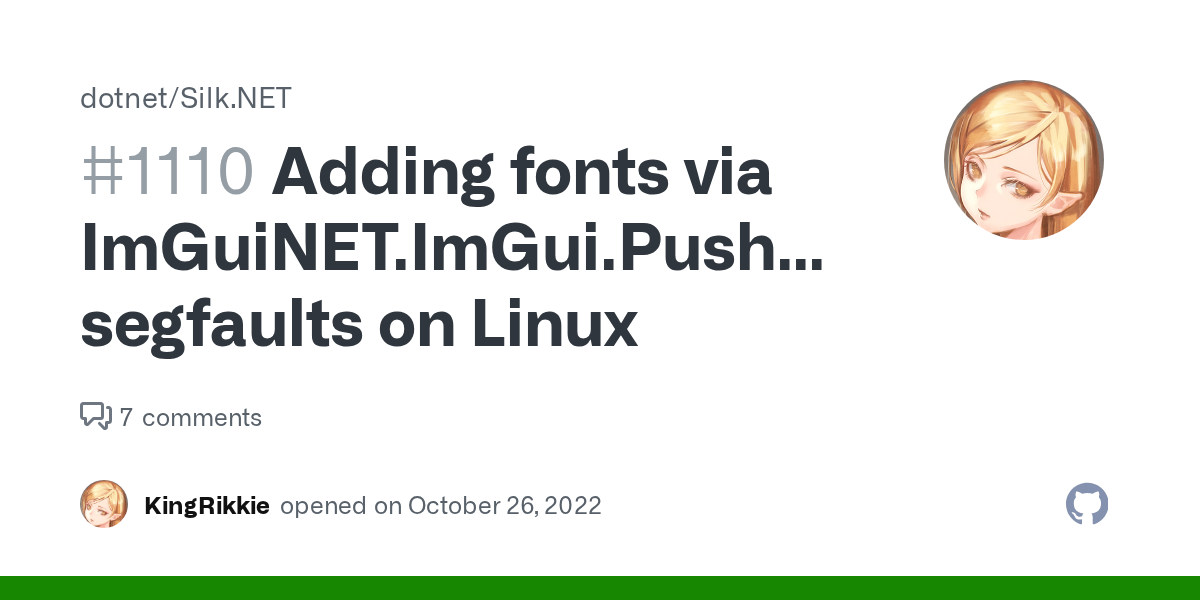

I opened a new issue: https://github.com/dotnet/Silk.NET/issues/1110

GitHub

Adding fonts via ImGuiNET.ImGui.PushFont() segfaults on Linux · Iss...

Summary Adding any font via the providers helper methods crashes the application as soon as one tries to ImGuiNET.ImGui.PushFont(). Rebuilding the font atlas through ImGuiNET.ImGui.GetIO().Fonts.Bu...

C

Catsillas•10/27/22, 3:17 AM

any support for pasting text into a window?

CCatsillas any support for pasting text into a window?

L

Lyris the KitoriOP•10/27/22, 3:17 AM

yea theres a 'clipboard' property on IKeyboard

hey wait net7 aot has no 32bit support how did you do this, unless you used a 64bit XP build
