SIs there a manual somewhere? I connected it and calibrated it in windows. Then I opened VP Configurator and assigned my stick (virpil constellation) . Stored the config and sent it to (clicked those two buttons on the bottom of the configurator). In DCS no joy.
FDid you bind the joystick buttons in DCS?
SIn DCS I found I had to enable FF in the options, and bind the base axes to pitch and roll, and then restart DCS in order for the FF to start working.
SOK! it's working. Thank you @sliphavoc . Only problem now is that the stick wants to pull back (in the A10) Flying level requires constant forward pressure.

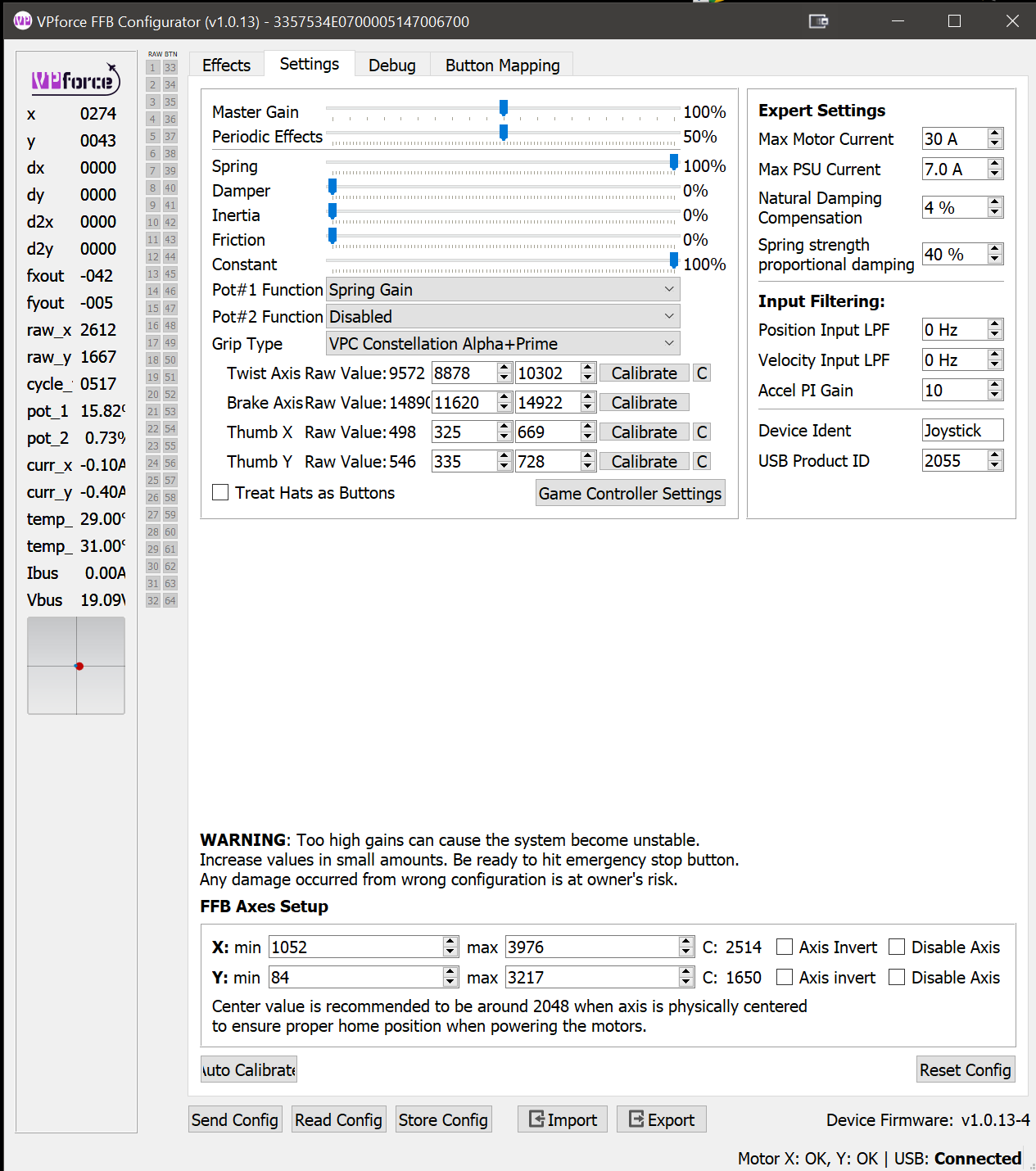

SVP Configurator screens look like this:
S
S
Sany suggestions on settings for damper, inertia, friction, endstops, constant force options?
SI inverted the y axis and still have the same problem-constant back pressure needed for level flight. Fix?
VYour dot isn't centered on the axis map there, is it supposed to be?
Sat rest, in the usb game control panel, the dot is centered. However, when I get into the A10, and press fly, the stick 'comes alive'. It wants to assume a somewhat pitch down condition at rest. If I jump in the control options window, the Y axis shows about half way to the left (down) at rest. Full excursion is possible but obviously with a good amount of 'force feedback'
MI think this is why he makes balance spring
WJumped in the A-10C free flight and yes it's neutral trim is pitched down about half, but it flies level no problem with the stick facing forward
MI just make the y axis finish earlier that the physical limit when I calibrate it
AThat would indicate high electric field that was high enough to arc and cause the ionization of the air
.
.
WNah, it's probably new plastic smell from the fans
AYes, most likely is. But I thought that everyone would be familiar with the smell of new plastic by now. Not 100% familiar with every component/design of your board, but it seems very unlikely that it could, even under some weird conditions, produce kV of voltage, especially with most of the things running on 3.3, 5 or 24V for motors or 48V for stronger motors.
WDefinitely not the latter, though I have to agree the fans have strange thermoplastic smell, but it should clear up after a while.
VSo after calibration is it possible for x&y to be 0000 or is that asking too much precision from the hardware?
WWith zero dead-zone this is hard to achieve
- But to minimize the error you can better balance the grip
- increase stiffness near the center using spring curve mapping.
VAny idea at approximately what number DCS would register an input thus impacting flight ever so slightly?
Wthe numbers in the VP UI are +-4096 - so for example 100 is only 1.2% of the total throw
VGotcha thanks for the info
Ssome questions on vp configurator:
S1)how is 'spring' different from 'balance spring'?
S2) what does saturation do?
S3)what does filter do?
S4) what does forced effect do?
S5) what do end stops do?
S6) why are my limits so different from yours? (In the photo above my X and Y (at the bottom of the second image ) are way less than 4096
S7) is there a manual so I can stop asking stupid questions?
W1) Balance spring is used to balance a heavy grip so it doesn't sag when you leave it at an angle. It needs to be tuned when other spring effects are disabled.
2) Saturation limits the effect when it reaches the preset level. (black line in the example). Rarely used.
3) Filter is the control bandwidth, can be tuned to get a better system response, too high can cause oscillations. Advanced feature, defaults are good.
2) Saturation limits the effect when it reaches the preset level. (black line in the example). Rarely used.
3) Filter is the control bandwidth, can be tuned to get a better system response, too high can cause oscillations. Advanced feature, defaults are good.
- "Forced effect" means this effect will be "Forced" or locked in and DirectX games will not have authority to override it. For example if you lock the spring effect, trim will not work from DCS. Advanced usage.
- These are soft limits that will prevent/resist the stick moving further than preset throw % in each axis direction.
- Not sure about what you mean exactly here. Could you elaborate?
- Not yet, but will be in the works soon. There's also the FFB kit video: https://www.youtube.com/watch?v=iNhRD2Bsb8o that applies to the Rhino as well. Just the earlier version. Also the the App if you hover mouse on some controls there's a tooltip with help that pops-up.
YouTubeValmantas Palikša
This is a first introduction of the Rhino FFB system that will be available soon for purchase as a DYI kit. This system will enable enthusiasts to build a plug-an-play FFB joysticks with custom mechanics. Contact me for details if interested.
Contacts:
VPforce Discord Channel: https://discord.gg/Y7YmFGHbee
DCS Forums: https://forum.dcs.world/p...
Contacts:
VPforce Discord Channel: https://discord.gg/Y7YmFGHbee
DCS Forums: https://forum.dcs.world/p...
Sthank you. re 6):

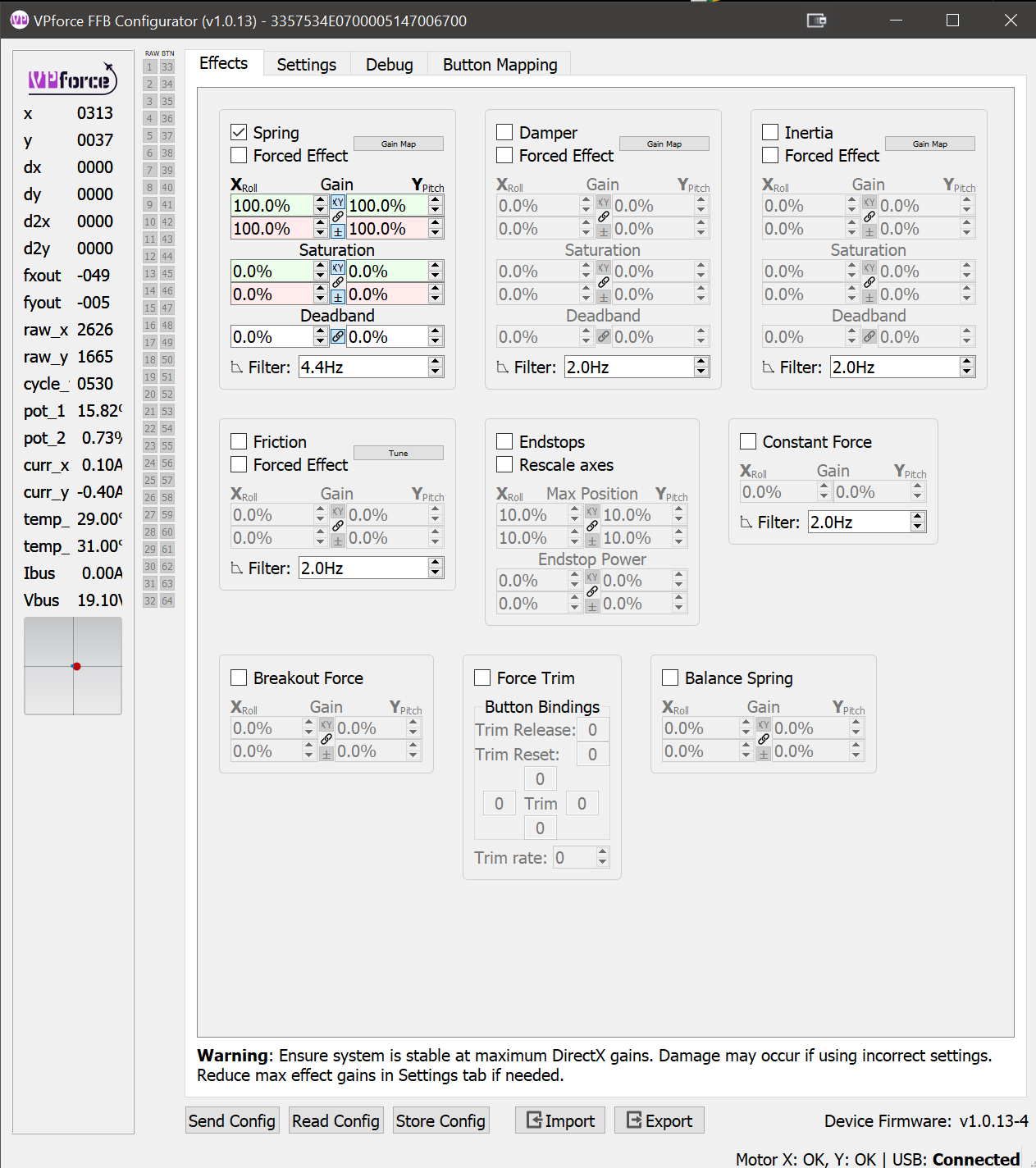

Sin my second pic posted above under FFB axes setup
Xmin 1052 Xmax 3976 center 2514 effective range is 3976-1052=2324
Ymin 84 Ymax 3217 center 1650 effective range is 3217-84=3133
Xmin 1052 Xmax 3976 center 2514 effective range is 3976-1052=2324
Ymin 84 Ymax 3217 center 1650 effective range is 3217-84=3133
Sisnt the range supposed to be 4096?
WNo, this can vary based on calibration. This is the physical data that the motor reports
Sthe video helped. I only pressed 'autocalibrate' and after moved the joystick. I'll try again making sure the 'autocalibrate button' stays highlighted during the calibration process
S7) how is 'send config' different than 'store config'?
WSend only stores in RAM, will be reverted after reset.
Store - writes to Flash
Store - writes to Flash
S8) on effects page, what does 'gain map' do?
S9) is there a possibility of having an 'import settings' and 'export settings' in vp configurator? Multiple settings would make it easier to restore configurations after a firmware update as well as sharing configs. Perhaps a real pilot would be able to make a config that REALLY feels what a stick in an Apache feels like.
S10) how do the numbers for gain and saturation on the effects page interact with the sliders on the settings page? In other words, why do those numbers even exist if we already have sliders?
S11) in the video, I noticed the numbers for friction gain were much less than the numbers for the gain of the other effects. Why?
W- Gain map allows to create a custom spring response based on throw
- It's already in place
- Sliders control the "global" per-effect class "Volume" or "Gain" because it's possible to create many Spring effects, many periodic effects, etc using directX API. The Effect boxes in the effects tab imitate the effects that DirectX could create and if does, those will be overriden.
Sok so i properly calibrated the rhino. as a test, i turned all settings to 0 and sent that config. I was expecting the stick to be loose. However, it is only loose in the y direction (it will stay where i put it). In the x direction there is significant resistance, more to the right than to the left. The stick returns to center. Is this a bug?
Sactually it is my seat cover engaging the belt. sorry for the ridiculous observation but it is important to remember there are extraneous factors.
Sfinally i looked at the gain map. For the spring effect, i see the deflection in all directions on the graph as i move the stick. However, there is no deflection of the stick indiccators in the damper and inertia gain maps. In fact i feel no dampening or inertia. even when these effects are enable, and set to 50% in the settings.
SI guess I should enter numbers in the boxes in the effects page?
Ssorry if I am sounding utterly stupid. It is late here and I just got off work and had a couple of drinks.
