i'd imagine it'd be the same with C#

L

im wondering if it was intended to be put in GPU memory and GPUs were intended to be built to execute commands from some internal buffer

P

PerkseyOP•4/8/23, 9:20 PM

there's no way to say "ok GC i'm going to need you to get ALL the way off my back please"

LLyris the Kitori im wondering if it was intended to be put in GPU memory and GPUs were intended t...

L

Lyris the Kitori•4/8/23, 9:20 PM

so the CPU just puts your recorded commands and tells the GPU to read all those

PPerksey i'd imagine it'd be the same with C#

T

TechPizza•4/8/23, 9:21 PM

the only problem is that java jni is somehow like 10x worse than c# pinvokes

L

Lyris the Kitori•4/8/23, 9:21 PM

thats because its using java

T

TechPizza•4/8/23, 9:22 PM

pfft so true angryturtle

K

khitiara•4/8/23, 9:55 PM

yall talking about fixed function stuff and im getting flashbacks to minecraft modding back in like 2014 when i last did it

K

khitiara•4/8/23, 9:55 PM

fixed function all the way all in java jni and it all was awful

H

Howie•4/8/23, 11:49 PM

Anyone do any Entity Component System stuff with all the data stored in GPU buffers? I'm trying to figure out the best balance between ease of use and compactness. I've got something working, but it doesn't feel quite right.

M

MasterMan•4/9/23, 11:48 AM

Has anyone got this exception when calling D3D12 CreateDevice?

The GPU will not respond to more commands, most likely because some other application submitted invalid commands. The calling application should re-create the device and continue. (0x887A0007)

I googled around, but didn't find any proper solution

M

MasterMan•4/9/23, 11:49 AM

Some say that OS needs graphics tools for debugging installed, official MS page lists this code as this:

M

MasterMan•4/9/23, 11:50 AM

To clarify, my laptop has 2 GPUs, might there be a problem if the application is launched on default GPU (Intel), but NVIDIA is used to create the D3D device?
upd: seems not related, just tested

P

PerkseyOP•4/9/23, 11:56 AM

I recommend activating the info queue to see if any debug messages pop through

PPerksey I recommend activating the info queue to see if any debug messages pop through

M

MasterMan•4/9/23, 11:58 AM

Doesn't that require an existing device?
Or there's a different way?

P

PerkseyOP•4/9/23, 11:58 AM

Oh wait this is when creating a device??

P

PerkseyOP•4/9/23, 11:58 AM

That’s really strange

M

MasterMan•4/9/23, 11:59 AM

Yeah

M

MasterMan•4/9/23, 11:59 AM

I'll try updating the driver and will see what happens
Quite weird

MMasterMan To clarify, my laptop has 2 GPUs, might there be a problem if the application is...

T

TechPizza•4/9/23, 12:00 PM

intel has a habit of laying about DX12 support

T

TechPizza•4/9/23, 12:00 PM

the driver pretends it supports DX12 but creating a device fails

TTechPizza intel has a habit of laying about DX12 support

M

MasterMan•4/9/23, 12:00 PM

Well, I'm trying to create it on an NVIDIA chip, not Intel
Plus, even the CPU is pretty recent, so should support it

M

MasterMan•4/9/23, 12:06 PM

The culprit is here
If I don't call it, device creation goes fine
Is it because the debug layer is missing on the host system?

T

TechPizza•4/9/23, 12:12 PM

that sounds plausible-ish?

M

MasterMan•4/9/23, 12:14 PM

Seems like calling that function isn't working, not sure why
Like, it goes through, but causes the createdevice error mentioned above
Even if I force it on through dxcpl, same thing

M

MasterMan•4/9/23, 12:16 PM

Maybe I use the wrong factory...

M

MasterMan•4/9/23, 12:25 PM

Okay, figured it out
EnableDebugLayer must be called before creating the DXGI factory, otherwise CreateDevice will fail with DXGI_ERROR_DEVICE_RESET (0x887a0007)
Somehow I overlooked that part, now everything works as intended

M

MasterMan•4/9/23, 12:25 PM

(maybe pin-worthy? :))

M

Machinarius•4/9/23, 3:52 PM

Have you folks seen this happen to anyone following the tutorial before?
My code warps the UV on that face for some reason, the tutorial code doesn't. Not sure what I am doing wrong

M

Machinarius•4/9/23, 3:53 PM

#version 330 core

// The coordinate this fragment should map to
in vec2 fUv;

uniform sampler2D uTexture;

out vec4 gl_Color;

void main() {
  vec4 texColor = texture(uTexture, fUv);
  if (texColor.a < 0.1) {
    discard;
  }
  gl_Color = texColor;
}

#version 330 core

// The coordinate this fragment should map to
in vec2 fUv;

uniform sampler2D uTexture;

out vec4 gl_Color;

void main() {
  vec4 texColor = texture(uTexture, fUv);
  if (texColor.a < 0.1) {
    discard;
  }
  gl_Color = texColor;
}

#version 330 core

// The coordinate this fragment should map to
in vec2 fUv;

uniform sampler2D uTexture;

out vec4 gl_Color;

void main() {
  vec4 texColor = texture(uTexture, fUv);
  if (texColor.a < 0.1) {
    discard;
  }
  gl_Color = texColor;
}

#version 330 core

// The coordinate this fragment should map to
in vec2 fUv;

uniform sampler2D uTexture;

out vec4 gl_Color;

void main() {
  vec4 texColor = texture(uTexture, fUv);
  if (texColor.a < 0.1) {
    discard;
  }
  gl_Color = texColor;
}

This is my fragment shader

M

Machinarius•4/9/23, 3:56 PM

I copied and pasted the vertex and uv data multiple times, and the GL calls seem equal

M

Machinarius•4/9/23, 3:58 PM

I'm on tutorial 2.1

P

PerkseyOP•4/9/23, 4:00 PM

hmmm yeah that is weird

P

PerkseyOP•4/9/23, 4:01 PM

bad projection matrix maybe?

P

PerkseyOP•4/9/23, 4:01 PM

(Or have we not got that far? I forget the tutorial structure)

M

Machinarius•4/9/23, 4:02 PM

public class Camera {
  private readonly IWindow window;

  public Vector3 Position { get; set; }
  public Vector3 LookTarget { get; set; }
  public Vector3 Direction => Vector3.Normalize(Position - LookTarget);
  public Vector3 Right => Vector3.Normalize(Vector3.Cross(Vector3.UnitY, Direction));
  public Vector3 Up => Vector3.Cross(Direction, Right);

  public Matrix4x4 ViewMatrix => Matrix4x4.CreateLookAt(
    Position, LookTarget, Up
  );

  public Matrix4x4 ProjectionMatrix => Matrix4x4.CreatePerspectiveFieldOfView(
    MathHelper.DegreesToRadians(45), window.Size.X / window.Size.Y, 0.1f, 100
  );

  public Camera(IWindow window) {
    this.window = window ?? throw new ArgumentNullException(nameof(window));

    // Start a few units away from the center of the scene so the contents can be seen
    Position = new Vector3(0, 0, 3);
    LookTarget = Vector3.Zero;
  }
}

public class Camera {
  private readonly IWindow window;

  public Vector3 Position { get; set; }
  public Vector3 LookTarget { get; set; }
  public Vector3 Direction => Vector3.Normalize(Position - LookTarget);
  public Vector3 Right => Vector3.Normalize(Vector3.Cross(Vector3.UnitY, Direction));
  public Vector3 Up => Vector3.Cross(Direction, Right);

  public Matrix4x4 ViewMatrix => Matrix4x4.CreateLookAt(
    Position, LookTarget, Up
  );

  public Matrix4x4 ProjectionMatrix => Matrix4x4.CreatePerspectiveFieldOfView(
    MathHelper.DegreesToRadians(45), window.Size.X / window.Size.Y, 0.1f, 100
  );

  public Camera(IWindow window) {
    this.window = window ?? throw new ArgumentNullException(nameof(window));

    // Start a few units away from the center of the scene so the contents can be seen
    Position = new Vector3(0, 0, 3);
    LookTarget = Vector3.Zero;
  }
}

public class Camera {
  private readonly IWindow window;

  public Vector3 Position { get; set; }
  public Vector3 LookTarget { get; set; }
  public Vector3 Direction => Vector3.Normalize(Position - LookTarget);
  public Vector3 Right => Vector3.Normalize(Vector3.Cross(Vector3.UnitY, Direction));
  public Vector3 Up => Vector3.Cross(Direction, Right);

  public Matrix4x4 ViewMatrix => Matrix4x4.CreateLookAt(
    Position, LookTarget, Up
  );

  public Matrix4x4 ProjectionMatrix => Matrix4x4.CreatePerspectiveFieldOfView(
    MathHelper.DegreesToRadians(45), window.Size.X / window.Size.Y, 0.1f, 100
  );

  public Camera(IWindow window) {
    this.window = window ?? throw new ArgumentNullException(nameof(window));

    // Start a few units away from the center of the scene so the contents can be seen
    Position = new Vector3(0, 0, 3);
    LookTarget = Vector3.Zero;
  }
}

public class Camera {
  private readonly IWindow window;

  public Vector3 Position { get; set; }
  public Vector3 LookTarget { get; set; }
  public Vector3 Direction => Vector3.Normalize(Position - LookTarget);
  public Vector3 Right => Vector3.Normalize(Vector3.Cross(Vector3.UnitY, Direction));
  public Vector3 Up => Vector3.Cross(Direction, Right);

  public Matrix4x4 ViewMatrix => Matrix4x4.CreateLookAt(
    Position, LookTarget, Up
  );

  public Matrix4x4 ProjectionMatrix => Matrix4x4.CreatePerspectiveFieldOfView(
    MathHelper.DegreesToRadians(45), window.Size.X / window.Size.Y, 0.1f, 100
  );

  public Camera(IWindow window) {
    this.window = window ?? throw new ArgumentNullException(nameof(window));

    // Start a few units away from the center of the scene so the contents can be seen
    Position = new Vector3(0, 0, 3);
    LookTarget = Vector3.Zero;
  }
}

This is the code that is calculating that matrix

M

Machinarius•4/9/23, 4:03 PM

var rotationAngle = MathHelper.DegreesToRadians((float) (absoluteTime * 100));
var modelMatrix = Matrix4x4.CreateRotationX(rotationAngle) * Matrix4x4.CreateRotationY(rotationAngle);

var rotationAngle = MathHelper.DegreesToRadians((float) (absoluteTime * 100));
var modelMatrix = Matrix4x4.CreateRotationX(rotationAngle) * Matrix4x4.CreateRotationY(rotationAngle);

var rotationAngle = MathHelper.DegreesToRadians((float) (absoluteTime * 100));
var modelMatrix = Matrix4x4.CreateRotationX(rotationAngle) * Matrix4x4.CreateRotationY(rotationAngle);

var rotationAngle = MathHelper.DegreesToRadians((float) (absoluteTime * 100));
var modelMatrix = Matrix4x4.CreateRotationX(rotationAngle) * Matrix4x4.CreateRotationY(rotationAngle);

This is the model matrix

M

Machinarius•4/9/23, 4:03 PM

absoluteTime

absoluteTime

absoluteTime

absoluteTime is

window.Time

window.Time

window.Time

window.Time

M

Machinarius•4/9/23, 4:51 PM

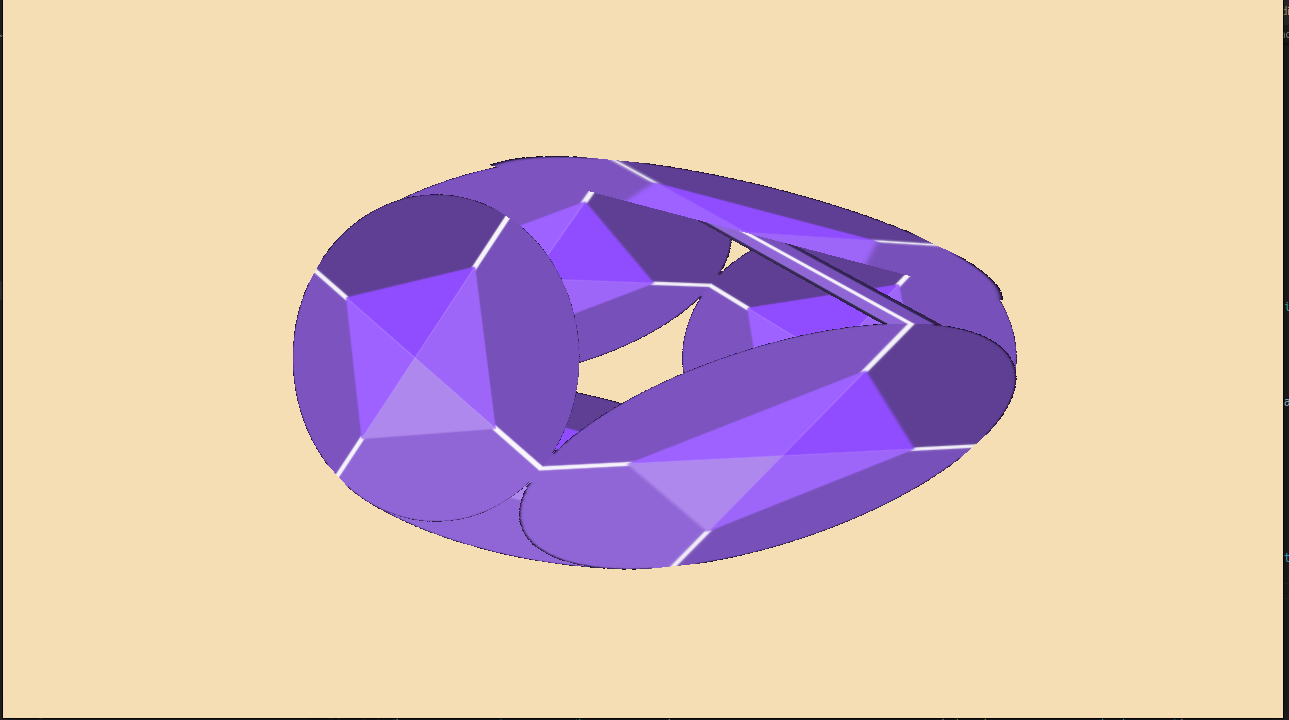

Changed the texture to be sure, but it still persists. The top face has this weird look on the texture

M

Machinarius•4/9/23, 7:43 PM

Dang. I was configuring a UV coordinate attribute like RGBA color data. That was the cause for this issue. Neat

M

Machinarius•4/9/23, 7:43 PM

OGL really allows you to shoot yourself in the foot silently

K

khitiara•4/9/23, 7:46 PM

most graphics programming does tbh

M

Machinarius•4/9/23, 7:48 PM

Game-Dev is pain

M

Machinarius•4/9/23, 9:37 PM

Should I prefer math bits from System.Numerics or Silk.Net.Maths?

L

Lyris the Kitori•4/9/23, 9:37 PM

always prefer System.Numerics

M

Machinarius•4/9/23, 9:37 PM

Got it

M

Machinarius•4/9/23, 9:37 PM

Is there a scenario where Silk's own Math bits are better/more desirable?

L

Lyris the Kitori•4/9/23, 9:38 PM

nope, only use Silk.NET.Maths if you need something that is missing

P

PerkseyOP•4/9/23, 9:39 PM

heyyyyyyy beyleyyyyyy

P

PerkseyOP•4/9/23, 9:40 PM

if you uh

P

PerkseyOP•4/9/23, 9:40 PM

ever wanted a bit of an extra project

i'd imagine it'd be the same with C#
