Is there a call I can use to convert the pointer to the error message `DebugMessageCallback` is givi

M

MachinariusOP•4/10/23, 1:41 AM

Trying to do what Khronos recommends on https://www.khronos.org/opengl/wiki/OpenGL_Error to catch errors the easy (but expensive) way

OpenGL Error

MMachinarius Is there a call I can use to convert the pointer to the error message `DebugMess...

L

Lyris the Kitori•4/10/23, 1:43 AM

SilkMarshal.PtrToString

M

MachinariusOP•4/10/23, 1:45 AM

~~Hmmm that seems to be returning a string representation of the pointer itself? I get 139814784783936~~

L

Lyris the Kitori•4/10/23, 1:45 AM

what?

M

MachinariusOP•4/10/23, 1:45 AM

I should really read the funciton signature

C

chairclr•4/10/23, 1:45 AM

lol

M

MachinariusOP•4/10/23, 1:46 AM

I am dum dum. I was WriteLine'ing the pointer, not the resolved string

L

Lyris the Kitori•4/10/23, 1:46 AM

ah

M

MachinariusOP•4/10/23, 1:46 AM

It works, thank you!

M

MachinariusOP•4/10/23, 1:48 AM

Ended up with this little helper to enable debug output:

  public static unsafe void EnableDebugOutput(this GL gl) {
    gl.Enable(GLEnum.DebugOutput);
    gl.DebugMessageCallback((source, type, id, severity, length, message, param) => {
      var errorString = SilkMarshal.PtrToString(message);
      Console.WriteLine($"Message from OpenGL ({type}) with severity {severity}:");
      Console.WriteLine(errorString);
    }, null);
  }

  public static unsafe void EnableDebugOutput(this GL gl) {
    gl.Enable(GLEnum.DebugOutput);
    gl.DebugMessageCallback((source, type, id, severity, length, message, param) => {
      var errorString = SilkMarshal.PtrToString(message);
      Console.WriteLine($"Message from OpenGL ({type}) with severity {severity}:");
      Console.WriteLine(errorString);
    }, null);
  }

  public static unsafe void EnableDebugOutput(this GL gl) {
    gl.Enable(GLEnum.DebugOutput);
    gl.DebugMessageCallback((source, type, id, severity, length, message, param) => {
      var errorString = SilkMarshal.PtrToString(message);
      Console.WriteLine($"Message from OpenGL ({type}) with severity {severity}:");
      Console.WriteLine(errorString);
    }, null);
  }

  public static unsafe void EnableDebugOutput(this GL gl) {
    gl.Enable(GLEnum.DebugOutput);
    gl.DebugMessageCallback((source, type, id, severity, length, message, param) => {
      var errorString = SilkMarshal.PtrToString(message);
      Console.WriteLine($"Message from OpenGL ({type}) with severity {severity}:");
      Console.WriteLine(errorString);
    }, null);
  }

M

MachinariusOP•4/10/23, 2:51 AM

I am a bit stuck on tutorial 3.2, I am getting very different lighting outputs. My code seems to somehow calculate lighting for all faces, while the tutorial code is lighting only the face that is directly in front of the light

M

MachinariusOP•4/10/23, 2:51 AM

Tutorial

M

MachinariusOP•4/10/23, 2:52 AM

Not sure why. I've checked that my shaders do the same, the vertexes and normals were straight-up copied

M

MachinariusOP•4/10/23, 2:53 AM

Any ideas would be greatly appreciated

M

MachinariusOP•4/10/23, 3:08 AM

This is the commit that introduced that lighting, in case anyone wants to give it a look https://github.com/Machinarius/Custom3dEngine/commit/203a1cf3a286d528c2052496dd658e7b9e01c54b

GitHub

Very sus lighting · Machinarius/Custom3dEngine@203a1cf

C

chairclr•4/10/23, 3:18 AM

this seems to be an issue with your vertex normals..? being incorrect? thats my guess

C

cucumis•4/10/23, 7:13 AM

i am experiencing a problem running the wgpu examples at https://github.com/dotnet/Silk.NET/tree/main/src/Lab/Experiments

the

libwgpu_native.so

libwgpu_native.so

libwgpu_native.so

libwgpu_native.so file is copied to the

runtimes/*/libwgpu_native.so

runtimes/*/libwgpu_native.so

runtimes/*/libwgpu_native.so

runtimes/*/libwgpu_native.so folder, but the webgpu backend can only find it if i copy it manually to the root of the build folder

errore for reference:

Unhandled exception. System.IO.FileNotFoundException: Could not load from any of the possible library names! Please make sure that the library is installed and in the right place!
   at Silk.NET.WebGPU.WebGPU.CreateDefaultContext(String[] n)
   at Silk.NET.WebGPU.WebGPU.GetApi()

Unhandled exception. System.IO.FileNotFoundException: Could not load from any of the possible library names! Please make sure that the library is installed and in the right place!
   at Silk.NET.WebGPU.WebGPU.CreateDefaultContext(String[] n)
   at Silk.NET.WebGPU.WebGPU.GetApi()

Unhandled exception. System.IO.FileNotFoundException: Could not load from any of the possible library names! Please make sure that the library is installed and in the right place!
   at Silk.NET.WebGPU.WebGPU.CreateDefaultContext(String[] n)
   at Silk.NET.WebGPU.WebGPU.GetApi()

Unhandled exception. System.IO.FileNotFoundException: Could not load from any of the possible library names! Please make sure that the library is installed and in the right place!
   at Silk.NET.WebGPU.WebGPU.CreateDefaultContext(String[] n)
   at Silk.NET.WebGPU.WebGPU.GetApi()

GitHub

Silk.NET/src/Lab/Experiments at main · dotnet/Silk.NET

The high-speed OpenGL, OpenCL, OpenAL, OpenXR, GLFW, SDL, Vulkan, Assimp, WebGPU, and DirectX bindings library your mother warned you about. - Silk.NET/src/Lab/Experiments at main · dotnet/Silk.NET

L

Lyris the Kitori•4/10/23, 7:14 AM

when building projects that reference other projects by files, libs arent copied around properly

L

Lyris the Kitori•4/10/23, 7:14 AM

its a dotnet thing

L

Lyris the Kitori•4/10/23, 7:14 AM

theres no fix

L

Lyris the Kitori•4/10/23, 7:14 AM

just copy it manually

C

cucumis•4/10/23, 7:14 AM

ok :/

C

cucumis•4/10/23, 7:14 AM

thanks

Ccucumis i am experiencing a problem running the wgpu examples at https://github.com/dotn...

L

Lyris the Kitori•4/10/23, 7:23 AM

also those arent examples, if you read the README file in src/Lab/

L

Lyris the Kitori•4/10/23, 7:23 AM

those arent examples

C

cucumis•4/10/23, 7:24 AM

oops my bad

L

Lyris the Kitori•4/10/23, 7:24 AM

we dont have dedicated WebGPU examples/tutorials at the moment

C

cucumis•4/10/23, 7:25 AM

i already know wgpu from rust so i wanted to look around to see how it looks in silk.net

L

Lyris the Kitori•4/10/23, 7:26 AM

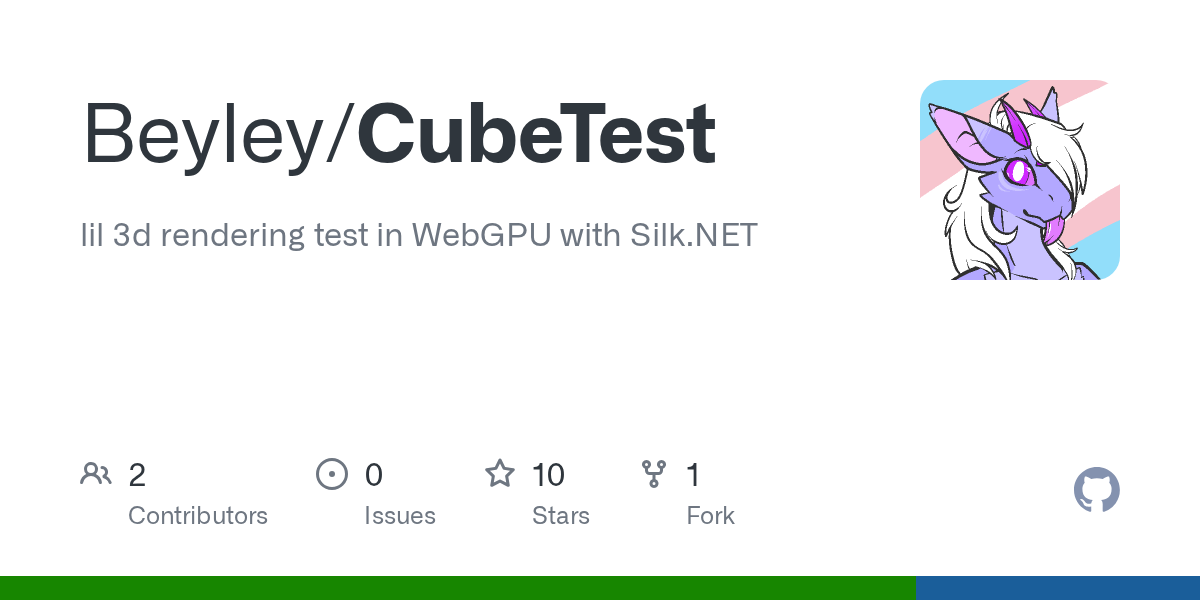

https://github.com/Beyley/CubeTest
i have a small 3d rendering project here you can take a look at

GitHub

GitHub - Beyley/CubeTest: lil 3d rendering test in WebGPU with Silk...

lil 3d rendering test in WebGPU with Silk.NET. Contribute to Beyley/CubeTest development by creating an account on GitHub.

C

cucumis•4/10/23, 7:26 AM

(i dont really like rust that much i'd rather use c#)

L

Lyris the Kitori•4/10/23, 7:26 AM

https://github.com/Beyley/CubeTest/blob/master/CubeTest/World/WorldGraphics.cs
this is where most of the magic happens

C

cucumis•4/10/23, 7:27 AM

you truly are the GOAT thank you

A

Aurumaker72•4/10/23, 8:50 AM

Hi, the

deltaTime

deltaTime

deltaTime

deltaTime values received in the silk window's

Render

Render

Render

Render event are abnormally low

A

Aurumaker72•4/10/23, 8:50 AM

I might be misinterpreting what the double provided by the

Render

Render

Render

Render event actually is, but it does seem to be t/s since last frame

A

Aurumaker72•4/10/23, 8:53 AM

Nope, nevermind. It's in milliseconds, alright.

P

Perksey•4/10/23, 9:20 AM

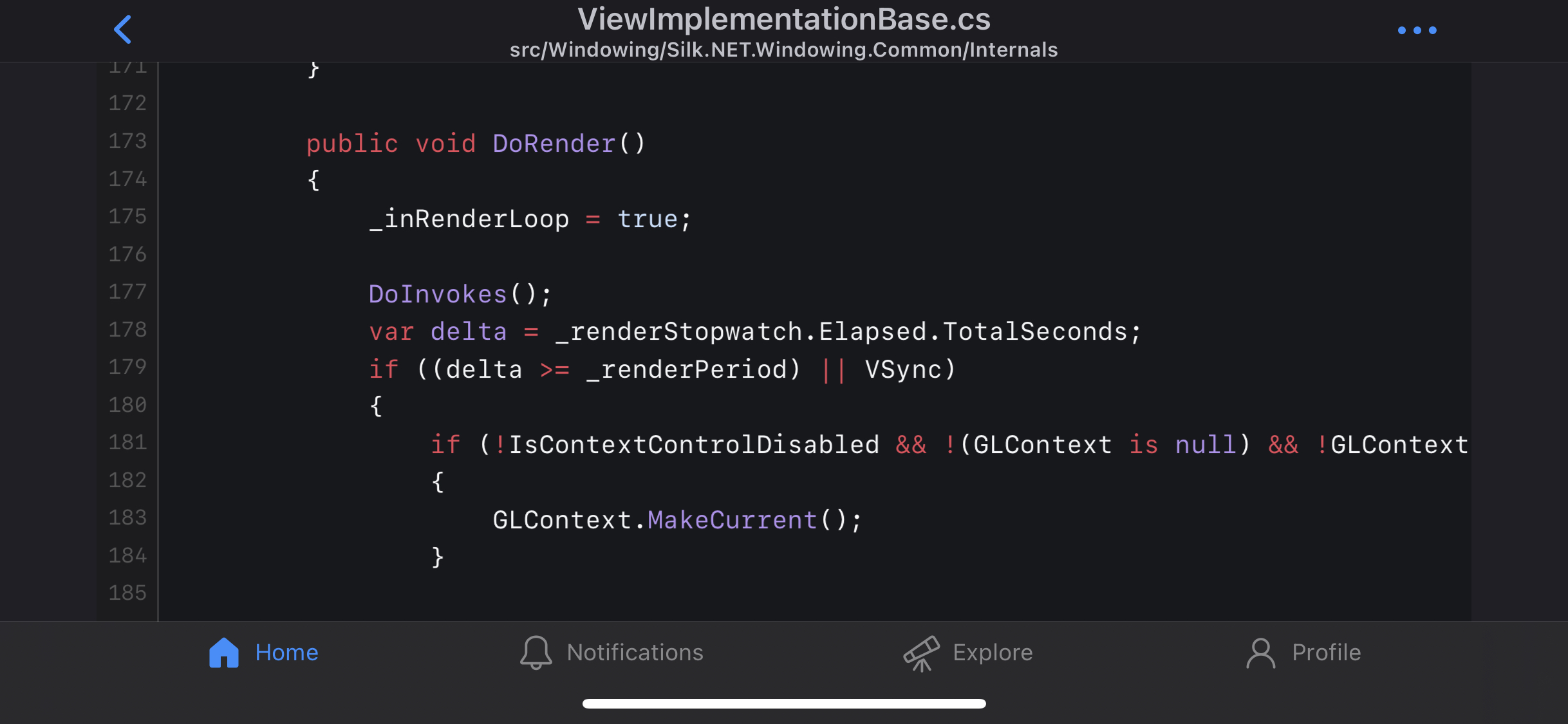

I swear they’re definitely in seconds

P

Perksey•4/10/23, 9:22 AM

Yep definitely seconds

Cchairclr this seems to be an issue with your vertex normals..? being incorrect? thats my ...

M

MachinariusOP•4/10/23, 1:00 PM

You were right. I was using a mesh with UV data instead of normal data. Late-night coding is one hell of a drug

M

malstraem•4/10/23, 3:30 PM

does anyone have experience successfully separating rendering and presentation in vulkan? i want to render to a single framebuffer and copy the rendered image to another acquired from swapchain. Is it possible?

H

Hololula•4/11/23, 9:05 AM

Is it possible to create Vulkan viewport on MAUI Panel?

C

CeSun•4/11/23, 11:41 AM

wait for webgl~

C

CeSun•4/11/23, 11:46 AM

Are there any experts on opengl es for android？

C

CeSun•4/11/23, 11:47 AM

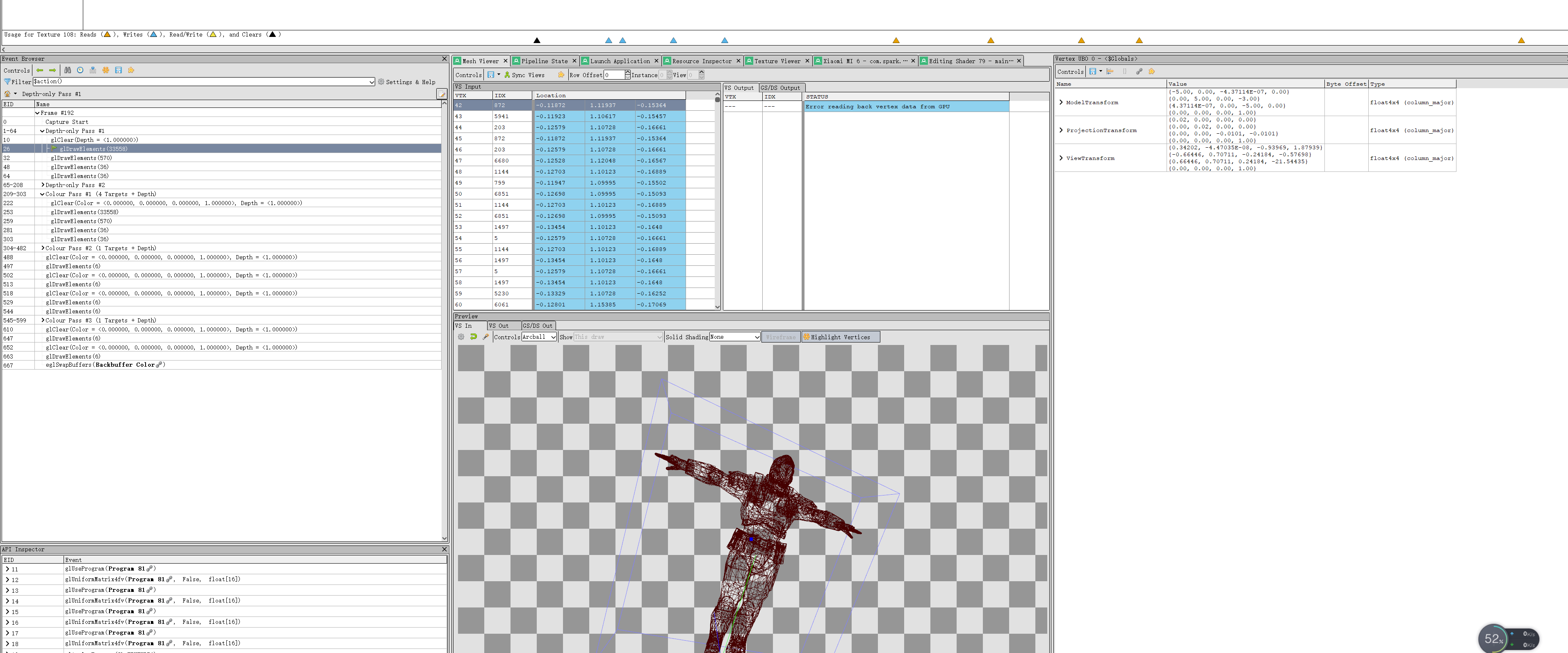

I ported my pc-side renderer to the Android platform, and encountered a problem: the screen is completely black. I tried to use renderdoc to capture the frame and found that the output vertex data of the vertex shader could not be obtained.

C

CeSun•4/11/23, 11:48 AM

C

CeSun•4/11/23, 11:48 AM

C

CeSun•4/11/23, 11:48 AM

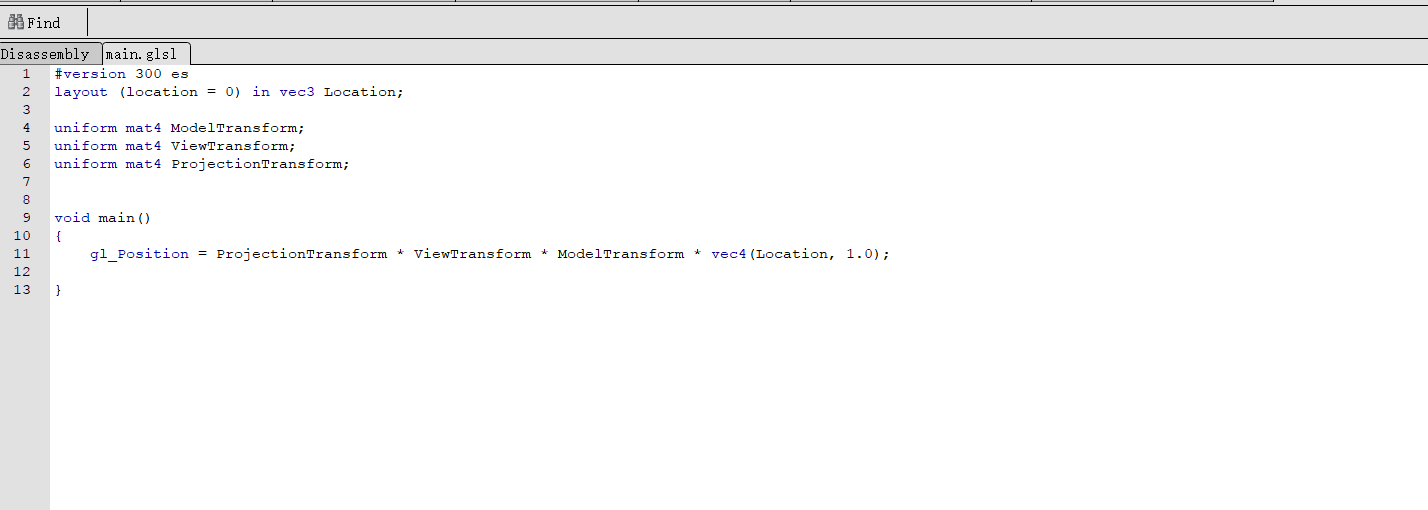

shader and vertex

F

Filiph Siitam Sandström•4/13/23, 12:38 PM

Any good high-level graphics libraries to recommend? Even as a kernel developer this is just way too low level.
Like if I want to draw a cube it should be a simple as

api.DrawCube(size, pos, texture)

api.DrawCube(size, pos, texture)

api.DrawCube(size, pos, texture)

api.DrawCube(size, pos, texture), things like vertices, indices should just be abstracted away

F

Furball•4/13/23, 2:53 PM

monogame or something

F

Furball•4/13/23, 2:53 PM

opengl isnt that low level tbh

F

Furball•4/13/23, 2:53 PM

shouldve seen vulkan
