Rhino has 180W supply, 19V ~ 10A.
You could look at Laptop PSUs or go with a Meanwell LRS-350-24, it's powerful for it's price, but bulky.

Wwalmis Rhino has 180W supply, 19V ~ 10A. You could look at Laptop PSUs or go with a Mea...

slowmover•5/16/23, 7:45 AM

This power supply will be able to work with 4x57BLF03 motor? Cause i am thinking of building full FFB pit. (cyclic, collective,pedals)

walmisOP•5/16/23, 7:46 AM

yeah, meanwell should handle it

slowmover•5/16/23, 7:48 AM

this board can handle 4 motors or i will need a second one? Or there is another board which supports 4 motors?

walmisOP•5/16/23, 8:11 AM

You would require two boards for 2 pairs of motors

slowmover•5/16/23, 9:08 AM

Is there a link to find the datasheet of the 57BLF03? to see the Dimensions?

Ye Old Grog•5/16/23, 9:11 AM

Google is your best bet

slowmover•5/16/23, 9:25 AM

Has anyone used FFB kit to a collective?

Comrade_Weng•5/16/23, 10:26 AM

Is it possible to drive the motors in the kit continuously? The reason is I want to ensure that my belt is seated properly and run my pulleys slowly for a few revolutions. Its a bit difficult to drive by hand in my arrangement.

Sslowmover Has anyone used FFB kit to a collective?

LeLv30_Superbus•5/16/23, 5:17 PM

Unknown, but if someone did, they haven't posted about it here.

Sslowmover Has anyone used FFB kit to a collective?

walmisOP•5/16/23, 6:27 PM

I think @keksstar made one

CComrade_Weng Is it possible to drive the motors in the kit continuously? The reason is I want...

walmisOP•5/16/23, 6:28 PM

Unfortunately that's a negative

Wwalmis I think @keksstar made one

slowmover•5/16/23, 7:51 PM

Can you share anything about it Keksstar?

Ettl•5/17/23, 6:50 PM

Greetings!
Is there a trick to get the WW adapter/grip working? Tried the adapter and it won't recognize the grip. Grip Type is set to WW Adapter.

The grip works when I plug the Orion 2 with the F18 Grip back in but not with the Rhino.

EEttl Greetings! Is there a trick to get the WW adapter/grip working? Tried the adapte...

walmisOP•5/17/23, 7:03 PM

Hey! You can verify if the Rhino detects it by setting grip type to debug and checking the data it gives out in the debut tab. If it's all FFs then maybe it's not making contact.

Wwalmis Hey! You can verify if the Rhino detects it by setting grip type to debug and ch...

Ettl•5/17/23, 7:06 PM

It seems like there is a contact problem. Both ends do have firm contact though

[21:05:45.188] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:45.388] FF FF FF FF FF FF FF 00 00 08 00 08 00 08 00 08
[21:05:45.590] FF FF FF FF FF FF FF 00 00 08 00 08 00 08 00 08
[21:05:45.791] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FE 00
[21:05:45.991] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:46.193] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:46.393] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:46.595] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:46.796] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:46.997] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:47.199] FF FF FF FF FF FF FF 00 00 08 00 08 00 08 00 08
[21:05:47.399] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:47.601] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:47.802] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:48.003] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:48.205] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:48.405] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:48.607] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:48.808] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:49.010] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
[21:05:49.212] FF FF FF FF FF FF FF 00 00 08 00 08 00 08 00 08
[21:05:49.411] FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

walmisOP•5/17/23, 7:09 PM

Yeah looks like intermittent contact. Could you try to give gentle push on the din socket on the adapter after you seated it.

Ettl•5/17/23, 7:12 PM

It seems to change nothing. The TM F18 Grip functions without error.

Ettl•5/17/23, 7:14 PM

Just connecting the adapter makes the array twitch from time to time too.

walmisOP•5/17/23, 7:16 PM

Yeah, it should end with 00 00 08 00 08 ...
Anyways, I'll get in touch tomorrow to help you solve this.

Ettl•5/17/23, 7:16 PM

Alright, awesome. Thank you.

Comrade_Weng•5/18/23, 4:57 AM

Is it please possible to get a pinout for the winwing grips to interface correctly with the rhino board?

CComrade_Weng Is it please possible to get a pinout for the winwing grips to interface correct...

walmisOP•5/18/23, 9:46 AM

It's not directly compatible, only via the WinWing adapter

Comrade_Weng•5/18/23, 10:01 AM

@walmis when you say winwing adaptor, you mean your adaptor or their adaptor? I have your adaptor but am building my own stick.

walmisOP•5/18/23, 10:07 AM

Ah, right.

walmisOP•5/18/23, 10:09 AM

DMd

Comrade_Weng•5/18/23, 10:56 AM

Beautiful thankyou!

the_r0flcopter•5/18/23, 5:26 PM

I just got my Rhino and I love it! I am having an issue with the vkb black box where its flashing red and the blue light is also flashing. Is there any idea what could be wrong?

Tthe_r0flcopter I just got my Rhino and I love it! I am having an issue with the vkb black box w...

the_r0flcopter•5/18/23, 5:39 PM

Nevermind I fixed it

LeLv30_Superbus•5/18/23, 6:41 PM

Yeah the black box is just trying to say it no longer sees the X and Y axis. Mine's set like this:

Justin•5/18/23, 9:08 PM

May I post about a DCS server event we are hosting tomorrow in #

general ?
TYIA!

JJustin May I post about a DCS server event we are hosting tomorrow in #📃general ? TYI...

walmisOP•5/19/23, 3:46 PM

Yeah, if it's not too late

Wwalmis Yeah, if it's not too late 😅

Justin•5/19/23, 3:46 PM

Thank you! not too late

TTheAmazinGreat This is what I used for wiring. I will double/triple check this before ever plug...

Subsonic•5/19/23, 9:05 PM

Can someone please confirm this is correct for TM/virpil?
Been searching high and low and cannot find a definitive pinout.
Thanks!

ags•5/20/23, 1:48 PM

Hi, I noticed the emergency switch jumped out. How should I put it back?
Nah, upon looking, there's a metal ring inside the case that probably should connect.

Reed•5/21/23, 3:28 AM

Is the end stops effects or throw limiter better for setting a end stop. Right now I’ve got the end stops effect clocked with axes reset and it seems to work fine.

Reed•5/21/23, 3:30 AM

Also the balance effects for keeping the grip centered. It works but only in one position. For example you tweak for holding center then use the force trim and move stick to high left. Now the new center sags because the balance effects was used for holding the center position. Not sure how it would but a dynamic balance effect to keep the stick truly centered would be nice.

Reed•5/21/23, 3:31 AM

I also turned my master gain down to 90% and kept my knob at 75%. Does these effect each other.

Reed•5/21/23, 3:31 AM

Really impressed so far and love it. Can’t fly till Monday how ever. Boo.

Sslowmover Has anyone used FFB kit to a collective?

Will3D•5/21/23, 3:54 AM

No, but that would be cool. Hydraulic failures!!

B9•5/21/23, 6:58 AM

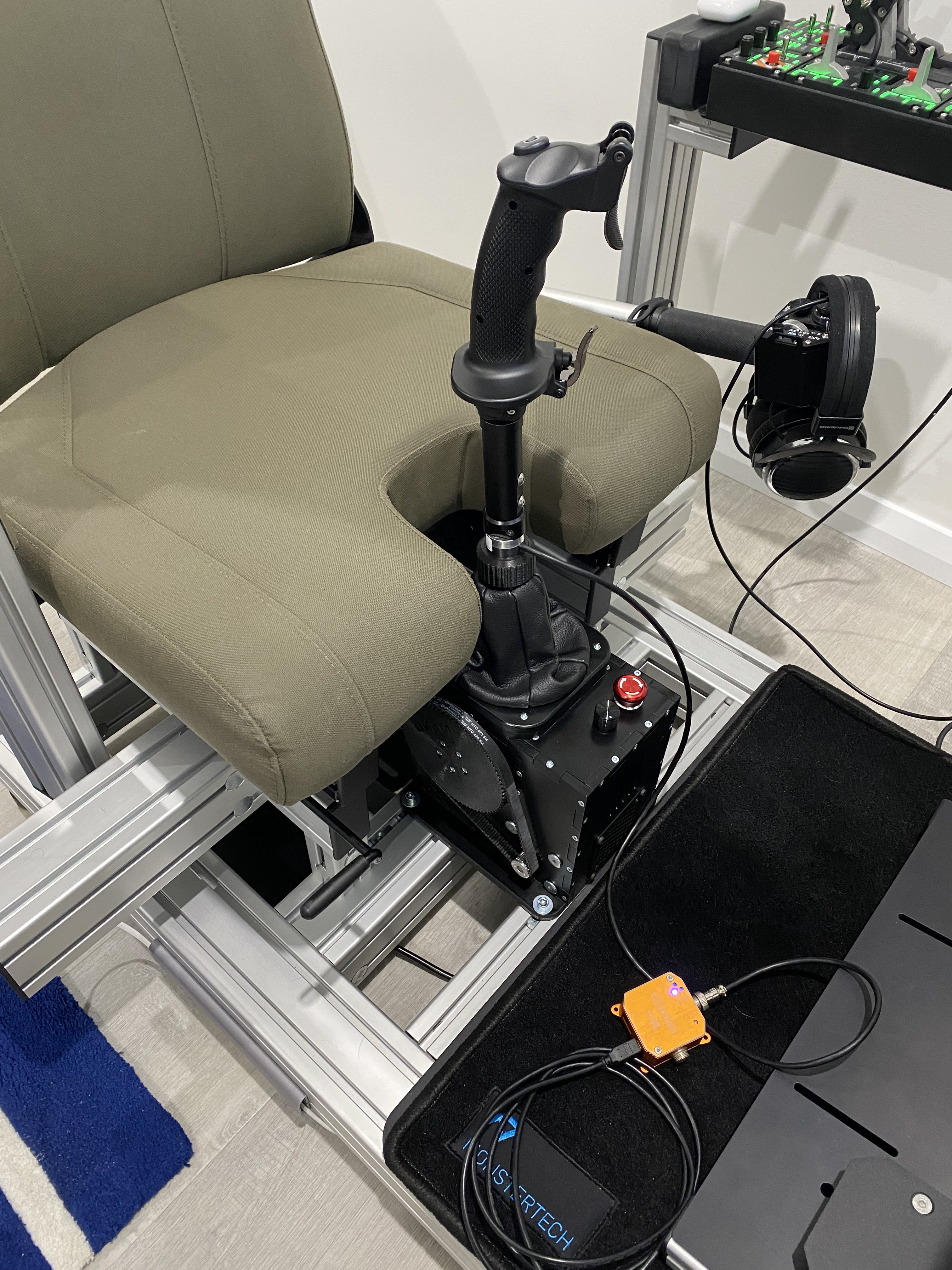

Hi =RS= ddrake1984, Is this your image of the Helicopter Pilot Seat and the RINO. This is how I have to install my RiINO when it arrives.

BB9 Hi =RS= ddrake1984, Is this your image of the Helicopter Pilot Seat and the RINO...

ddrake1984•5/21/23, 9:31 AM

Yes

B9•5/21/23, 11:13 AM

Fantastic. When installing the RINO this way did you have to make changes to its programming?

ddrake1984•5/21/23, 1:21 PM

Only invert of Y axis

LLeLv30_Superbus I don't know how trim works in a real UH-60L but you can trim it just like a Hue...

Reed•5/21/23, 3:05 PM

Are you flying the 60 much, I just go tmy rhino installed. I'm hoping to use it tomorrow with DCS and want to get the 60 setup.

Number481•5/23/23, 1:51 AM

Did you change the mapping in VPForce Configurator? It defaults to spring force, but you can change (or disable) it.

Number481•5/23/23, 1:55 AM

I'd double check it.. If you somehow, intentionally or not, disabled the setting.. the knob will not beep when rotating it...

Number481•5/23/23, 1:58 AM

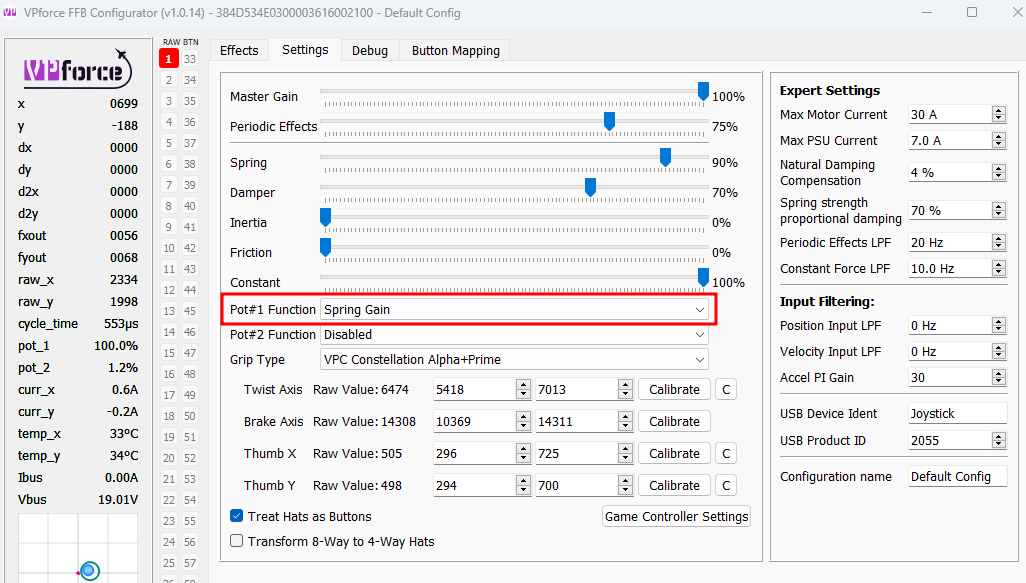

Pot 1 defines the function for the knob you are turning. By default it should be set to Spring Gain.

Number481•5/23/23, 1:58 AM

Pot 2 is not wired on the Rhino

Number481•5/23/23, 2:09 AM

do you see the screenshot I just posted?

Number481•5/23/23, 2:12 AM

forgot to apply/store ?
