RIs it free floating? What’s underneath it.
BOH WOW!!!! GOOD WORK, THIS WILL WORK FOR ME AS WELL. wow!
KBasically the same as you've done. Free floating, yes
BI Believe I can weld my Monstertechk Quick Release plate to the Rhino Plate and it will take less than one minute to connect the Rhino to the simulator and less than one minute to remove the Rhino from the simulator.
BRemove the two screws from the Monstertech Quick Release plate and weld the Monstertech Quick Release plate to the Rhino Plate. The two screws will no longer be needed.
BThere should be enough depth between the Rhino and the simulator to fit the Monstertechk Quick Release Knobs
BWOW!! you have impressed me with mounting your Rhino to your simulator.
DEasyflex VibraSystems Easy Cut Rubber Mounting Pad for Chillers, HVAC, Motors, Pumps, Generators, Air Conditioning Units, Pack of 1 (12 x 12 x 3/4 in, https://www.amazon.ca/gp/product/B0C2YSNGKP/ref=ppx_yo_dt_b_asin_image_o00_s00?ie=UTF8&psc=1
The anti-skid design with its suction cup eliminates the need for bolting down. The primary vibration absorption material is Neoprene for moderate oil resistance. The 2" squares are separated by a thin web that is easily cut. For application where greater isolation efficiency is required ECRMP Pa...
BQR4Rigs, Quick release Mounts for Sim Rigs Joystick Kinked Extension for Thrustmaster and Virpil (VPC) [TMVPCStickExt] - The Joystick extension fits the Thrustmaster Warthog/Cougar and Virpil (VPC) Joystick ranges and is ideal when using the QRDee Center Mount System. The main tube is 30mm in diameter and comes in a choice of two different style...
RVery cool
BYou guy's are all Top Gun.
KYou're welcome! Yea that looks like it'll work well!
W@b99487 Here's the Drawing for the MT mount
BThank you Walmis for sending the Drawing of the Rhino MT Mount
Phey guys, just wondering how I get the spring & dampening effects to feel more linier? Basically I want to stiffen up the center of the axis more
RI’ll post my settings again as of adjusted them but I feel like I’ve got a good start. Something that really helped was turning down the spring affect and increasing the dampening effect and adding just a little bit of inertia and that 7% of friction there’s also in the top right corner a setting for using 100% deafening within the spring affect so it’s not so bouncy, I’ve got a good balance I feel at least for helicopters compared to the in real life counterpart
BHi Walming, Can I purchase the Rhino MT Plate and have it shipped to me now? This way I can weld my MT Quick Release plate to it and have it ready for when my Rhino Arrives. I will pay for expedited shipping. Thank you
WGoogle Docs
Order request for VPforce products.
Please note: to reserve a VPforce RHINO FFB base, please use reservation form here.
Once the order is ready to be fulfilled an invoice will be sent to the provided email address.
Please note: to reserve a VPforce RHINO FFB base, please use reservation form here.
Once the order is ready to be fulfilled an invoice will be sent to the provided email address.
BHi Walmis, After the order is placed how long will it take to ship the VPforce RHINO FFB base?
BIm currently 370 or something in line and I'm hoping for end of January 2025
BWhat is the expected date my Rhino purchase being shipped to me?
Aif you are on the list you can ask the bot
KIf I put a motor on a belt driven axis for a yoke that requires ~20 turns of the motor for full travel, could the VPForce software handle that during calibration? I know you'd need to always start on the same revolution or you'd need to do a limit switch find. Essentially, I would like to do a 3D Printer type belt driven linear rail.
Swhats the stroke length? why not keep it simple and make it so stroke = 1 rotation? it would be very hard to find that perfect 1/20th spot for recentering. for 200mm travel youd only need a ~65mm pulley diameter.
Salso with the force cranked up it will be extremely hard to move the yoke with that 20:1 reduction.
KI'd be very easy to find home with an LED connected to an optical or mechanical switch.
KIt's not "really" a 20:1 reduction, it's a 16t pinion on an open ended belt.
K200mm total movement linearly.
KJust like an ender 3 X-axis
Sright but what's the radius of a 16t pulley? pretty small, so 1.6Nm / radius in meters is the force youre going to be pushing. and its going to be significant
Kdon't get carried away with 20:1.... I can make that gear any size I want but 1:1 isn't reasonable. I'll worry with the mechanics, I'm asking about the software's capability of doing multiple turns.
Sas far as i know, i have gone beyond the 1 rotation and its worked fine. my endpoint numbers were in the 6000 range. i haven done 20x though. do you have the motors already? put in some numbers manually in the limits like +/-40000 and see if it works
NI was told by walmis that it’s “unlimited” with the restriction you already mentioned.
NWatch his diy get started video he makes an axis with 3 or 4 revolutions I think.
KAh! I didn't remember that being in the video. I just ordered a 2nd set of motors and am too lazy to squeeze under the chair, take off the belt, and reinstall to try it on my working stick. Thanks! I'd guess if it can do 2, it could do as many as needed so long as I home it before turning it on.
KI'm adding FFB yoke to my long list of VPForce projects... sometime after pedals but before collective.
NI’ve eyed my honeycomb alpha more than once wondering if I could hack some motors in there.
NA bit $$ to just start pulling apart and tinkering though!
KI own one... but the case looks too small to even fit the smal motors.
Kmoving to general with an idea.....
KBingo at 3:10 in the intro video he does exactly this... excellent memory.
NWell, I only remember it because I asked him a bunch of questions, which he answered. And then later watched the video and realized it would have answered the questions I had if I had watched it first
W@walmis is there any way to make the stick looser? Is the neutral dampening compensation at the max at 25% or is there a way to get
WTry playing with negative damping, though increase in small amounts
WOk will try. Thx

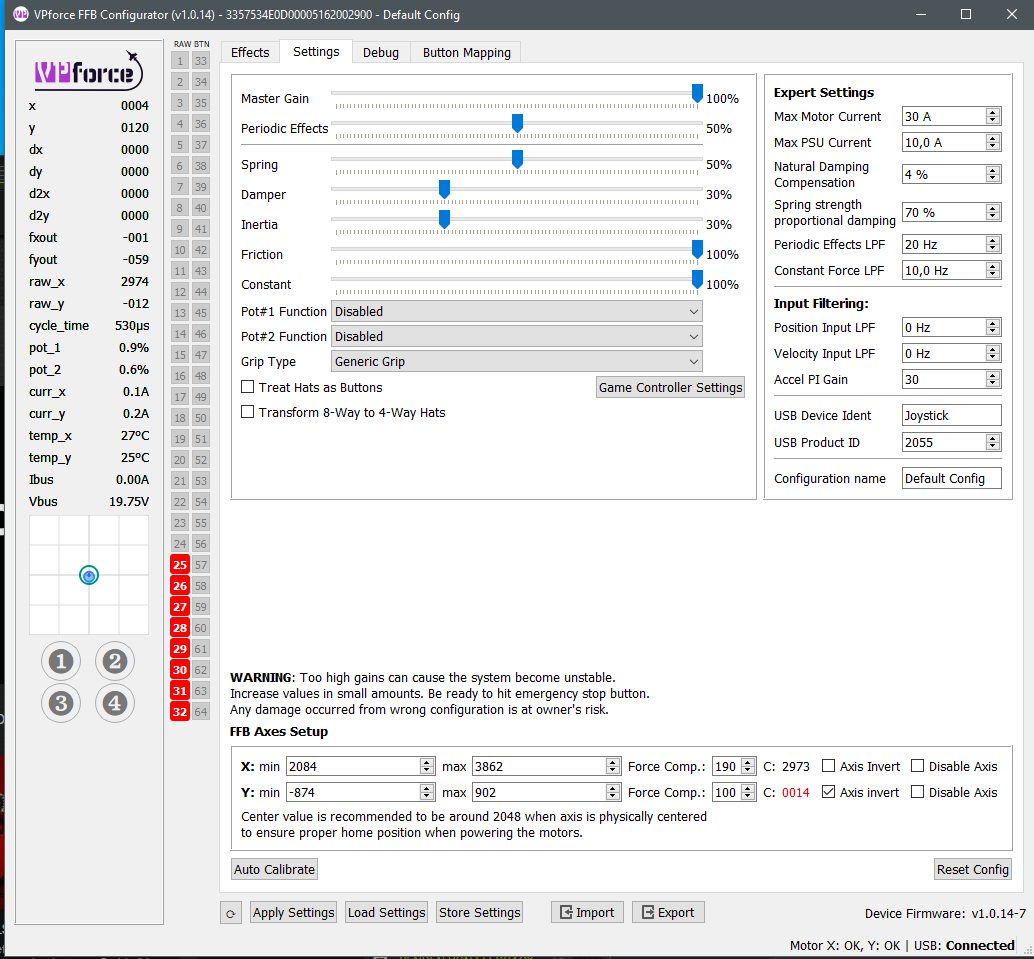

AWhen I use the TM F/A-18 grip, buttons 25 through 32 are shown as active. Is this correct? Otherwise everything works as it should.
KI have the Thrustmaster A-10 grip and it doesn't behave that way. Do any of the buttons on your grip not work because of this?
KWhat happens when you change the Grip Type to VPC T-50CM2? What happens when you take the stick off?
WYeah that's normal for some TM grips, but I'll probably need to address this in the future releases
WWorks a little, but hard to make it feel good. Wants to "run away". I'll be using a slightly longer extension, so that will help some. Is there any more adjustment in the system for dampening compensation ? That makes the biggest difference by a large amount.
