Yep, make sure your shaft and thread is long enough to be able to tightent the nut on top. I use a 10k pot, not sure what the real Rhino's use but 10k works.

Original message was deleted

kingjamezOP•7/15/23, 5:02 PM

Hmm... It looks like there is some motor action happening when when gain is turned down because the stick falls when you turn power off. Are you sure that the master gain was actually at 0%?

Kkingjamez Yep, make sure your shaft and thread is long enough to be able to tightent the n...

Reed•7/15/23, 5:32 PM

How would I add a second dial to control master dampening, like the current knob controls master spring ?

RReed How would I add a second dial to control master dampening, like the current knob...

Number481•7/15/23, 5:34 PM

There’s 2 “pot” control settings in configurator. Only one of them is used on the rhino since it only has one pot. If you added a second, and plugged it into the 2nd input, you would just set whatever function you wanted it to have in the configurator.

Reed•7/15/23, 6:20 PM

Very cool. Now need to find the same knob used for the rhino or similar.

Number481•7/15/23, 6:29 PM

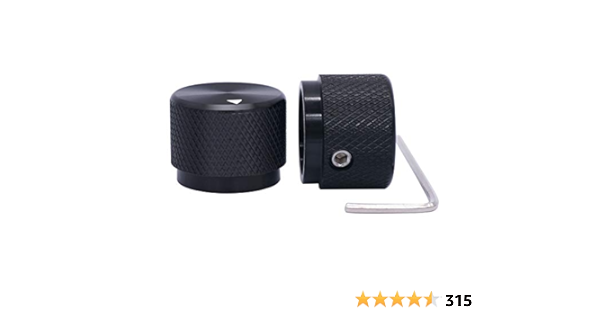

These are the ones I bought for my pedals. https://a.co/d/fQrhCgi

Taiss/ 2pcs Black Aluminum Rotary Electronic Control Potentiometer ...

Aluminum knobs are for sound equipments or rotary potentiometer, for protection and easy control. Pu interior is useful to avoid damage and for long time service. great decoration accessory for equipments.hese great looking knobs are high quality and precision machined from an aluminum alloy. The...

Reed•7/16/23, 12:24 AM

What controller do I need to buy?

walmis•7/16/23, 5:13 AM

Hmm, looks like the large pulley bolts are not fully in. Also take note that 2/5 bolts are longer, those go the top-most position for pitch

walmis•7/16/23, 5:14 AM

Maybe it's not seated properly

walmis•7/16/23, 5:15 AM

Did you tighten these bolts?

walmis•7/16/23, 5:15 AM

walmis•7/16/23, 5:15 AM

These need to be "just" tight, since they preload the bearings

walmis•7/16/23, 5:18 AM

yeah, that's good

walmis•7/16/23, 5:19 AM

so yeah, the gimbal should move freely when assembled, without the belt. It's hard to tell in the video above, since the belt is on

walmis•7/16/23, 5:20 AM

yeah, make sure you tighten it straight

walmis•7/16/23, 5:23 AM

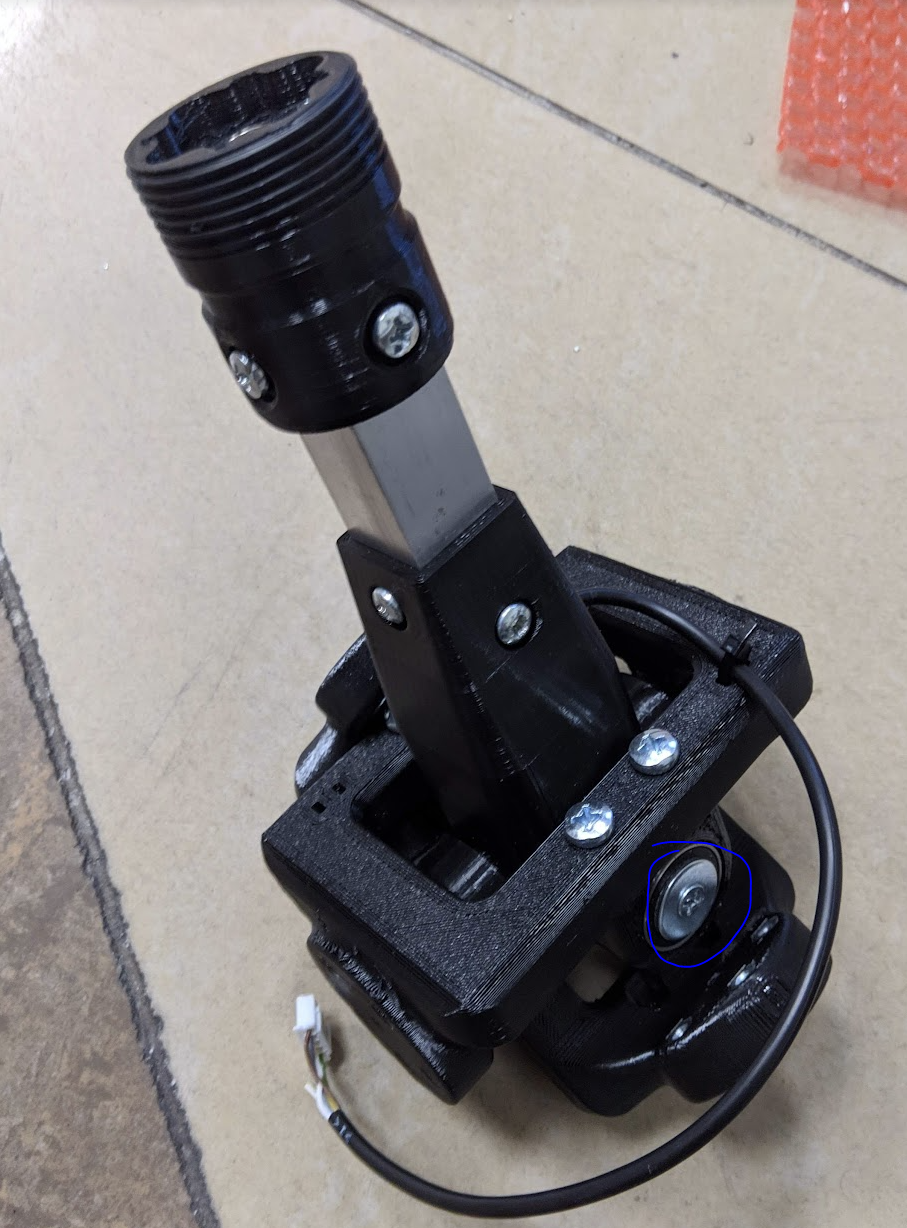

There's also this bolt, that sandwitches the gimbal together, tightening it might help with cracking sound (usually on the roll axis)

walmis•7/16/23, 3:40 PM

Can you make a pic from the top? And other angles?

walmis•7/16/23, 3:44 PM

Those 5 hex bolts need to be quite tight (I set the electric driver torque to 15).
Btw did you put the fan grill screw under the gear? because it will touch the gear

walmis•7/16/23, 3:57 PM

Cheers, now you will know the internals too

Jehly•7/16/23, 3:57 PM

Can I just say I appreciate you taking apart yours so I didn't have to, @dudeman8?

Jehly•7/16/23, 3:57 PM

Now I know what it looks like

Dudeman•7/16/23, 4:02 PM

Hahaha. 1/10 would not recommend. I do have a new found appreciation of the engineering for this thing now

Dudeman•7/16/23, 4:02 PM

Dudeman•7/16/23, 4:02 PM

That was yesterday

miki•7/16/23, 8:43 PM

You must be insane! No way I would take it apart.

Bob Bushman•7/16/23, 9:17 PM

And my thinking is "someone must have put it together the first time! How hard could it be ?"

Bob Bushman•7/16/23, 9:17 PM

Often times.
Hard.

Reed•7/16/23, 9:18 PM

How many pieces did you have left over?

RReed How many pieces did you have left over?

Jehly•7/16/23, 9:25 PM

This is the real question

kingjamezOP•7/16/23, 9:55 PM

Daggum.

kingjamezOP•7/16/23, 9:56 PM

I built my own and that would terrify me.

kingjamezOP•7/16/23, 9:56 PM

@dudeman8 learned that 800Euro for a built and assembled by hand Rhino is the steal of the century.

ddrake1984•7/16/23, 10:02 PM

@dudeman8 what was the fix? Which screw was in the wrong spot?

Dudeman•7/16/23, 10:06 PM

I put one of the fan grate screws in the wrong place, which was causing the pulley to scrape against it

Dudeman•7/16/23, 10:07 PM

Yeah don’t take this thing apart if you don’t have to. I wasted a lot of time trying to put it back together

SwiftVengeance•7/17/23, 1:46 AM

you guys gota do more puzzles or legos lol

Jon (Bounty_V)•7/17/23, 2:13 AM

the first thing i noticed in that pic is the smiley face on the bucket

DDudeman Yeah don’t take this thing apart if you don’t have to. I wasted a lot of time tr...

Jehly•7/17/23, 2:32 AM

Thank you for being the guinea pig

Jehly•7/17/23, 2:32 AM

As far as I'm concerned, @walmis put black magic in there and that's all I care.

LeLv30_Superbus•7/17/23, 5:49 PM

Daymn you, now I'm too scared to open mine to install a second pot for damping

Bearclaw•7/17/23, 7:14 PM

Not sure if this is the right place to ask, but my order is held up in customs here in the USA. It's flagged at FedEX as needing a form. How do I get this?

BBearclaw Not sure if this is the right place to ask, but my order is held up in customs h...

walmis•7/17/23, 7:26 PM

It might need this form: https://www.fedex.com/content/dam/fedex/eu-europe/resources/GB_EN_2021_12_master_pdf_NA_Electric_Motor_and_Generator_Worksheet_marketing.pdf
I'll submit it tomorrow. You can also try to call FedEx to figure out what exactly do they want (if not the above).

Wwalmis It might need this form: https://www.fedex.com/content/dam/fedex/eu-europe/resou...

Bearclaw•7/17/23, 8:45 PM

Will do. I tried calling them already but kept getting shuffled around and ran out of time. I’ll try again this evening. EDIT: Just got off the phone with FexEX. They don’t know what form it is they need, but they’re going to get back to me on it. It would be funny if it weren’t so tragic. I’ll let you know as soon as I know.
