Why when i press the TRIMM button on helicopters the cylic moves instead of stay stable? Anyone fac

Why when i press the TRIMM button on helicopters the cylic moves instead of stay stable? Anyone faced this problem?

slowmoverOP•8/16/23, 5:22 PM

Last time i inverted the axis into game and it was causing problems....Now that i do not have the option again i have the same problem

slowmoverOP•8/16/23, 5:23 PM

If i keep pressing the "TRIMM" button the cyclic goes crazy and it is moving

Sslowmover Why when i press the TRIMM button on helicopters the cylic moves instead of sta...

Number481•8/16/23, 5:24 PM

I dont understand. I assume you're talking DCS? What module?

slowmoverOP•8/16/23, 5:24 PM

dcs heuy and MI8

Number481•8/16/23, 5:25 PM

what do you have the trim mode set to in special settings for the module(s) in DCS?

slowmoverOP•8/16/23, 5:25 PM

it does this to all helicopters

slowmoverOP•8/16/23, 5:25 PM

instant trim

slowmoverOP•8/16/23, 5:25 PM

or default

Number481•8/16/23, 5:26 PM

needs to be default.. all other options are meant for non-ffb or sprung joysticks

slowmoverOP•8/16/23, 5:26 PM

Mi24

slowmoverOP•8/16/23, 5:26 PM

heuy

slowmoverOP•8/16/23, 5:26 PM

apache

slowmoverOP•8/16/23, 5:27 PM

Mysc page

slowmoverOP•8/16/23, 5:28 PM

slowmoverOP•8/16/23, 5:28 PM

Number481•8/16/23, 5:30 PM

you said your axis is not inverted.. but what about FFB tune settings?

Number481•8/16/23, 5:30 PM

slowmoverOP•8/16/23, 5:30 PM

let me check them

slowmoverOP•8/16/23, 5:32 PM

same as yours

Number481•8/16/23, 5:38 PM

not sure what you mean by 'going crazy'.. but I am noticing some kickback when the force trim button is released that I wasn't seeing on the previous firmware.

Number481•8/16/23, 5:38 PM

I hadn't really been in DCS since new firmware dropped

slowmoverOP•8/16/23, 5:38 PM

ok wait

slowmoverOP•8/16/23, 5:39 PM

The only thing I do it to press trimm button in game nothing more

Number481•8/16/23, 5:42 PM

ya.. thats definitely not what I was describing

Number481•8/16/23, 5:44 PM

has your base been calibrated? This doesn't look normal...(I know yours is DIY)

slowmoverOP•8/16/23, 5:45 PM

I calibrated from Game Controller Settings

slowmoverOP•8/16/23, 5:47 PM

Number481•8/16/23, 5:47 PM

you should calibrate it from the configurator.. unless there's some specific reason you did it through the joystick settings?

Number481•8/16/23, 5:47 PM

the rhino needs to be programmed to undertand its axis limits

slowmoverOP•8/16/23, 5:47 PM

I do not know how to calibrated from there

slowmoverOP•8/16/23, 5:48 PM

Where is that?

Number481•8/16/23, 5:48 PM

push auto calibrate -> move to extremes -> unclick auto calibrate -> apply ->store

slowmoverOP•8/16/23, 5:50 PM

Thanks a lot mate

slowmoverOP•8/16/23, 5:50 PM

That was the problem

Sslowmover That was the problem

Number481•8/16/23, 5:55 PM

this inspired me to recalibrate my base... that small kick back I was mentioning is now gone

walmis•8/16/23, 5:57 PM

Can't remember in which configurator version, perhaps since the 1.0.15, It checks windows registry for Rhino calibration and auto-clears it if found. Helps to avoid undefined behaviour like this.

Wwalmis Can you select generic grip (debug), and post some data from the debug tab when ...

MashedPotato•8/17/23, 1:10 AM

[19:09:24.671] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:24.871] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:25.073] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:25.274] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:25.476] FF FF FF FF FF FF FF FD 04 00 00 00 00 00 00 00
[19:09:25.677] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:25.878] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:26.078] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:26.279] FF FF FF FF FF FF FF FB 04 00 00 00 00 00 00 00
[19:09:26.481] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:26.682] FF FF FF FF FF FF FF F7 04 00 00 00 00 00 00 00
[19:09:26.883] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:27.084] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[19:09:27.286] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00\

JIGGAwest•8/17/23, 1:10 AM

So the pot is the black dial on top of the base correct? How do you activate function #2? is the pot supposed to click or lift up to a second position?

MashedPotato•8/17/23, 1:11 AM

The FF runs the screen constantly, the FD, FB, and F7 are the 3 button presses that are not otherwise captured

JJIGGAwest So the pot is the black dial on top of the base correct? How do you activate fun...

MashedPotato•8/17/23, 1:11 AM

Function #2 is tied to a second pot. I don't believe the Rhino ships with one, but the controller board is wired for one

MashedPotato•8/17/23, 3:43 AM

Do I need to do anything besides run the app to get telemffb running with DCS? It doesn't seem to want to send vibrations to the stick

JIGGAwest•8/17/23, 3:47 AM

no connect error when you open TelemFFB ? periodic effects is turned up?

MashedPotato•8/17/23, 4:42 AM

No error. Honestly not sure periodic were turned on, wasn't sure what that was, I'll check it out in the am

MMashedPotato [19:09:24.671] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00 [19:09:24.871] ...

walmis•8/17/23, 8:02 AM

I'll add this to the next maintentace firmware release

NNumber481 you said your axis is not inverted.. but what about FFB tune settings?

LeLv30_Superbus•8/17/23, 10:25 AM

whaaaat didn't know that menu exists, is it module specific?

Wwalmis I'll add this to the next maintentace firmware release

MashedPotato•8/17/23, 12:37 PM

Sweet, I'll let you know if it wakes up those buttons

LLeLv30_Superbus 😮 whaaaat didn't know that menu exists, is it module specific?

Number481•8/17/23, 12:48 PM

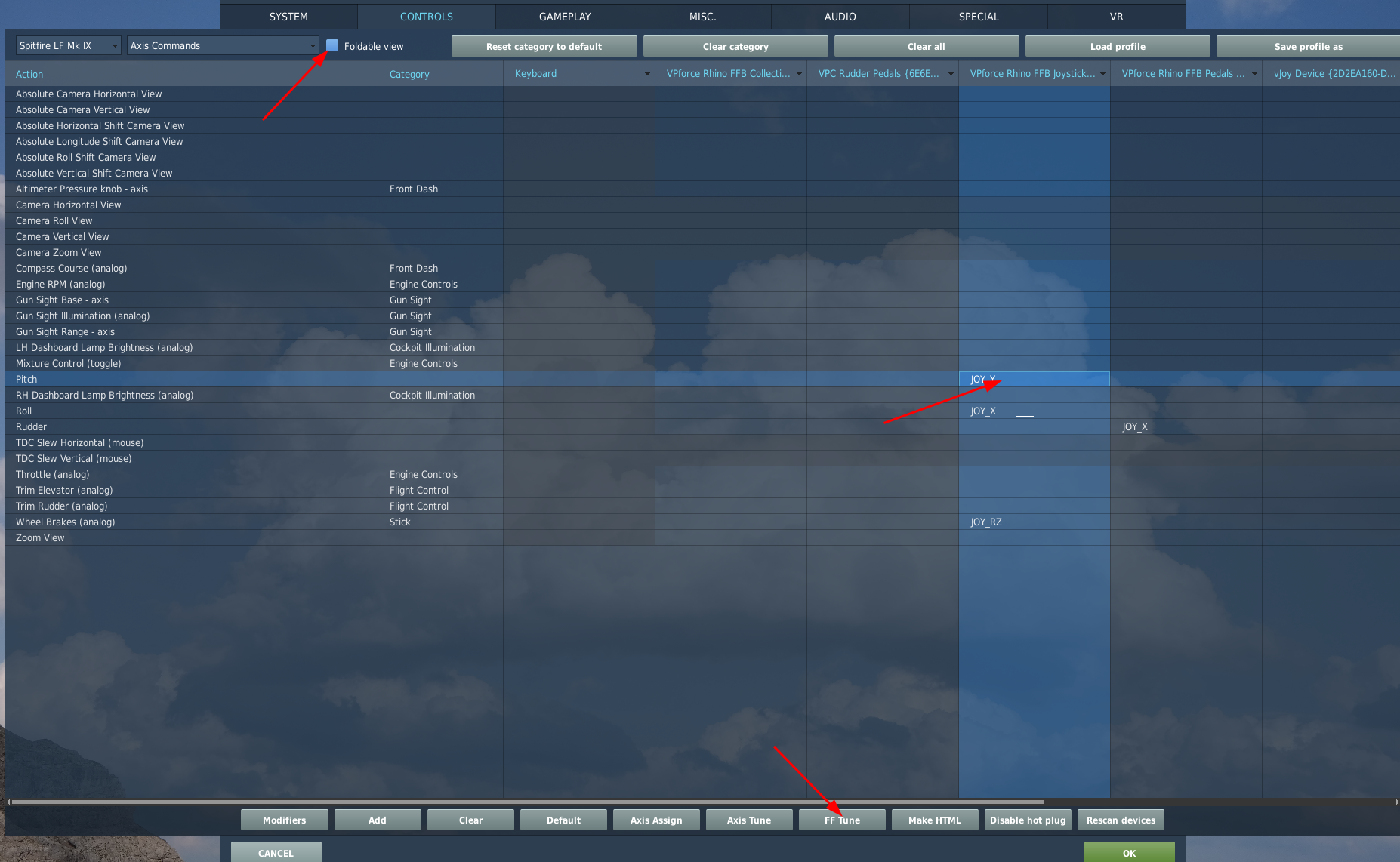

It is.. I have the built-in shake effects disabled on the Spitfire, using TelemFFB in stead. You can see it in the joystick profile if you change from defaults.

Number481•8/17/23, 12:49 PM

I never knew it existed either because I always have "foldable view" enabled which removes all the options buttons at the bottom of the screen

Number481•8/17/23, 12:50 PM
