hi, with the new version and after testing, the engine rumble makes the rhino rumble a lot making it

hi, with the new version and after testing, the engine rumble makes the rhino rumble a lot making it disconnect the X axis as before. but I noticed that if I cut the engine the effect goes away in the TelemFFB but the rhino keeps rumble. any idea? I'll turn it down at low RPM and check. if not I have to turn it off for now

SSnooper hi, with the new version and after testing, the engine rumble makes the rhino ru...

Number481•11/1/23, 2:23 PM

it is unlikely that any of the rumble effects are causing your axes to go into protection mode and disconnect. If your screenshot above 🧰support is still accurate, you have the "Periodic Effects LPF" set to 0Hz.. I can't give you a technical explanation, but I can tell you that that will not play nicely with the effects in TelemFFB. The default is 20Hz I believe

walmis•11/1/23, 2:30 PM

Oh yea, didn't notice that! 0Hz on periodic will definitely cause problems, set it to 20Hz @snooperoldschool

SnooperOP•11/1/23, 2:32 PM

ok, if I changed it it was by mistake because I dont recall messing with that!!!

SnooperOP•11/1/23, 2:33 PM

I'm positive sure that I didn't change that!

SnooperOP•11/1/23, 2:33 PM

thanks!

walmis•11/1/23, 2:34 PM

No prob, maybe a firmware update caused it, who knows

SnooperOP•11/1/23, 2:38 PM

thats was the culprit, problem solved, now i runs like a kitten, so much I need to put more intensity in the low rpm rumble lol

SnooperOP•11/1/23, 2:50 PM

but I have something here

SnooperOP•11/1/23, 2:51 PM

if I cut the engine I get all rumbling again until it disconnects.

SnooperOP•11/1/23, 2:54 PM

If I set engine_rumble_lowrpm_intensity = 0.2 after cut the engine have the same behavior .

SSnooper If I set engine_rumble_lowrpm_intensity = 0.2 after cut the engine have the same...

Number481•11/1/23, 2:56 PM

cut the engine on the ground or cut the engine in the air?

SnooperOP•11/1/23, 2:57 PM

all in the ground

SnooperOP•11/1/23, 2:57 PM

and the only thing that solves it is disconnect and connect again

SnooperOP•11/1/23, 2:58 PM

the behavior dont shows at 0.1

SnooperOP•11/1/23, 2:58 PM

I have to do more testing, i'll report back.

SSnooper I have to do more testing, i'll report back.

Number481•11/1/23, 3:04 PM

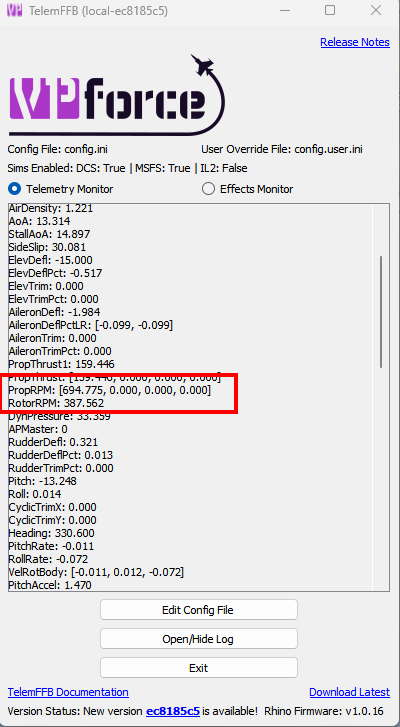

what is your engine_rumble_lowrpmengine_rumble_lowrpm setting? The effect follows the prop RPM... so if the prop is stopped, the effect should stop

SnooperOP•11/1/23, 4:59 PM

it happened at 0.2

SnooperOP•11/1/23, 5:00 PM

and actually after the engine cut the effects go out in the app but the rhino keeps shaking

SnooperOP•11/1/23, 5:00 PM

i'll make a video , its better to see it instead of write it up, because it looks something more is happening in the background.

walmis•11/1/23, 5:01 PM

Does the telemFFB log indicate any errors? Sounds like USB could be picking up interference or smth.

Wwalmis Does the telemFFB log indicate any errors? Sounds like USB could be picking up i...

SnooperOP•11/1/23, 5:03 PM

the only error is after some seconds the beep and the X axis disconnect with that previous error.

walmis•11/1/23, 5:03 PM

ahh, try reducing the the LPF from 20Hz to 15Hz

SnooperOP•11/1/23, 5:07 PM

its like its getting stronger with each start I do

SnooperOP•11/1/23, 5:08 PM

Motor X: FAULT_UNEXPECTED_D_CURRENT

SnooperOP•11/1/23, 5:09 PM

SnooperOP•11/1/23, 5:10 PM

changing from 20 to 15hz look that helped somehow but just to mitigate it

SnooperOP•11/1/23, 5:11 PM

what I'm doing is start the engine and stop it several times

SnooperOP•11/1/23, 5:11 PM

i'll record it

walmis•11/1/23, 5:11 PM

What happens here when you do it?

SnooperOP•11/1/23, 5:13 PM

where is that?

walmis•11/1/23, 5:13 PM

Debug tab

SnooperOP•11/1/23, 5:13 PM

one sec

SnooperOP•11/1/23, 5:14 PM

SnooperOP•11/1/23, 5:14 PM

first start

walmis•11/1/23, 5:14 PM

can you scroll loaded effects to the bottom?

SnooperOP•11/1/23, 5:14 PM

already heppned it disconnected the X

SnooperOP•11/1/23, 5:15 PM

SnooperOP•11/1/23, 5:15 PM

and with it working

SnooperOP•11/1/23, 5:34 PM

https://cld.pt/dl/download/e854a2a0-ad98-44f4-9dfe-32eef6ea8e00/sapotransfer-6091aa36a3feezm/20231101_162755.mp4?download=true

SnooperOP•11/1/23, 5:36 PM

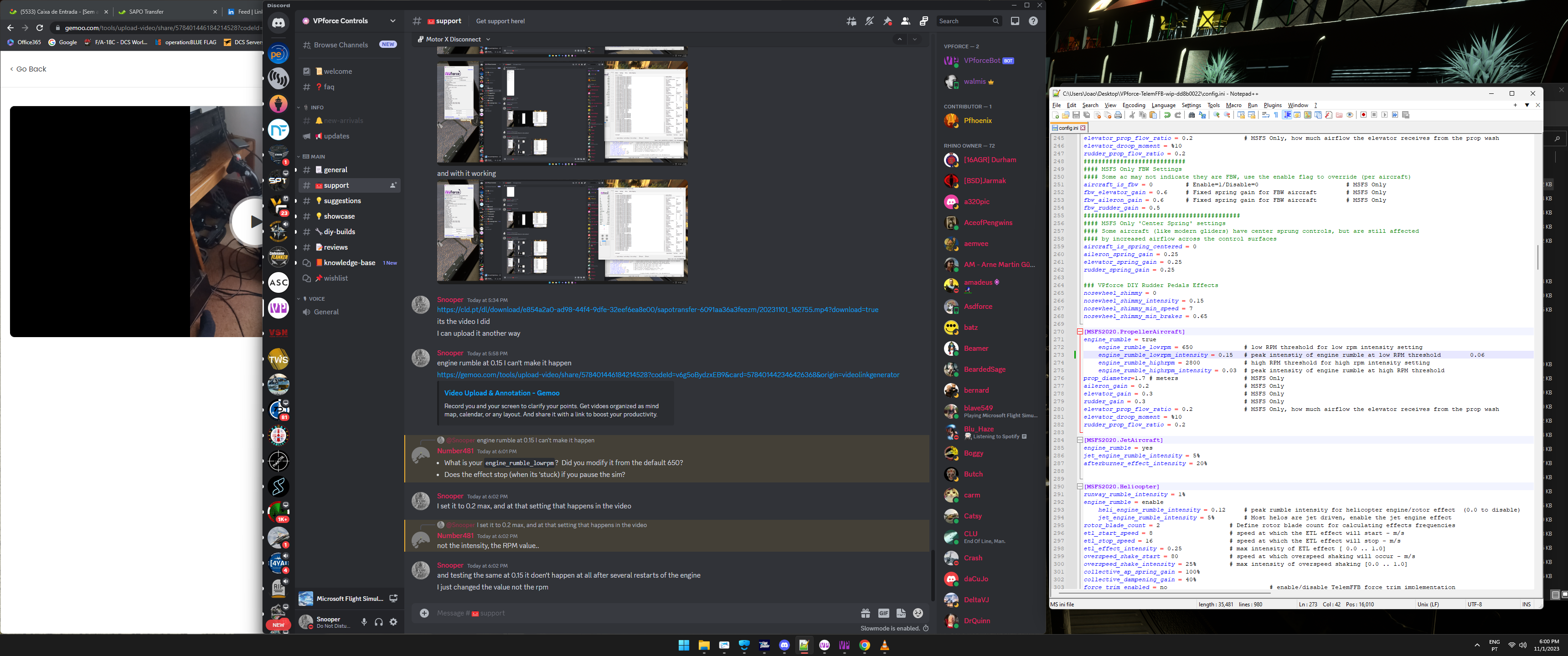

its the video I did

SnooperOP•11/1/23, 5:36 PM

I can upload it another way

SnooperOP•11/1/23, 5:58 PM

engine rumble at 0.15 I can't make it happen

SSnooper engine rumble at 0.15 I can't make it happen

Number481•11/1/23, 6:01 PM

What is your engine_rumble_lowrpmengine_rumble_lowrpm? Did you modify it from the default 650?
Does the effect stop (when its 'stuck) if you pause the sim?

SnooperOP•11/1/23, 6:01 PM

https://gemoo.com/tools/upload-video/share/578401446184214528?codeId=v6g5oBydzxEB9&card=578401442346426368&origin=videolinkgenerator

Video Upload & Annotation - Gemoo

Record you and your screen to clarify your points. Get vidoes organized as mind map, calendar, or any layout. And share it with a link to boost your productivity.

SnooperOP•11/1/23, 6:02 PM

I set it to 0.2 max, and at that setting that happens in the video

SSnooper I set it to 0.2 max, and at that setting that happens in the video

Number481•11/1/23, 6:02 PM

not the intensity, the RPM value..

SnooperOP•11/1/23, 6:02 PM

and testing the same at 0.15 it doen't happen at all after several restarts of the engine

SnooperOP•11/1/23, 6:03 PM

I just changed the value not the rpm
