In my opinion, yes you need, maybe build a mobile application for it, and offline notifications and

In my opinion, yes you need, maybe build a mobile application for it, and offline notifications and control threw SMS in case the user has no Internet connection

Aaymen ammari In my opinion, yes you need, maybe build a mobile application for it, and offlin...

Marvee Amasi•3/16/24, 7:02 AM

Hmm building a mobile application sounds interesting @aymen ammari . Just asking , what would be the key features of the app, and how would it enhance the user experience compared to traditional methods of device control and monitoring?

aymen ammariOP•3/16/24, 7:04 AM

Hmm good question

aymen ammariOP•3/16/24, 7:06 AM

Well you can link it to tuya app or smartlife, but your own app is better

MMarvee Amasi Good day guys, I am running a program on Arduino IDE while utilizing Adafruit E...

Umesh Lokhande•3/16/24, 8:09 AM

The need to use RTOS is based on many factors considering your project requires managing multiple tasks. I'd suggest the use of RTOS in case you're already comfortable with porting RTOS on MCU. Otherwise, you can implement task scheduling without using RTOS to keep things simple

boualleg sabrina•3/16/24, 8:17 AM

morning guys

UUmesh Lokhande The need to use RTOS is based on many factors considering your project requires ...

Marvee Amasi•3/16/24, 8:34 AM

Thanks for the insight too @Umesh Lokhande I'm now weighing the pros and cons of using RTOS, especially considering the complexity of managing multiple tasks. I'll try out both options further to determine the best approach for task scheduling in my project. Do you have any recommendations or resources for getting started with RTOS porting on the MCU?

Bboualleg sabrina morning guys

Marvee Amasi•3/16/24, 8:35 AM

Morning to you @boualleg sabrina

Saßì•3/16/24, 9:27 AM

@Flash Gordon Welcome! Can you let us know a bit about your technical background, what brings you to DevHeads, and what you're looking to learn/contribute?!

MMarvee Amasi Good day guys, I am running a program on Arduino IDE while utilizing Adafruit E...

Aditya thakekar•3/16/24, 11:31 AM

Yes best if you use rtos. Pinnedtocore type functions

MMarvee Amasi Good day guys, I am running a program on Arduino IDE while utilizing Adafruit E...

boualleg sabrina•3/16/24, 12:12 PM

RTOS for task scheduling ensures timely execution of tasks based on their priorities

boualleg sabrina•3/16/24, 12:23 PM

https://www.youtube.com/watch?v=95yUbClyf3E

YouTubeDigiKey

Introduction to RTOS Part 3 - Task Scheduling | Digi-Key Electronics

The RTOS scheduler decides which task to run on a recurring basis, and some tasks can interrupt and run before other tasks in a process known as “preemption.”

The solution to the challenge in the video can be found here: https://www.digikey.com/en/maker/projects/introduction-to-rtos-solution-to-part-3-task-scheduling/8fbb9e0b0eed4279a2dd698f02c...

boualleg sabrina•3/16/24, 12:24 PM

here is a video that explains task scheduling

Bboualleg sabrina RTOS for task scheduling ensures timely execution of tasks based on their priori...

Marvee Amasi•3/16/24, 2:32 PM

Thanks @boualleg sabrina , this is very resourceful

Camila_99$$•3/16/24, 2:50 PM

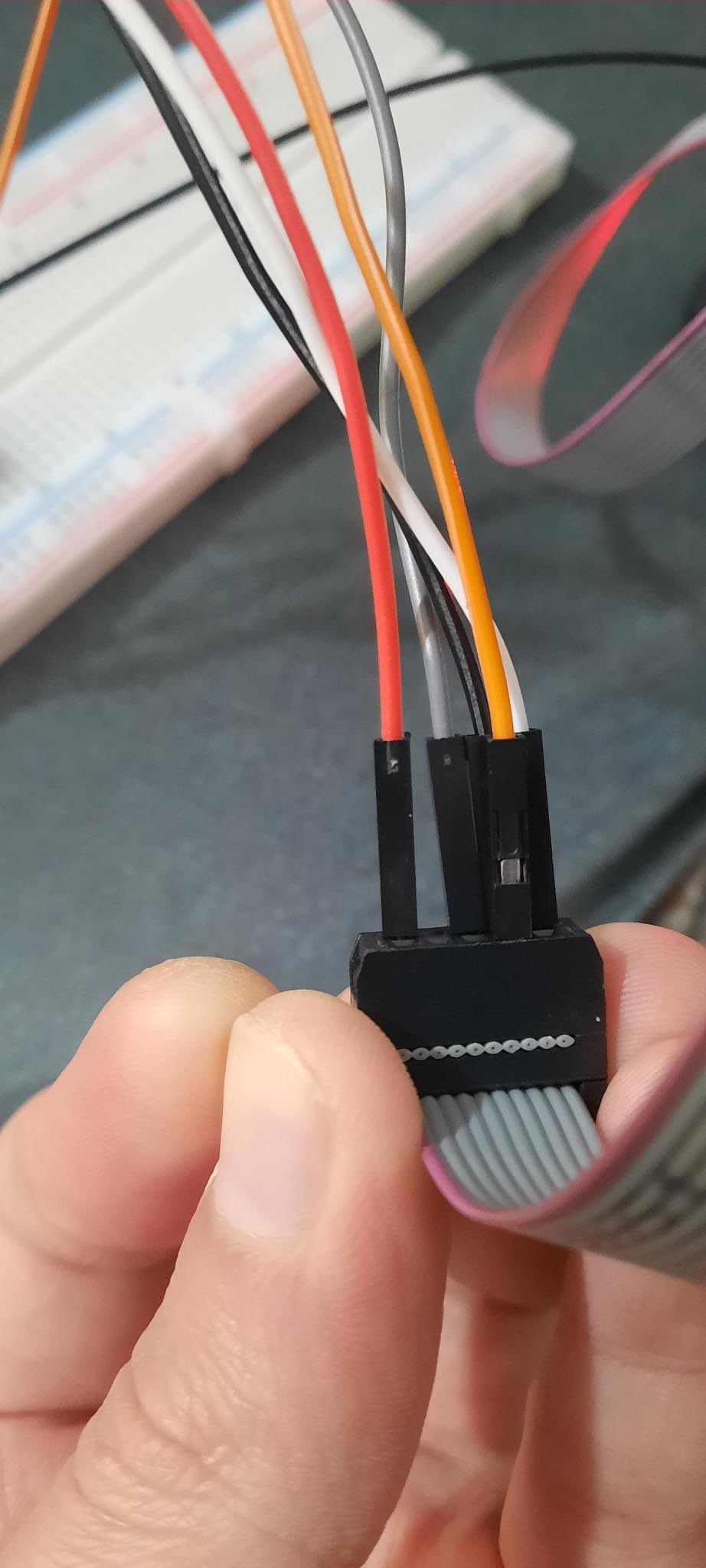

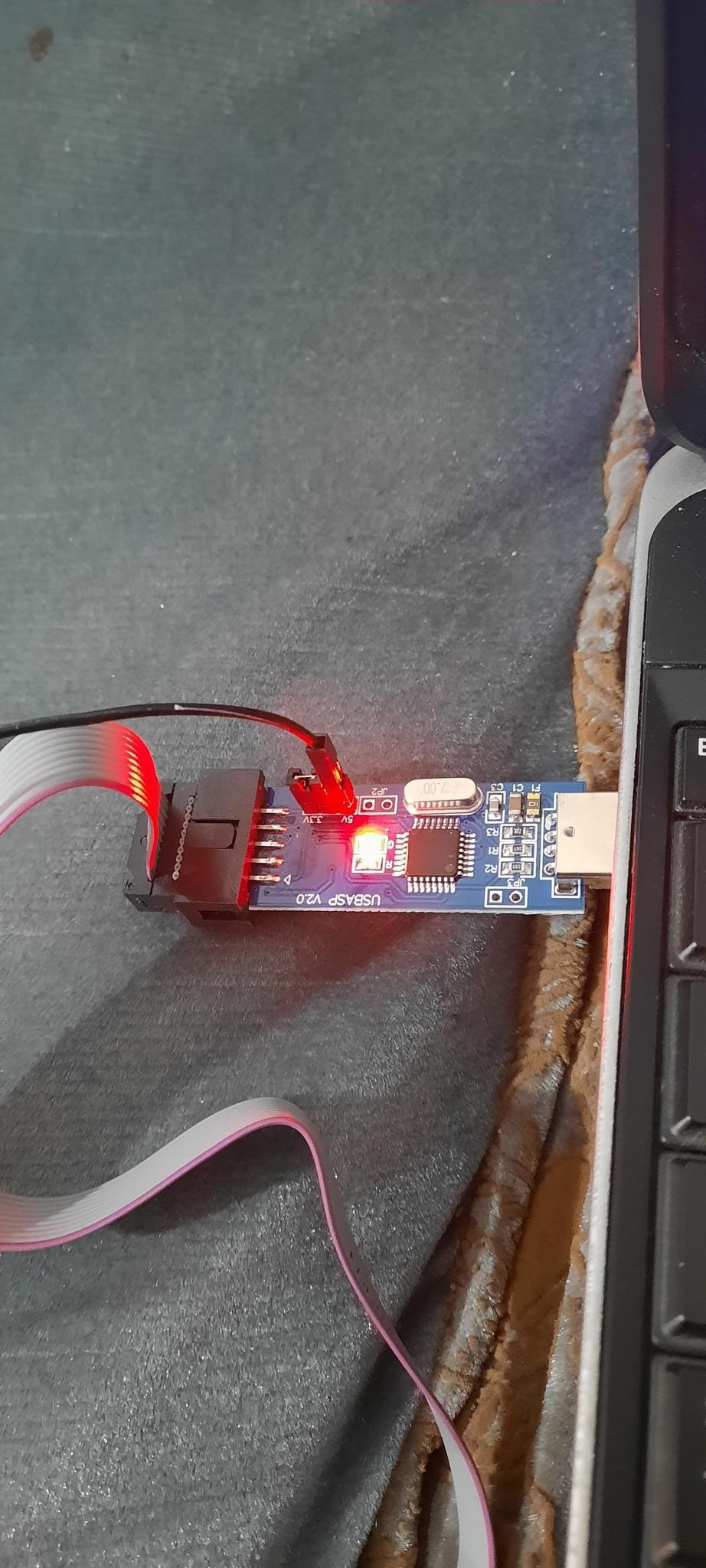

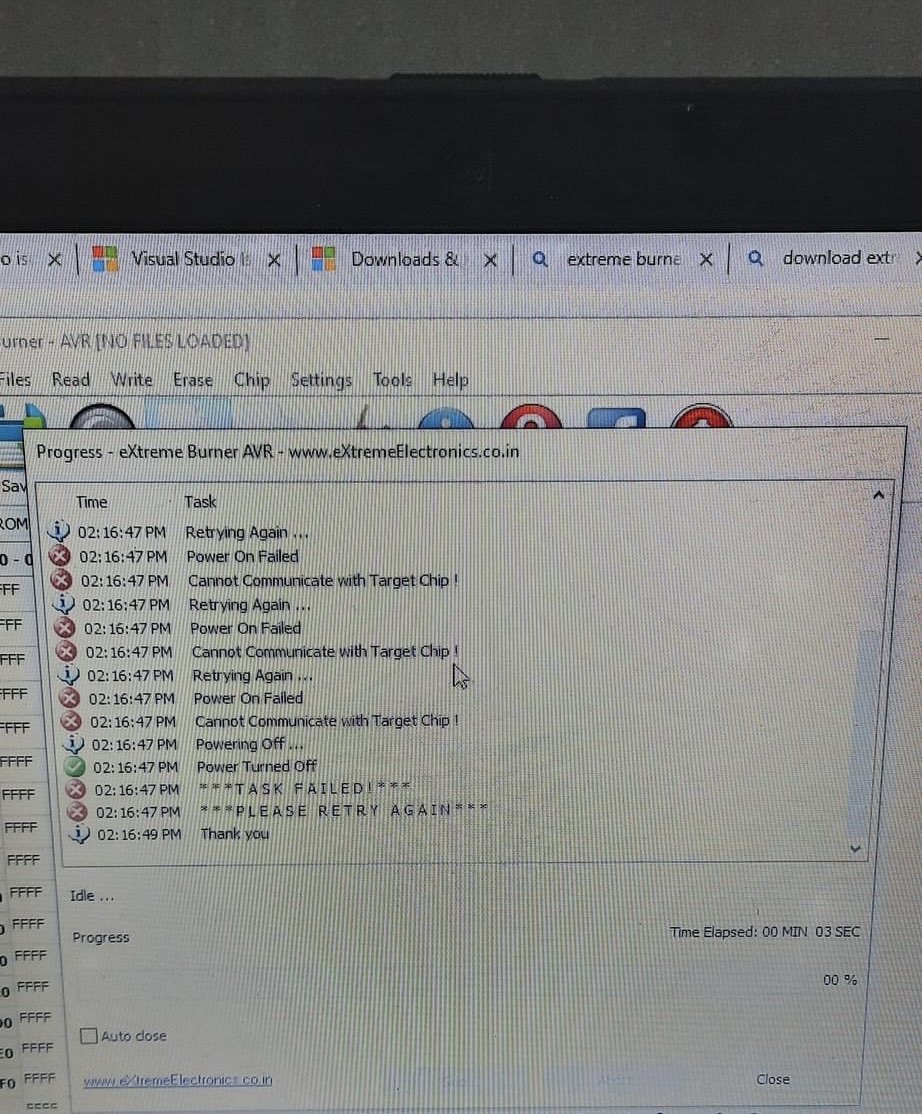

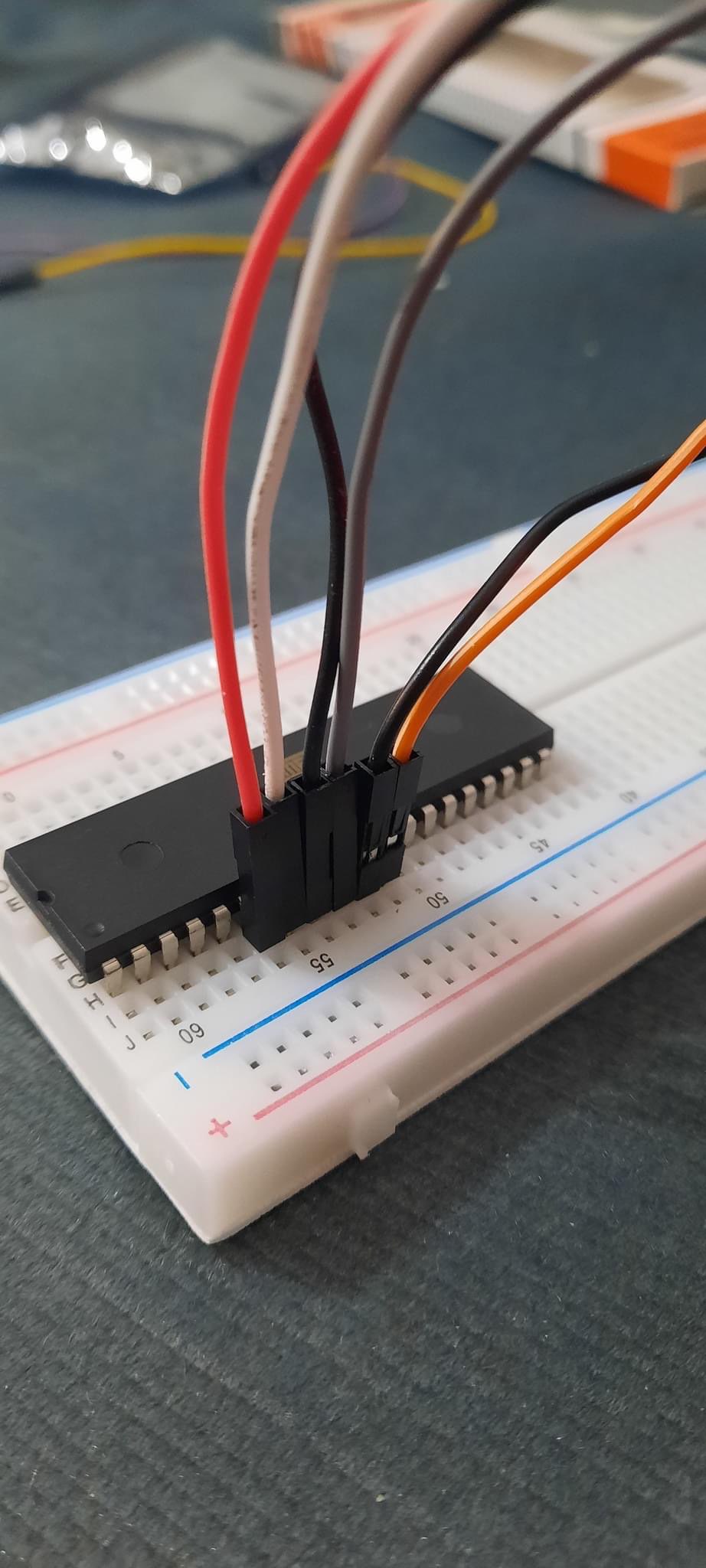

Hi everyone PLZ what is the solution to this problem? The ATmega32 is not the first time I've used it but i haven't written anything on it, just a (read )operation.

CCamila_99$$Hi everyone PLZ what is the solution to this problem? The ATmega32 is not the fi...

Navadeep•3/16/24, 3:35 PM

High level, the chip is failing to power up:

Do you have a voltage setting jumper in the programmer? Check it and set to 5V if you're using a lower level.

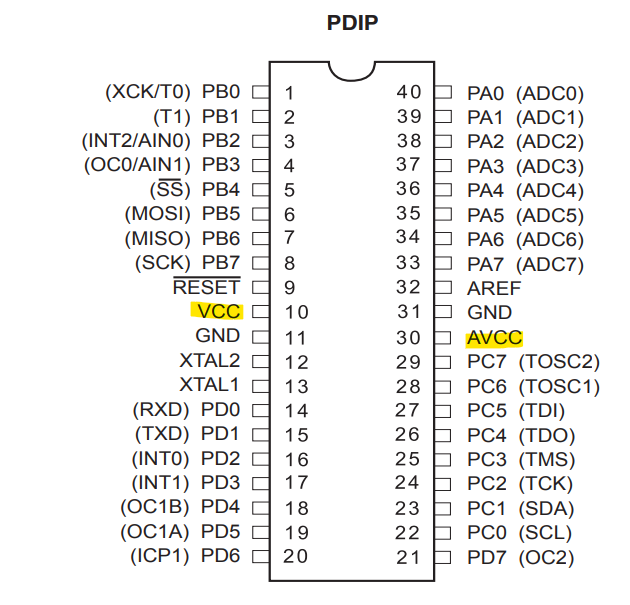

Power both Vcc and AVcc with the same level(recommended even if you're not using ADC)
Connect to all the GND pins
Physically verify the pin voltages
Just noticed, also the RESET is active low - meaning it's state should be held high to keep it in operating mode. Verify if that's happening.

CCamila_99$$Hi everyone PLZ what is the solution to this problem? The ATmega32 is not the fi...

Umesh Lokhande•3/16/24, 3:41 PM

Hi, @Camila_99$$ from connections it seems to me you're powering ATmega32 MCU from ISP programmer. I'd suggest powering AVR from an external 5V regulated supply possibly using breadboard-friendly LM7805. Often I found that these ISP programmers are not good at providing 5V to make uploading work

kristof-at-embeetle•3/16/24, 5:55 PM

Hi @Chimmuanya Okere ,

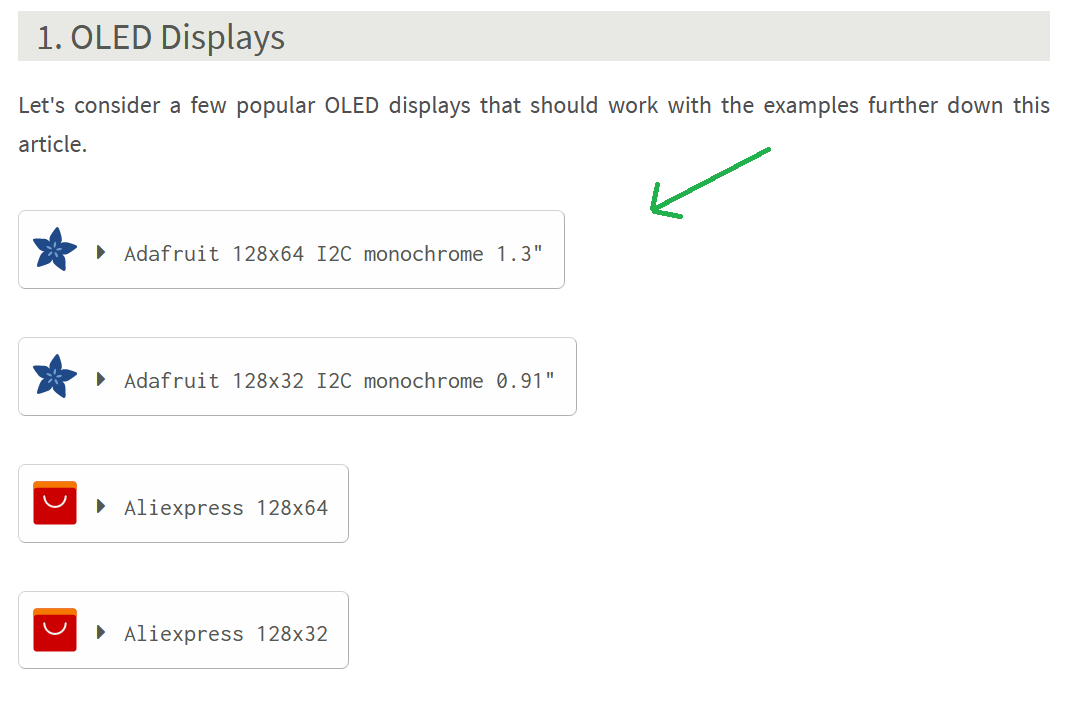

You can find the vendors on the blogpost: https://embeetle.com/#blog/oled

kristof-at-embeetle•3/16/24, 5:56 PM

kristof-at-embeetle•3/16/24, 5:56 PM

Just click on one of these, it will unfold and show you where to buy the OLED.

Kkristof-at-embeetle Hi @Chimmuanya Okere , You can find the vendors on the blogpost: https://embeetl...

Chimmuanya Okere•3/16/24, 6:38 PM

Thanks

kristof-at-embeetle•3/16/24, 6:49 PM

Sent you a friends request, in case you have more questions

NNavadeep High level, the chip is failing to power up: 1. Do you have a voltage setting ju...

Camila_99$$•3/16/24, 7:45 PM

Aa ookk

wafa_ath•3/16/24, 7:47 PM

Hey guys, am using RTC module connected via I2C to keep track of time on Raspberry Pi. But the system time keeps resetting or becomes inaccurate ....

UUmesh Lokhande Hi, @Camila_99$$ from connections it seems to me you're powering ATmega32 MCU fr...

Camila_99$$•3/16/24, 7:51 PM

Thanks for the suggestion,,, I’ll give it a try

Wwafa_ath Hey guys, am using RTC module connected via I2C to keep track of time on Raspbe...

Marvee Amasi•3/16/24, 9:14 PM

@wafa_athmani Your RTC has time keeping issues, try

Check connections: Ensure your RTC module is securely connected via I2C.
Check your power supply: Ensure stable power source; unstable power can cause resets.
Battery Backup: Check battery on RTC module; dead battery can cause resets.
Configuration also: Double-check RTC module and Raspberry Pi configuration.
Software Updates: Ensure your Raspberry Pi OS and RTC drivers are up-to-date.

Or try another Raspberry Pi or power source to isolate the issue.

youcef_ali•3/16/24, 10:32 PM

Has anyone here worked with the EZ-USB™ FX2LP FX2G2 USB 2.0 Peripheral Controller from Cypress, specifically the CY7C68013A model?

Albaphet soup•3/16/24, 11:22 PM

Why is my linux down speed so so slow

Albaphet soup•3/16/24, 11:22 PM

Not even down speed it has slow disk write access or something

Yyoucef_ali Has anyone here worked with the EZ-USB™ FX2LP FX2G2 USB 2.0 Peripheral Controlle...

Aditya thakekar•3/17/24, 3:50 AM

What is the application?

MMarvee Amasi @wafa_athmani Your RTC has time keeping issues, try 1. Check connections: Ens...

wafa_ath•3/17/24, 4:03 AM

Thank you for your reply but Actually i tried doing all the above , + I don't have other raspberry

Yyoucef_ali Has anyone here worked with the EZ-USB™ FX2LP FX2G2 USB 2.0 Peripheral Controlle...

Navadeep•3/17/24, 4:24 AM

Have heard them - the USB peripheral controllers. What are you looking in this?

AAlbaphet soup Why is my linux down speed so so slow

techielew•3/17/24, 7:28 AM

Please offer more context of your build. @abhishek awasthi may be able to help.

NNavadeep Have heard them - the USB peripheral controllers. What are you looking in this?

youcef_ali•3/17/24, 7:41 AM

This controller is used in digital logic analyser, i want to use it to record lvds signal and do the process in the computer side

Wwafa_ath Thank you for your reply but Actually i tried doing all the above , + I don't ha...

Marvee Amasi•3/17/24, 9:41 AM

@wafa_athmani well might be electromagnetic interference.Also ensure RTC module works with your Pi, check for physical damage, refer to manufacturer instructions. I just hope this helps!

Wwafa_ath Thank you for your reply but Actually i tried doing all the above , + I don't ha...

Marvee Amasi•3/17/24, 9:47 AM

I will also encourage you to get another raspberry

techielew•3/17/24, 10:01 AM

Hey all—especially you @Middleware & OS and @MCU, MPU & Firmware devs—next week's Office Hours topic preview is "When to Use an OS/RTOS".

The meetup thread is open here: https://discord.com/channels/1130679493799977062/1218860707139944489.

Looking forward to your thoughts/comments and to seeing you March 22nd on at 15:00 GMT! Sign up for a reminder or login here on Friday: https://app.livestorm.co/devheads-community/devheads-weekly-office-hours-1/live?s=af985fcc-4b30-4052-88a3-a7ecdac61971#/

Discord

Discord - A New Way to Chat with Friends & Communities

Discord is the easiest way to communicate over voice, video, and text. Chat, hang out, and stay close with your friends and communities.

DevHeads Weekly Office Hours | DevHeads System Integration Communit...

Saßì•3/17/24, 11:06 AM

@umairahmed17 Welcome! Can you let us know a bit about your technical background, what brings you to DevHeads, and what you're looking to learn/contribute?!

Chimmuanya Okere•3/17/24, 1:27 PM

I was ordering a PCB from JLCPCB with a size of 8cm*4cm, 4 layers board. When I placed an order for 15 pieces it came out about $20. But when I increased the amount of PCB to 20 pieces, the board price increased drastically to about 40 dollars. When I ask they said it's pcb panelization. How does this affect the cost. @PCB & Analog

CChimmuanya Okere I was ordering a PCB from JLCPCB with a size of 8cm*4cm, 4 layers board. When I ...

aymen ammariOP•3/17/24, 1:31 PM

I think it's related to Copper plate that should enter the machine for manufacturing, 15 seems to use only one plate and for 20 they'll be using 2 of them and the second one the majority of it will be thrown as Droppings

aymen ammariOP•3/17/24, 1:32 PM

Try increasing the amount to 29 for example and it will stay nearly 40$

aymen ammariOP•3/17/24, 1:34 PM

In other terms :
PCB panelization involves placing multiple PCB designs onto a single larger panel for manufacturing efficiency. When you increase the quantity from 15 to 20 pieces, it might exceed the maximum number of PCBs that can fit on a single panel efficiently, requiring an additional panel. This can result in higher manufacturing costs, thus increasing the price per board. Essentially, you're paying for the additional material and manufacturing process required for the extra panel(s).

CChimmuanya Okere I was ordering a PCB from JLCPCB with a size of 8cm*4cm, 4 layers board. When I ...

Joseph Ogbonna•3/17/24, 1:41 PM

Most times PCB fabricators do produce there PCB boards in panels which are of various sizes. When do do pay you pay more for the panel not just the design itself. So for your design the extra 5 pieces you added increased the number of panels. Let's say to two panels, which then increased cost.

CChimmuanya Okere I was ordering a PCB from JLCPCB with a size of 8cm*4cm, 4 layers board. When I ...

Joseph Ogbonna•3/17/24, 1:43 PM

It's always adviceable to know how your fab house do there panelization and with you can determine the size of your board to the number of boards that will be produced to reduce cost

boualleg sabrina•3/17/24, 3:52 PM

hello

boualleg sabrina•3/17/24, 3:54 PM

guys can you suggest to me an environmental project using stm32 with Ai

techielew•3/17/24, 5:25 PM

New challenge for the week: Fibonacci Word C# Coding Challenge

Give this Fibonacci C language challenge your best shot!

wafa_ath•3/17/24, 7:23 PM

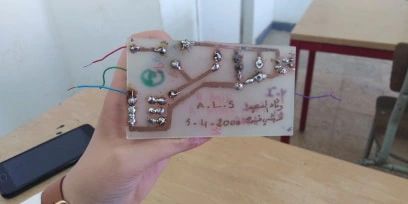

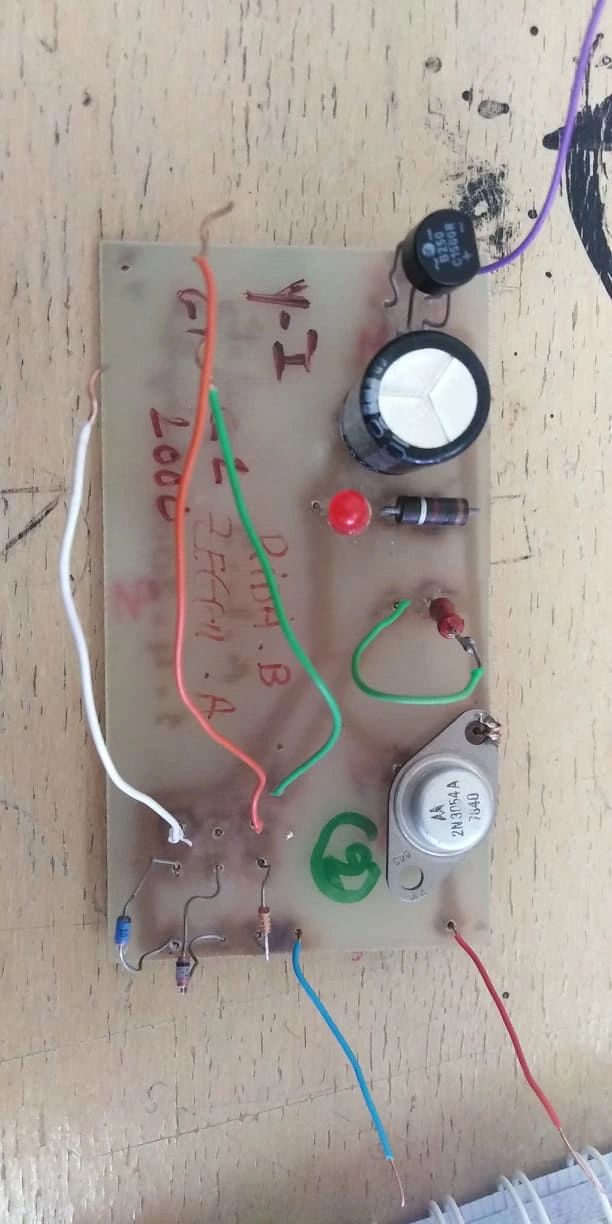

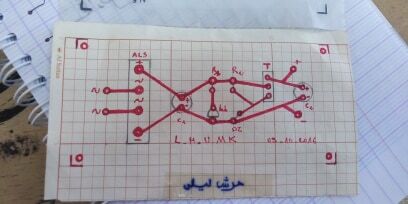

hello guys , i wanted to share with you the process of making pcb from scratch .... it is my univ project to convert this circuit to PCB i will share the final result when it's done

Bboualleg sabrina guys can you suggest to me an environmental project using stm32 with Ai

Flo•3/17/24, 8:09 PM

Hmm-- perhaps some kind of object recognition? Like point a camera to a tree/the sky and try to identify birds and planes? Or build a door lock for your room that only opens if your face is recognized (perhaps build some kind of second method for opening the door into it so you dont lock yourself out :D)

Flo•3/17/24, 8:10 PM

Is it that kind of suggestion you were looking for?

youcef_ali•3/17/24, 11:35 PM

In a Zynq SoC, can we read data from memory while DMA is operational (writing)?
