SOnly flown the Mustang
CIs there a FFB kit or adapter anyone has published for the VKB Pedals? I thought I saw one a while back but can't find it now
AI may have to start calling my MFGs pendals from now on
GThanks
1Does anyone know the lead time for a DIY kit to the states?
Sabout 6 days
1oh awesome, thanks
Wim reading throught the assembly manual from github right now, and in the beginning it mentions 20V DC power supply, when in the end it mentions a 24V one, which one is a better choice? I already have a 19.5V laptop power supply, would that work fine?
M24 is the better option these days.... you get more power on less amps which is a good thing. The 20vdc recommendation is a vestigial remnant from the beginning of the project when the caps or other components in the drives had lower ratings than they do these days
Wokay, i will run it off the laptop one until a 24V one arrives then. Thank you!
OWell I got someone to sort out the sim, and that VP Rhino is something special.
A bit more fiddling and I’ll have it just like my ikarus I’m learning in.
No more no feel touch and go’s, I’ve got a month to get my landings sorted before my lessons start again.
Happy days
A bit more fiddling and I’ll have it just like my ikarus I’m learning in.
No more no feel touch and go’s, I’ve got a month to get my landings sorted before my lessons start again.
Happy days
Dhey guys, just trying to understand something
D

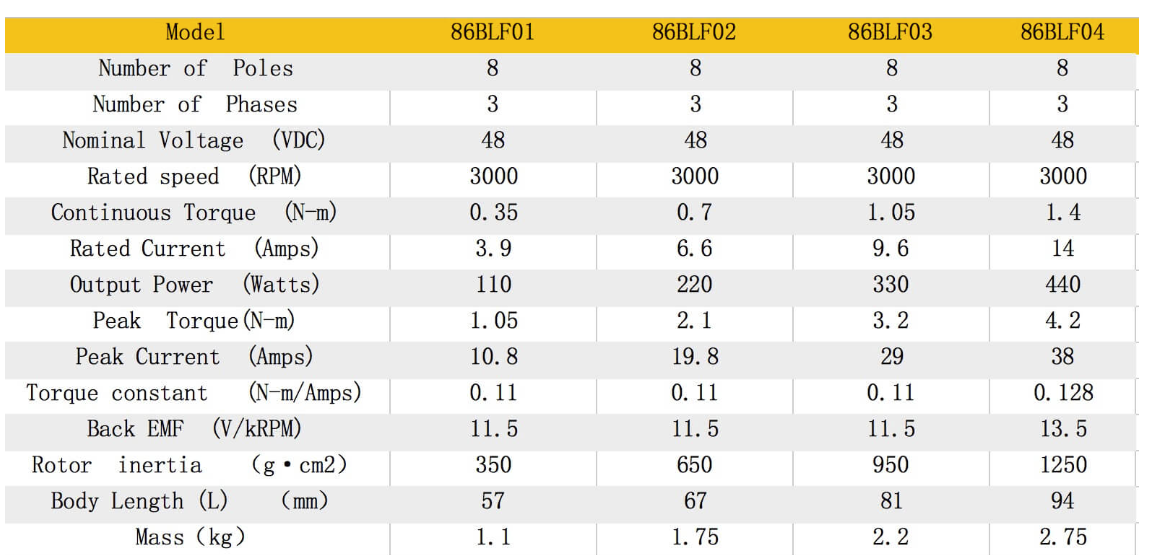

Dthe article has the 86BLF04 @ 4.2nm. but on the website this says it's 1.05nm peak
OList should be 01 yes?

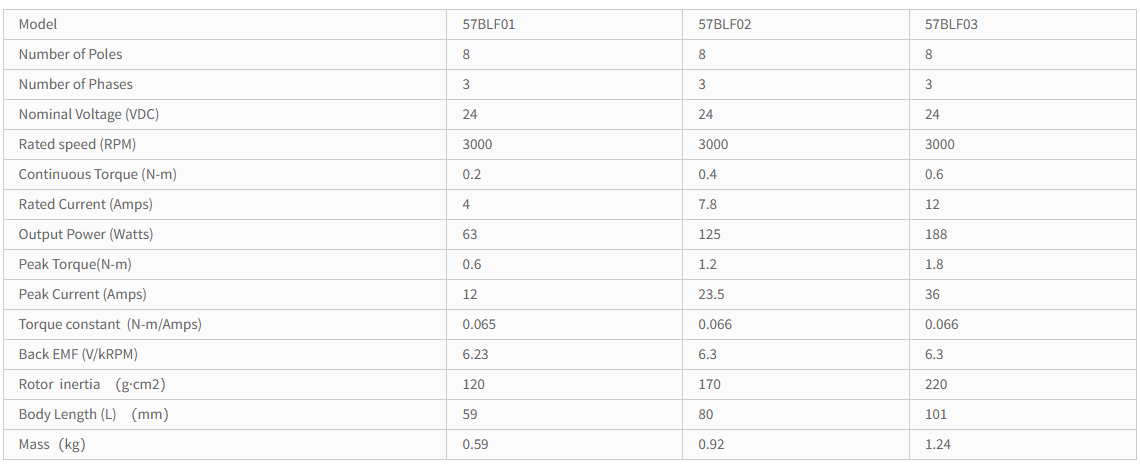

Dand in the post in FAQ it says 57BLF03 which is 1.6nm is in the Rhino? but says the Rhino produces up to 9nm
DD20+nm can be achieved
BProper reduction means what gearing?
A9Nm is the entire system's performance

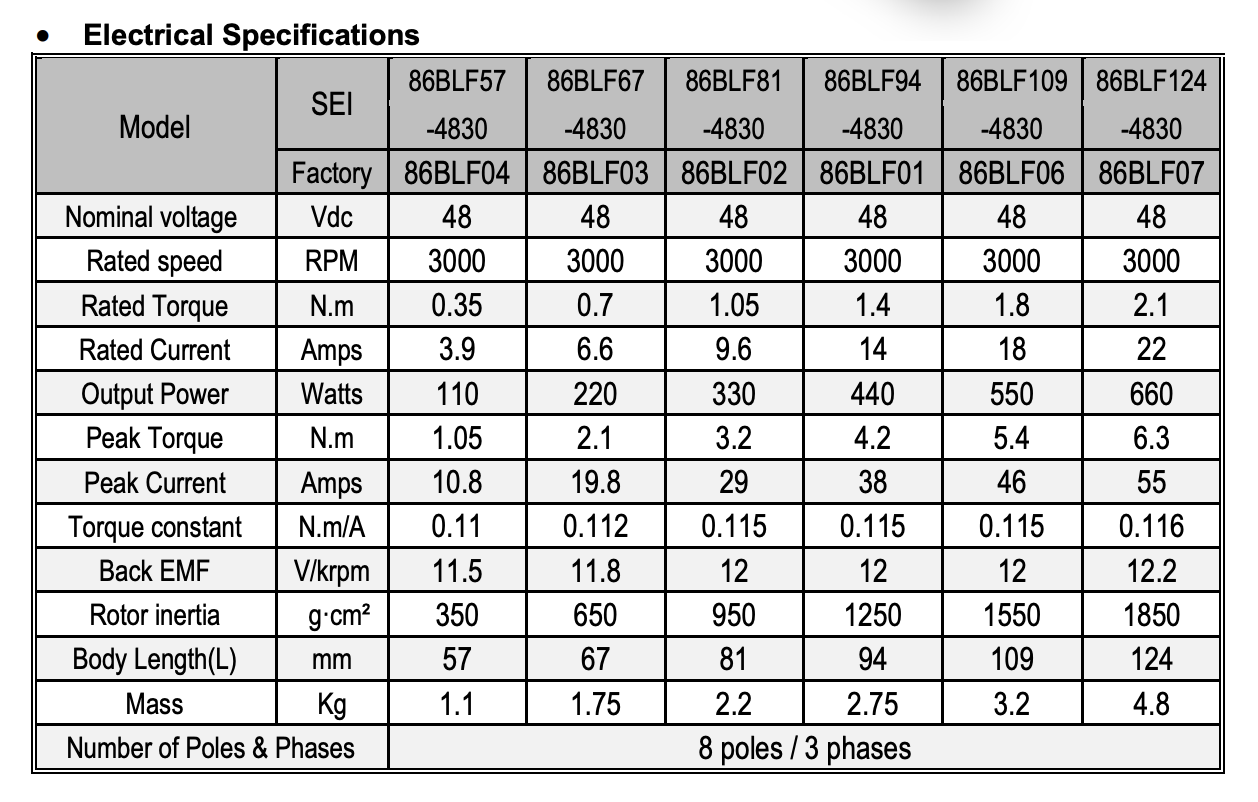

Son those charts the 01 and 04 are switched. same with the 57 size
Aevery chart i google has the same organization that drake linked above? :thonk:
Ahere's another that i found
Abut yeah, weird :thonk:
S4,3,2,1,6,7
Sits like the worst order to watch star wars or something
Ahaha
WThere are many different manufacturers, some spec the motor models with inverted numbering ¯\_(ツ)_/¯
WThe torque in manufacturer spec is for spinning applications. For holding torque it's best calculated
TqConst[Nm/A] * max_driver_current[A] = Tq[Nm], so on paper 57BLF03 achieves 1.98Nm @ 30A, it's a bit lower in reality
V:package:
RHINO #0624 Has Shipped!
RHINO #0624 Has Shipped!V:package: RHINO #0627 Has Shipped!
V:package:
RHINO #0625 Has Shipped!
RHINO #0625 Has Shipped!Ais that one rhino going to the ISS or something
W"United States of Freedom"
LCan’t believe the amount of drop outs not complaining though as mines coming soon
RI'm waiting eagerly for the delivery of my Rhino
SI'm rapidly approaching the "less Rhinos before me than have been built ever" landmark with 675 left, so that's fun
PSoftware is amazing, but UI font scale not syncronize to windows font size
Pcurrent torque is enough for 3d printed housing, for higher torque need metal housing.
Preally higher torque is not needed for me.
VCompletely concur with your happiness moving up rapidly on the list - I just paid for mine! I would much rather invest in a proven product/software knowing I have Walmis's experience behind it vs. guessing about what is really coming from others and how it will meet the rigors of dogfighting. Looking very forward to getting in my hands a few months early.
PHentai motor good name. well branded
PI cannot say power of rhino is MORE THAN enough, but it is really enough.
Pwith more than 15~ 20nm~ of torque,
Pokay have more dynamic range but really there is risk of injury
Ponce the grip slips out from hand, it will be swinging like mini metal bat.
Pand it will crack step by step some 3d printed material and wood which is not strong enough for the torque
Pfor somebody who need higher torque for special purpose, it can be needed but not me at least.
PI really don’t want to simulate risk
Pand I really hate Chinese style torque marketing,
