now when i push stick the virtual axis is way to senstive stick only moves a little forward and hits
now when i push stick the virtual axis is way to senstive stick only moves a little forward and hits virtual limit way to fast
Tscaling only increase the problem there is no option for negative scaling of the axis only increase the virtual movment
TYou’ve changed the wrong calibration value then. You said you decreased the max but you need to decrease the min.
TSet max back to where it was
Tok i recalibrated I'll change the min now
TWhat this will do is allow 20deg fwd to be at 100%, and 20deg back to be at 100%. But you have a 15 degree limiter on the back so when you pull back to 15 degree limiter your virtual axis should be at 75% travel.
Tit's working you are a genious
T
Tsorry I know that had to be very painful for you.
Tlol
THaha it’s all good, it was more just starting to question my own sanity lol.
TDid the axis scaling work to get it to be 100% when you pull back?
Tyes it all works
TAwesome, glad to help!!
Tyes I'm so thankful. This will be alot more comfortable for me
Tamazing how much a few degrees will do.
DHas anyone else lost engine input to their VP force rino with the newest IL2 patch? I still get gunfire rumble and can feel flaps, and gear etc. Its just the engine
GHey everyone. Has anybody tried their Rhino or the VP software with MSFS2024?
OYes
OMy stick works fine, no FFB obviously.
OFeels good still.
GThat's great to hear. Hopefully, Walmis will have some time to see about getting FFB working. Thanks!
Auhh, you should be able to use TelemFFB to get FFB in MSFS2024
Ahaven't personally tested it though, but i've heard it is working
GI'll give it a try as soon as I get my copy of the sim. Unfortunately, I ordered the limited addition.....VERY POOR DECISION.
OI'll check TelemFFB when I fly tonight.
JI think my emergency stop button is broken. It no longer locks when pressed and turned, and the base shows usb connected in the configurator but both motors are offline. is there a way to test, and does anyone have a link to a replacement?
SMsfs 2024 works fine with telemFFB.
Jyep, its the emergency button. if I short it out everything works. anyone have a pointer to a drop in replacement for the prebuilt rhino?
GGlad to hear FFB is working in 2024!
SIs there a way to dial in the spring or friction settings so that they are not linear? - in other words the further I move the ailerons left or right or the elevator back the harder it is to pull? Thanks!
PS if there is a section in the manual that explains this I apologize if you could just point me into that general direction I should be able to figure it out thanks
PS if there is a section in the manual that explains this I apologize if you could just point me into that general direction I should be able to figure it out thanks
W

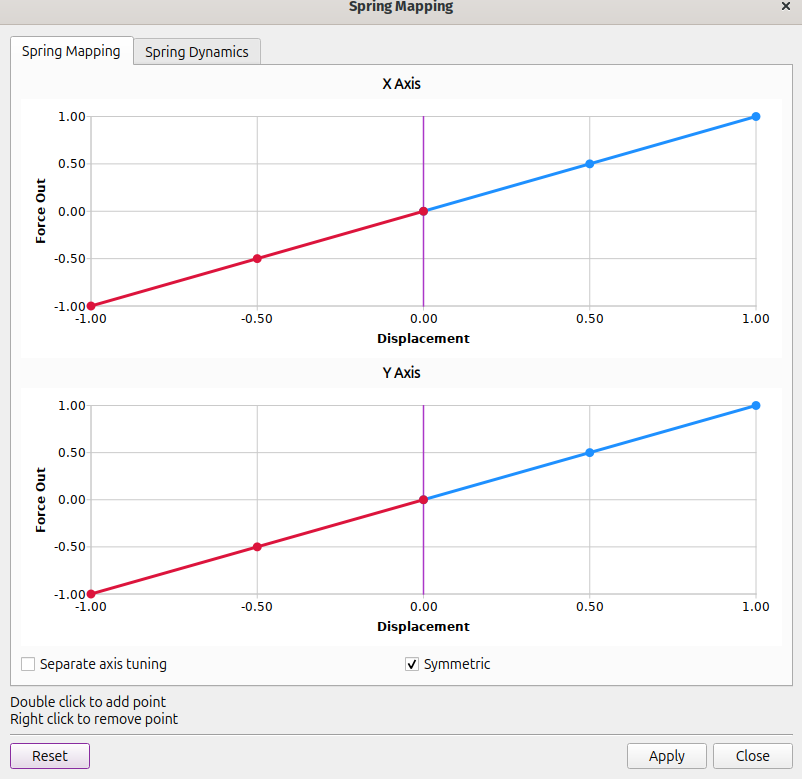

WFor the spring you can adjust the spring displacement vs force mapping:
Rwhen adjusting the spring mapping vs the spring dynamics, what exactly is changing for each and do they impact each other. for example, i still get reverb/instability when adding a sharp down curve close to the center or x,y axis.
Rits better after the last update, as dampening has been improved, but still not smooth.
RAlso what does cogging feel like? can it be on only one direction of travel for either axis? For example, i get a bumping when moving off the center to the left, but this "bump" or click doesnt happen in either direction.
W- Spring mapping remaps displacement vs spring force curve
- Spring dynamics remaps SIM requested spring gain to a custom map. For example DCS warbirds have speed dependent spring gain - this feature allows to tweak it. For example to make it more stiff at higher speed, etc. If the spring gain is static it doesn't do anything.
ROk, i understand. I thank you
WYou can feel the cogging by turning off power to the unit, when motors are unpowered you will feel the magnetic bumpiness of the motors.
If you feel a single bump or a click you can try tightening the small pulley grub screws and the large gear 5x bolts.
If you feel a single bump or a click you can try tightening the small pulley grub screws and the large gear 5x bolts.
RThe weird bumping, i am feeling in the left x axis, feels like skipping maybe, but its only in the left x axis. up down and right have no issues
Rperfect. thanks homie. appreciate your hard work and ffb solution that has changed vr for the best.

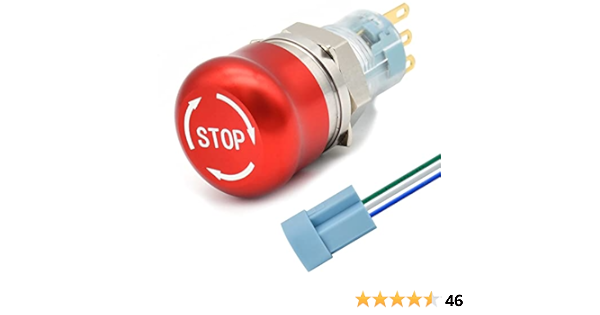

JI ordered this from Amazon, looked similar. it should arrive tonight and I can see if it fits. If not, I'll use the order form.
https://www.amazon.com/dp/B09MTMNP61?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
https://www.amazon.com/dp/B09MTMNP61?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Package include : 1* 16MM Emergency Stop Push Button Switch 1* Wire Connector Sockets What's Self-Locking Switch: Latching Push Button Switch, Push to lock, Turn to Release, What's the Wire Connector: With the wire connector, you don't need to solder the terminals, make installing very easy Saves...
WYep, 16mm will fit nicely
VI also seem to have this. I thought it was my 3d printed extension, which does have some play, but Im pretty sure now thats not it, as I also get it without it.
HPossible reasons for feel of „play“ in the stick I encountered: (DIY Kit!)
- The TM Warthog Stick itself has some nasty play between the grip and the crap metal connector (solved with some 3D printed wedges)
- the 12T pulley was loose on the motor axis (grub screw not secured with loctide)
- The threaded inlays in the gooseneck extension came loose (the screws that held them actuallly - solved with loctide)
- the rectangular aluminium extrusion had play in the gimbal core, solved with some electrical tape.
FI can confirm the TM warthog play. In my case upgrading the 3D printed connector to the metal one solved the issue.
Hthe play I meant is in the stick itself. The screw on connector of the stick itself sits loose in the halves of the grip.
FThat's what I noticed but for some reason when I mounted it in the aluminum grip mount the play was gone. Maybe I just got lucky.
HHm, ok. Can‘t really see how that should help. Maybe it warps/bends so much that it comes under tension? Either way. Unless taken care of, it was VERY annoying indeed!
FHaha I'm not sure. I tried and it worked so I'll leave it alone... Definitely annoying!
RCan I get a picture of these different places things may cause this bumping. Sorry I’m dense. I’ve only replaced the limiter before so haven’t dove deep into how everything is connected for the gears and extrusion
