VPforce Controls•13mo ago

Says for collective spring force is required

TTonyZ2525 beats me .... I know hardware but the settings are a complete mystery to me...I ...

H145Rotor-SimsOP•12/4/24, 7:47 PM

Thank you Tony

HH145Rotor-Sims Says for collective spring force is required

smitty•12/4/24, 7:49 PM

right. thats how it pushes the collective around/locks in place. has nothing to do with balancing

Ssmitty right. thats how it pushes the collective around/locks in place. has nothing t...

H145Rotor-SimsOP•12/4/24, 7:49 PM

Okay I see. I'm fire up 2020 and see if it will work

HH145Rotor-Sims Okay I see. I'm fire up 2020 and see if it will work

smitty•12/4/24, 7:53 PM

did you calibrate and are both numbers between 0-4096

Ssmitty did you calibrate and are both numbers between 0-4096

H145Rotor-SimsOP•12/4/24, 7:54 PM

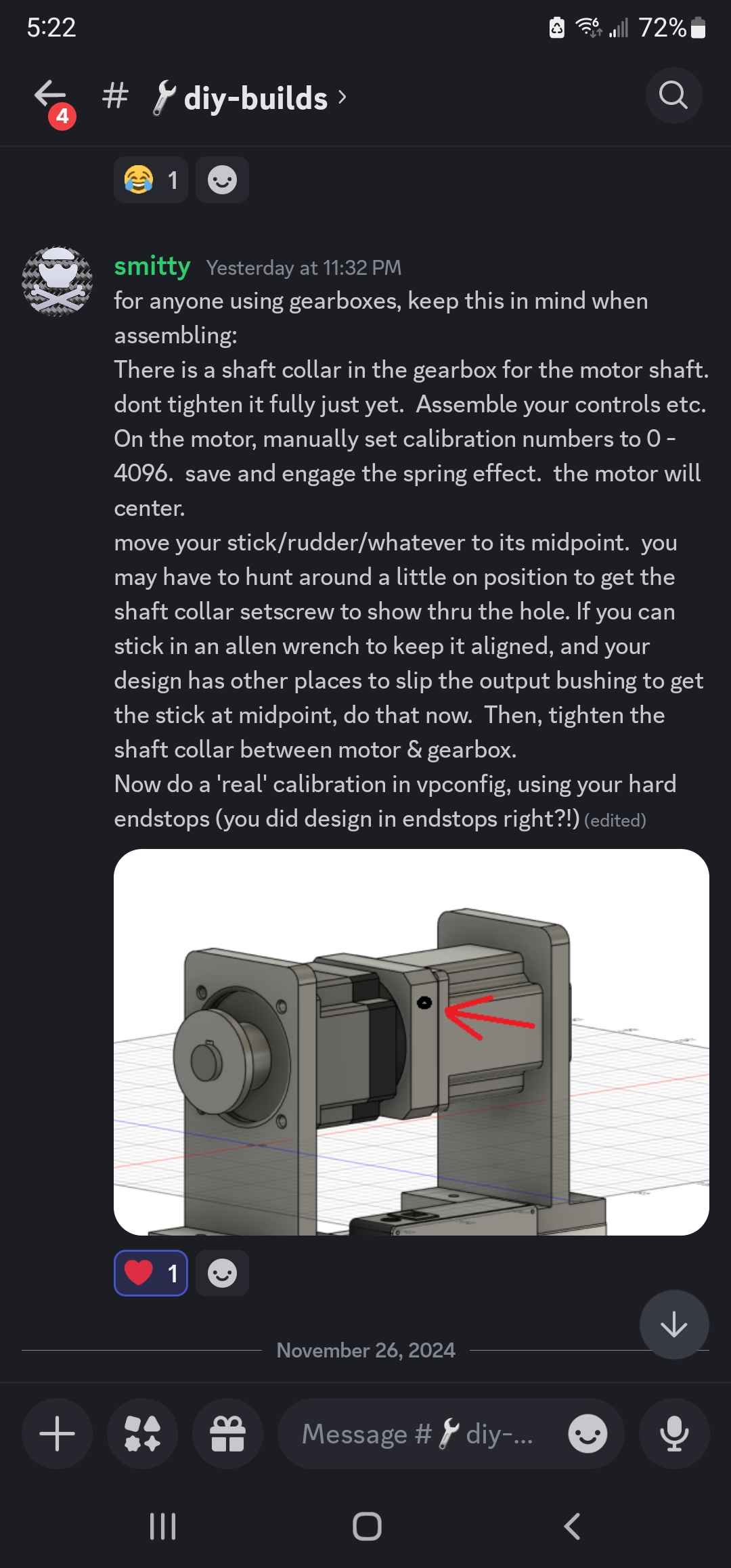

Yeah I followed this per your direction

H145Rotor-SimsOP•12/4/24, 8:00 PM

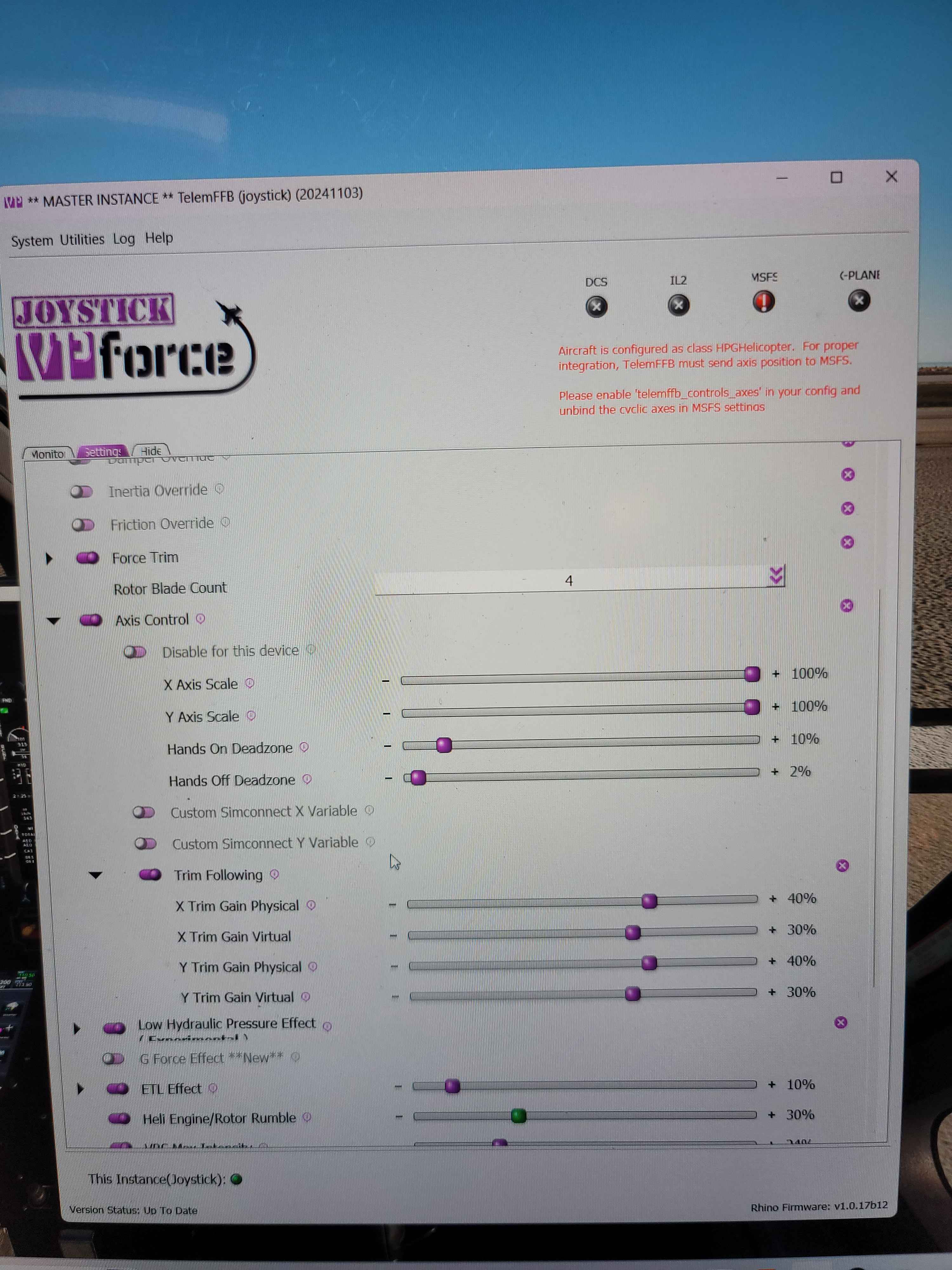

I have this message "please enable telemffb_control_axes in your config. I don't see that

smitty•12/4/24, 8:00 PM

Axis Control

H145Rotor-SimsOP•12/4/24, 8:02 PM

Is that in telemffb or the vp force?

smitty•12/4/24, 8:02 PM

telemffb

H145Rotor-SimsOP•12/4/24, 8:04 PM

Have it enabled and still have an error

smitty•12/4/24, 8:04 PM

thats the joystick

H145Rotor-SimsOP•12/4/24, 8:05 PM

I don't have anything connected to the pc besides the collective motor and my mouse

smitty•12/4/24, 8:07 PM

go to telemffb system options and tell it this device is a collective

H145Rotor-SimsOP•12/4/24, 8:09 PM

I must be blind

H145Rotor-SimsOP•12/4/24, 8:09 PM

Found it

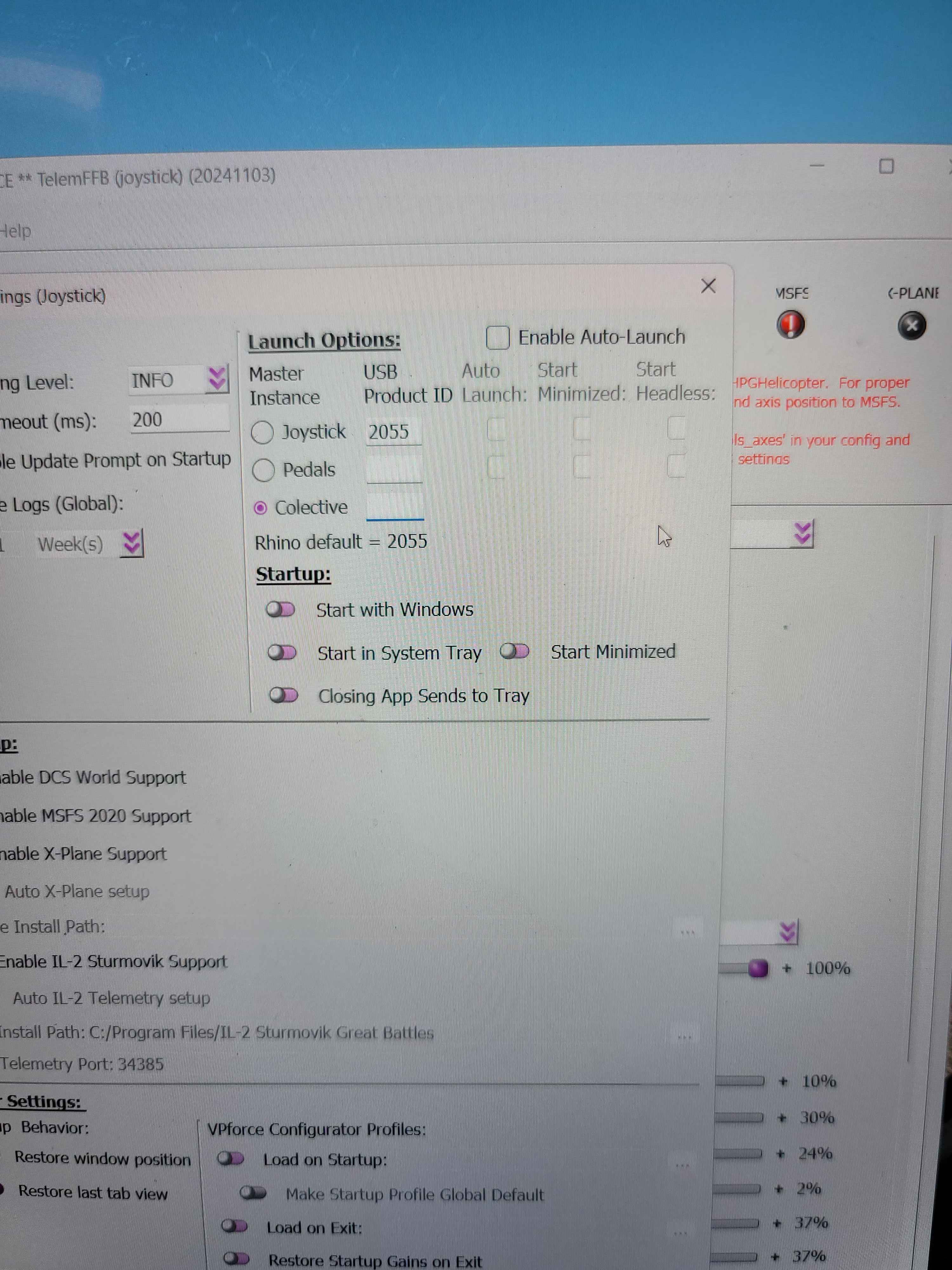

H145Rotor-SimsOP•12/4/24, 8:10 PM

H145Rotor-SimsOP•12/4/24, 8:10 PM

Do I need to pit the number in there 2055?

smitty•12/4/24, 8:11 PM

do you have a vpforce joystick also? you should change the name & number of the collective in vpf configurator first

Ssmitty do you have a vpforce joystick also? you should change the name & number of the...

H145Rotor-SimsOP•12/4/24, 8:12 PM

I have one coming yes and anti torque pedals. I'll change the name and give it a unique number

smitty•12/4/24, 8:12 PM

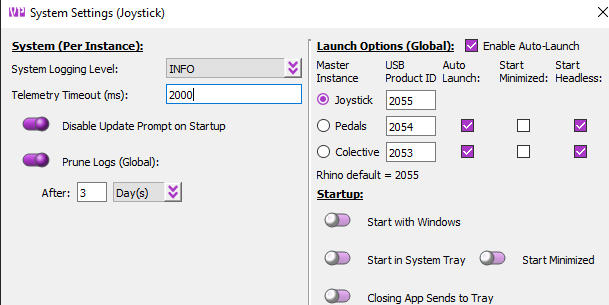

heres my setup

H145Rotor-SimsOP•12/4/24, 8:16 PM

Okay I have a green on the msfs and I'm in the heli but collective is still sitting in the center and not responding to my input

smitty•12/4/24, 8:18 PM

all bindings in msfs removed? sorry its been a while since i was in a hpg

Ssmitty all bindings in msfs removed? sorry its been a while since i was in a hpg

H145Rotor-SimsOP•12/4/24, 8:19 PM

Correct all bindings removed

H145Rotor-SimsOP•12/4/24, 8:19 PM

I double checked in vp config and my axis moves

smitty•12/4/24, 8:19 PM

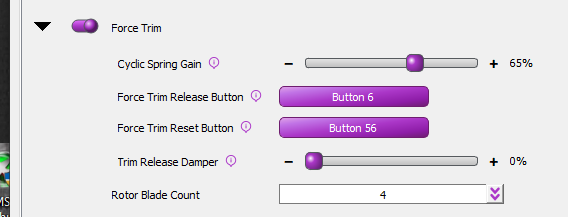

set up force trim buttons? (reset is optional)

Ssmitty set up force trim buttons? (reset is optional)

H145Rotor-SimsOP•12/4/24, 8:20 PM

This I didn't do

H145Rotor-SimsOP•12/4/24, 8:20 PM

I have to hook up the grip

smitty•12/4/24, 8:21 PM

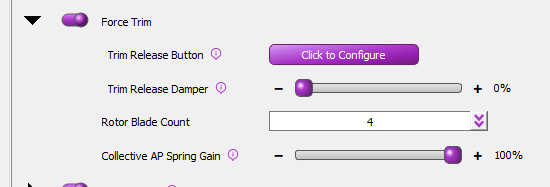

oh sorry that was joystick page, collective page is like this and apparently i have no button set up

smitty•12/4/24, 8:24 PM

i think you also have to bind the trim release in msfs (or the hpg app) to the same button. and beep trim also

H145Rotor-SimsOP•12/4/24, 8:25 PM

Okay grip is hooked up and I went into force trim and clicked the button and it didn't register. Supposed to be button 36

H145Rotor-SimsOP•12/4/24, 8:26 PM

Do I have to config or turn anything on in the vp force configurator?

smitty•12/4/24, 8:26 PM

yeah, check configurator for grip type and button mapping setup

H145Rotor-SimsOP•12/4/24, 8:28 PM

I set as generic grip, went into hard force to bind click the button and nothing happens

smitty•12/4/24, 8:29 PM

beats me, thats a walmis question

H145Rotor-SimsOP•12/4/24, 8:30 PM

Yeah I don't have a grip physically plugged into the control board. It's a separate device

H145Rotor-SimsOP•12/4/24, 8:31 PM

I think it may be to be loop back then bound in the sim

smitty•12/4/24, 8:32 PM

ah ok then it should be possible thru the loopback, i just dont know anything about it

H145Rotor-SimsOP•12/4/24, 8:32 PM

Neither do I loln

H145Rotor-SimsOP•12/4/24, 8:38 PM

I'm dumb, you have to run the loopback exe file.

H145Rotor-SimsOP•12/4/24, 8:45 PM

I have the button mapped, sees it but the trim release isn't working

smitty•12/4/24, 8:48 PM

springs cranked up? gain map set?

H145Rotor-SimsOP•12/4/24, 8:49 PM

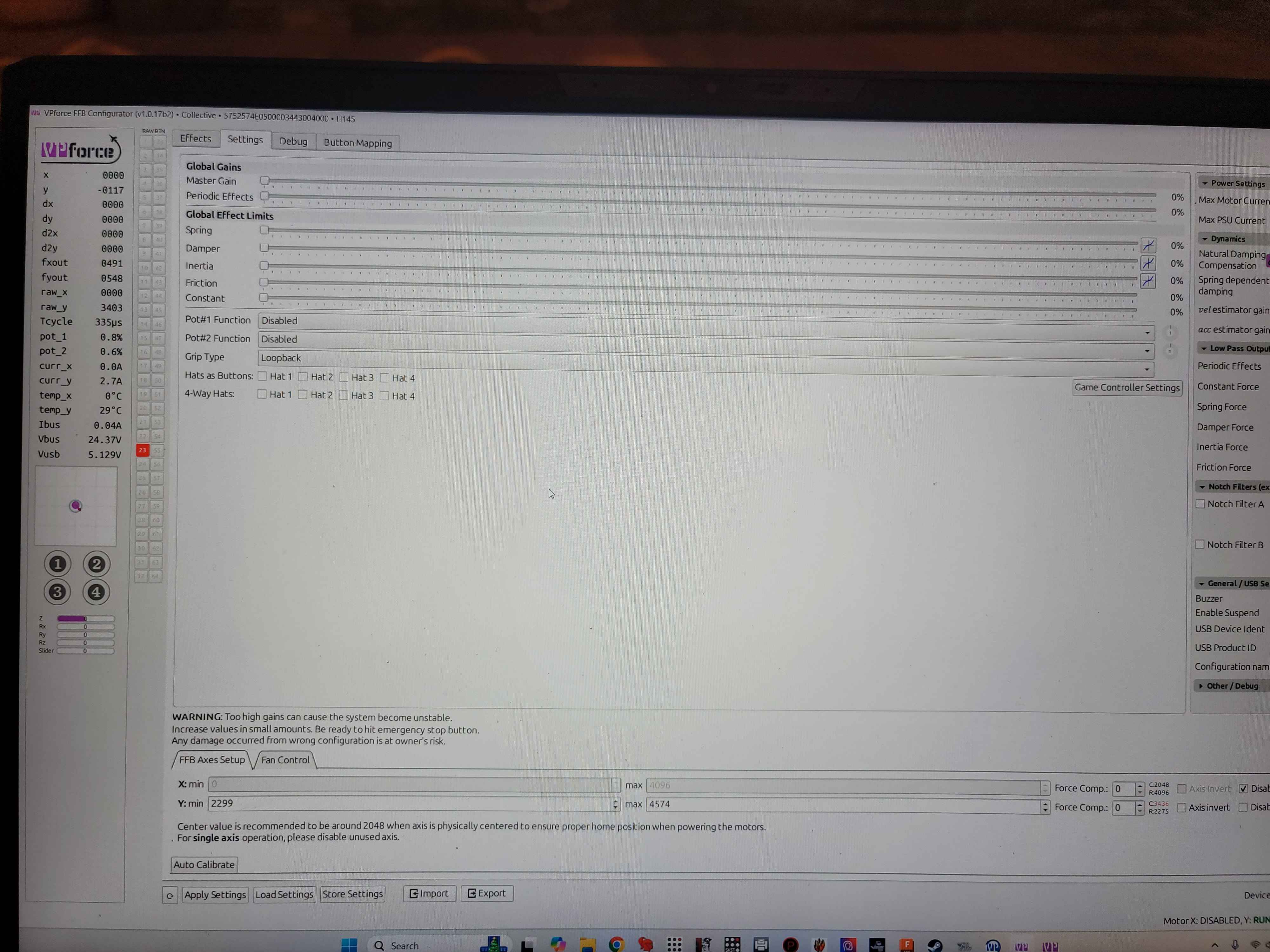

smitty•12/4/24, 8:50 PM

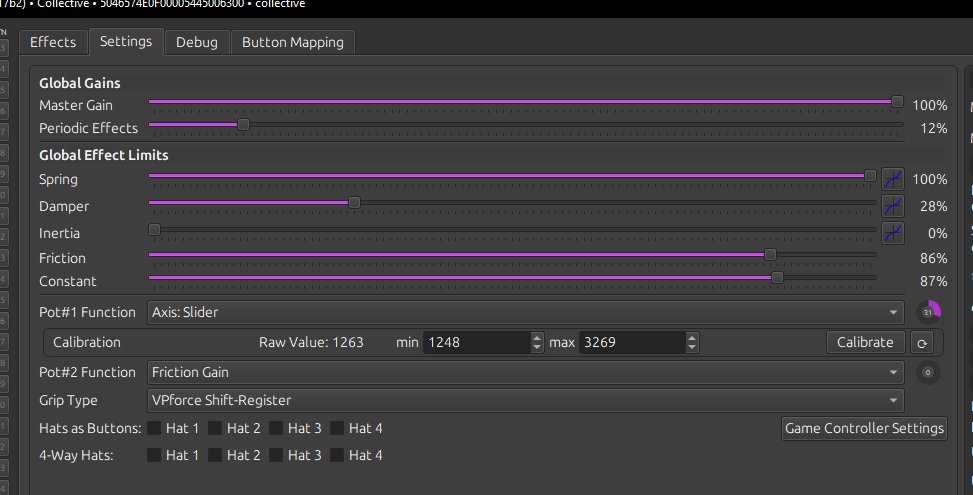

you have everything zero'd on configurator

H145Rotor-SimsOP•12/4/24, 8:50 PM

I didn't think I need global if the effects are set? Lol

H145Rotor-SimsOP•12/4/24, 8:50 PM

How did you get yours in dark mode?

smitty•12/4/24, 8:51 PM

effect times 0 is 0

smitty•12/4/24, 8:52 PM

and im not sure on the dark- one of the updates it just started that way. might read windows setting

H145Rotor-SimsOP•12/4/24, 8:53 PM

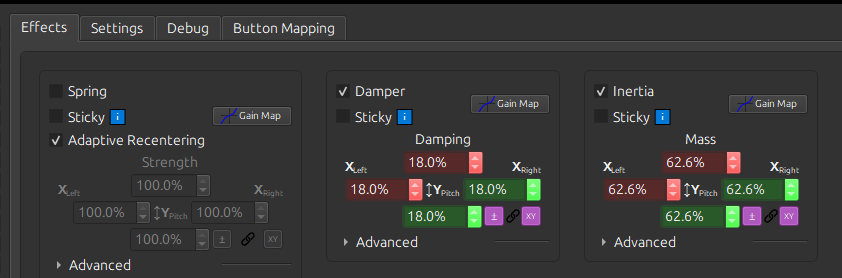

What does your effects page look like?

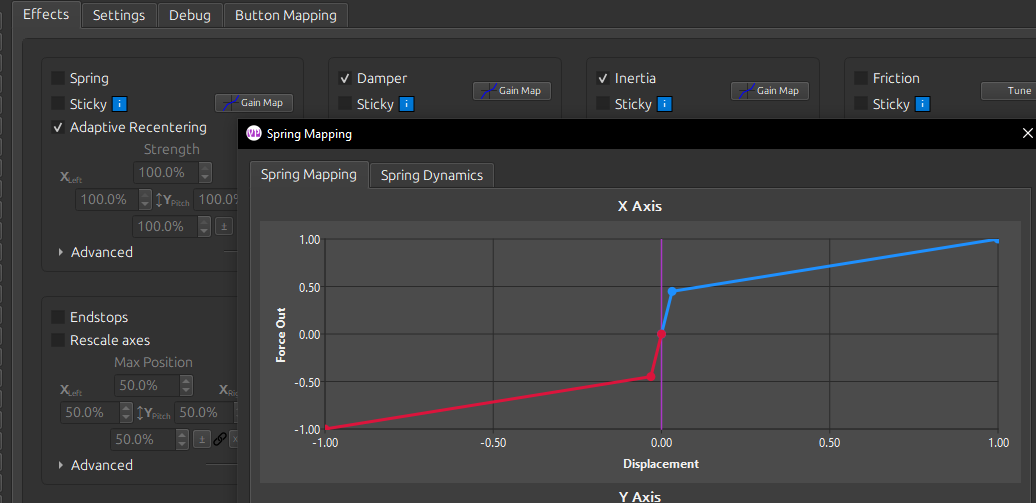

smitty•12/4/24, 8:54 PM

smitty•12/4/24, 8:54 PM

all others are off
