set up force trim buttons? (reset is optional)

Ssmitty set up force trim buttons? (reset is optional)

H145Rotor-Sims•12/4/24, 8:20 PM

This I didn't do

H145Rotor-Sims•12/4/24, 8:20 PM

I have to hook up the grip

smittyOP•12/4/24, 8:21 PM

oh sorry that was joystick page, collective page is like this and apparently i have no button set up

smittyOP•12/4/24, 8:24 PM

i think you also have to bind the trim release in msfs (or the hpg app) to the same button. and beep trim also

H145Rotor-Sims•12/4/24, 8:25 PM

Okay grip is hooked up and I went into force trim and clicked the button and it didn't register. Supposed to be button 36

H145Rotor-Sims•12/4/24, 8:26 PM

Do I have to config or turn anything on in the vp force configurator?

smittyOP•12/4/24, 8:26 PM

yeah, check configurator for grip type and button mapping setup

H145Rotor-Sims•12/4/24, 8:28 PM

I set as generic grip, went into hard force to bind click the button and nothing happens

smittyOP•12/4/24, 8:29 PM

beats me, thats a walmis question

H145Rotor-Sims•12/4/24, 8:30 PM

Yeah I don't have a grip physically plugged into the control board. It's a separate device

H145Rotor-Sims•12/4/24, 8:31 PM

I think it may be to be loop back then bound in the sim

smittyOP•12/4/24, 8:32 PM

ah ok then it should be possible thru the loopback, i just dont know anything about it

H145Rotor-Sims•12/4/24, 8:32 PM

Neither do I loln

H145Rotor-Sims•12/4/24, 8:38 PM

I'm dumb, you have to run the loopback exe file.

H145Rotor-Sims•12/4/24, 8:45 PM

I have the button mapped, sees it but the trim release isn't working

smittyOP•12/4/24, 8:48 PM

springs cranked up? gain map set?

H145Rotor-Sims•12/4/24, 8:49 PM

smittyOP•12/4/24, 8:50 PM

you have everything zero'd on configurator

H145Rotor-Sims•12/4/24, 8:50 PM

I didn't think I need global if the effects are set? Lol

H145Rotor-Sims•12/4/24, 8:50 PM

How did you get yours in dark mode?

smittyOP•12/4/24, 8:51 PM

effect times 0 is 0

smittyOP•12/4/24, 8:52 PM

and im not sure on the dark- one of the updates it just started that way. might read windows setting

H145Rotor-Sims•12/4/24, 8:53 PM

What does your effects page look like?

smittyOP•12/4/24, 8:54 PM

smittyOP•12/4/24, 8:54 PM

all others are off

H145Rotor-Sims•12/4/24, 8:56 PM

I think mine needs static force?

smittyOP•12/4/24, 8:57 PM

no static force. theres a balance spring, if you didnt add enough weight.
but on your settings page, the math is:
Game effect x Master gain x Spring limit = what you feel

H145Rotor-Sims•12/4/24, 8:59 PM

It's working

smittyOP•12/4/24, 8:59 PM

yay!!!

H145Rotor-Sims•12/4/24, 8:59 PM

This is freaking amazing!

H145Rotor-Sims•12/4/24, 9:00 PM

Thank you for your help on this!

H145Rotor-Sims•12/4/24, 9:00 PM

Now I have to set up the beep beep trim

smittyOP•12/4/24, 9:00 PM

wait til you have all 3 controls.. hitting AP and everything jumps out of your hands, its really wild

H145Rotor-Sims•12/4/24, 9:01 PM

Yeah I'm really looking forward to it. I made an awesome block for the collective to mate up to the hub

TonyZ2525•12/4/24, 9:42 PM

@H145Rotor-Sims congrats

HILOK•12/5/24, 4:46 PM

hi there, i noticed my DYNAMICS and LPF settings are different from the current factory settings. are there any tutorials on how to set these or what to look for, when tweaking. i am lost here

thanks

Will3D•12/5/24, 6:58 PM

Hi. I'm trying to update the firmware, but the "upgrade" button is faded out. I can update my other board, but this one ( older one) won't let me. Anyone know any tricks to make it work ? thx

WWill3D Hi. I'm trying to update the firmware, but the "upgrade" button is faded out. I ...

walmis•12/5/24, 7:07 PM

Easy fix: 🧰support

Wwalmis Easy fix: https://discord.com/channels/965234441511383080/968208779084701716/115...

Will3D•12/5/24, 7:45 PM

Thank you!

H145Rotor-Sims•12/5/24, 9:24 PM

Is it possible to auto start rhino loopback with windows?

Number481•12/5/24, 9:29 PM

you can theoretically start any app with windows.. Win+R ->

shell:startup

shell:startup

, then drop a shortcut in the explorer window that opens

NNumber481 you can theoretically start any app with windows.. Win+R -> `shell:startup`, th...

H145Rotor-Sims•12/5/24, 9:32 PM

Ah yeah, didn't even think of that. I didn't know if there was something native in the program.

Wwalmis Easy fix: https://discord.com/channels/965234441511383080/968208779084701716/115...

Will3D•12/6/24, 2:01 AM

Unfortunately it didn't work. I remember last time you had to remote in to fix this on my PC for some reason.

Will3D•12/6/24, 2:02 AM

I can connect, but it lists the joystick as paired.

Will3D•12/6/24, 2:02 AM

And won't let me update.

WWill3D Unfortunately it didn't work. I remember last time you had to remote in to fix ...

walmis•12/6/24, 7:28 AM

Ahh, I recall you had installed Zadig libusb drivers. You need to go to device manager find the Rhino devices and uninstall the drivers, then do a scan for hardware changes

*NOB*Aries•12/6/24, 7:28 AM

I will ask again... the effects shake through the center of the stick axises has a more brittle vibrating now, sharpish/tingling like something is loose in the stick (on afterburner effect in DCS Viper and ETL in DCS Kiowa)... it was not like this when it arrived... What do I check inside it? Are there any parts that need retighteninmg? Are there any pics or videos for checking loose stuff inside? Thx!

Wwalmis Ahh, I recall you had installed Zadig libusb drivers. You need to go to device m...

Will3D•12/6/24, 7:30 AM

It’s only this one board though. The others are ok.

RoyMi6•12/6/24, 5:11 PM

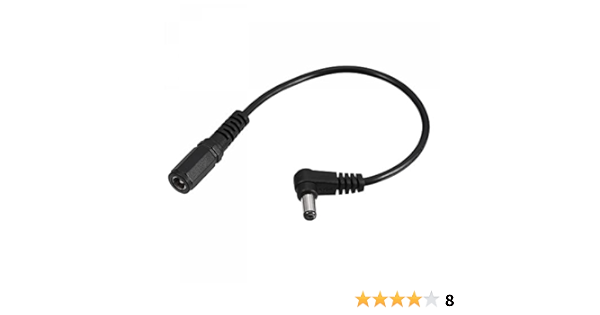

Hey folks, I'd like to buy a right angle barrel connector for the power. Anyone able to tell me the "specs" of the default one so I can extend it? This looks about right... https://amzn.eu/d/gzqQB5B but it's hard to check 5.5mm width that accurately with a tape measure

sourcing map 5.5mm x 2.1mm 90 Degree Right Angle DC Power Male Plug...

sourcing map 5.5mm x 2.1mm 90 Degree Right Angle DC Power Male Plug Jack to Bare Wire Open End Pigtail Power Cable Repair for Camera CCTV 0.2m Pack of 2

**NOB*Aries I will ask again... the effects shake through the center of the stick axises has...

Number481•12/6/24, 7:49 PM

my only suggestion would be to unfasten the boot ring and lift up the boot to expose the gimbal assembly. Check all the screws you can see and snug up any that are not tight. Also a good idea to snug up the 5 hex screws that attach the pulleys from the outside.
