you can theoretically start any app with windows.. Win+R -> `shell:startup`, then drop a shortcut i

you can theoretically start any app with windows.. Win+R ->

shell:startup

shell:startup

shell:startup

shell:startup, then drop a shortcut in the explorer window that opens

NNumber481 you can theoretically start any app with windows.. Win+R -> `shell:startup`, th...

H145Rotor-Sims•12/5/24, 9:32 PM

Ah yeah, didn't even think of that. I didn't know if there was something native in the program.

Wwalmis Easy fix: https://discord.com/channels/965234441511383080/968208779084701716/115...

Will3D•12/6/24, 2:01 AM

Unfortunately it didn't work. I remember last time you had to remote in to fix this on my PC for some reason.

Will3D•12/6/24, 2:02 AM

I can connect, but it lists the joystick as paired.

Will3D•12/6/24, 2:02 AM

And won't let me update.

WWill3D Unfortunately it didn't work. I remember last time you had to remote in to fix ...

walmis•12/6/24, 7:28 AM

Ahh, I recall you had installed Zadig libusb drivers. You need to go to device manager find the Rhino devices and uninstall the drivers, then do a scan for hardware changes

*NOB*Aries•12/6/24, 7:28 AM

I will ask again... the effects shake through the center of the stick axises has a more brittle vibrating now, sharpish/tingling like something is loose in the stick (on afterburner effect in DCS Viper and ETL in DCS Kiowa)... it was not like this when it arrived... What do I check inside it? Are there any parts that need retighteninmg? Are there any pics or videos for checking loose stuff inside? Thx!

Wwalmis Ahh, I recall you had installed Zadig libusb drivers. You need to go to device m...

Will3D•12/6/24, 7:30 AM

It’s only this one board though. The others are ok.

RoyMi6•12/6/24, 5:11 PM

Hey folks, I'd like to buy a right angle barrel connector for the power. Anyone able to tell me the "specs" of the default one so I can extend it? This looks about right... https://amzn.eu/d/gzqQB5B but it's hard to check 5.5mm width that accurately with a tape measure

sourcing map 5.5mm x 2.1mm 90 Degree Right Angle DC Power Male Plug...

sourcing map 5.5mm x 2.1mm 90 Degree Right Angle DC Power Male Plug Jack to Bare Wire Open End Pigtail Power Cable Repair for Camera CCTV 0.2m Pack of 2

**NOB*Aries I will ask again... the effects shake through the center of the stick axises has...

Number481OP•12/6/24, 7:49 PM

my only suggestion would be to unfasten the boot ring and lift up the boot to expose the gimbal assembly. Check all the screws you can see and snug up any that are not tight. Also a good idea to snug up the 5 hex screws that attach the pulleys from the outside.

RRoyMi6 Hey folks, I'd like to buy a right angle barrel connector for the power. Anyone ...

Number481OP•12/6/24, 7:51 PM

the power plug is 5.5x2.5. I use this one https://discord.com/channels/965234441511383080/1145651561578647582/1299850474106916916 (also a link there for a 90 degree usb extension too)

Will3D•12/6/24, 8:50 PM

I'm getting about 3 bounces at the endstops on my pedals when I set software endpoints. After the bounce the stop is quite solid and hard to push through. Adjusting damping and stop power doesn't seem to make a difference. Is there something else I should try ?

Showtime817•12/6/24, 10:39 PM

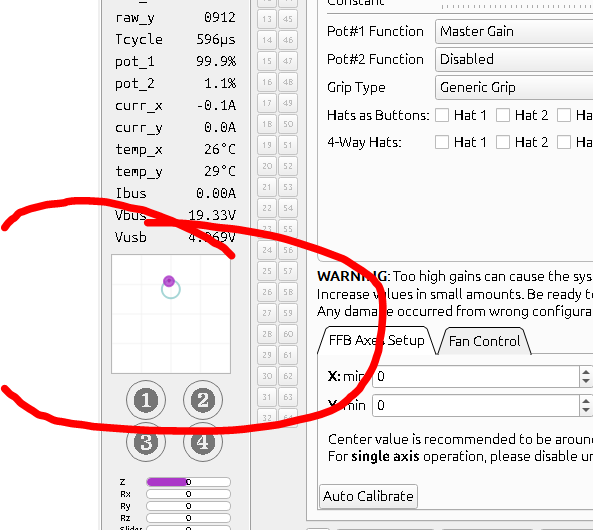

Hello, just got my Rhino today and is there a way to center the stick? It to far forward, I've been looking the software but haven't found anything yet.

Showtime817•12/6/24, 10:57 PM

This picture is DCS F4

TrigaNZ•12/6/24, 10:58 PM

Have you done a calibration yet?

Showtime817•12/6/24, 10:58 PM

The F5 ia cantered ok and the F14 seem to be centered

Showtime817•12/6/24, 10:59 PM

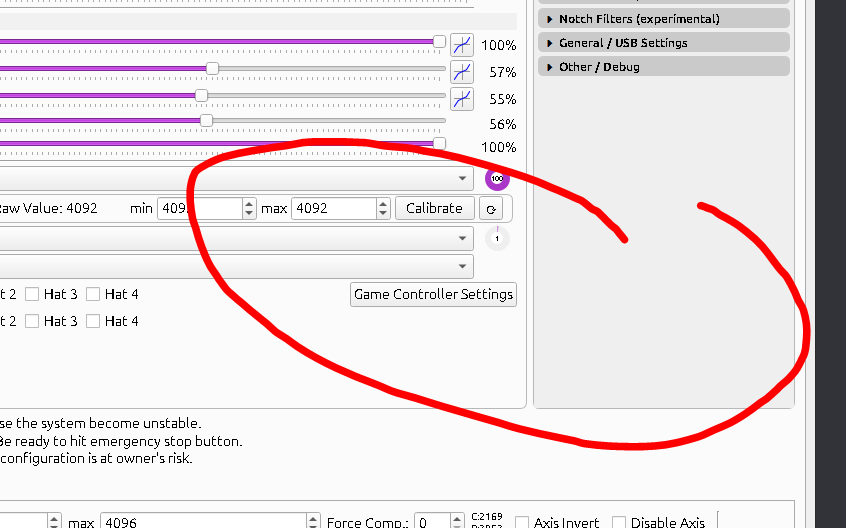

You mean here

TrigaNZ•12/6/24, 10:59 PM

No, Auto Calibrate

Showtime817•12/6/24, 11:02 PM

Yes I tried that but didn't really see any difference, maybe I did something wrong. This really only couple hours new for me. Wife is call me so be back later and give it another try.

Showtime817•12/6/24, 11:04 PM

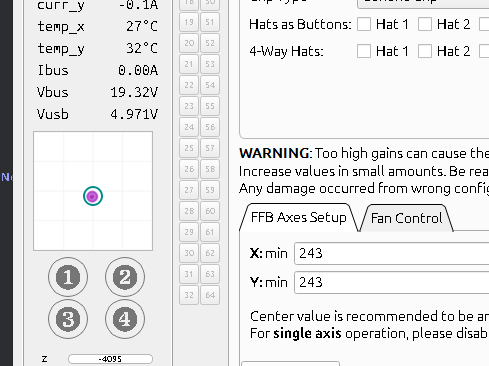

Here's the DCS F5 and it's looks fine

Showtime817•12/6/24, 11:04 PM

Thanks for your help be back later.

SShowtime817 Hello, just got my Rhino today and is there a way to center the stick? It to fa...

Hiob•12/7/24, 9:03 AM

Is this after takeoff/airborne? That‘s correct then. The F-4 (like many other jets) needs loads of forward trim for level cruise flight. Other than with a peasant spring loaded joystick, with a FFB stick you actually have the stick moving correctly with trim.

frumpy•12/7/24, 10:36 AM

Hi, I have been offline for a longer time and I don't find my own messages on discord. Is there any sim/plane/update that has autopilot following with the Rhino moving accordingly? I did not find a single plane yet that has that ability.

frumpy•12/7/24, 10:43 AM

Also, question #2: Does any of you use the metal grip mount update? What are your experiences with it? I use the plaste one, had some cracking with strong forces and put some tape on the metal bar. This silenced the cracking for months. Now it seems to return. Will the metal mount solve this issues forever? Foreverever?

Ffrumpy Also, question #2: Does any of you use the metal grip mount update? What are you...

Alkman•12/7/24, 10:46 AM

I had the same issue and went to the Alu Connector from Vpforce. No problems with cracking anymore. For me a wobbling stick was also an issue, maybe because of a not good calibrated printer but with the alu connector also this problem was solved and everything is tight. Changing grips without fear for the threads is a big plus also

HHiob Is this after takeoff/airborne? That‘s correct then. The F-4 (like many other je...

Showtime817•12/7/24, 6:19 PM

Yes, I've been starting in the air trying things out.

SShowtime817 Yes, I've been starting in the air trying things out.

Hiob•12/7/24, 8:00 PM

Yes, then better get used to it…

(there are only „poor“ workarounds if you are extremely uncomfortable with it. Like messing with your calibration or axis scaling. I would advice against all this and simply accept that this is actually correct behaviour. Maybe bring the base closer to your chair (if possible) when you can’t get used to it.

Red Magic•12/7/24, 8:40 PM

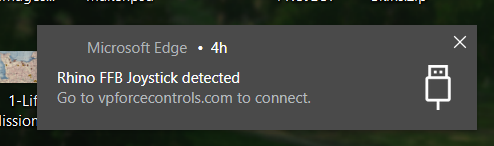

is there a way to get rid of this

Red Magic•12/7/24, 8:40 PM

not just to close it now but to also disable the popup in general

Red Magic•12/7/24, 8:40 PM

I tried force quitting Edge in task manager and its still there

WingOver•12/8/24, 12:02 AM

Looking for guide on how to tight the belts?

WWingOver Looking for guide on how to tight the belts?

WingOver•12/8/24, 12:34 AM

https://vpforcecontrols.com/downloads/VPforce_Rhino_Manual.pdf
6.1. Re-tightening the belts

kronk•12/8/24, 1:21 AM

I'm getting weird button detection from my vkb mcgu all of a sudden, when I press a button it just flashes instead of staying constant. Its fine in loopback but in the configurator its weird. This reflects in trim releases as well because I can feel it jumping around

kronk•12/8/24, 1:24 AM

nvm an update solved it

Daz_bike•12/8/24, 12:02 PM

I am using end stops in the configurator, but I get pretty bad bounce back and oscillations when I hit the end stops.

Daz_bike•12/8/24, 12:03 PM

Any settings to stop this or reduce this from happening?

H145Rotor-Sims•12/8/24, 1:49 PM

Hi everyone, is there any where in the software we can see how much force we are pulling? Aka when I pull up on the collective I would to know how many NM I pulling to move it.

omohat•12/8/24, 2:08 PM

I'm having some trouble with the physical to logical button mappings. I started using my Rhino with a Virpil stick so mapped everything in DCS with a 1:1 physical:logical.

A couple of weeks ago, i changed to a Tianhang stick, and rather than remap everything in DCS, I changed the physical:logical mappings in the VPForce software so all my DCS mappings stayed the same. This worked fine until today.

Today I tried loading someone eleses vpconf file, and their stick setting was for Virpil Alpha (not generic). Although I changed the setting back to generic, and loaded my button map from a backup, for some reason, the logical buttons aren't being sent to DCS, only the physical ones

omohat•12/8/24, 2:09 PM

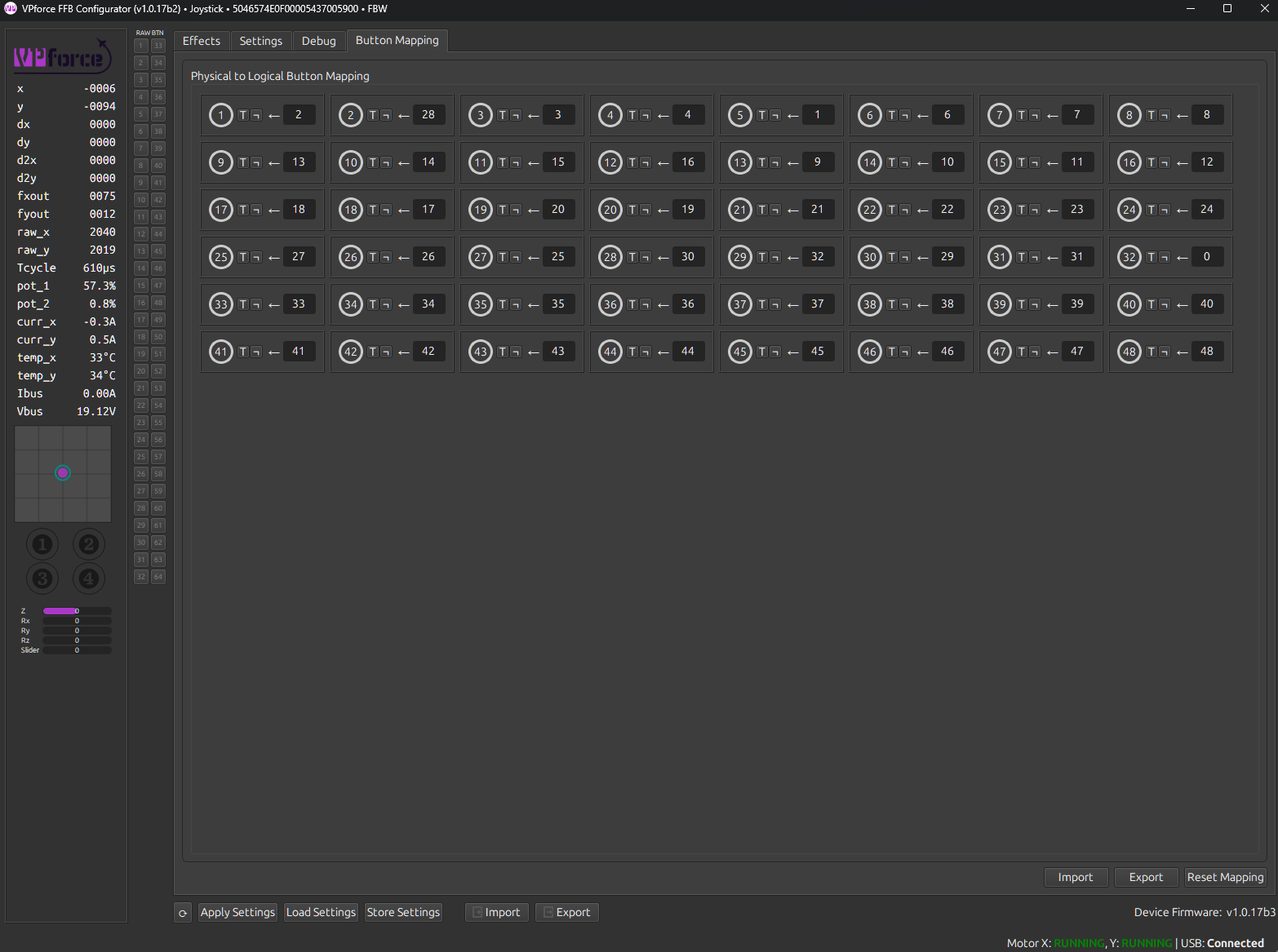

This is my button map

omohat•12/8/24, 2:10 PM

For example when I press te second trigger detent (physical button 2) instead of logical button 1 being sent to DCS, physical button 2 is being sent instead

omohat•12/8/24, 2:11 PM

Likewise physical button 1 should map to logical button 5 but instead when i press physical button 1 thats what DCS receives (ot logical 1). I've tried resetting the map and configuring it again but without any luck.

omohat•12/8/24, 2:11 PM

Is there some setting that is preventing the logical buttons from being sent to DCS?

omohat•12/8/24, 2:20 PM

Never mind - firmware update resolved the issue. Guess I should try that before posting here in the future

RReed The weird bumping, i am feeling in the left x axis, feels like skipping maybe, ...

Zrad•12/8/24, 8:25 PM

Did you ever find the fix for this? Can’t really find any answers skimming through the channel, but I notice this exact same thing

ZZrad Did you ever find the fix for this? Can’t really find any answers skimming throu...

Reed•12/8/24, 8:27 PM

I haven’t had time to take apart the pit. I’m off next week and will take out the rhino and tightened everything up and see if it helps.

RReed I haven’t had time to take apart the pit. I’m off next week and will take out th...

Zrad•12/8/24, 8:29 PM

I have it partially disassembled right now without going too deep, so if the stuff I tightened down fixes it I’ll let you know, otherwise we may have to go deeper haha.

RReed I haven’t had time to take apart the pit. I’m off next week and will take out th...

Zrad•12/8/24, 9:29 PM

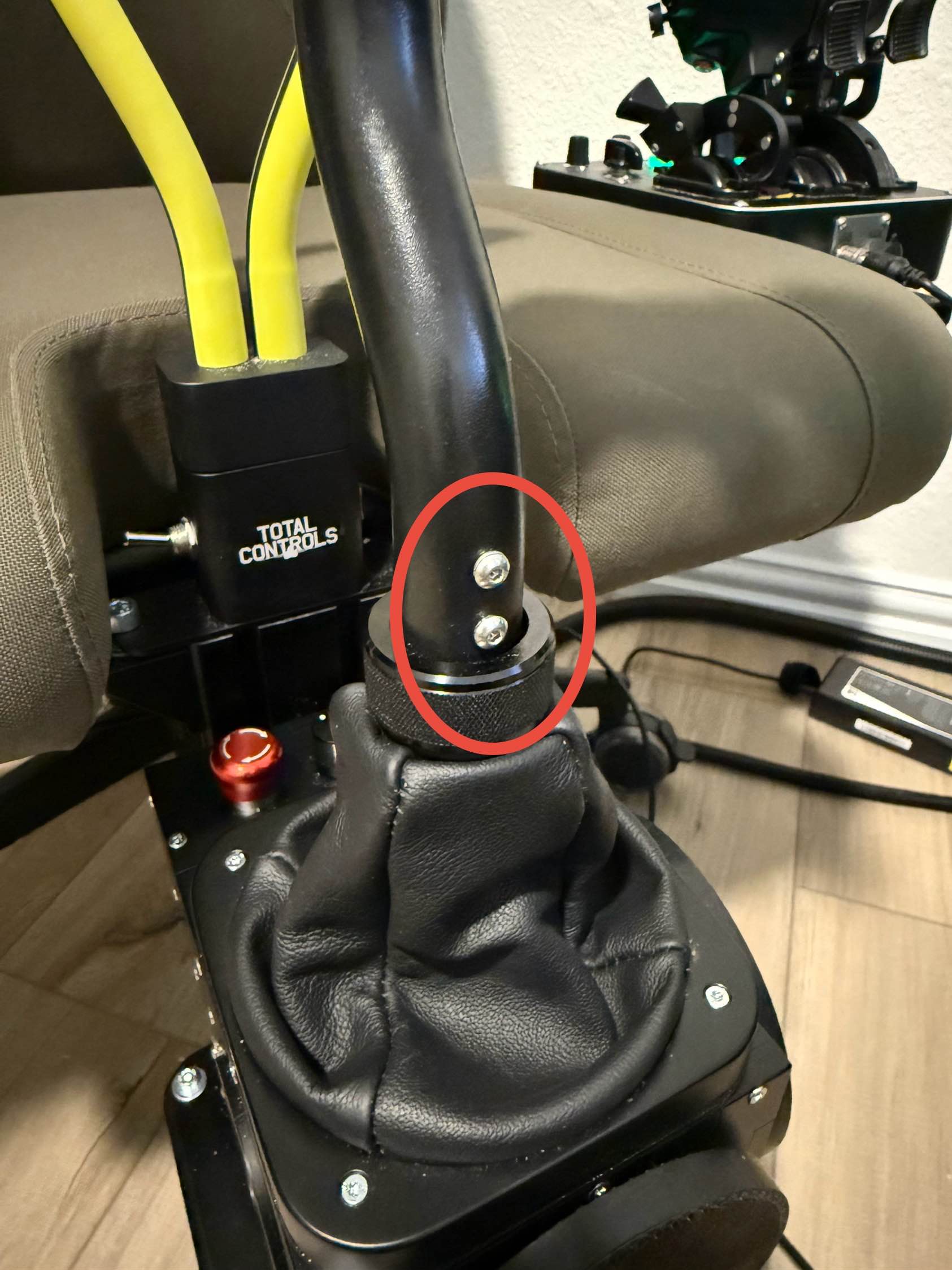

🧰support

this was my issue, turned out to be the easiest fix ever for me. Was truly as you described it though, so hopefully same issue for you too.

NNumber481 my only suggestion would be to unfasten the boot ring and lift up the boot to e...

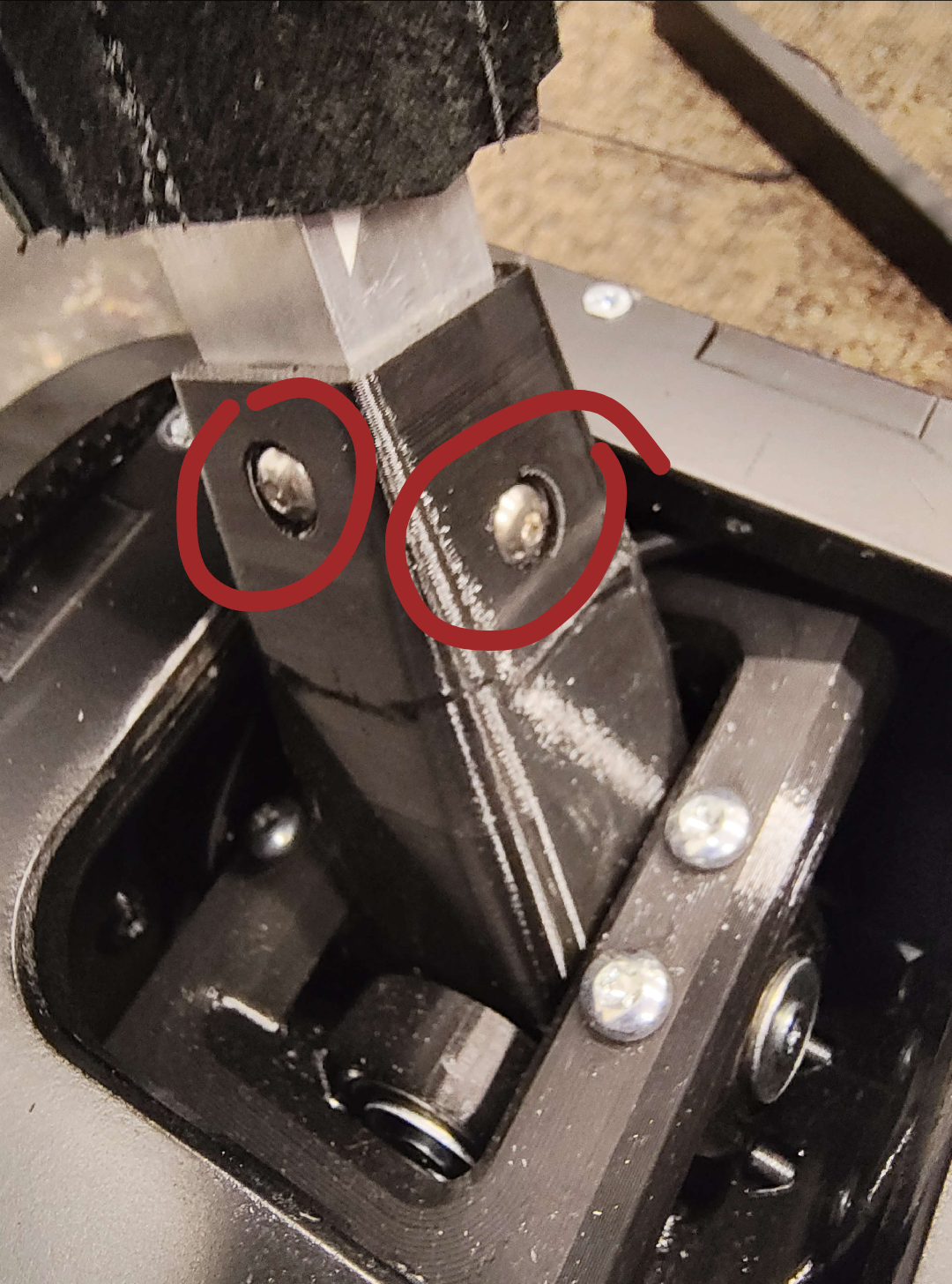

*NOB*Aries•12/8/24, 10:06 PM

This little biatches got loose... front and rear one almost fell out totally... and that caused the sharp vibrations when passing through pitch axis center... THX!!!

ZZrad https://discord.com/channels/965234441511383080/968208779084701716/1309240205131...

Reed•12/8/24, 11:23 PM

Nice, Ill be able to check next week.

ZZrad https://discord.com/channels/965234441511383080/968208779084701716/1309240205131...

kaltokri•12/9/24, 7:29 AM

I had the same problem when I used it with the standard Virpil base.
So this issue is not related to any vibrations done by the Rhino.
Virpil should insert these screws with LocTide.

Critical Limit•12/9/24, 11:19 AM

VPforce Shift-Register Board for my DIY collective/pedals arrived.
Can't find a wiring on the vp force homepage. Anyone here can help?
Wiring to the rhino board found, but no wiring for switches
