@walmis have you gotten you’re hands on the new Virpil FlNKR grip or do you need a sample for updati
@walmis have you gotten you’re hands on the new Virpil FlNKR grip or do you need a sample for updating the firmware?
WFLNKR update is already rolled out
MAwesome!
RButton mapping is specific to each sim since the commands aren’t standardized. But, among the different DCS aircraft you can load a similar set up as a template.
BThose look nice, and surprisingly affordable.
BEspecially as they are half off for February.
RExcited to see these guys building good stuff.
AStill very skeptical of them since the pirate copies they started with and pretended to backpedal from tbh
BAh, thought this was a new company. Shouldn't be to difficult to get working on the rhino then
TI'm also wondering this. Does the default TelemFFB handle this?
XHey, just heared in DCS Discord that DCS doesn't support multiple FFB devices, i know many here do use lots of FFB devices and play DCS, so i wonder if it's true or not really ?
Xi think i got answer ) ignore above )
SNo idea, I don't think so
@walmis @Number481
@walmis @Number481
HPaul at QR4Rigs doing some custom 3D printed pulley covers with the 1st Air Cavelry badge on it.
VAlright.
FI need a recommendation - I'm building monster.tech chair and will do center position stick - I have VPC constellation alpha. Do I need any extension for the VPC? And if yes, what size? Virpil offers 50mm,75mm,100mm and 200mm.
RThe center mount kit comes with optional profile sections. Check out the manuals on the website for the included parts list.
RBTW you will love your MT chair.
NDCS's native FFB implementation handles the dynamic spring force/stiffening in warbirds. A custom override feature for TelemFFB is in development but isn't quite ready yet.
Ryeah but that's only good for having the stick stay in the centre - if i want to it stay wheever i leave it, it doesn't work
Rthese are my settings at the moment, but i can't get them quite right
SNatively from DCS ? I never felt it though
SIt is but the implementation isn’t very good. It is probably made with the old weaker FFB sticks in mind and the maximum force is reached already at around 200 kts. That means you get stiffening stick during take off but not in the flight regime you actually fly and fight in those things. I think that the module makers should improve the FFB implementation in this regard. Of course it will be an excellent substitute if we get a possibility to adjust this in TelemFFB.
NI'm not aware of any warbirds where it isn't implemented. There should be no spring force on the ground, increasing with airspeed. Make sure you don't have "sticky" enabled in the spring setting in configurator, else the base will ignore what DCS is telling it.
As sysdot says, many find the native gain curves lacking.
The TelemFFB feature will allow you to define the spring gain curve across whatever speed envelope you wish.
As sysdot says, many find the native gain curves lacking.
The TelemFFB feature will allow you to define the spring gain curve across whatever speed envelope you wish.
SNo sticky enabled in my case, and no noticeable force increase with speed unfortunately
WThere's an important concept to understand about force feedback: When set to 100% force, the resistance is distributed across the entire range of motion - the motors only reach maximum output when the stick is fully deflected, meaning there's no saturation point.
If we increase this to 300% for a stiffer feel, the motors will reach 100% output at just one-third of the stick's travel. This creates what we can call a "dynamic range" limitation. The game sends a "set spring gain to 100%" command at relatively low airspeeds, reaching maximum stiffness early without further increases.
Most DCS modules (with the exception of the F-4 Phantom) don't provide adjustments for this behavior, so we'll need to rely on external implementations to create realistic force-versus-airspeed relationships.
The key limitation: once the force gradient saturates, the stick won't produce additional resistance beyond that point since the motors are already operating at maximum power earlier in the range of motion. This effectively reduces the stick's ability to communicate different force levels through the full range of travel.
Additional points:
The Rhino operates within the standard 100% range by default. However, you can boost this using the spring gain mapping tool, which offers two approaches:
* Remapping spring strength versus displacement to achieve higher overall gain
* Remapping the game's percent gain to a custom response curve
Be aware that higher spring gains make the system less stable, making proper damper and LPF (Low Pass Filter) settings more critical:
* If gain is too high, the stick will vibrate rapidly ("brrrrrt") and trigger a "FAULT_UNSTABLE" error
* If damping is too low, the stick will oscillate back and forth without finding a stable position
Later telemFFB have the feature to set our own force vs airspeed curve
If we increase this to 300% for a stiffer feel, the motors will reach 100% output at just one-third of the stick's travel. This creates what we can call a "dynamic range" limitation. The game sends a "set spring gain to 100%" command at relatively low airspeeds, reaching maximum stiffness early without further increases.
Most DCS modules (with the exception of the F-4 Phantom) don't provide adjustments for this behavior, so we'll need to rely on external implementations to create realistic force-versus-airspeed relationships.
The key limitation: once the force gradient saturates, the stick won't produce additional resistance beyond that point since the motors are already operating at maximum power earlier in the range of motion. This effectively reduces the stick's ability to communicate different force levels through the full range of travel.
Additional points:
The Rhino operates within the standard 100% range by default. However, you can boost this using the spring gain mapping tool, which offers two approaches:
* Remapping spring strength versus displacement to achieve higher overall gain
* Remapping the game's percent gain to a custom response curve
Be aware that higher spring gains make the system less stable, making proper damper and LPF (Low Pass Filter) settings more critical:
* If gain is too high, the stick will vibrate rapidly ("brrrrrt") and trigger a "FAULT_UNSTABLE" error
* If damping is too low, the stick will oscillate back and forth without finding a stable position
Later telemFFB have the feature to set our own force vs airspeed curve
TSoooooooo The best just keeps getting better?
Got it!!!
Got it!!!
V:package:
RHINO #0923 Has Shipped!
RHINO #0923 Has Shipped!V:package:
RHINO #0924 Has Shipped!
RHINO #0924 Has Shipped!V:package:
RHINO #0925 Has Shipped!
RHINO #0925 Has Shipped!V:package: RHINO #0926 Has Shipped!
RHINO #0926 Has Shipped!
HIn relation to this topic - I'd wish for a more detailed "how to" on how to properly adjust/tune/optimize the various filters. I get the basic idea and work concepts but I struggle with the proper adjustments anyway. And the trial and error approach leaves me with some anxiety.
If such already exist - excuse my ignorance and point me to it please!
If such already exist - excuse my ignorance and point me to it please!
Fis it possible to get more than one rotation out of the axis motors with the VPForce controller?
NYes, but you must make sure you are within 1 revolution of center when the device is powered on.
FOk, thanks!
PMy Rhino is due to be delivered today, only three days after shipping to Florida, USA. That's nice! What should I do first?
FFirst install the software, then start your favorite aircraft and mess with the settings a bit.
PYou're a little off. First, remove the MOZA Ab9 base. This thing came so fast that I didn't have to get ready. I'm going through the manual now. Thanks for the response.
CIs there any way to hot key a spring strength preset?
CI’d like to set up a force trim switch essentially for use with telem as it doesn’t always work with the DCS ffb settings
CSo switching off the spring without having to go digging around my feet for the pot
Sany idea how to fix squeak on vpforce tpr pedals... I am loosing my mind lol
Sso figured wet cotton pad test... I put it between belt and pulley, and squeak goes away...
SI just got the MTS platform and am looking to mount my Rhino on it - I'm unsure which screws to use - can anyone share a setup?
DI have the Monstertech Rhino plate and just using the screw in the bundle
D(Sometimes I tighten the screws
)
)
M

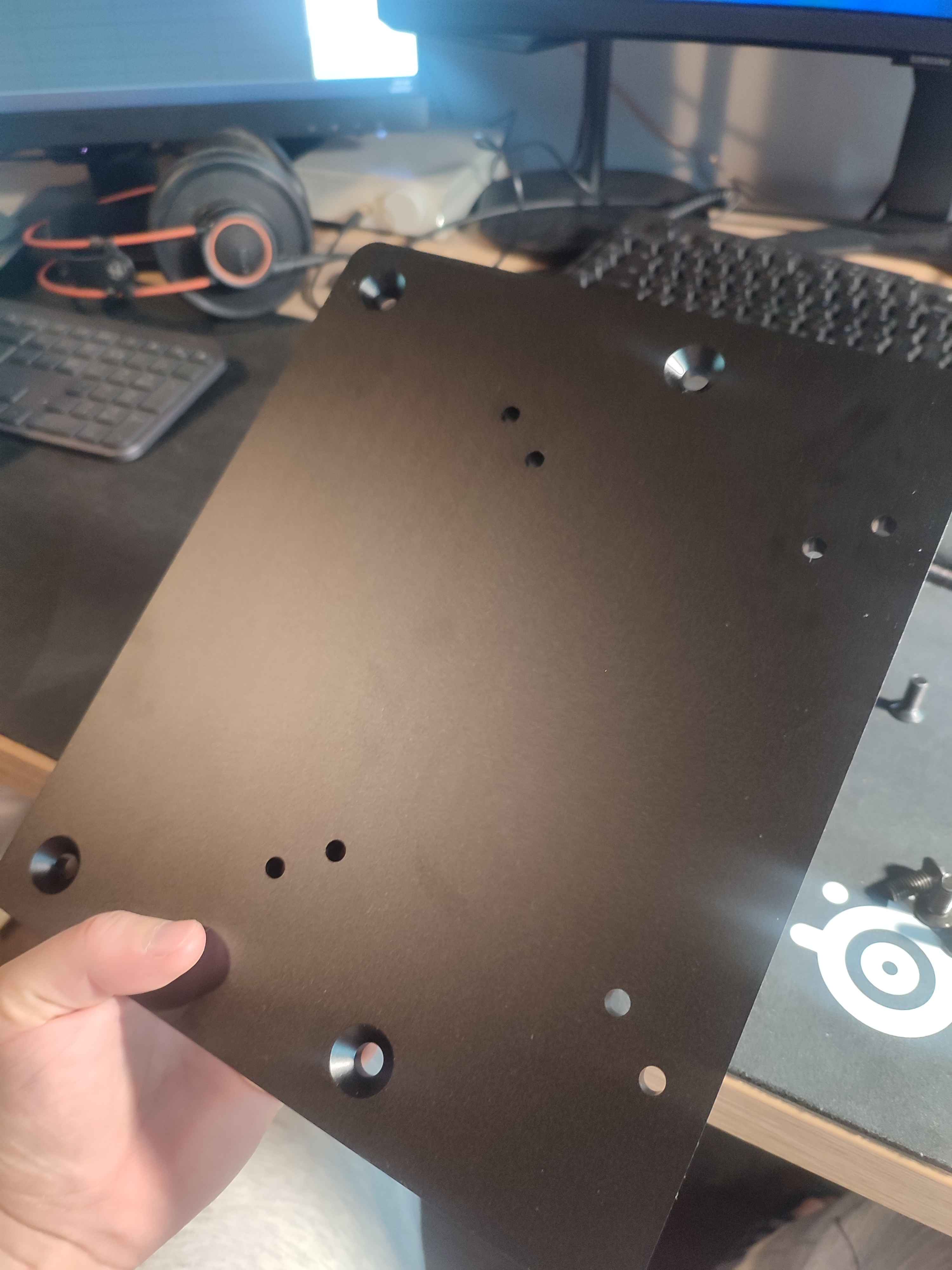

MYaay my rhino qr mounting plate is here
TRecently received my Rhino motor kit and absolutely loving the diy build process, I’m surprised at the lack of diy Yoke builds, does the telemffb software support such applications or is there more fundamental implication issues?
CIt would essentially be the same albeit on a different base
