projects

contributor

support

imadethis

Seve

11/24/2025

Seve - WIN20251123181957Pro.mp4

shibo

11/23/2025

shibo - @Seve required for full-wave rectifier ...

@Seve required for full-wave rectifier circuit: https://github.com/tscircuit/ngspice-spice-engine/pull/4 https://github.com/tscircuit/circuit-json/pull/360...

RaghavArora14

11/23/2025

Commandar Rick - hey so tried to find a fix for...

hey so tried to find a fix for https://github.com/tscircuit/core/issues/1671

! Rushabh | Linux Shill

11/23/2025

! Rushabh | Linux Shill - The docs says that Vi...

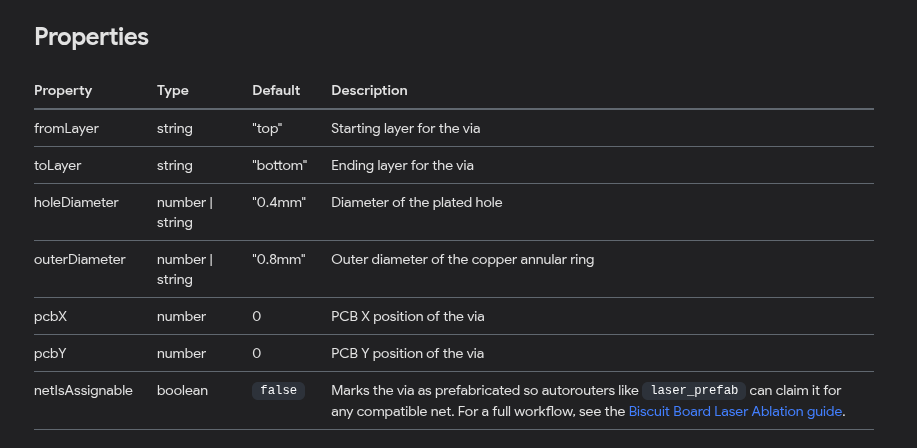

The docs says that Vias have a default dimension, but it is not implemented, i am adding it now, what should be the defaults. Same as the docs says ??

Seve

11/23/2025

Seve - Of all the spam ive received, this one h...

Of all the spam ive received, this one has made me the happiest, nice work on this feature @Andrii @DOPΣ

DOPΣ

11/23/2025

DOPΣ - @Seve ??

@Seve ??

! Rushabh | Linux Shill

11/22/2025

! Rushabh | Linux Shill - is this the correct a...

is this the correct approach for Group anchor offset overlay https://github.com/tscircuit/pcb-viewer/pull/483#discussion_r2553373419

Mustafa7

11/22/2025

Mustafa7 - @DOPΣ @Rishabh When importing a .kic...

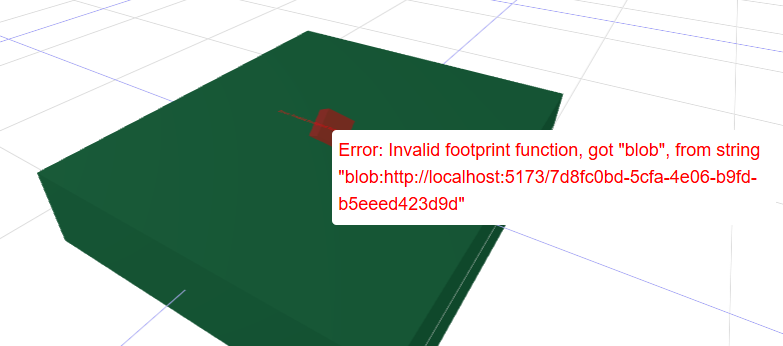

@DOPΣ @Rishabh When importing a .kicad_mod file and passing it as the footprint prop to a <chip> component, should the KiCad footprint be automatically parsed into PCB elements during build/render, or does this only happen in the dev server/viewer? Currently tsci build preserves the footprint string but doesn't generate the actual pad elements. the issue is that when we import a .kicad_mod file and pass it as a footprint prop to <chip>, the KiCad footprint string isn't being parsed into actual PCB elements (pads, holes, etc.) during tsci build. i am working on supporting tsci install 'github url' eg: tsci install https://github.com/espressif/kicad-libraries. Can anyone help me here?...

RaghavArora14

11/22/2025

Commandar Rick - Added test to demonstrate copp...

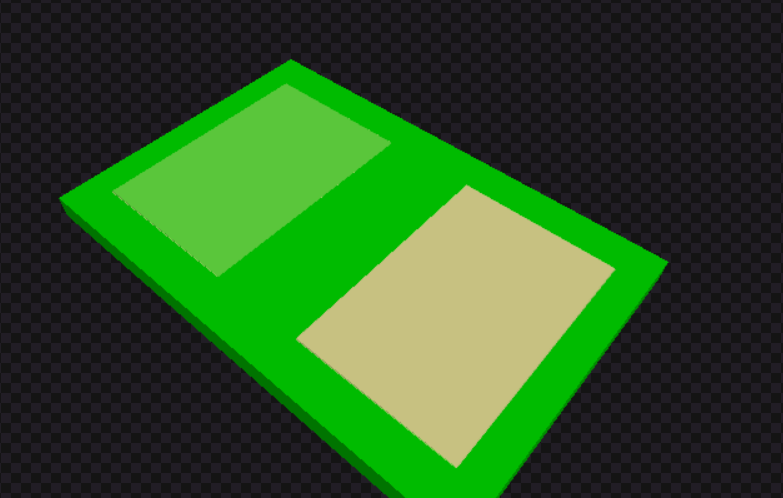

Added test to demonstrate copper pour soldermask differentiation. The rendering already works correctly: Left: covered_with_solder_mask: true renders as green (soldermask color) Right: covered_with_solder_mask: false renders as tan/copper (exposed copper) is this correct? @shibo...

! Rushabh | Linux Shill

11/22/2025

! Rushabh | Linux Shill - Do we need to impleme...

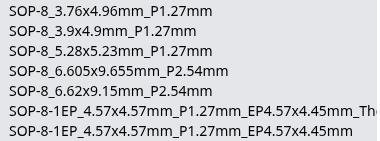

Do we need to implement footprint for all these variants??

DOPΣ

11/22/2025

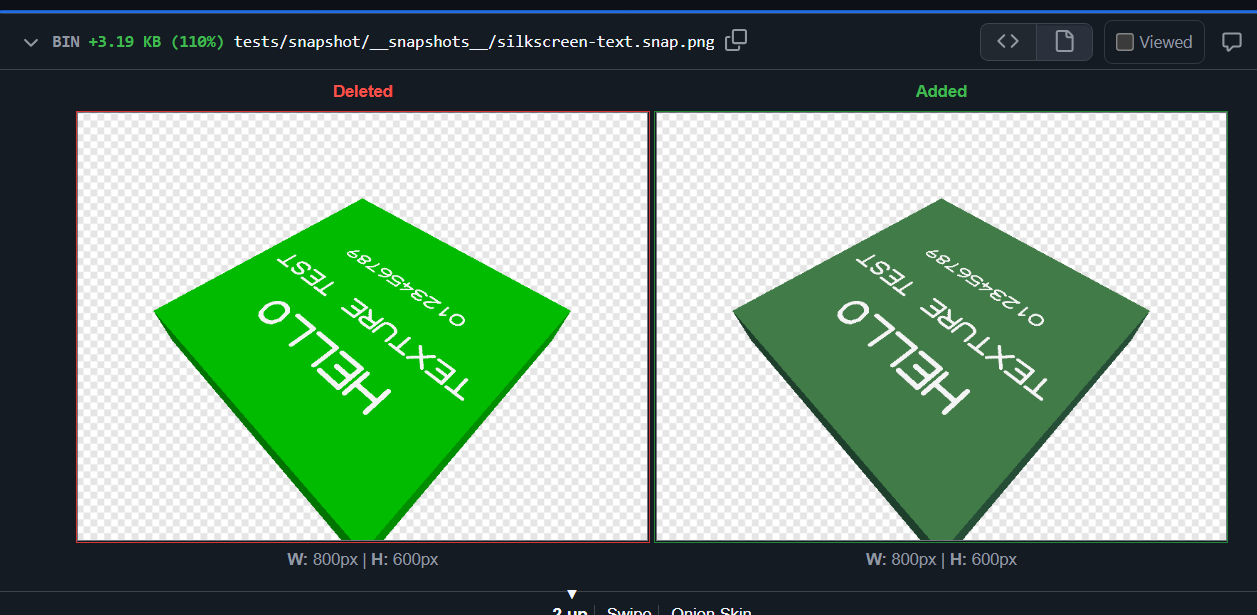

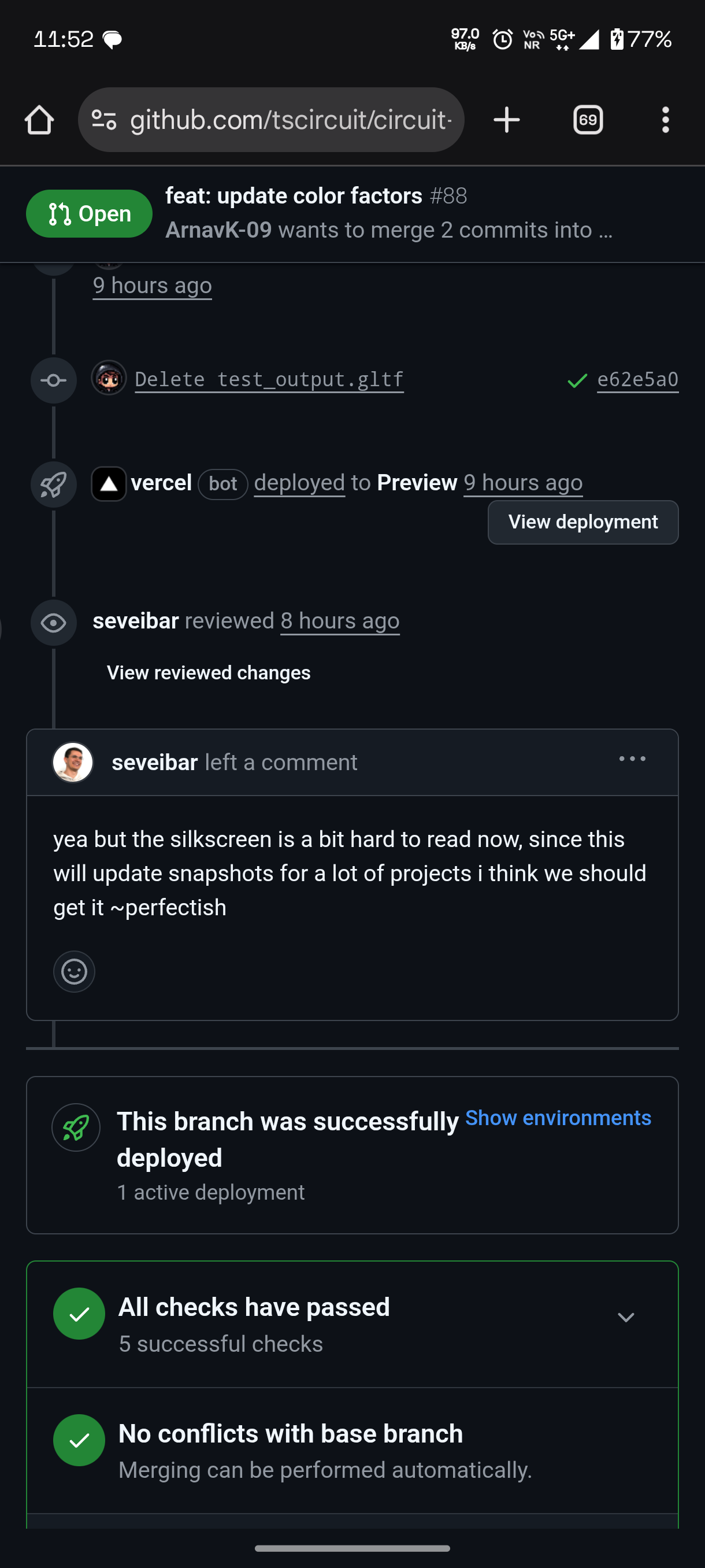

DOPΣ - Like make it more whitish?Rest everythi...

Like make it more whitish? Rest everything fine?...

Seve

11/22/2025

Seve - i don't even think i can login with tsci...

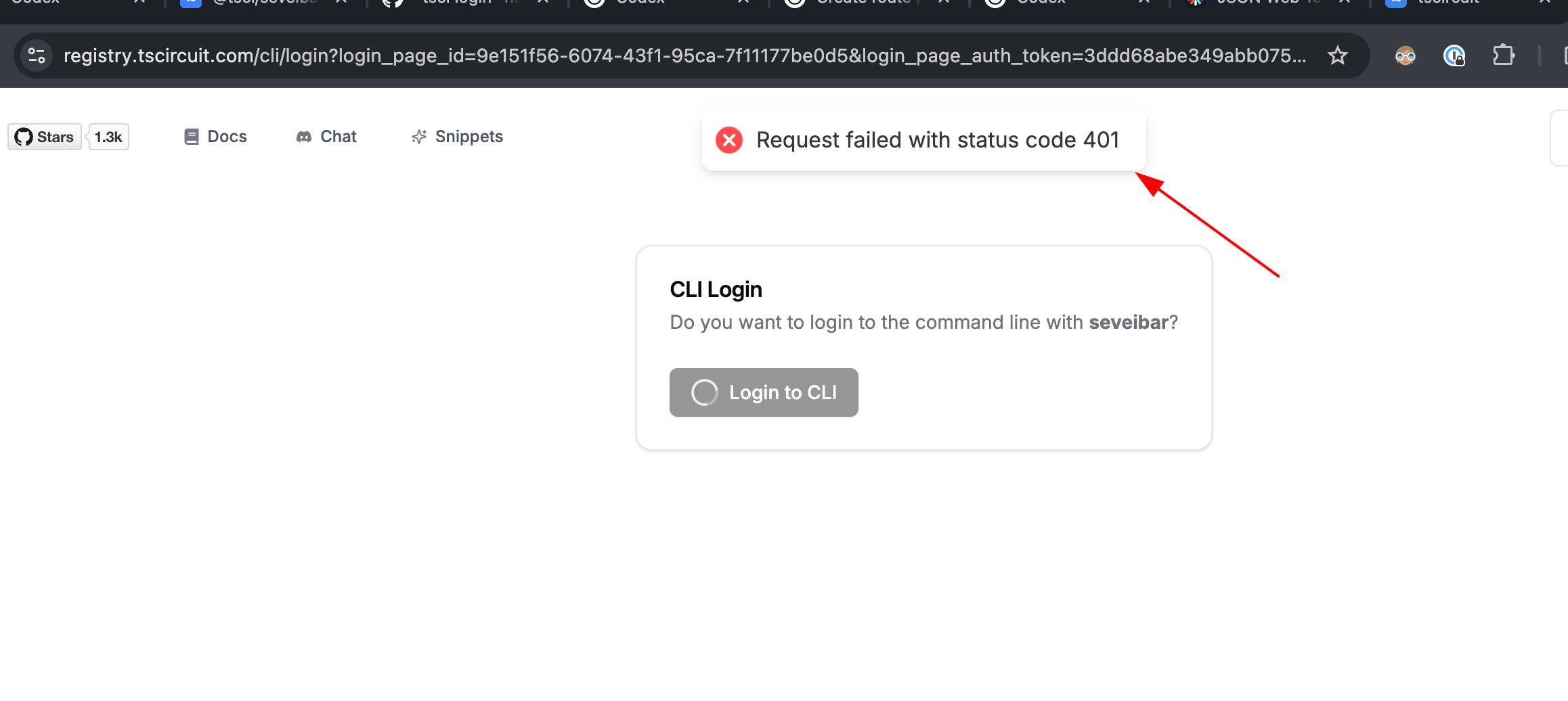

i don't even think i can login with tsci login? (CC @DOPΣ @Andrii ?)

Seve

11/22/2025

Seve - can someone look into this? https://gith...

can someone look into this? https://github.com/tscircuit/cli/issues/1010

Ray Kholodovsky

11/21/2025

Ray Kholodovsky - Idk if it helps for others to...

Idk if it helps for others to hear it or not but support is dead when I’m not using tscircuit cuz I’m waiting on fixes to roadblocks. Support gets 3 - 10+ posts from me when I am actively using tscircuit for 8-12 hours a day.

Seve

11/21/2025

Seve - There are tons of basic tscircuit bugs, ...

There are tons of basic tscircuit bugs, like stuff where you make circuits and they just don't work. This is what is killing the project and what we need to fix. Pay attention to the support channel

Seve

11/21/2025

Seve - hey everyone, please stop working on jsc...

hey everyone, please stop working on jscad-electronics. Clearly it's being used to game points because it's relatively easy

DOPΣ

11/21/2025

DOPΣ - are we generating circuitjson in new fol...

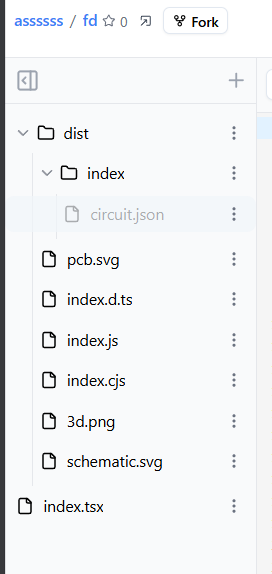

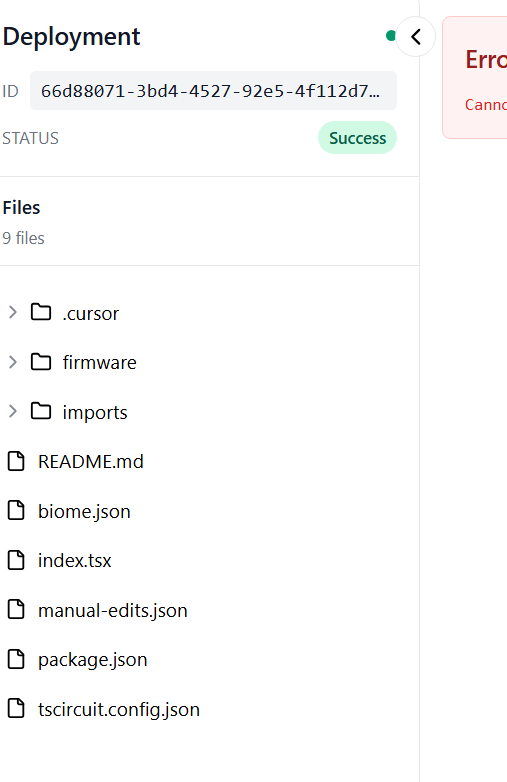

are we generating circuitjson in new folder now? i guess we need to update backend to support that directory of circuitjson
