One thing I miss with the virpil firmware is the ability to have a button on the stick 'zoom' the ax

One thing I miss with the virpil firmware is the ability to have a button on the stick 'zoom' the axis. In other words, suppose I am doing aerial refueling. Some aircraft have a 'stick to trimmer' control option. Some dont. By having this set in the firmware, I dont have to worry about button assignments. I can put the stick of any aircraft into 'trimmer mode'. Is this a possible feature that can be added to vp configurator?

SskyPickle One thing I miss with the virpil firmware is the ability to have a button on the...

walmis•1/20/23, 6:08 PM

you mean button to axis perhaps ?

skyPickleOP•1/20/23, 11:46 PM

no. there is a 'zoom axis' option in the virpil configurator. When enabled, you designate a button to act as the 'zoom'. When active, the designated axes then have a 'lower saturation'. For example a full deflection in zoom mode is equivalent to a 1/10 deflection in normal mode(or however much you choose to set)

skyPickleOP•1/21/23, 12:06 AM

in the virpil software first you select the joystick, then select the big axis button on the left, then look in the center lower section of the page

skyPickleOP•1/21/23, 12:06 AM

Mack•1/21/23, 5:50 AM

I did read the FAQ, but I hoping someone can clear this up for me. Are there 2 options to buy? The base for $800 or the motor kit options (varied pricing). Or do you need to buy the base and the motor kit as well?

MMack I did read the FAQ, but I hoping someone can clear this up for me. Are there 2...

Rumpel•1/21/23, 6:01 AM

One or the other, if you want an out-of-the-box working solution (BYO grip), buy the Rhino. If you want to fabricate your own parts/design, you can buy the motor kit with different motor options. Kit comes with the controller board and wiring to connect the motors, and USB. No power connector/plug (beyond the mounted terminal block), no fans, no POTs, no emergency switch etc. They’re DIY to your needs.

Mack•1/21/23, 6:02 AM

What motors are in the out of the box version?

Rumpel•1/21/23, 6:02 AM

57BLF03

Mack•1/21/23, 6:05 AM

So that’s the smallest of the kit options, correct? I have zero knowledge. Are those small or generally the power most people are looking for - I fly war birds, jets and helos in DCS.

Rumpel•1/21/23, 6:06 AM

It’s the smallest of the options yes, but if you ask here everyone will say it’s plenty enough and that they tend to turn the forces down quite a bit, even in warbirds yes.

Mack•1/21/23, 6:07 AM

This kit is exciting!

Rumpel•1/21/23, 6:09 AM

It sure is, scroll way up in any of these channels and you’ll find very interesting discussion, designs, videos of what people have made. And a very welcoming and helpful community.

Wwalmis Grips are dumb per se. VPC grips work as emulated shift-registers basically. All...

aniron•1/21/23, 1:26 PM

Does the Rhino support VPC grips with analog axes and other festures that do not work through the shift register emulation?

Aaniron Does the Rhino support VPC grips with analog axes and other festures that do not...

walmis•1/21/23, 1:29 PM

Yes they do work

Anthony•1/21/23, 1:36 PM

Apologies if I’ve missed it, but what’s the throw of the base?

Anthony•1/21/23, 1:36 PM

How many degrees does it deflect?

walmis•1/21/23, 1:44 PM

+-22

frame0815(705676)•1/21/23, 2:02 PM

hi, @walmis i filled out the pre-order form. do i get a mail confirmation or anything else?

Fframe0815(705676)hi, @walmis i filled out the pre-order form. do i get a mail confirmation or an...

walmis•1/21/23, 2:04 PM

You can ask the VPforceBot in a DM:

!info youremail

!info youremail

Wwalmis You can ask the VPforceBot in a DM: `!info youremail`

frame0815(705676)•1/21/23, 2:06 PM

Great, thank you

Mack•1/21/23, 4:39 PM

Any folks have a good non-monster tech solution for mounting the base on an office chair set up (i.e. not clamped to the desk)? I take the caution I read on the desk mount due to the torque.

Wwalmis +-22

Hypoxia•1/22/23, 10:32 AM

Question ? The +-22° are the mini and maxi for each axis (Pitching and Rolling) ?? I creating my own RHINO and I'm just need of that information ! Thanks !

walmis•1/22/23, 10:37 AM

If I understood correctly - yes both pitch and roll has +- 22deg throw, 44deg total arc

Wwalmis If I understood correctly - yes both pitch and roll has +- 22deg throw, 44deg to...

Hypoxia•1/22/23, 11:20 AM

walmis•1/22/23, 11:31 AM

@Rhino Owner @FFB/Kit Owner
Initial release of the DCS telemetry effects framework is on GitHub !
https://github.com/walmis/VPforce-TelemFFB

It's far from finished, but hopefully someone will want to help maintain it

Stuff to try:
TF-51 flight, Mig-21 takeoff, gun fire, missile launches, landing, countermeasures

GitHub

GitHub - walmis/VPforce-TelemFFB: DCS FFB Telemetry Effects (for VP...

DCS FFB Telemetry Effects (for VPforce FFB). Contribute to walmis/VPforce-TelemFFB development by creating an account on GitHub.

Viktor Martin•1/22/23, 12:53 PM

Man, every time I come here it puts a smile on my face. Rare to see such frendliness on the internet lol.

Wwalmis @Rhino Owner @FFB/Kit Owner Initial release of the DCS telemetry effects framew...

Beathmeister•1/22/23, 3:30 PM

A great achievement. Do these effects appear only modules with no FFB implemented or do they supplement (or replace) the effects present in modules like the F-14?

BBeathmeister A great achievement. Do these effects appear only modules with no FFB implemente...

walmis•1/22/23, 3:34 PM

Effects are supplemented, for modules with good ffb implementation some of the duplication can be turned off.

peachmonkey•1/22/23, 6:19 PM

@walmis thank you for the release of the effects! One question I have is how to control the intensity of each effect?

peachmonkey•1/22/23, 6:19 PM

peachmonkey•1/22/23, 6:20 PM

if it's pre-configured, where can I change it (if it is possible at all?)

peachmonkey•1/22/23, 6:22 PM

peachmonkey•1/22/23, 6:22 PM

is the above location the intensity configuration ?

peachmonkey•1/22/23, 6:28 PM

i guess i just have to play around with the values.. they seem to be in couple of sections..

peachmonkey•1/22/23, 6:40 PM

@walmis - what are these: "telemetry_item1" and "telemetry_item2" ? Are they defined somewhere ?

Ppeachmonkey i guess i just have to play around with the values.. they seem to be in couple o...

walmis•1/22/23, 7:41 PM

Yeah, I'll move the settings to an .ini file once I have some more spare time, would be much better than to hardcode

Ppeachmonkey @walmis - what are these: "telemetry_item1" and "telemetry_item2" ? Are they...

walmis•1/22/23, 7:43 PM

These should be the actual telemetry keys (such as AoA, GunShells, etc). Though these are only used when developing/plotting the telemetry, ignore them otherwise.

Wwalmis These should be the actual telemetry keys (such as AoA, GunShells, etc). Though ...

peachmonkey•1/22/23, 7:53 PM

so, how do I launch it then, if it's optional, like below is the correct string ?

python main.py --teleplot 127.0.0.1:47269 -D ffff:2055

walmis•1/22/23, 7:54 PM

Just python main.py should work

peachmonkey•1/22/23, 7:54 PM

or

python main.py ffff:2055

or just:

python main.py

Wwalmis Just python main.py should work

peachmonkey•1/22/23, 7:54 PM

gotcha, thank you, @walmis !

peachmonkey•1/22/23, 9:50 PM

@walmis seems theres and error in ffb_rhyno.py, the letter case must be lower case instead upper case, i fixed it on line 255 per the error message

peachmonkey•1/22/23, 9:50 PM

peachmonkey•1/22/23, 9:50 PM

changing Device to device laumched it

peachmonkey•1/22/23, 9:51 PM

about to test it

peachmonkey•1/22/23, 10:00 PM

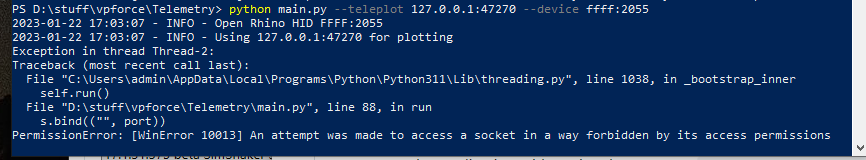

Sound Module from Andres Simshaker cant start due to network port conflict

peachmonkey•1/22/23, 10:04 PM

it seems both apps use the same port

peachmonkey•1/22/23, 10:04 PM

peachmonkey•1/22/23, 10:06 PM

@walmis changing teleplot port doesnt fix it, so its some other port... Anyway to change the ports somehow so both apps would run simultaneously ?

peachmonkey•1/22/23, 10:12 PM

hmm, the app is running, its receiving stuff but the stick doesnt shake at all
