Except he fell of the face of the earth, and nothing has ever been released from him other than grip
Except he fell of the face of the earth, and nothing has ever been released from him other than grip display stands. Website is also defunct.
MI’m so pissed I let debolestis talk me into giving that dude this Otto trigger I had for him to rev engineer lol. Right when I started my current job… at a prototyping and 3d print shop a year and a half ago
DDid you get your otto back?
MIt belonged to debolestis originally so no, he gave it to me to rev engineer and as a favor for other stuff we had going on but I lagged on it and right when I got my new job that would have made it a breeze he wanted me to give it to the replika dude. I told him I could bang it out real quick then give the parts to dude but he wanted it to stay whole for him so it disappeared into his black whole of empty hype
RHey @thoatse - I've been toying with the idea of building a metal FFB gimbal. I started with the same setup as Rhino's design, but quickly decided that the parts would require too much CNC time. I eventually arrived at pretty much exactly the same concept that you showed several months ago. I am just wondering if you are planning release the files eventually, so I don't waste the effort of fleshing out the same design.
MMirage f1 ffb settings are awesome
There’s stick shake though and I’m not sure that realistic part from cockpit shaking?
There’s stick shake though and I’m not sure that realistic part from cockpit shaking?
LSorry why couldn't a real Mirage F1 have a stick shaker to indicate you are about to stall?
MI don’t think it had one and I think they just added it to indicate the whole cockpit shaking
LOkay makes sense then. I don't know whether or not it's got a stick shaker.
LVibora (3rd Party Developers) said the DCS Mirage doesn't simulate "unrealistic stuff like vibration when shooting or stalling"
MIt vibrates when you over speed too
MIt’s really well done now
MProbably second after the f14
J
J!stats
VHey @jakesixx33,
So the last Shipped RHINO is #0062 on 2023-03-08
Average waiting time from preorder to shipped is 143 days, median is 181 days, max is 209 days
59 Rhinos are shipped in total
So the last Shipped RHINO is #0062 on 2023-03-08
Average waiting time from preorder to shipped is 143 days, median is 181 days, max is 209 days
59 Rhinos are shipped in total
P
Jhow do i buy
T#
faq

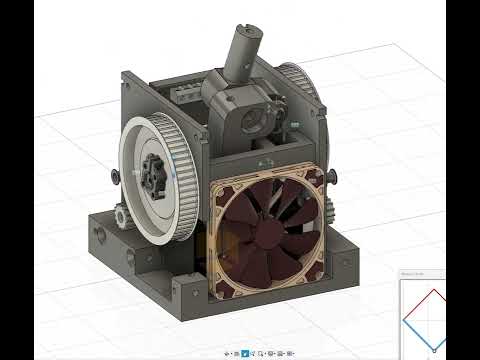

faqRHere is my take on the gimbal. It's very similar to @thoatse 's version. https://youtu.be/JGP4gw0xRF8 Currently it's a 160mm^3 cube. Excuse the drafty mockup. It will be printed with combination of PLA and Nylon-CF for prototyping and once everything is set, I will make a sheet metal version.
MNice! Sorry on my late reply but that seems to have spurred your own design process. Cool to see more stabs at minimizing size, applying the same tricks sff computers do to keep them cool and quiet as well (like 1 big fan being better than 2 small ones). I have been polishing up the final details on my rework. Externally looks close but internally completely different. Finalized and placed my order for the metal parts, ranging from 1mm to 10mm thick stainless and have had bearings and other bits showing up daily for a while now.
In the process of building my initial first 5 to evaluate best best bearing solutions (plastic sleeve vs oiless metal sleeve vs needle vs maybe some ball types) and to validate design/feasibility. My plan is to offer them as kits to accompany walmis's kit.
In the process of building my initial first 5 to evaluate best best bearing solutions (plastic sleeve vs oiless metal sleeve vs needle vs maybe some ball types) and to validate design/feasibility. My plan is to offer them as kits to accompany walmis's kit.
RNice! I'd love to know what you end up with the bearings situation. Currently I am using mounted bearings from Bilda. They are little bulky, but I am not sure how online fabricators like sendcutsend deal with pressfit applications, so for now I am just using off the shelf parts. What's the thickness of the belt you are using? I am going with 15mm HTD, but I am wondering if I can get by 10mm. I probably will release the files if everything works out.
Fno
MFor pressfits the trick is not to rely on fab houses like scs to do them.. order parts with slightly undersize holes and use a drill press+reamers to bring them up. They can do finish work like that but it adds cost just like having them tap/chamfer etc. They may need to be over or udersize to work since bearings will vary a tiny bit by batch (plus ones like Igus has need undersize holes to preload them into tolerance) so best to do that part yourself and design accordingly. Drill press is useful if willing to buy the range of reamers you need. Pressing bearings in prints is easier cause you can adjust the printed holes till they work. I'll be posting my bearing findings for sure.
I'm using 5mm pitch/9mm width Powergate GT3 belts, starting with Gates branded ones to set the benchmark, will see if off brand ones compare. Using closed loop belt for now, might switch to open loop since the big pulley doesn't make a full rotation it can be fixed somewhere along the dia. You should be fine with 10mm HTD, the forces involved in these bases are low by their normal standards.
I'm using 5mm pitch/9mm width Powergate GT3 belts, starting with Gates branded ones to set the benchmark, will see if off brand ones compare. Using closed loop belt for now, might switch to open loop since the big pulley doesn't make a full rotation it can be fixed somewhere along the dia. You should be fine with 10mm HTD, the forces involved in these bases are low by their normal standards.
MYes. Form factor-wise it shares the same architecture as the MSFFII.
MObviously with belts instead of gears but the gimbals mechanics are the same
KI hate to ask but I have to...
Has anyone here done a head to head comparison between their Rhino and the Virpil CM3?
I know it's apples and oranges, but I am mostly curious from a precision perspective.
Is the rhino as precise?
I mainly fly the harrier with a squadron. Will my a/a refueling abilities be hampered by the rhino?
I currently run the cm3 center mounted with a 200mm extension...
Has anyone here done a head to head comparison between their Rhino and the Virpil CM3?
I know it's apples and oranges, but I am mostly curious from a precision perspective.
Is the rhino as precise?
I mainly fly the harrier with a squadron. Will my a/a refueling abilities be hampered by the rhino?
I currently run the cm3 center mounted with a 200mm extension...
DI don’t have the harrier, but I can refuel with the f18
DImo, its more throttle jockying that plays a bigger part
KFair. What did you upgrade from Ddrake?
DI have all the bases, VKB Gladiator, Gunfighter, WinWing Orion 1, 2, Virpil MongoosT-50 and CM3
KWow
KI'm assuming the rhino is your new fav?
MRhino is pointless on the harrier
They haven't done any force feedback
Not even q feel
Mig 29 on the other hand is fire
They haven't done any force feedback
Not even q feel
Mig 29 on the other hand is fire
DYes sir, it is my favourite at the moment
KAwesome, thanks!
KI do fly other aircraft.. just main the harrier
KSo I guess it'll just behave like a regular spring centered stick
DSame issue with FFB on 18 @magpiee unless they updated in last patch?
KHopefully more airframes will get ffb support in the future
KThose without just function like a normal center spring stick I assume?
MNo the f18 is FBW
DYeah, latest update added FFB for F1
MAre we talking about the F1 or f18?
Afor me the rhino is the absolute favorite for now
AFFB or not
Aeven without FFB the mechanism creates a solid, non-springy feel compared to the regular sticks
GI agree. I am enjoying the Fulcrum even more with the Rhino.
AWhat does the 29 offer in terms of FFB?
Aand is it with the telemffb or out of the box?
GThe telemffb. Out of box it was only giving me trim and stall.
