Hey @warwolf09, So the last Shipped RHINO is #0074 on 2023-04-05 Average waiting time from *

Hey @warwolf09,
So the last Shipped RHINO is #0074 on 2023-04-05
Average waiting time from preorder to shipped is 149 days, median is 183 days, max is 214 days
73 Rhinos are shipped in total

Magpie•4/6/23, 1:10 AM

A10 uses the F16 grip on an extension...

MMagpie A10 uses the F16 grip on an extension...

mechsicko•4/6/23, 3:51 AM

Not the same grip but close, A10 is derived from it. F-16 grip has a pinky paddle and a 13deg termination at the base. Real Warthog grip has no pinky paddle and the bottom terminates flat. They also have different DMS castles.

F-16 being a sidestick and needs the forward tilt for ergonomy. A10 is a center stick and the grip can't smack the panel that needs to be in pilot reach. Pics directly from Essex.

Magpie•4/6/23, 4:00 AM

Noice

VPforceBotOP•4/6/23, 8:59 AM

:package:

RHINO #0073 Has Shipped!

Any_Time_Baby•4/6/23, 10:43 AM

Hi guys , how can I order that ?

AAny_Time_Baby Hi guys , how can I order that ?

Spatz•4/6/23, 11:07 AM

Check the #

faq

VVPforceBot Hey @warwolf09, So the last Shipped RHINO is **#0074** on **2023-04-05** Average...

audax•4/6/23, 1:51 PM

Oh, that's faster than I thought. I just preordered the base and I expected a waiting time of 10-15 months.

audax•4/6/23, 1:53 PM

Ouch, I just noticed I gave the wrong mail address, had a typo.

audax•4/6/23, 1:54 PM

Hopefully a DM is the correct way to solve this

audax•4/6/23, 2:09 PM

It was the right way.

Kkuliner and what about the adaptor? is it the one wrom winwing?

GarrafaBr•4/6/23, 2:23 PM

I hope this helps you have an idea of the height with the winwing adaptor (when the Rhino is ready for shipping you can order the adaptor). The adaptor can be seen as these 2 "rotative clamps".

kuliner•4/6/23, 2:27 PM

yes! this is perfect thanks

Troll 🇸🇪 🇳🇴•4/6/23, 2:58 PM

Apologies if this already has been answered, but finding old info isn’t that easy on Discord

How is the gimbal angle/stick deflection sensed? Is it the position of the FFB motor axis or do one need potentiometers for this?

TTroll 🇸🇪 🇳🇴Apologies if this already has been answered, but finding old info isn’t that eas...

PiNKSH!T•4/6/23, 3:11 PM

Hey m8, the motors have encoders inside them from my understanding

PPiNKSH!T Hey m8, the motors have encoders inside them from my understanding

walmis•4/6/23, 3:38 PM

Yep, that's correct. No other axis sensing is required, which simplifies design a lot

Troll 🇸🇪 🇳🇴•4/6/23, 3:57 PM

Thanks! That’s what I thought. I have ordered a DIY kit…

Graywo1f•4/6/23, 7:41 PM

https://tenor.com/view/hello-there-general-kenobi-gif-18841535

Tenor

Volk•4/6/23, 7:42 PM

https://tenor.com/view/star-war-multiple-lase-swords-gif-16896513

Tenor

Naudiz•4/6/23, 9:11 PM

Oh my, it's a celebrity

legobirds•4/7/23, 3:00 AM

Does Rhino support DX FFB?

Llegobirds Does Rhino support DX FFB?

walmis•4/7/23, 4:04 AM

Of course

Troll 🇸🇪 🇳🇴•4/7/23, 6:40 AM

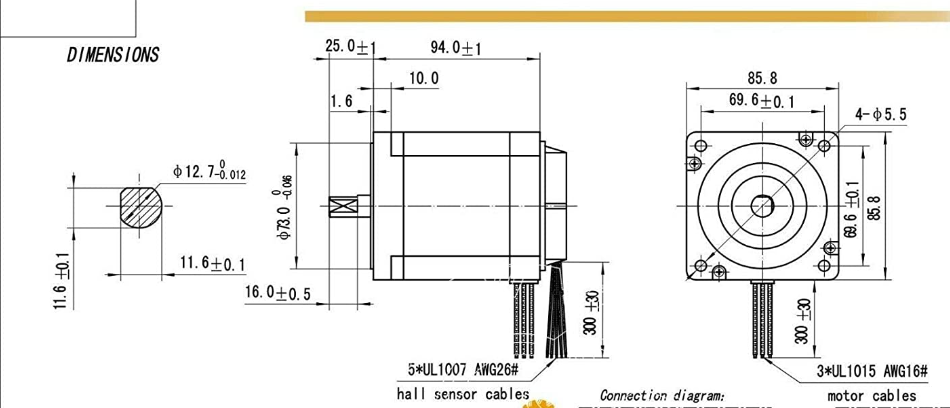

Are there any drawings or measurments of the FFB motors?
Anybody got a good source for timing belts and pulleys?

TTroll 🇸🇪 🇳🇴Are there any drawings or measurments of the FFB motors? Anybody got a good sour...

mechsicko•4/7/23, 6:45 AM

There are, I also modeled them and have them as Fusion or step files if you need. Belts picked up through Beidler's Belts (Gates GT tooth, 5mm pitch... HTD belts are more common), small pulleys you can find on Amazon/Aliexpress etc and big ones you can print. I just posted some pics in the showcase channel of the small form factor version (150mm cube) I'm developing into kits to offer to go with walmis's kits.

Mmechsicko There are, I also modeled them and have them as Fusion or step files if you need...

Troll 🇸🇪 🇳🇴•4/7/23, 7:02 AM

I have ordered the 86BLF04 motors. If you have STP files of those, that would be really helpful!

mechsicko•4/7/23, 7:20 AM

No I modeled the 57xxx motors. I am working on a kit for the bigger motors but for now am using a generic modeled Nema34 that's 95mm long I found on GrabCAD for free. At some point I'll model the driver segment walmis adds to them but this is the one I think https://grabcad.com/library/stepper-motor-nema-34-3

Free CAD Designs, Files & 3D Models | The GrabCAD Community Library

The GrabCAD Library offers millions of free CAD designs, CAD files, and 3D models. Join the GrabCAD Community today to gain access and download!

walmis•4/7/23, 7:22 AM

Yeah, it's basically standard NEMA34

walmis•4/7/23, 7:22 AM

j5bit•4/8/23, 12:10 AM

VPForce Invoice -- I've never been so keen to pay the man. I'm really excited

oncentreline•4/8/23, 11:48 AM

Hi All,
I’m thinking of placing an order in the next few days but before I do, can someone provide some idea of how ‘smooth’ the force feedback/range of joystick motion is? For those that have tried FFB steering wheels, is the Rhino more like a Fanatec direct drive wheel or like the Logitech G920?
Thanks!

Ooncentreline Hi All, I’m thinking of placing an order in the next few days but before I do, c...

recoilfx•4/8/23, 12:05 PM

Haven't tried the DD steer wheels, but I have had experiences with MSFFB2 and Logitech G940. Rhino's motor are SMOOTH. You are not going to notice the cogging.

Ooncentreline Hi All, I’m thinking of placing an order in the next few days but before I do, c...

Naudiz•4/8/23, 12:35 PM

Hey, this review was really helpful for me

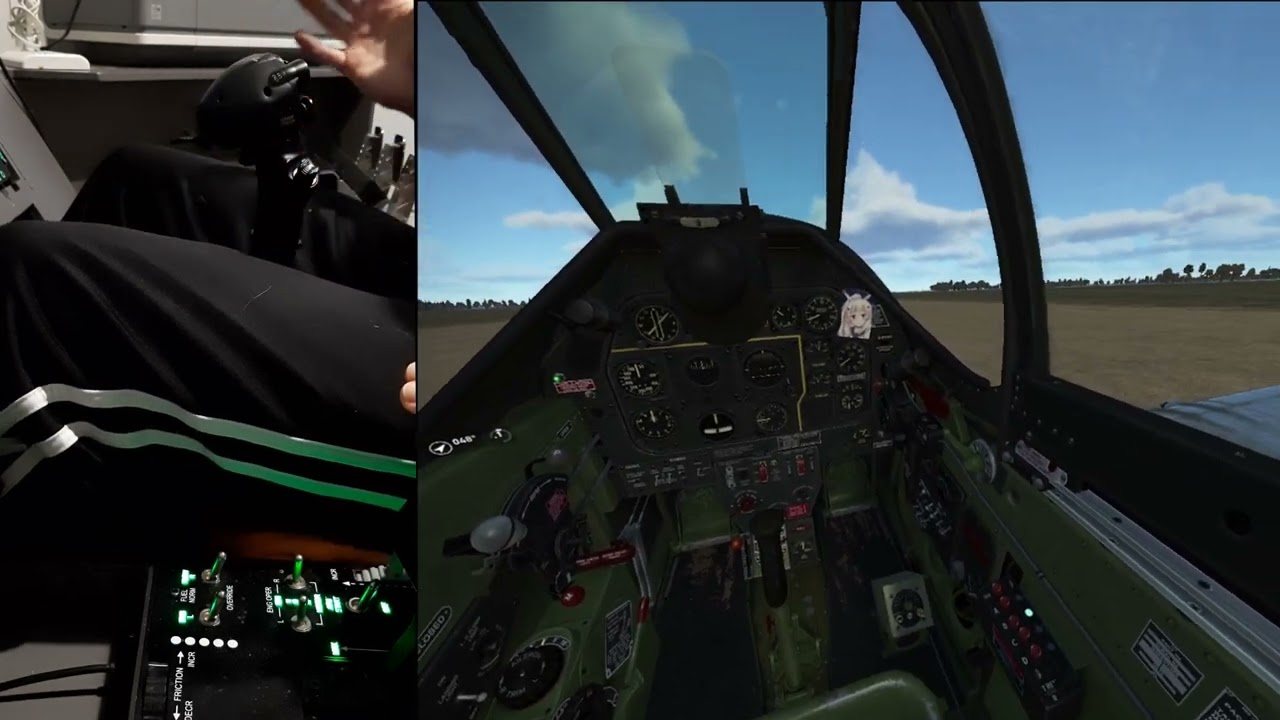

https://youtu.be/Uycth01W4EY

YouTubeAntti Ilomäki

Initial impressions on VPForce Rhino that turns into rambling and hype

Remember I don't have a lot of stick time on the Rhino, this is just a first look. Also don't take too seriously, I kind of got carried away.

00:00 Intro
01:12 Can you feel the motors and gears in a bad way?
06:42 How strong is it?
11:48 But does it have endurance?
14:04 How does it actually feel?
16:30 I get all excited as my stick gets stiffe...

Naudiz•4/8/23, 12:36 PM

Credit to @andyhill I think

Naudiz•4/8/23, 12:37 PM

He gets into the cogging feel in the first few minutes

AndyHill•4/8/23, 12:56 PM

I don't have experience with DD wheels so I can't really say much about that

AndyHill•4/8/23, 12:56 PM

it's hard to describe what the rhino feels like

AndyHill•4/8/23, 12:57 PM

first of all, I have never used a joystick where I couldn't feel the mechanism at all and I have tried a lot of them

AndyHill•4/8/23, 12:58 PM

you can feel the mechanism working on the rhino as well, but it doesn't feel clunky at all

AndyHill•4/8/23, 1:02 PM

all in all for me the total feel of the Rhino, free from the tyranny of springs, is just so different compared to non-ffb sticks that whatever you can feel of the mechanism working just kind of adds to the feel of pulleys and levers working on actual control surfaces

Ooncentreline Hi All, I’m thinking of placing an order in the next few days but before I do, c...

Jon (Bounty_V)•4/8/23, 1:34 PM

It'll be 10+ months before you would be asked to put money down - sooner you get in line sooner you'll get yours and you can leave the line at anytime

Reed•4/8/23, 1:46 PM

I’m number 88. Can’t wait

Jon (Bounty_V)•4/8/23, 1:59 PM

I'm 98

Naudiz•4/8/23, 2:20 PM

I’ll sign up too, worst case scenario I have to pass and it just goes on to the next person waiting patiently

Naudiz•4/8/23, 2:41 PM

What’s the mounting situation on a MonsterTech base? I see the adapter in the form but is it functionally fine with the force feedback and such?

AndyHill•4/8/23, 3:55 PM

I don't know about the Monstertech base, but whatever your solution, it will need to be solid through and through. The Rhino weighs over 5kg, but that's just the start. It's going to push and pull and shake and rattle a lot if you use it at high settings. My gut feeling is that aluminum profile -based setups (like I think monstertech is) are fine as long as they are very solidly attached to something really sturdy and heavy

inpayne•4/8/23, 4:08 PM

I’m about to hook mine up to a monster tech desk mount. We’ll see how it does. I can post in a day or two

NNaudiz What’s the mounting situation on a MonsterTech base? I see the adapter in the fo...

amadeus•4/8/23, 4:13 PM

📃general been running it for a couple months now on a Monstertech mount

amadeus•4/8/23, 4:14 PM

No issues yet

Mike (Mugs)•4/8/23, 4:31 PM

same

Ooncentreline Hi All, I’m thinking of placing an order in the next few days but before I do, c...

Knight59•4/8/23, 4:52 PM

It feels as smooth, if not smoother than a high end non ffb base, such as the Virpil WarBRD. Yes, that smooth! I was a skeptic until I got mine, too. You will be pleased.

Naudiz•4/8/23, 7:14 PM

Alright noted, the standard table-mounted MonsterTech probably isn’t gonna do then
