I’m really hoping for a clever Walmis motor to crosswinds adapter. I can’t figure it out yet, but that would be a very quick path to an amazing system. Overall I prefer the form factor of a TPR but the crosswinds offers such excellent value mechanically, if a way to retro fit with a motor could be made it would be super slick.

Kkingjamez I’m really hoping for a clever Walmis motor to crosswinds adapter. I can’t figur...

TonyM•4/24/23, 2:04 AM

Yes 1000% correct!

Kkingjamez I’m really hoping for a clever Walmis motor to crosswinds adapter. I can’t figur...

smitty•4/24/23, 2:33 AM

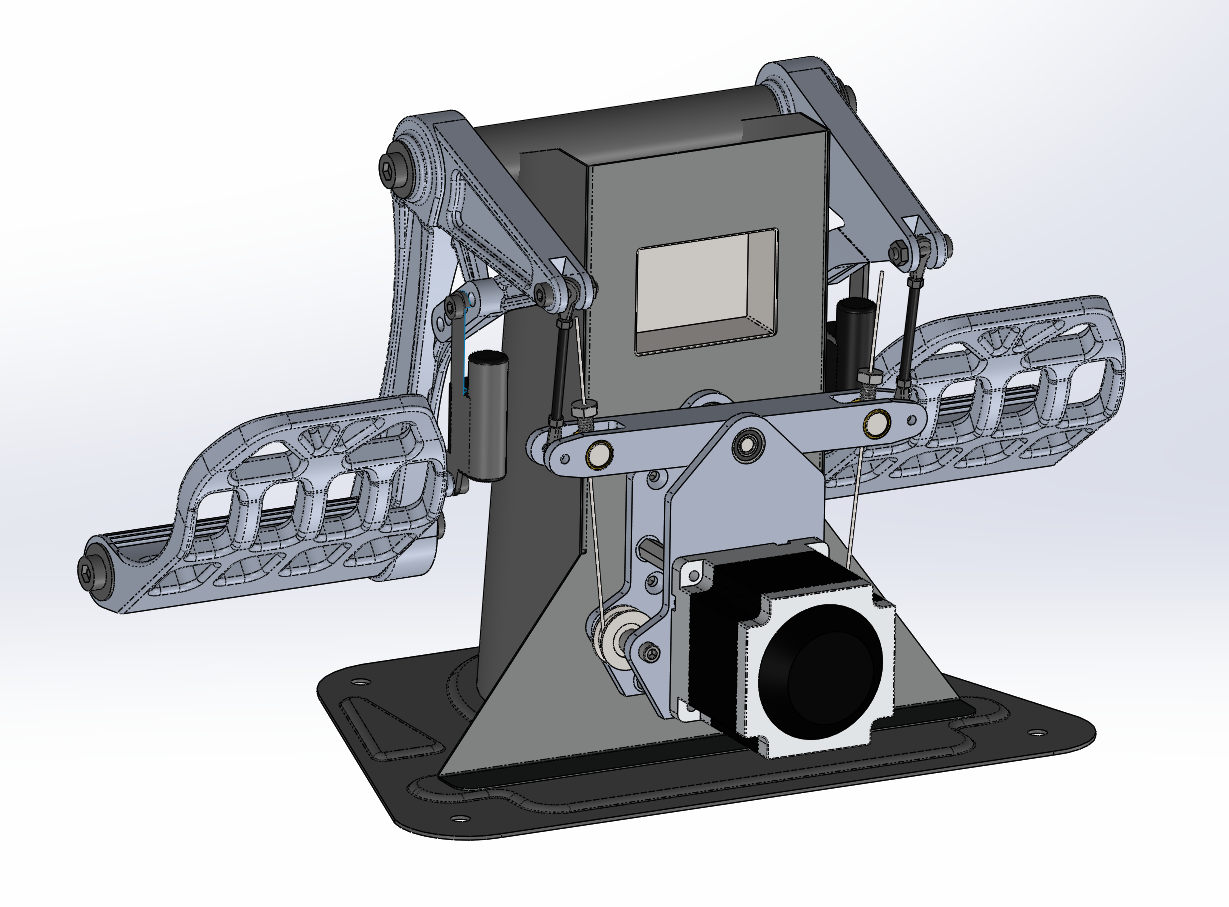

Cables!

VPforceBot•4/24/23, 6:34 AM

:package:

RHINO #0083 Has Shipped!

Ssmitty Cables!

TonyM•4/24/23, 6:50 AM

Great idea!
How do you control the FFB on your pedals?

Ssmitty Cables!

PiNKSH!T•4/24/23, 6:51 AM

Dude wtf! Talk to me mighty one, tell me of your wisdom!

PiNKSH!T•4/24/23, 6:51 AM

are toe brakes possible too?

PiNKSH!T•4/24/23, 7:08 AM

I wonder if it could be done, if load cells on the toe brakes would be just as good as ffb? even a cheap dampener mod would make these feel better.

PPiNKSH!T 🤔 I wonder if it could be done, if load cells on the toe brakes would be just ...

aniron•4/24/23, 11:09 AM

Hegykc of Replika gear used to sell these kits.

Kkingjamez I’m really hoping for a clever Walmis motor to crosswinds adapter. I can’t figur...

aniron•4/24/23, 11:16 AM

3d printed pulley in place of damper mount, attached with the same screws as the damper adapter, perhaps?

Motor front or aft of the fulcrum as required.

TTonyM Great idea! How do you control the FFB on your pedals?

smitty•4/24/23, 11:30 AM

currently with xpforce but looking forward to the msfs version of telemFFB

PPiNKSH!T Dude wtf! Talk to me mighty one, tell me of your wisdom!

smitty•4/24/23, 12:09 PM

i posted a short video and parts list a ways back here https://discord.com/channels/965234441511383080/972180323787997255/1054645204931588177
toe brakes are still handled by the pedals usb/springs/pots

Ssmitty i posted a short video and parts list a ways back here https://discord.com/chann...

PiNKSH!T•4/24/23, 12:15 PM

oh yeah sorry forgot about that, this is so really very tempting, is it running on it's own as a separate device or is it connected to the a joystick base?

smitty•4/24/23, 12:17 PM

i use the rhino ffb for pedal position, the original pedal usb i ignore the position and just map the brakes in game.

smitty•4/24/23, 12:17 PM

so 2 usb wires going to them

PiNKSH!T•4/24/23, 12:17 PM

ah ok so the pedals ffb is going to it's own usb card

smitty•4/24/23, 12:18 PM

yep, the kit card. if you got fancy you could use the 2 pot inputs for the toe brakes but would lose possible gain/other adjustment knobs

PiNKSH!T•4/24/23, 12:18 PM

I think the Rhino base has one axis unused on it

smitty•4/24/23, 12:19 PM

it shows 6 axes in SPAD.. rx ry rz slider etc but theres no physical interface for them other than the 2 pot inputs

Ssmitty it shows 6 axes in SPAD.. rx ry rz slider etc but theres no physical interface f...

PiNKSH!T•4/24/23, 12:21 PM

oh bugger, I was imagining having the rudder pedals plug into the base for their ffb & the old usb to pc for toe brakes

PiNKSH!T•4/24/23, 12:22 PM

& how do they run on the PC, just like any other kit or the Rhino? just using the VPforce software?

smitty•4/24/23, 12:23 PM

i only got the kits, not the full rhino base. the joystick is 1 card+2 motors the pedal is 1 card+1motor. they use the vpforce software.

PiNKSH!T•4/24/23, 12:24 PM

ok this just gets better & better, dam it, I'm not going to stop thinking of this now

PiNKSH!T•4/24/23, 12:25 PM

I must have ffb pedals, I must

smitty•4/24/23, 12:25 PM

and im making this for when i upgrade to tpr's

PiNKSH!T•4/24/23, 12:27 PM

Yeah I'm not sure when I upgrade if I'll want the TPR, Virpil or the MFG?

smitty•4/24/23, 12:27 PM

the cable-pull design would probably work on all of em, its just bracketry that would change

PiNKSH!T•4/24/23, 12:28 PM

just need a way to make my honeycomb yoke ffb too

nairb121•4/24/23, 6:45 PM

@walmis Question on the WinWing adapter - can it be used with other TM/Virpil-style bases to allow use of a WinWing grip? Or does it specifically need to be running your firmware to make sense of it? (Apologies if this has been asked before, I searched briefly but didn't find anything)

walmis•4/24/23, 6:48 PM

It should work, but limited to 24-32 buttons and no analog axis support

nairb121•4/24/23, 6:58 PM

Good enough for me, thanks!

Jon (Bounty_V)•4/24/23, 7:09 PM

i agree 100% if there was a way to replace the crosswind damper with rhino ffb as a proper kit that would be amazing

Jon (Bounty_V)•4/24/23, 7:10 PM

crosswind is what i'll be buying as you said it just makes the most sense for the value

kingjamezOP•4/25/23, 12:13 AM

I got my motors hooked up today just to test out. Such an amazingly simple process. I think I'm probably capable of building most of this on my own but @walmis has done such an excellent job from motor tuning, PCB design, and now I can see that the software side is equally as impressive. There is ~ZERO~ reason to try to redo anything he has done, it's just really well executed.

kingjamezOP•4/25/23, 12:15 AM

On to build a super simple gimbal just to have something to jerk around while I build the high end system. The laser cutter and 3D printers are going to get well used over the next week.

kingjamezOP•4/25/23, 12:17 AM

I don't see an "off topic" but if you are looking for a laser that can cut an enclosure for your DIY Rhino, this on kickstarter is a good deal for the 20W version: https://www.kickstarter.com/projects/elegooofficial/elegoo-phecda-laser-engraver-and-cutter?ref=user_menu . Of course kickstarters can always fail, but Elegoo is established. I'll be using the Creality Falcon 10W until the above arrives and while slow it should still be able to cut ply thick enough for a decent base.

Kickstarterelegoo official

ELEGOO PHECDA Laser Engraver & Cutter

Quality Products for Less, Creating Savings for All｜1600 cm² Working Area｜Smoke Filtering｜Easy-to-use｜

Kkingjamez I don't see an "off topic" but if you are looking for a laser that can cut an en...

TonyM•4/25/23, 3:18 AM

Interesting product! I use a lot my 3D printer and my cutter (Silhouette Cameo) and I don't see yet (!) a use for such product but who knows in the future ? LOL

BadKarma•4/25/23, 8:31 AM

Hello all, small question; i like to put myself on the waiting list for one but i have a question regarding IL2; does it work OK with IL2 great battle (out of the box) or does it need some 'thinkering' ?

BBadKarma Hello all, small question; i like to put myself on the waiting list for one but ...

PiNKSH!T•4/25/23, 9:02 AM

Hey m8 the Rhino works awesome with IL2 out of the box!

PiNKSH!T•4/25/23, 9:03 AM

You get ground texture on taxi/take-off/landing. buffeting with gear down, flaps & AoA etc. the stick moves with trim, weapon effects like gun/cannon shake

PiNKSH!T•4/25/23, 9:08 AM

also it gives a really good amount of resistance with the 9nm torque, with a light grip like the vkb Kg12 & a 200mm extension I get a really nice feeling stick, it's not like I'm using two hands & bending the extension when trying to pull out of a dive

but still more than I got with my VKB gunfighter 3

PiNKSH!T•4/25/23, 9:12 AM

also you can customize the stick feel per aircraft if you wish by making multiple config profiles in the VPforce software & you can swap between them on the go, this lets you change the stick feel per aircraft if you wish to, making it feel lighter or heavier, even change the length of throw for the +/- of the X & Y axis in the software (the Rhino has a huge length of throw, I think like ~40°)

BadKarma•4/25/23, 9:38 AM

thanks for the explanation! much appreciated

BadKarma•4/25/23, 9:39 AM

using bass shakers & VR atm, which is awesome but always looking for more immersion

VPforceBot•4/25/23, 10:50 AM

:package:

RHINO #0084 Has Shipped!

BBadKarma using bass shakers & VR atm, which is awesome but always looking for more immers...

PiNKSH!T•4/25/23, 12:22 PM

Yeah I'm aiming for a jetseat or NLR HF8 & bass shakers, would love a seat mover eventually or even an actual motion rig, but those are big asks. A decent 'cockpit' set up to mount everything to, a decent chair, Rhino, Jetseat & Bass Shakers will add a lot of immersion

PPiNKSH!T Yeah I'm aiming for a jetseat or NLR HF8 & bass shakers, would love a seat mover...

BadKarma•4/25/23, 12:23 PM

look at Simukit.com, if you're in the EU you can get a seat mover for 590€

BadKarma•4/25/23, 12:24 PM

its a kit, but very doable with everything included (Arduino, motors, cables,...)

BadKarma•4/25/23, 12:24 PM

can handle 120kg so fixing a joystick and throttle should be doable

BBadKarma look at Simukit.com, if you're in the EU you can get a seat mover for 590€

PiNKSH!T•4/25/23, 12:27 PM

ooooh that sounds doable! not right now, got a few other things I wana do first, ffb rudder & yoke, plus I need to do a couple PC upgrades too

BadKarma•4/25/23, 12:27 PM

life is about choices
