It seems to be something to do with how much you have to compress the cable inside the extension whi

It seems to be something to do with how much you have to compress the cable inside the extension which is necessary for pulling out the male connector at the bottom so you can get your fingers in to plug it on, and then it smoothly goes back inside as you screw down the bottom of the extension - ie I also got much better behaviour with the extension in pieces and using the cable with no kinks, bends or other compression.

TTC-Durham It seems to be something to do with how much you have to compress the cable insi...

Number481•5/3/23, 6:30 PM

Yeah, I just took mine apart to see whats what.. uncoiling the cable from inside the extension doesn't seem to help my case. FYI, button 1 is (should be) always active if the flip trigger is forward, button 2 is always active if the flip trigger is pulled back (at least on the Alpha).

Wwalmis That's very strange. I have tested my Alpha with a 2 meter cable, all works norm...

Number481•5/3/23, 6:32 PM

Is that one of the data lines on the extension connector? I don't have any resistors lying around but could probably have some by tomorrow. It's actually the Alpha Prime, but I think thats mostly just RGB and construction differences to the original Alpha.

walmis•5/3/23, 6:33 PM

I'll send you some pinout diagrams tomorrow morning once I get back to work

Wwalmis The current wip development branch is a bit unfinished for general usage at the...

Fer•5/3/23, 6:36 PM

And for harrier trim?

NNumber481 Yeah, I just took mine apart to see whats what.. uncoiling the cable from inside...

TC-DurhamOP•5/3/23, 7:28 PM

Have you got the straight extensions?

TC-DurhamOP•5/3/23, 7:28 PM

With the one piece cable?

Number481•5/3/23, 7:36 PM

no, its the offset extension.

Number481•5/3/23, 7:37 PM

took it apart, removed the shrink wrap.. reseated the connector joining the two halves of the cable.. issue persists.

TC-DurhamOP•5/3/23, 7:39 PM

And that is even when the cable is straightened out?

TC-DurhamOP•5/3/23, 7:40 PM

I have the offset extension, which is the one that gave me the issues - the cable in the picture above played nice.

Number481•5/3/23, 8:07 PM

Yeah I assume it has something to do with the way they’ve connected the two halves together causing crosstalk of some sort.

Number481•5/3/23, 8:08 PM

Number481•5/3/23, 8:09 PM

@walmis would you suggest trying to directly solder the two halves together and remove the connectors?

TC-DurhamOP•5/3/23, 8:11 PM

That was my conclusion - and when you cram it all together the potential for crosstalk increases

Number481•5/3/23, 9:47 PM

Well, I cut the connectors out and direct soldered the cable.. ~~problem is (mostly) gone.. I do still see occasional flash of button 1 in configurator so I assume there's still some crosstalk going on.~~ Well.. spoke too soon. shoved it all back inside the tube and the crosstalk is back :/

Number481•5/3/23, 9:47 PM

HereComesWhitey•5/3/23, 10:21 PM

Maybe using coax cables would work?

Number481•5/3/23, 11:53 PM

@walmis after failing to fix the issue by removing the connectors and directly soldering the wires, but noticing that when it wasn't coiled inside the tube the issue was lessened or non existent, I cut about 12cm out of the cable and soldered it back up so that it wasn't so coiled up when pushed back into the extension tube. Seems to be working so far...

Number481•5/3/23, 11:53 PM

NNumber481 Click to see attachment

Jehly•5/4/23, 12:30 AM

Sorry, where'd you get that switch hat on the top right??

JJehly Sorry, where'd you get that switch hat on the top right??

Number481•5/4/23, 12:39 AM

designed and 3d printed it because I needed a china hat

NNumber481 designed and 3d printed it because I needed a china hat 🙂

Jehly•5/4/23, 12:48 AM

Color me impressed and jealous.

JJehly Color me impressed and jealous.

Number481•5/4/23, 12:52 AM

you're welcome to the file

NNumber481 you're welcome to the file

Jehly•5/4/23, 12:55 AM

I’d love that! Do you just pop it off?

Number481•5/4/23, 12:58 AM

yeah, the default ones are just pressure fit on a metal spline (this is the alpha prime, I assume the alpha is similar). Takes a bit of force to get them off. I moved the one that's on the upper right by default to the lower left and then put the printed china hat in the upper right

JJehly I’d love that! Do you just pop it off?

Number481•5/4/23, 1:02 AM

DM'd

Jehly•5/4/23, 1:03 AM

Thanks!

Jon (Bounty_V)•5/4/23, 11:36 AM

Rhino owners! Looking to get 1 or more throw limiters with my Rhino, and I'm a complete novice when it comes to this sort of thing and have no clue what throw angles I should be considering. What is everyone's experience with throw limiters an what sizes have been good for you all? Any specific modules you use the limiter for?

Vulcan•5/4/23, 12:10 PM

Best to get a protractor out, put it where the base goes and eyeball the obstructions in your pit. Half throw is about 10.5 degrees and that's what im rocking due to an extension since I bolt the base to the bottom of my simpit

Vulcan•5/4/23, 12:11 PM

Jon (Bounty_V)•5/4/23, 12:14 PM

Yeah not a bad call. I'm trying to figure it out before I get the base as part of the order form which does slightly complicate things

So you would say the specs saying 44 degrees on both x and y is 22x and 22y not 44x and 44y?

Vulcan•5/4/23, 12:16 PM

Yes 21 or 22

Vulcan•5/4/23, 12:21 PM

You'll probably need a few throw limiters to get close to what you want if you're going in blind. If you have a really long extension like 200mm, consider taking a drastic amount off like I did. If it's a lot shorter then maybe only 75-80%

Jon (Bounty_V)•5/4/23, 12:43 PM

Ok I was able to determine I will want a 200mm extension. So I think I will get a 50% limiter. I'll also get a 75% limiter should I want to change to 100mm.

VVulcan Best to get a protractor out, put it where the base goes and eyeball the obstruc...

ddrake1984•5/4/23, 1:17 PM

that's exactly how I have mine mounted

ddrake1984•5/4/23, 1:17 PM

JJon (Bounty_V)Ok I was able to determine I will want a 200mm extension. So I think I will get ...

Vulcan•5/4/23, 1:28 PM

That sounds like a good starting point, if the throw isn't enough for your personal preference with the 50% try the 75% and if that's too much get another one later somewhere in the middle

zbyte•5/4/23, 5:19 PM

Apologies for my ignorance but trying to understand the subject, the throw limiter will restrict the arc length movement of the stick to avoid hitting other objects during usage, the standard angle per axis (angular displacement) without limiter is 44 degrees give or take, with a 200mm extension (close to radius value since some distance from pivot is not accounted by the extension), you limit this 44 to 22 degrees give or take and with a 100mm extension you could "assume" roughly 33 degrees. The Rhino then will be calibrated to whichever max allowed throw is at its max value and will operate accordingly. Questions, is my statement accurate? Is the Rhino adjustment linear or follows other function like logarithmic or exponential or else? Thank you.

amadeus•5/4/23, 5:52 PM

When you calibrate the rhino you basically tell the firmware it the minimum and maximum distance of physical travel for each axis, so then it maps that to what it reports to windows/games as -100% to 100%, (technically it’s reported as an integer value, like -4986 to 4986 I think?) but yeah linear travel along those value ranges, no curves are anything are added if you limit the throw

PiNKSH!T•5/5/23, 6:05 AM

@walmis Hey m8, I've got replacement grub screws but one of the ones in the gear won't come out, their way too shallow. I'm going to try & superglue the alan key to the top of the grub screw, if that doesn't work what am I supposed to do?

PPiNKSH!T @walmis Hey m8, I've got replacement grub screws but one of the ones in the gear...

walmis•5/5/23, 6:09 AM

I usually use a hex screwdriver so I can get a good pressure on the screw to get it out, the L shaped allen key might be difficult to use

walmis•5/5/23, 6:10 AM

a dab of wd40 might help also

walmis•5/5/23, 6:11 AM

also you might try tightening the other one with a new grub screw, might be enough

Wwalmis also you might try tightening the other one with a new grub screw, might be enou...

PiNKSH!T•5/5/23, 6:33 AM

Yeah I'll try this, cheers m8

Wwalmis also you might try tightening the other one with a new grub screw, might be enou...

PiNKSH!T•5/5/23, 6:42 AM

ok that's fixed it, but I'm keen to get the other one out, in fact I'm going to replace the ones on the other motor too

Aamadeus When you calibrate the rhino you basically tell the firmware it the minimum and ...

zbyte•5/5/23, 10:57 AM

Thanks

JJon (Bounty_V)Rhino owners! Looking to get 1 or more throw limiters with my Rhino, and I'm a c...

LeLv30_Superbus•5/5/23, 12:06 PM

With a 200 mm extension and no hole in my seat 18° back and 12° forward works for me. Many fighters have more throw backward than forward. I can reach my front panel switches and knobs without any trouble and the stick is not hitting anything. This is important b/c I only fly in VR. Remember to limit sideways movement too. I'm hitting my own feet at ½ throw when there's zero pitch so maybe try that value. Edit: my Rhino is mounted at 98 mm height (it's on two pieces of 2x4 sideways) and I'm sitting at 460 mm. Grip is MCGU.
Pictures: 📃general

Jon (Bounty_V)•5/5/23, 12:07 PM

I requested 50% on both x and y axis, and a 75% on both x and y axis. If I need further adjustments I can probably source them myself

JJon (Bounty_V)Ok I was able to determine I will want a 200mm extension. So I think I will get ...

JakeSixx33 | 744 |•5/5/23, 1:42 PM

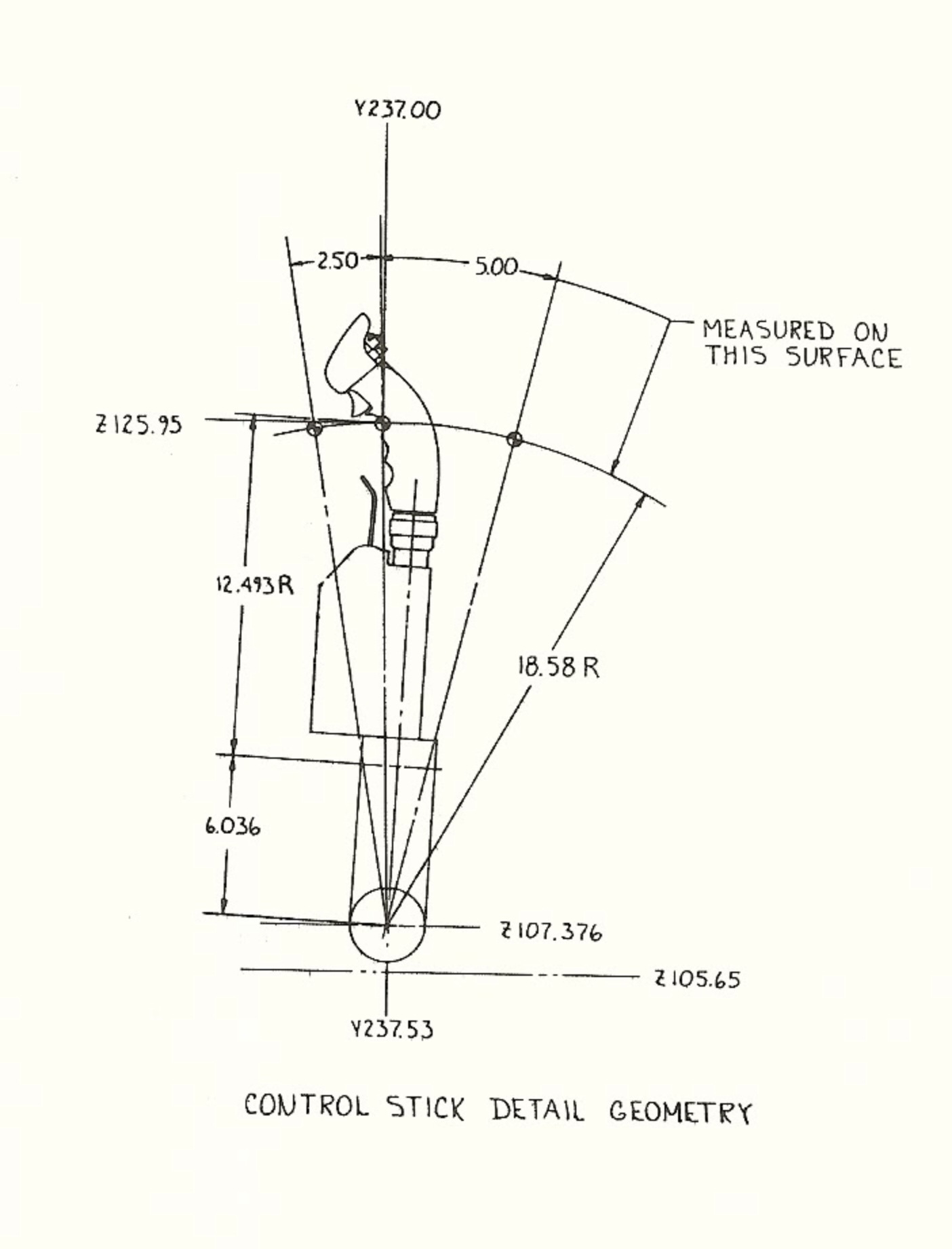

Walmis created a limiter for me that comes very close to limiting the travel of the F-18C specs for 2.5" forward and 5" rearward. I also use a 200mm extension. The calibration software works wonders and gives full control input with the reduced physical input distance from center. Thanks @walmis

JakeSixx33 | 744 |•5/5/23, 1:43 PM

It seems to be something to do with how much you have to compress the cable inside the extension whi
