So I have an couple questions, hope this is the right place. I currently have a winwing orion 2 with the F-16EX stick. I'm not super keen on picking up the RHINO base as I have custom made mounting for my current set up and would need a rework for the the stick. That being said the motor kits have peaked my interest and I think I could modify the base to implement the kit into my current mounting system. (Note: I mostly fly the Apache and looking at this for the force trim replication, however I do fly fixed wing too and I love that the software can replicate a spring as well for that.)

My main questions are:

Do I have to connect the stick to the PCB/USB Controller that comes with the kit? or can I use the normal orion setup and just plug in the motors to the kit and whatever else is required? (basically stick would be how it is now, its own device, the motors would be a new device on its own)

and 2. What are the benefits of the pully system/wheels I see used for each axes? I assume it increases precision and I think torque? I'm not well versed in the engineering behind it so not sure.

kingjamez•6/13/23, 9:13 PM

The stick buttons can be separate device. I don’t know anything about your current stick but if it has a USB connector and you can find a good solution for cable management then it could work. If you are using DCS it’s as easy as just assigning the pitch and roll axis to the VPForce device and call it a day.

kingjamez•6/13/23, 9:16 PM

The pulley system is used for a couple of reasons: First it is a method of connecting the motor to the mechanical axis. Second it is a gear reduction to increase torque. It’s good to note that the gear reduction actually decreases absolute precision by the gear ratio, but the VPForce encoders are so precise that it’s not meaningful.

QuietQT•6/13/23, 9:16 PM

It uses just the normal base which uses a USB B connector as well. So cable managment wouldn't be a huge issue, but I guess I could completely remove the PCB that comes with stick if the axes are assigned to the motors anyways. I assumed the axes stayed relative to the stick not the motors. That would make more sense then

kingjamez•6/13/23, 9:18 PM

The motors ~are~ the axis since their movement plays into the force feedback.

Kkingjamez 2. The pulley system is used for a couple of reasons: First it is a method of co...

QuietQT•6/13/23, 9:18 PM

Oh cool! Do you know if theres a formula or calculator for the toruqe based on the diameter?

kingjamez•6/13/23, 9:18 PM

It’s linear.

QuietQT•6/13/23, 9:18 PM

Sweet, well thanks for the info! This actually has made it ironically simpler than I thought

Jon (Bounty_V)•6/13/23, 9:21 PM

knowledge-base also has some useful info

Comrade_Weng•6/14/23, 12:20 PM

Is anyone having issues with the rhino after the latest windows 11 update? I'm getting all the happy beeps from the rhino with power and USB, however windows doesn't seem to be detecting anything.

Comrade_Weng•6/14/23, 12:32 PM

@comrade_weng never mind. I found the problem. I managed to crimp a wire under a bolt head when reassembling. Stupid me.

QuietQT•6/14/23, 3:09 PM

Hello again. I've done a fair amount of searching and can't seem to find an answer to my question. I noticed the PCB that the motor kit comes with allows for a 5pin connection to the joystick, I assume the normal DIN5. The issue I'm having is WinWing uses a DIN6 connector for its orion 2 joystick. How would that pinout look? I noticed theres an adapter for WinWing sticks for the RHINO but haven't been able to find much info on it. Does it come with a cable that converts the DIN6 to DIN5 making it compatible? Thanks for the help in advance.

kingjamez•6/14/23, 4:00 PM

The 5 pin on the VPForce board assumes a shift register input, it doesn't really care much about whether it's other end is DIN5. WinWing sticks don't talk directly to VPForce board and require and adpater that is essentially a small extension on the Rhino. That extension has a DIN6 on one end for the WinWing and a DIN5 on the other end to mate up to the Rhino. It's not a cable it's electronics that convert signals.

kingjamez•6/14/23, 4:01 PM

📃general

kingjamez•6/14/23, 4:02 PM

📃general

kingjamez•6/14/23, 4:02 PM

Lots of knowledge can be had from taking advantage of the search bar.

QuietQT•6/14/23, 4:16 PM

Sorry about that. I had been searching and found both of these actually messages, but they didn't state whether or not the adapter converted from DIN6 to DIN5 which is what prompted me to ask the question. Those just showed the screw adapter and so wasn't sure if a cable was included or if I had to figure it out myself. Sorry again.

B9•6/14/23, 5:14 PM

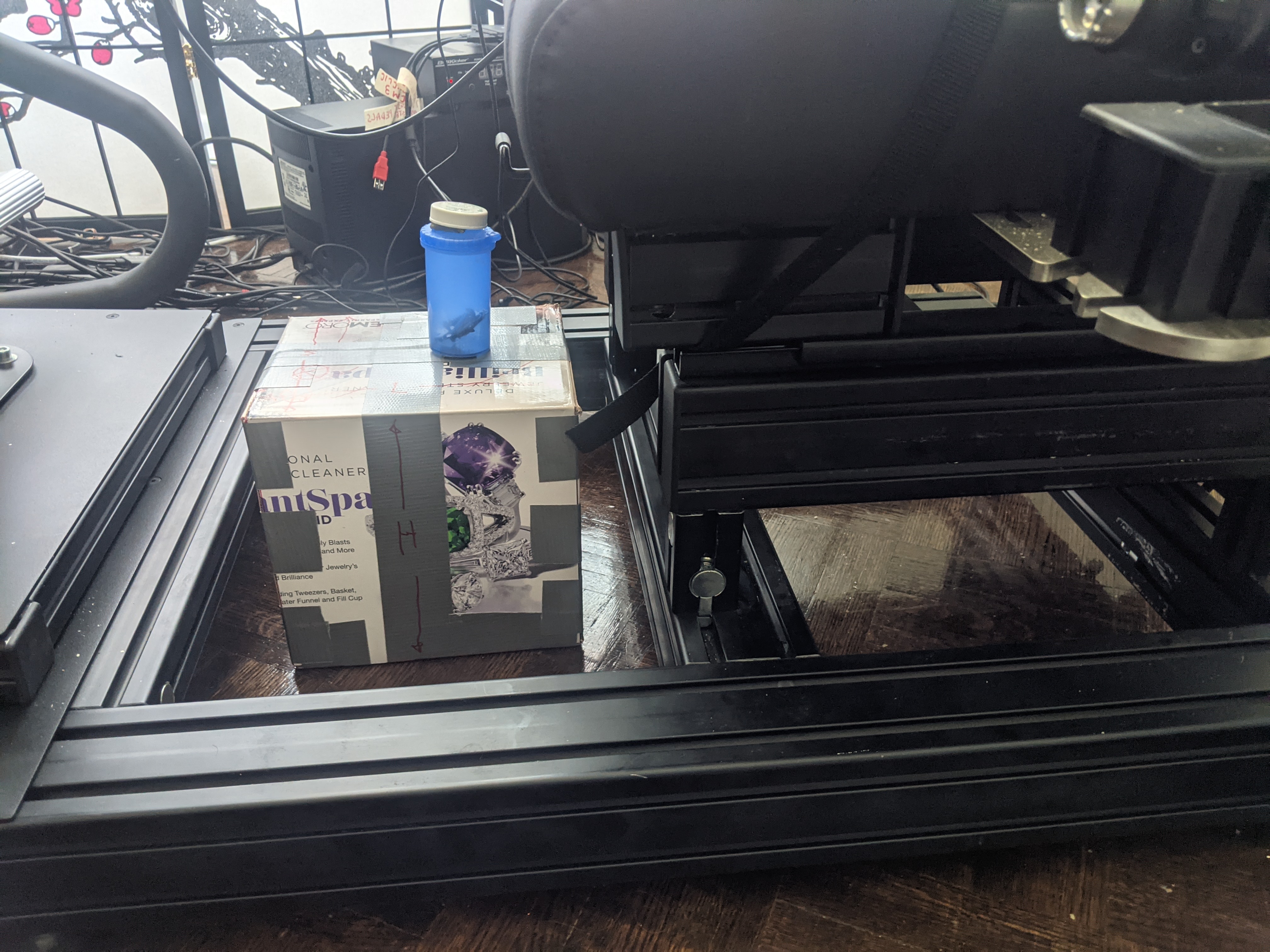

Hi, I have made a Rhino template to help me modify my Monstertech Simulator Cockpit. I have spent several hours modifying my Simulator Cockpit, Please send me the Rhino Monstertech Mounting plate technical specifications so that I customize it with my Monstertech Cyclic Quick Release mechanism. This way when my Real Rhino arrives it will be plug and play. Thank you

BB9 Hi, I have made a Rhino template to help me modify my Monstertech Simulator Cock...

Knight59•6/14/23, 7:01 PM

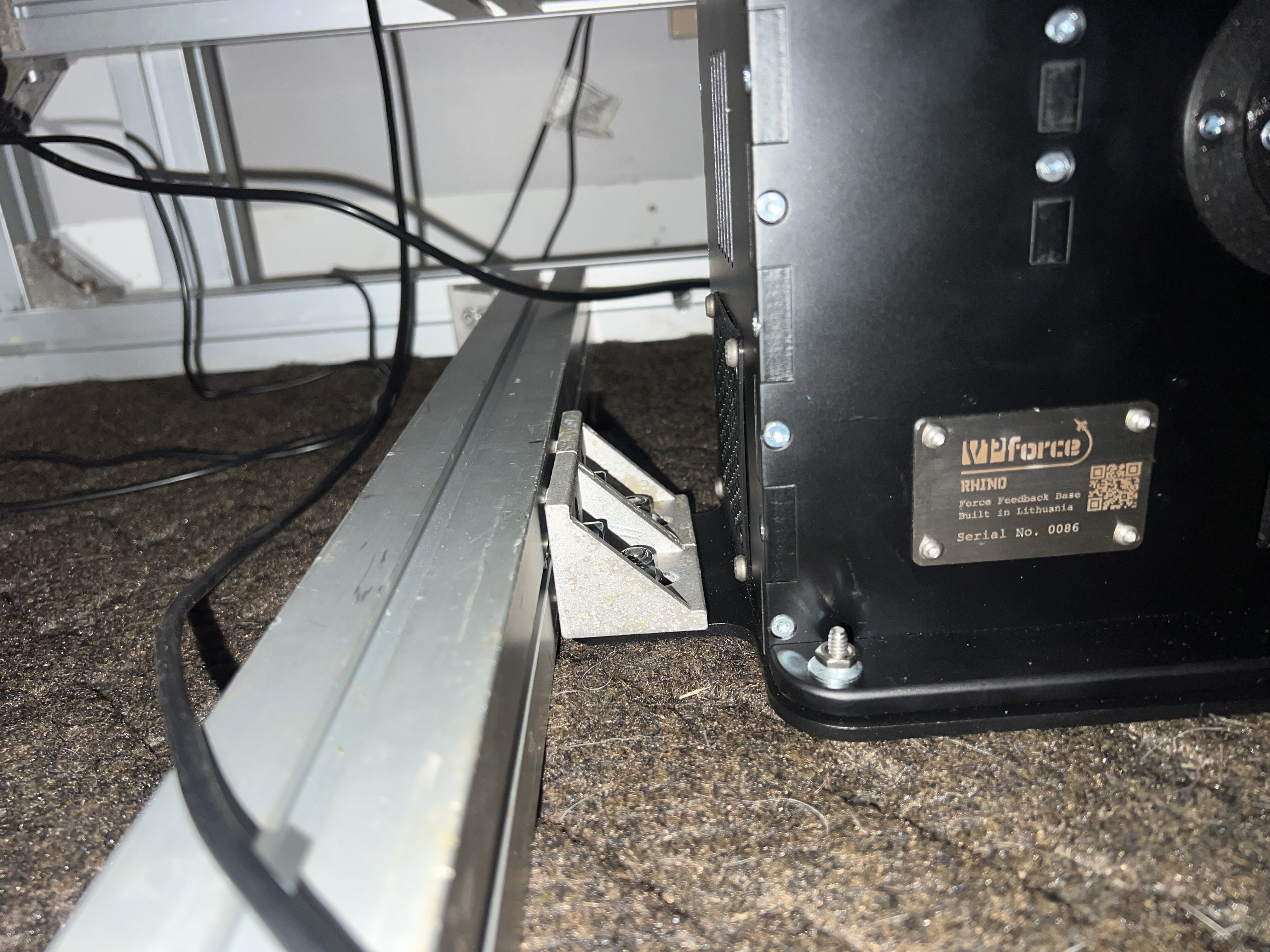

Does this help at all? (I just took delivery of my MPS1)




QQuietQT Sorry about that. I had been searching and found both of these actually messages...

kingjamez•6/14/23, 7:07 PM

No need to apologize! I've asked way more questions than you and most were answerable via search. I just didn't realize the extent of the knowledge that is tucked away here.

B9•6/14/23, 7:51 PM

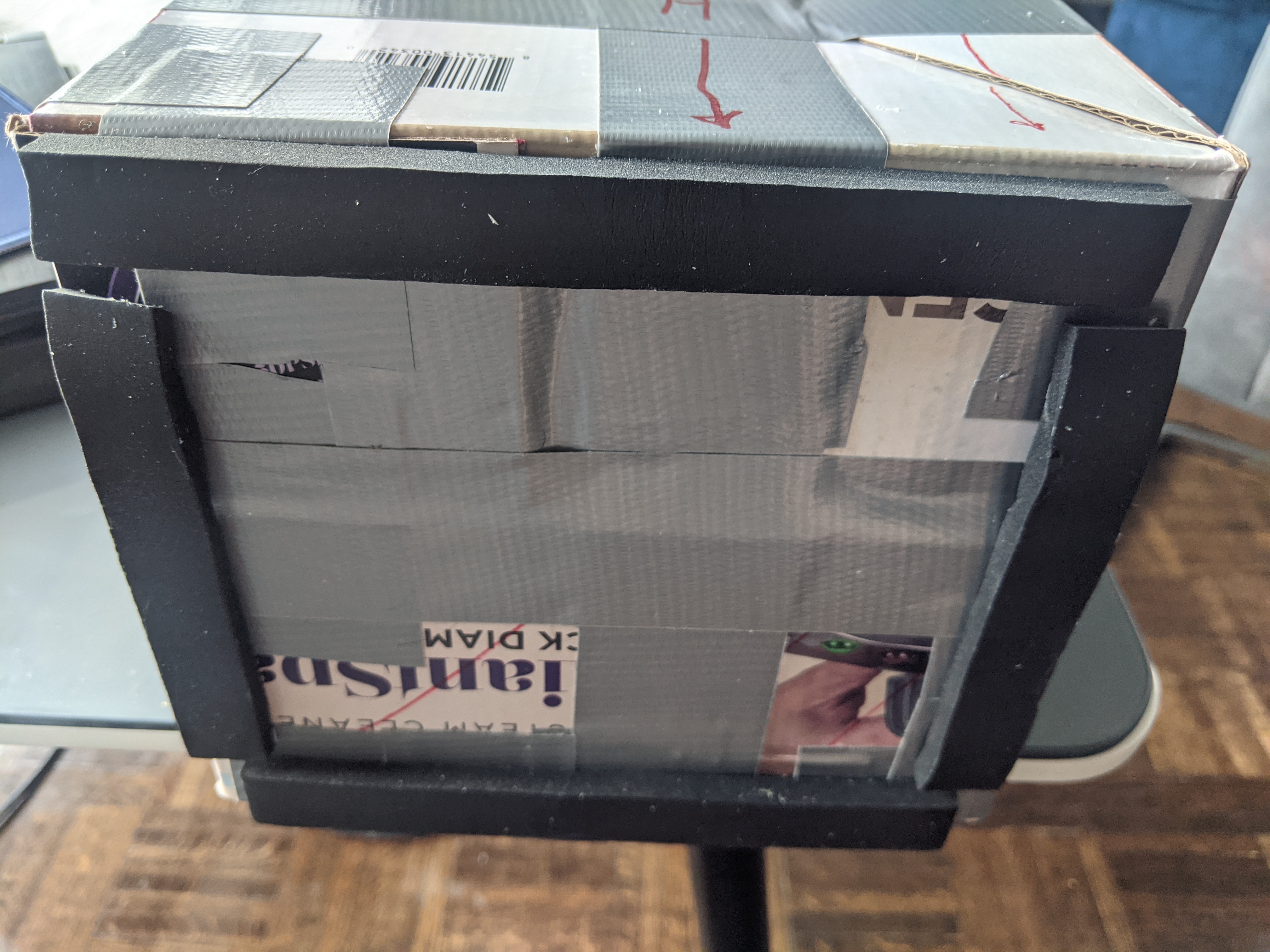

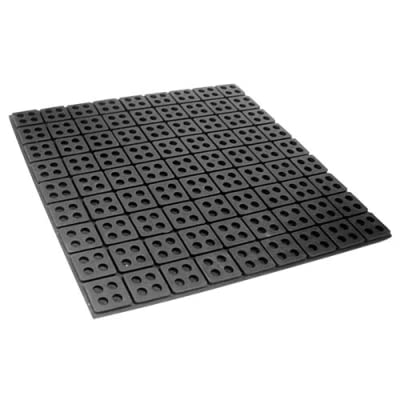

Hi Knight, Fantastic images. I appreciate the help., I am putting this Antivibration Rubber Pad 12 inch x 12 inch x .75 inch on the floor then putting the Rhino on top keeping it close to the ground. Here is My Rhino template bottom with .75 inch thick foam. In keeping my Rhino close to the ground The 250G75 Virpil Extension will work perfectly. it will be at the perfect height for flying.



B9•6/14/23, 7:53 PM

This means I have to fabricate an a 90 Degree angle to metal plate to connect to the the Simulator and to connect to the Rhino

B9•6/14/23, 8:05 PM

Quick_Release_Mounts_4_Sim_Rigs_-_Joystick_Kinked_Extension_for_Thrustmaster_and_Virpil_-_VPV_-_Measurements.jpg

KKnight59 Does this help at all? (I just took delivery of my MPS1)

Reed•6/14/23, 8:05 PM

How does this mount work?

Reed•6/14/23, 8:06 PM

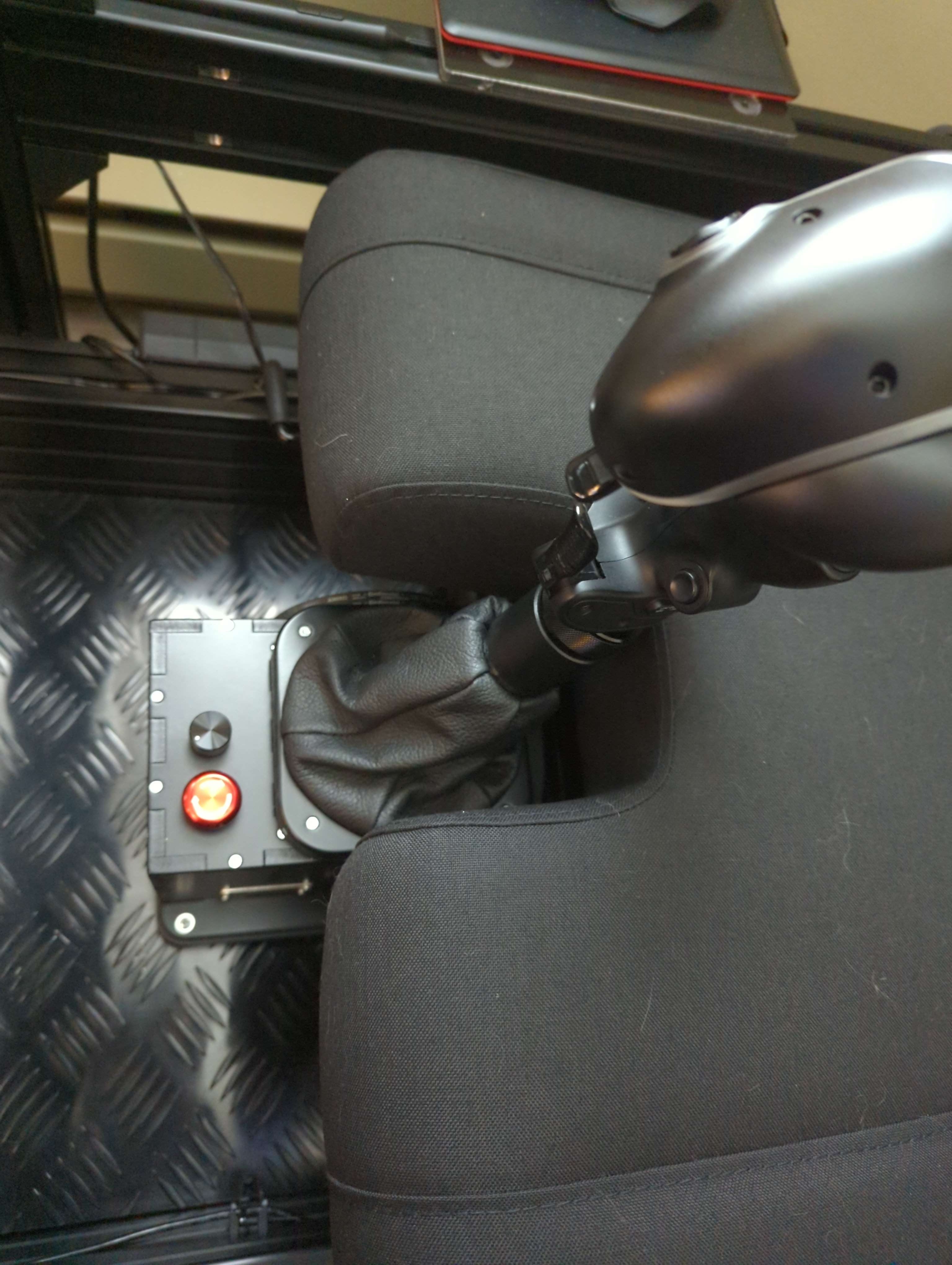

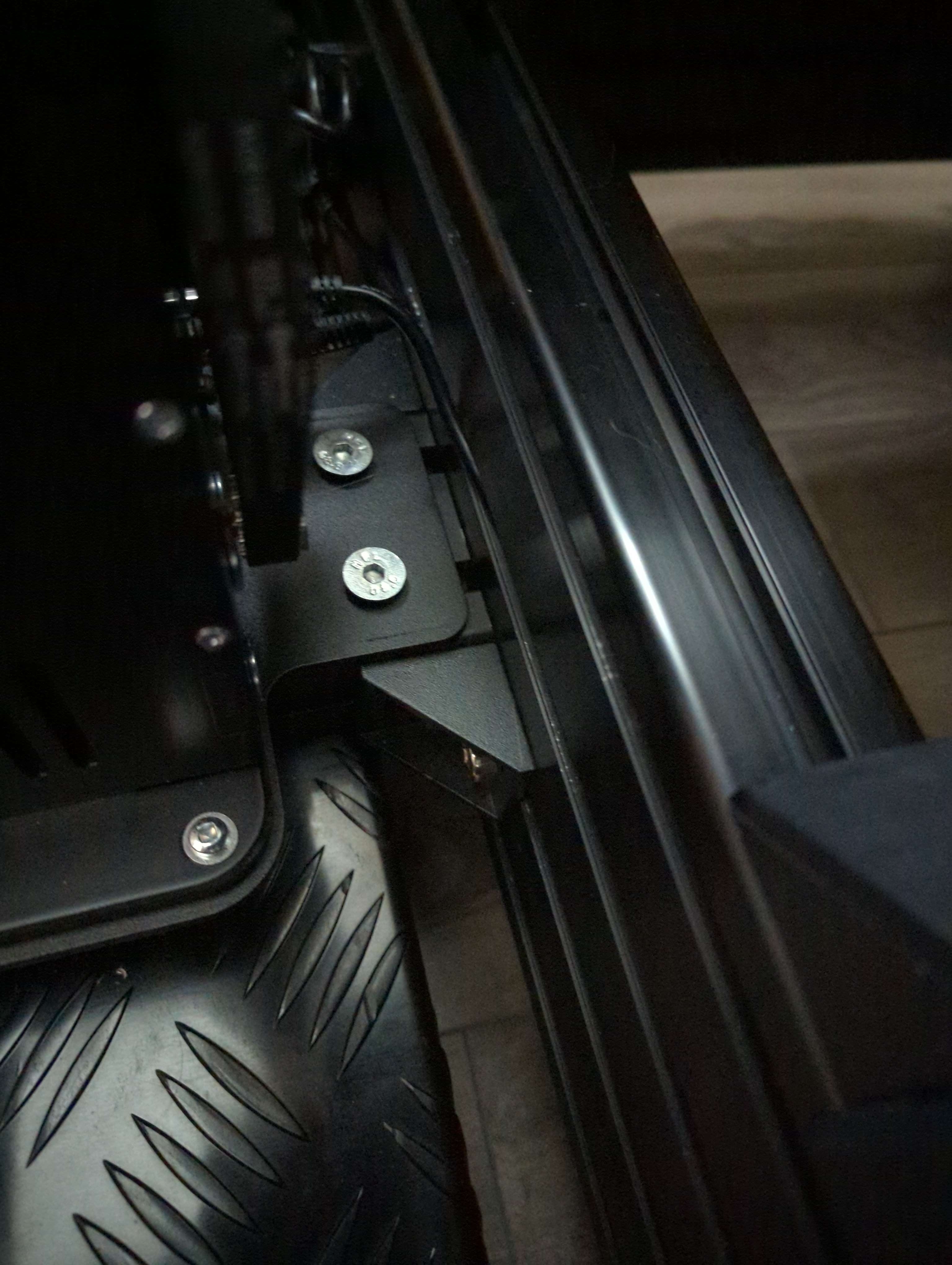

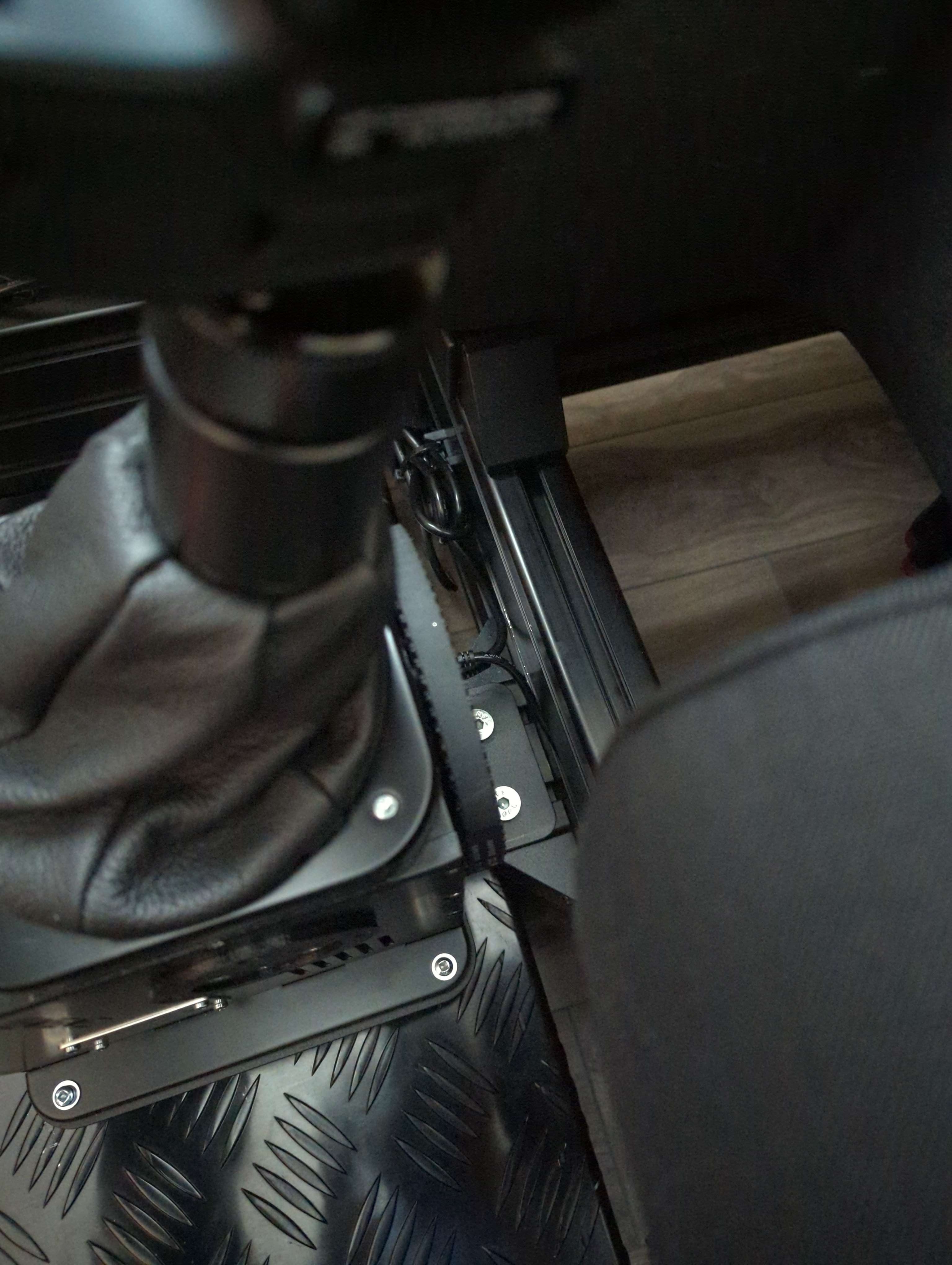

Here is how I did it.

Reed•6/14/23, 8:06 PM

Reed•6/14/23, 8:07 PM

Is it free floating? What’s underneath it.

B9•6/14/23, 8:11 PM

OH WOW!!!! GOOD WORK, THIS WILL WORK FOR ME AS WELL. wow!

RReed Click to see attachment

Knight59•6/14/23, 8:15 PM

Basically the same as you've done. Free floating, yes

B9•6/14/23, 8:16 PM

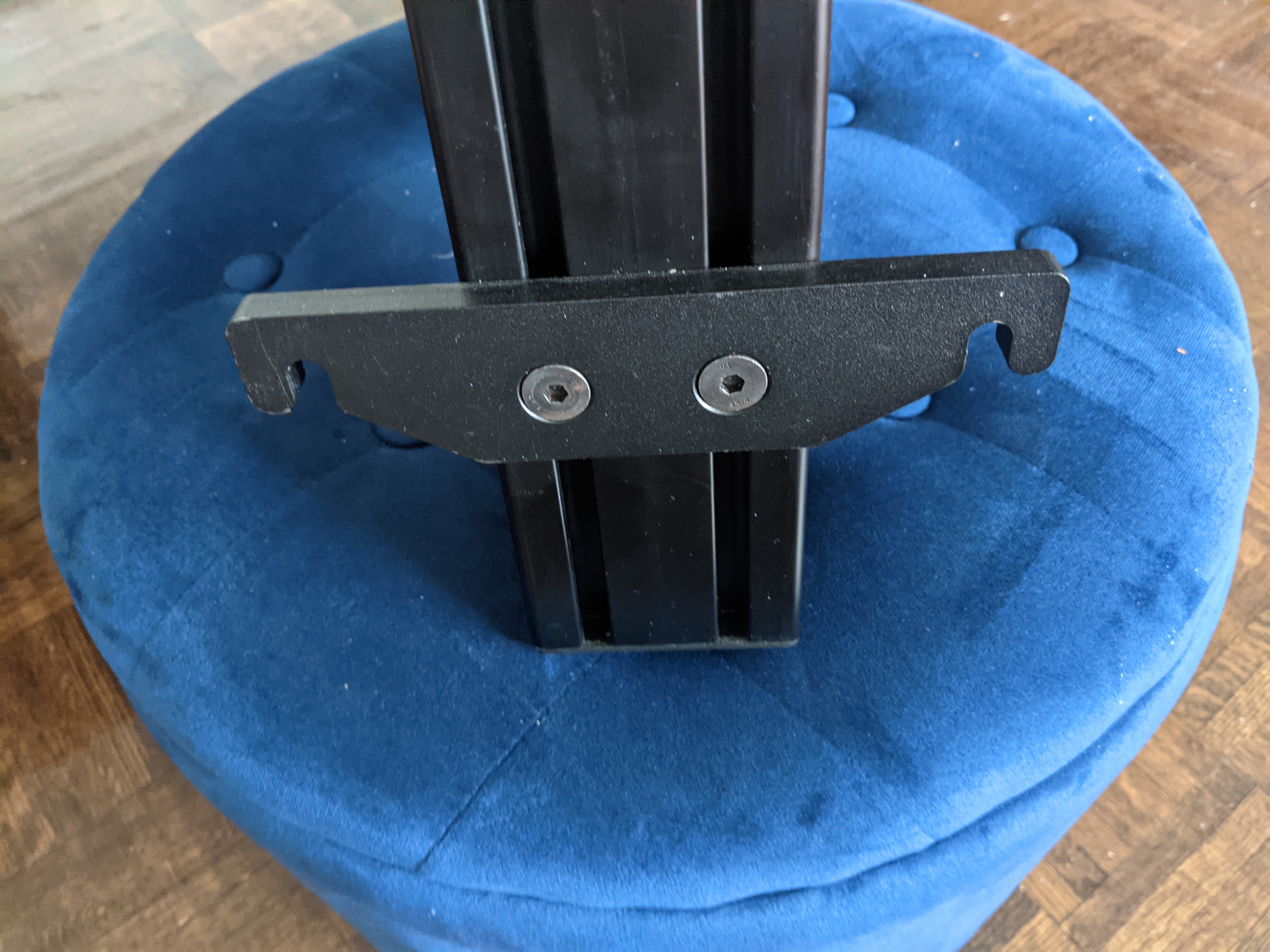

I Believe I can weld my Monstertechk Quick Release plate to the Rhino Plate and it will take less than one minute to connect the Rhino to the simulator and less than one minute to remove the Rhino from the simulator.

B9•6/14/23, 8:17 PM

Remove the two screws from the Monstertech Quick Release plate and weld the Monstertech Quick Release plate to the Rhino Plate. The two screws will no longer be needed.

B9•6/14/23, 8:19 PM

There should be enough depth between the Rhino and the simulator to fit the Monstertechk Quick Release Knobs

B9•6/14/23, 8:22 PM

WOW!! you have impressed me with mounting your Rhino to your simulator.

Deleted User•6/14/23, 8:31 PM

Easyflex VibraSystems Easy Cut Rubber Mounting Pad for Chillers, HVAC, Motors, Pumps, Generators, Air Conditioning Units, Pack of 1 (12 x 12 x 3/4 in, https://www.amazon.ca/gp/product/B0C2YSNGKP/ref=ppx_yo_dt_b_asin_image_o00_s00?ie=UTF8&psc=1

Easyflex VibraSystems Easy Cut Rubber Mounting Pad for Chillers, HV...

The anti-skid design with its suction cup eliminates the need for bolting down. The primary vibration absorption material is Neoprene for moderate oil resistance. The 2" squares are separated by a thin web that is easily cut. For application where greater isolation efficiency is required ECRMP Pa...

B9•6/14/23, 8:32 PM

https://qr4rigs.com/index.php?main_page=product_info&products_id=59

Joystick Kinked Extension for Thrustmaster and Virpil (VPC) [TMVPCS...

QR4Rigs, Quick release Mounts for Sim Rigs Joystick Kinked Extension for Thrustmaster and Virpil (VPC) [TMVPCStickExt] - The Joystick extension fits the Thrustmaster Warthog/Cougar and Virpil (VPC) Joystick ranges and is ideal when using the QRDee Center Mount System. The main tube is 30mm in diameter and comes in a choice of two different style...

Reed•6/14/23, 8:34 PM

Very cool

B9•6/14/23, 8:34 PM

You guy's are all Top Gun.

BB9 Hi Knight, Fantastic images. I appreciate the help., I am putting this Antivibra...

Knight59•6/14/23, 10:05 PM

You're welcome! Yea that looks like it'll work well!

walmisOP•6/15/23, 6:26 AM

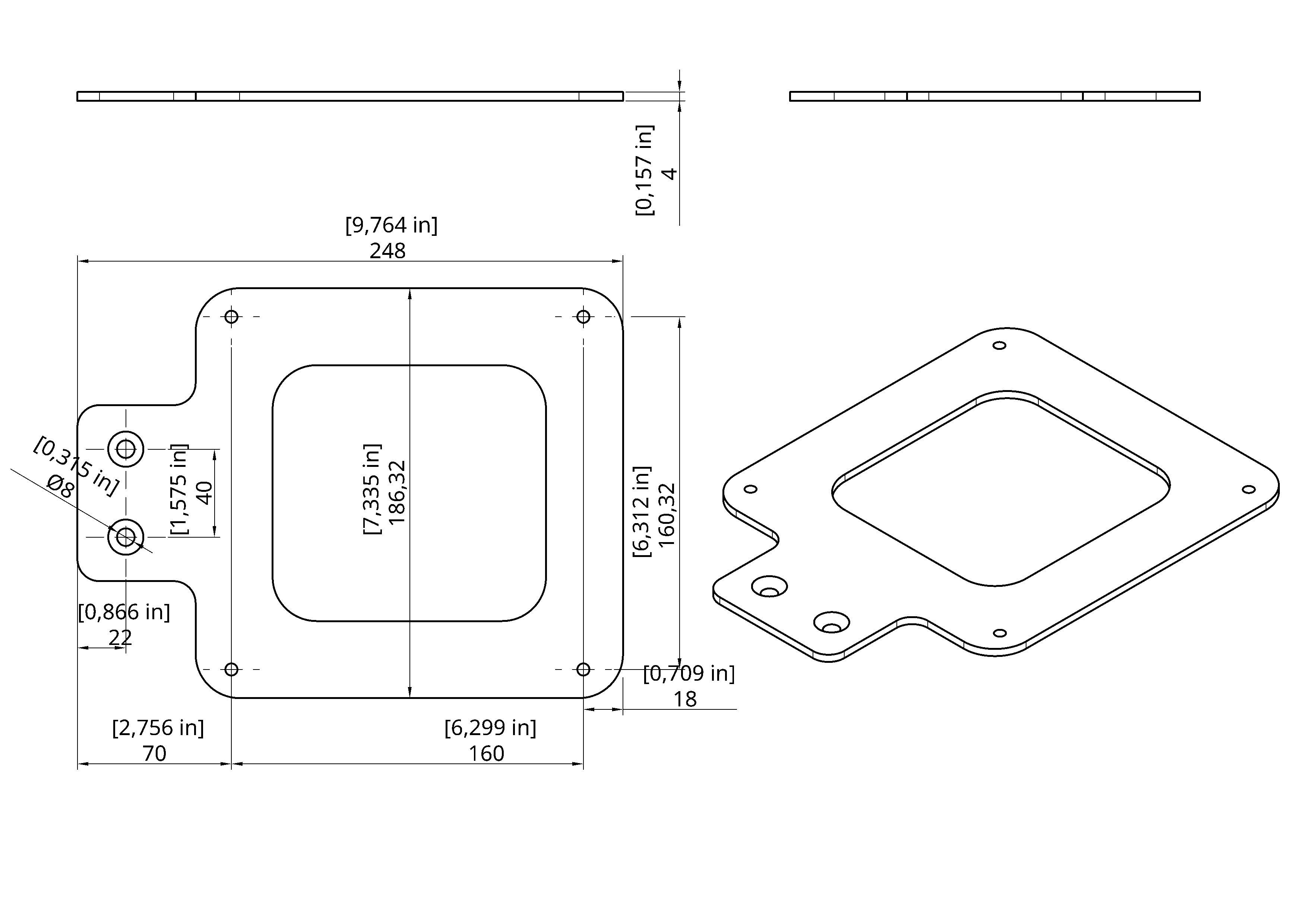

@b99487 Here's the Drawing for the MT mount

B9•6/15/23, 9:37 AM

Thank you Walmis for sending the Drawing of the Rhino MT Mount

PiNKSH!T•6/15/23, 11:39 AM

hey guys, just wondering how I get the spring & dampening effects to feel more linier? Basically I want to stiffen up the center of the axis more

Reed•6/15/23, 12:52 PM

I’ll post my settings again as of adjusted them but I feel like I’ve got a good start. Something that really helped was turning down the spring affect and increasing the dampening effect and adding just a little bit of inertia and that 7% of friction there’s also in the top right corner a setting for using 100% deafening within the spring affect so it’s not so bouncy, I’ve got a good balance I feel at least for helicopters compared to the in real life counterpart

B9•6/15/23, 10:05 PM

Hi Walming, Can I purchase the Rhino MT Plate and have it shipped to me now? This way I can weld my MT Quick Release plate to it and have it ready for when my Rhino Arrives. I will pay for expedited shipping. Thank you

BB9 Hi Walming, Can I purchase the Rhino MT Plate and have it shipped to me now? Th...

walmisOP•6/16/23, 5:56 AM

Sure, you can place an order http://order.vpforce.eu

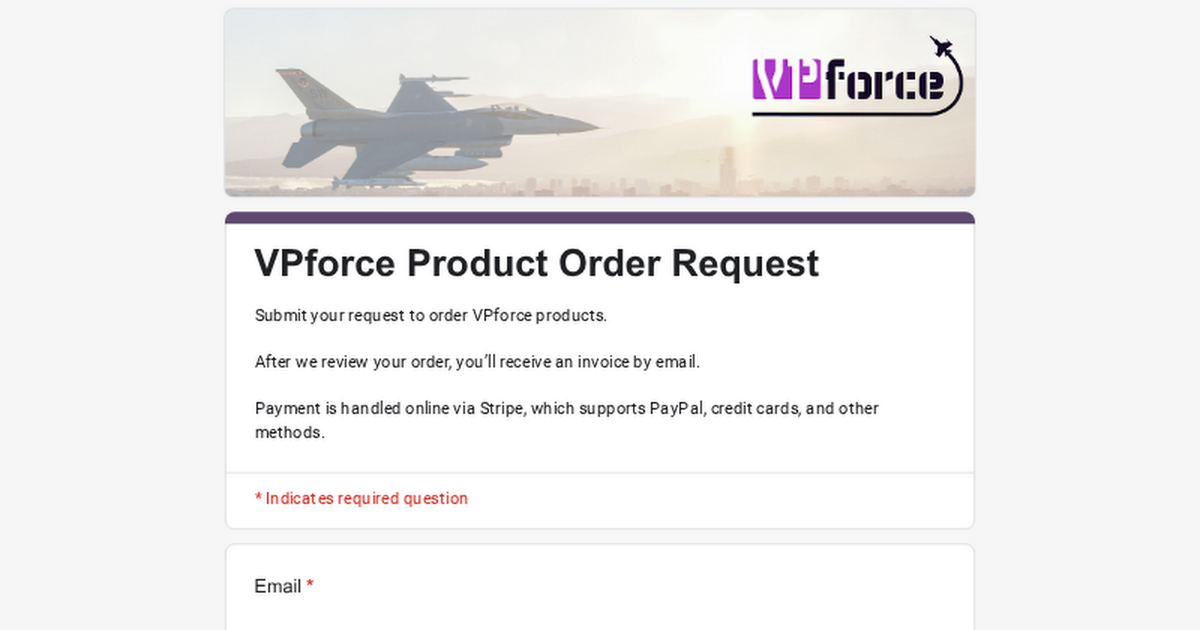

Google Docs

VPforce Order Request

Order request for VPforce products.
Please note: to reserve a VPforce RHINO FFB base, please use reservation form here.

Once the order is ready to be fulfilled an invoice will be sent to the provided email address.

B9•6/16/23, 9:13 AM

Hi Walmis, After the order is placed how long will it take to ship the VPforce RHINO FFB base?

BB9 Hi Walmis, After the order is placed how long will it take to ship the VPforce R...

Bob Bushman•6/16/23, 9:14 AM

Im currently 370 or something in line and I'm hoping for end of January 2025

B9•6/16/23, 9:15 AM

What is the expected date my Rhino purchase being shipped to me?
