I must not be doing something right... I've never heard the Rhino's fan(s?) turn on.
I must not be doing something right... I've never heard the Rhino's fan(s?) turn on.
NDo some hard maneuvering / extended high-g pulls with the g-effect enabled in TelemFFB. That'll get your fans singing.
Dy have them in dogfight ( temps where high in france these day)
Ddid reach 65 degre on a motor yesterday with power reduction
BOh that's why. I don't dogfight at all. But maybe in DCS when I'm blowing sh8t up on the ground I'll get 'em humming.
TOr fly extended periods of time without trimming. I showed my parents and brother my setup a few days ago, they did not use trim and constantly countered the stick instead. That's like the first time i've heard the fans. Otherwise i only hear it in WW2 dogfights
KIs the native FFB profile for the F5E rather weak, or is it just me? Idk if it is supposed to be that light (even with hydraulics). I can pull 8gs with fingertip pressure
AI don't know about the F-5, but some planes do have weirdness in FFB, for example the F-16 feels softer on the elevator axis
Asome planes also have FFB settings in config files
MThe F-16 being weird in ffb kind of makes sense though, especially the elevator axis being soft. The sim version we have is taking simulated FSSB controls, and meshing them in to traditional spring feel to give some sense of that (the elevator being softer than the ailerons), then trying to translate that in to FFB. Something is bound to get lost in translation/feel weird. Especially compared to non-FCS jets.
Kconfig files in dcs or for telemffb?
Adcs
AI think one of the mirages had extra configs
Ano idea about the 5 but you might want to take a look
DUpdate my firmware on my new Rhino and now the motors don't do anything and buttons on my grips don't work.
DIs there a way to re-load firmware or go back a version, right now it's completely unusable?
WYour Rhino had a pre-release firmware loaded that fixed the mentioned issues on the new board revision. I'll release v1.0.16 today, so should be all good afterwards.
DThank you, also before I updated the firmware, I selected my VPC Alpha as the connected grip and it caused the stick to start oscillating back and forth.
WHard to say without looking at the settings
Ddefault settings other than the grip change. I'll report how it works with new firmware.
SHey mates question. is there a specific way i have to activate the rhino ffb?
Si mean fist connect usb then give power after open rhino programm?
WDoesn't matter really, you can plug it in either order
Tdoes the DIY kit comes with a TM/Virpil connector?
MMine also came with a USB-B plug and iirc one other wiring harness pre made
Kcould you show men an example path for the mirage files so I know what I'm looking for?
Aunfortunately no, I just heard of it from someone when I was looking for a similar thing for the f-16
SI want to use the hardware trim of VPforce board but I do not have a grip connected on the board. Is there any way to use it?
WYou can use the Loopback function and use any other controller connected to windows
SHow I do that walmis?
WGoogle Docs
VPforce RHINO FFB User Manual Version 0.1 (WIP) 03/08/2023 Table of Contents 1. Welcome 1 2. Getting Started 3 2.1. Technical Specifications 4 2.2. Physical Setup 5 2.2.1. The VKB Adapter 6 2.2.2. The WinWing Adapter 6 2.2.3 The RHINO Throw Limiter Adapters 7 2.3. Initial Connection and Up...
MIs the new firmware out? And if so, where do get it please?
W
A@walmis I feel like I’ve noticed jolts every once in a while (don’t use hardware trimming though), but usually when I’m doing smaller movements and there are engine rumble effects on, I see you mentioned jolts fixed in the new firmware update but only with hardware trim
AAlmost feels like there could be a series of wave effects that might be being applied and then they sorta hit a resonance point or something? Hard to describe tho
WThe jolts happened on trim release on ah64 for example, but this might be something different as you describe.
WIs it reproducible though
VStill having an issue with axis inversion. My rhino is flipped to bring the stick closer to me. In vpforce configurator I checked both axis invert boxes. In DCS the Y axis is correct but I always have to invert the X axis in DCS. Any ideas why this is happening? Inverting in vpforce should invert both axis for DCS without having to set anything in DCS? In vpforce configurator both axis do appear inverted successfully when moving the stick.
AIt’s reproducible in the sense that I experience it, but there’s not a predefined way I can make it happen. Let me percolate on that, I might be able to grab logs, but if it’s in the middle of a long session, probably hard to identify
WIf the Windows game controllers show the correct axis behaviour, then the issue is probably in DCS configuration somewhere
VYeah windows shows correct as well... I wonder where in DCS it coudl be buggered up to cause every module to show the X axis is reversed
JCould you please elaborate on the suspend mode. When is it going to happen?
WWhen you sleep or shutdown the PC

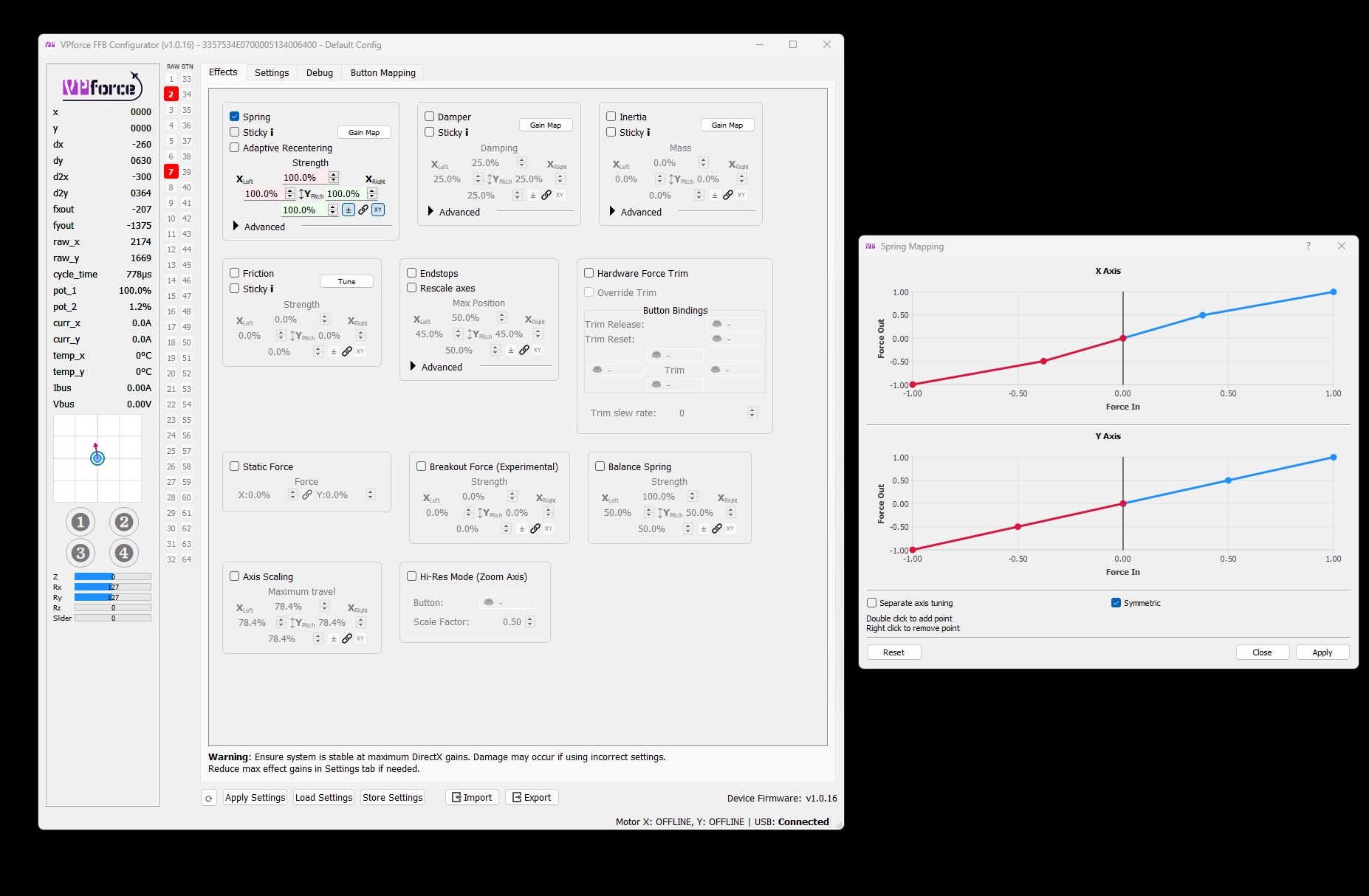

VWalmis, this issue is back after updating firmware from .14 to .16, any idea what changed? Following your advice i was able to stop the crazy oscillations but they are back and its very violent if it accidentally happens.
WCan you show your current settings?
V

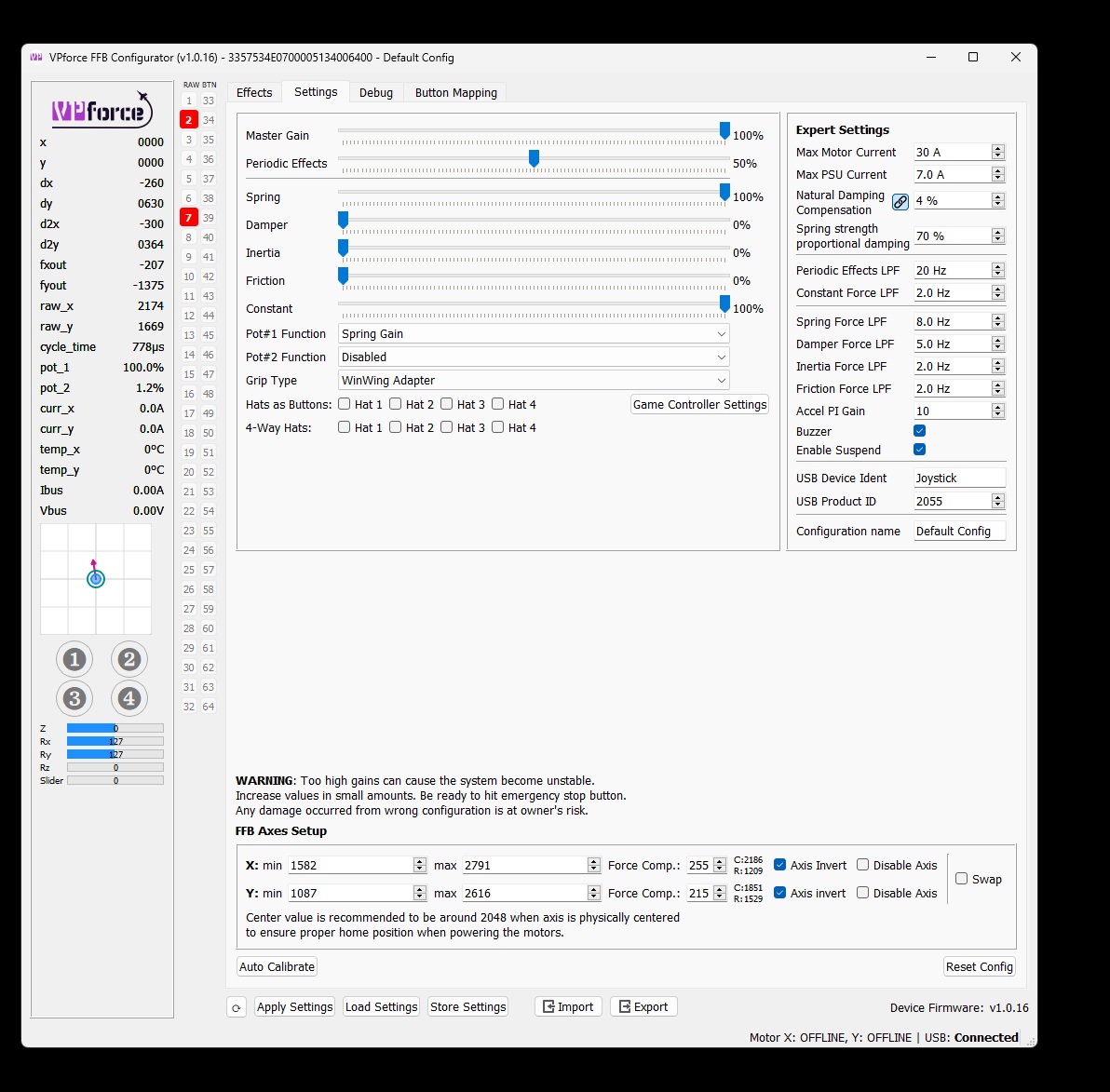

WYou can try increasing spring strength proportional damper to 100%-150%, Spring LPF can be reduced to 2-4Hz, and Damper LPF increased to 8-10Hz
JHmm does not turn off for me. Will check again tomorrow.
WIt should make the shutdown beeps once it detects a USB suspended state and stick will go limp
JSo no anti cog, just plain dead?
