Well shucky darn, I'm having what appears to be the same issue with the H160, Build 57. TelemFFB loo

Well shucky darn, I'm having what appears to be the same issue with the H160, Build 57. TelemFFB looks just like the screenshot above, spring is enabled in the Configurator... ?? (Same Rhino/stick config in MSFS that I used with the H145.)

Bblave549 Well shucky darn, I'm having what appears to be the same issue with the H160, Bu...

Number481•2/16/24, 11:26 PM

I haven’t tested the latest dev builds, but I assume they still work or else @exil35 would let me know.
Don’t forget to set up the trim release binding for the 160, too (msfs icon will be a red x while sim is unpaused if it’s not set).

There’s new in-sim settings for the newer versions related to setting up for FFB support https://davux.com/docs/h145/SETTINGS.html#setup-v2

Other than that, the 145/160 work the same way.

Aircraft Settings | HPG Documentation

NNumber481 I haven’t tested the latest dev builds, but I assume they still work or else @ex...

blave549OP•2/16/24, 11:28 PM

Thank you. I'll check things tomorrow. I didn't realize the trim release stuff was specific to each aircraft.

Bblave549 Thank you. I'll check things tomorrow. I didn't realize the trim release stuff w...

Number481•2/16/24, 11:30 PM

No problem. I need to make it so the “red x” persists even after you pause. Otherwise you don’t know anything is wrong if you pause the sim before looking at the TelemFFB window

Bblave549 Thank you. I'll check things tomorrow. I didn't realize the trim release stuff w...

exil35•2/16/24, 11:31 PM

I haven't been able to try the latest 160 build but if it works for the 145 it should work for the 160 as well.
Are you sure you are on "none" and "hardware" on the 160 tablet as well?

Eexil35 I haven't been able to try the latest 160 build but if it works for the 145 it s...

blave549OP•2/16/24, 11:32 PM

I completely forgot to check that. Thank you!

Caput_58•2/17/24, 1:01 AM

At some point in the past I think I set up my rhino to have a forward offset center point. Today, I rotated my base 180deg to get better clearance with my SimFab chair (brilliant idea I stole from someone here). For the life of me though, I can't remember how to reset or flip the offset.

Caput_58•2/17/24, 1:02 AM

I figured I had just done it with endstops and axis rescale, but resetting that does nothing.

Caput_58•2/17/24, 1:03 AM

Aww heck, disregard, I figured it out. It was because I was in a DCS aircraft and it was applying a new center point.

Whiplash•2/17/24, 3:18 AM

This may seem like an odd question, but I have a neurological condition that requires I ask this.

Can and how would the Rhino counteract an ~8hz oscillation of input with an amplitude of +/- 10 to 15% of the intended input force? Does it have the ability to smooth/dampen that level of variation of force input?

In a mechanical dampener system this would be smoothed out by the resistance induced by the flow of hydraulic fluid... how would/could the servo coding be adjusted to mimic that dampening effect?

WWhiplash This may seem like an odd question, but I have a neurological condition that req...

TheAmazinGreat•2/17/24, 5:59 AM

There are dampening and friction effects that can be tuned by the user. This is then all done via electronics rather than by hydraulic fluids like you mentioned. As far as your use case, it’s hard to say how well it could manage those oscillations but from my experience the dampening and friction can truly be felt and tuned so I think it is possible.

TheAmazinGreat•2/17/24, 6:04 AM

With no feedback from a game or in games that have no feedback implemented the Rhino behaves like a standard spring stick but has all the features of the other high end bases out there in terms of tuneability for friction, dampening, etc. So you could crank the dampening up to help with the oscillations. Maybe also crank the spring down so you have less force needed to push the stick to the required deflections.

TheAmazinGreat•2/17/24, 6:05 AM

You would ultimately end up tuning for your needs but hopefully that helps show how things could be adjusted.

Whiplash•2/17/24, 6:26 AM

For what it's worth I was thinking if it couldn't mimic it through code, it could be done with a 2 axis hydraulic dampening using something like 1/12 scale RC offroad truck dampeners mounted between a custom housing and the stick. Would be tricky to tune it, but might be fun to design regardless.

WWhiplash For what it's worth I was thinking if it couldn't mimic it through code, it coul...

TheAmazinGreat•2/17/24, 6:32 AM

The dampening and friction effects built into the Rhino’s base software options would be equivalent to the 2 axis hydraulic dampening as you described. Much easier to tune though because it’s all done on a slider in the software rather than changing fluids/geometry of the physical dampeners

TTheAmazinGreat The dampening and friction effects built into the Rhino’s base software options ...

Whiplash•2/17/24, 6:38 AM

I'm sure it would be easier to change via the software. But there are two questions my mind wants answered now.
1: Which would "feel" better.
2: Would a hydraulic dampener ease the momentary workload of the servo motor/controller and allow longer lifespan.

Whiplash•2/17/24, 6:42 AM

If the software has to compensate 12 times a second for these input variances, there would be "some" delay in the compensation (probably not noticeable consciously), but it would also force the motor controllers to change their output 12 times a second putting possibly more wear on both controller and the motor.

A couple weeks of testing hydraulic flow dampening rates using various dampening disks might pay off in the long run when it comes to durability.

WWhiplash I'm sure it would be easier to change via the software. But there are two questi...

walmis•2/17/24, 7:23 AM

The servo's lifespan isn't affected whether it has damping enabled or not. It's basically an axle with magnets riding on 2 bearings, no other surfaces make contact.
The software update loop runs at 1khz, so that's 1000 updates a second.

Wwalmis The servo's lifespan isn't affected whether it has damping enabled or not. It's ...

Whiplash•2/17/24, 7:25 AM

And the controller sending power to the servo? Having to reverse current that often?

walmis•2/17/24, 7:26 AM

It's all solid state

mark3r#17•2/17/24, 1:26 PM

Hi, is there any way to disable effect in vpforce telem app? I find annoying feature on high g turns, stick moves where g force vector goes. It's like inverted stick stiffness on high speed with warbirds. And I don't want to disable telem app, because it gives a lot good effects except this one

cguenther•2/17/24, 2:44 PM

@walmis I hooked up a 2kW 24V/80A power-supply to our rig as a main source. We have a DIY-FFB JS with two standard-motors 57BLF03, a DIY-FFB JS with 2x 86BLF04 and FFB-Rudder with 1x 86BLF04. Shure the JS will not be used together, but i stumbeled over the input-fields for the max-current. ive set them to 30A for all motors what is, mo my understanding, the limit of the driver. But the max-value for the PSU is limited to 25A. Does it make sense to allow a higher value like the 80A for our case as a fix for a next release?

Eexil35 I haven't been able to try the latest 160 build but if it works for the 145 it s...

blave549OP•2/17/24, 6:28 PM

That did it!! Thanks

Bblave549 That did it!! Thanks

exil35•2/17/24, 6:33 PM

Perfect!

Mmark3r#17 Hi, is there any way to disable effect in vpforce telem app? I find annoying fea...

Number481•2/17/24, 7:56 PM

Did you try un-ticking the effect checkboxes in TelemFFB? I’d suggest starting with the one called “G Force”

NNumber481 Did you try un-ticking the effect checkboxes in TelemFFB? I’d suggest starting ...

Ophelia•2/17/24, 9:35 PM

Comments like this make me curious whether I’m running the right version of telemffb… mine has no checkboxes

smitty•2/17/24, 9:41 PM

Newest WIP Version: https://vpforcecontrols.com/downloads/TelemFFB/?C=M;O=D
Stable Old Version: https://github.com/walmis/VPforce-TelemFFB/releases/tag/v1.0.0

Ophelia•2/17/24, 10:59 PM

Ah that’d do it! I’m using stable

NNumber481 Did you try un-ticking the effect checkboxes in TelemFFB? I’d suggest starting ...

mark3r#17•2/17/24, 11:04 PM

found in config file, disabled deceleration force. That one was bugging me

Mmark3r#17 found in config file, disabled deceleration force. That one was bugging me

Number481•2/17/24, 11:27 PM

Sorry, I have a tendency to assume everyone is running the wip version.. which greatly simplifies config management

mark3r#17•2/18/24, 7:17 AM

i will try it

thank you

Aileron_Hubbard•2/18/24, 8:11 PM

For the throw limiters available for purchase would a higher number mean more throw? I bought mine with the 11deg one but want to add more range. Should I order say a 14 or 15 degree one maybe both? Thanks

AndyHill•2/18/24, 8:42 PM

If I remember correctly the limiters are numbered by the degrees of travel

AndyHill•2/18/24, 8:44 PM

if you want to order a limiter but don't know exactly which one, maybe you can try to remove the one you have now, move the stick around (perhaps try the software limiters) to see where you'd like the limits to be, make note of the numbers and ask walmis what that means in degrees

Ophelia•2/18/24, 8:54 PM

There's a minor UI bug with the WIP version of TelemFFB - with windows desktop scaling set, some of the UI gets cut off

tarpoon•2/18/24, 9:34 PM

I think I'm close with the HPG 145 setup, but it doesn't feel 100% yet. Could someone with a good config show me a screenshot of the configurator and TelemFFB? Been going through all the docs and searching in here...

Sir_Diggins•2/18/24, 10:11 PM

Quick question. I’m getting some noise in the pitch axis of my stick. Popping off the cover it seems to be a bit of a tolerance thing where the metal rod goes into the 3d print. I tried snugging up those 4 screws, but it still seems to be rubbing there or something. Any advice is appreciated!

AAndyHill if you want to order a limiter but don't know exactly which one, maybe you can t...

Aileron_Hubbard•2/18/24, 10:13 PM

thanks andy!

OOphelia There's a minor UI bug with the WIP version of TelemFFB - with windows desktop s...

Number481•2/18/24, 10:44 PM

what res and scaling are you running? I've already implemented what's possible inside the PyQT framework for handling windows scaling. I only have the ability to test at 1440p, but my understanding was that it was resolved after that fix (was quite bad at first)

Ophelia•2/18/24, 10:44 PM

1920x1080, 125%

Ophelia•2/18/24, 10:45 PM

i have a small screen for the desktop, and use VR for flying, so the scaling is turned up a little to be able to read the screen

Number481•2/18/24, 10:50 PM

Interesting.. I guess I never considered that anyone would use scaling at 1080p

I just tested and do see a little clipping of the text and checkboxes. Will have to see if I can adjust the widget properties to accommodate it

Ttarpoon I think I'm close with the HPG 145 setup, but it doesn't feel 100% yet. Could so...

Number481•2/19/24, 1:09 AM

The important bits from a TelemFFB perspective are:

Make sure you bind the trim release in the TelemFFB settings.
Make sure you have enough spring force enabled in your configurator profile that the joystick can properly sit centered when hands off.

If your joystick sags from center due to the weight of the grip and extension offset, use the balance force settings and adaptive centering.

The “hands on/off” detection depends on proper centering ability.

The other important bit is to make sure the helicopter is set up properly in its in-game settings.

If your running the latest version installed by Hype Operations Center, follow the guidance in the TelemFFB manual on setting up the iPad.

If your running the latest dev builds, follow the guidance in this page : https://davux.com/docs/h145/SETTINGS.html#setup-v2
Hands-on detection = None
Trim system= hardware

Aircraft Settings | HPG Documentation

SSir_Diggins Quick question. I’m getting some noise in the pitch axis of my stick. Popping of...

Asdforce•2/19/24, 7:14 AM

While you're tightening stuff, also check the five bolts on each large pulley. I had some clunking coming from them, and a 1/8 turn on each bolt sorted it out.

SSir_Diggins Quick question. I’m getting some noise in the pitch axis of my stick. Popping of...

walmis•2/19/24, 8:52 AM

Also try additionally tightening the small pulley grub screw (2mm Hex), from the sound it could be that also.

NNumber481 The important bits from a TelemFFB perspective are: - Make sure you bind the tri...

tarpoon•2/19/24, 11:38 AM

Thanks for your input!
Did follow all the docs, but the missing piece might be spring force, and adaptive centering as I'm using a long extension and a heavy thrustmaster grip

Wwalmis Also try additionally tightening the small pulley grub screw (2mm Hex), from the...

Sir_Diggins•2/19/24, 2:28 PM

Thanks guys for the recommendations! While it wasn’t those in particular (I did snug them up a bit though) I found it was actually the bolts holding in the grip attachment. It was just under the dust boot, so I didn’t think about them earlier. If they do get loose again I might throw some thread lock in them if it’s safe to do.

Glaive(Rikk)•2/19/24, 4:23 PM

N00b here

Just trying to set the stick up in DCS, have FFB ticked in settings and stick set to instant trim.
Problem is the stick recenters after I've clicked trip, ie it always wants to stay centered rather than staying in position.
Had a good read through but nothings jumping out at me.

Glaive(Rikk)•2/19/24, 4:28 PM

Had another play, it's not recentering, if I go 20d to the right and click trim the stick jumps to 20d left.
If I click trim reset, it centres

Arew•2/19/24, 4:29 PM

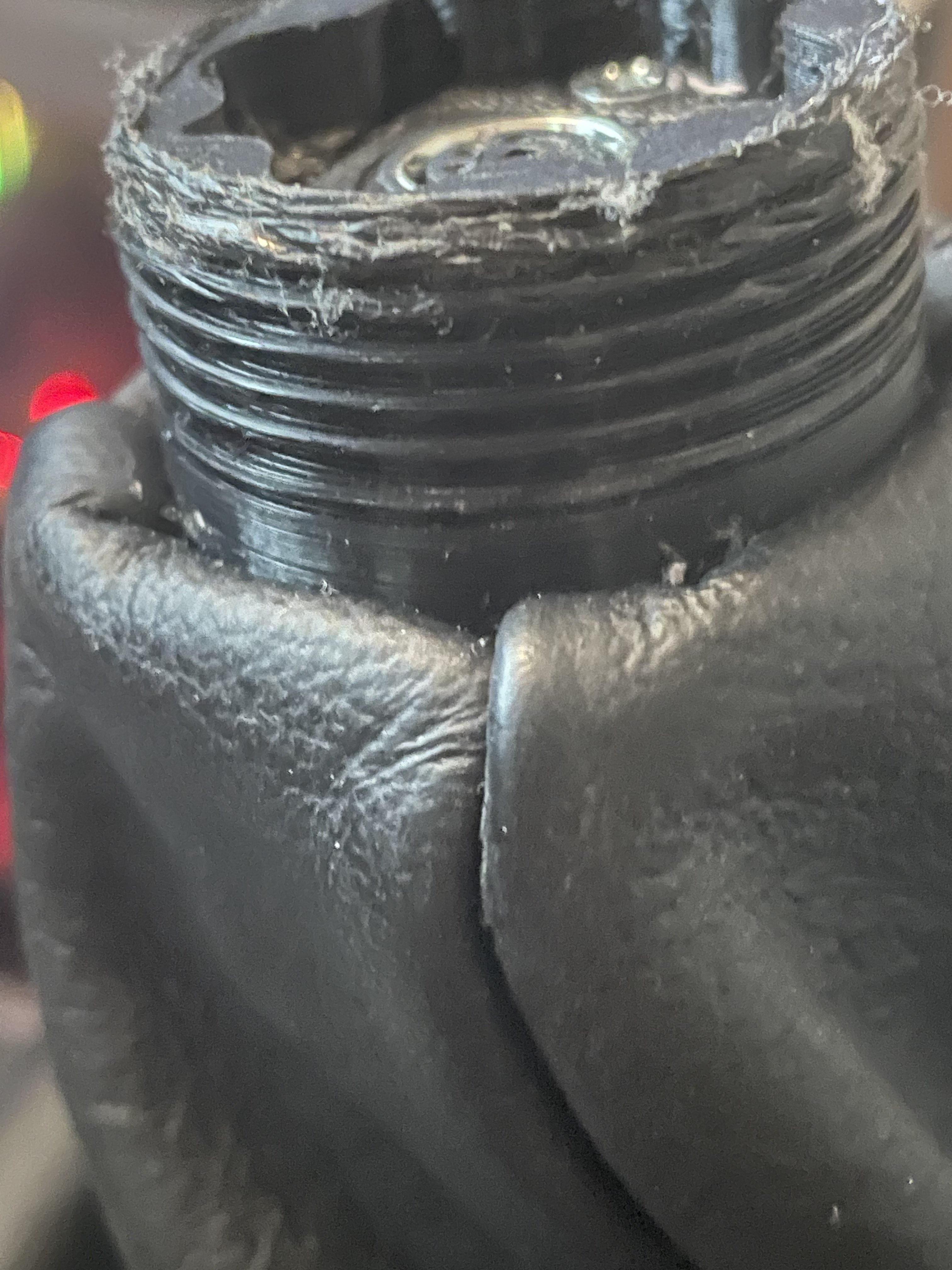

somehow did this over the weekend, is this recoverable or will i need to replace that whole part?

GGlaive(Rikk)N00b here 😉 Just trying to set the stick up in DCS, have FFB ticked in setting...

Glaive(Rikk)•2/19/24, 4:59 PM

Just worked it out, had the axis reversed in DCS, put those back and reversed in the VP software and now all good

Well shucky darn, I'm having what appears to be the same issue with the H160, Build 57. TelemFFB loo
