known issue with edge that nobody has found a solution to yet. Disabling web usb in the settings do
known issue with edge that nobody has found a solution to yet. Disabling web usb in the settings doesn't help.
BCan I safely ignore that popup and not open the browser? I think the answer is "yes" but want to confirm.
NYeah, it’s just a “convenience popup” (that should time out and disappear) in case you want to open the web-usb connection to the device. But you don’t need to unless you want to update the firmware.
Ihi, with the last version, I am having this error in TelemFFB
Ithen the whole UI is frozen
Iand when launching TelemFFB it has problems with the master device
NDo you have more than one device?
Double check that there are no TelemFFB instances hung in task manager.
Does it load if you launch TelemFFB from the
If so, create a support bundle from the help menu and post here or send to me. It contains your logs, user config and system settings
Double check that there are no TelemFFB instances hung in task manager.
Does it load if you launch TelemFFB from the
_previous_version_backup folder in your install directory. (Decline the upgrade offer prompts if it loads)If so, create a support bundle from the help menu and post here or send to me. It contains your logs, user config and system settings
TI am about to buy a VKB grip and figured the latest and greatest revision would be the one to get. But looking further into it, the Gunfighter base MkIII and MkIV have different physical connections, which isn't really a surprise. But what's important is that it looks like the VKB adapter available on the VPForce order form is only compatible with the MkIII version, rather than the MkiV version. So I'll buy this one:
https://www.vkbcontrollers.com/products/mcg-ultimate-grip-add-on?variant=39779669868662
instead of this one:
https://www.vkbcontrollers.com/products/mcg-ultimate-add-on-grip-for-gunfighter-iv?variant=40102765232246
Hope that makes sense.
I guess this is more of a PSA than a support inquiry. Unless I'm looking at it wrong, then please tell me I'm wrong!
https://www.vkbcontrollers.com/products/mcg-ultimate-grip-add-on?variant=39779669868662
instead of this one:
https://www.vkbcontrollers.com/products/mcg-ultimate-add-on-grip-for-gunfighter-iv?variant=40102765232246
Hope that makes sense.
I guess this is more of a PSA than a support inquiry. Unless I'm looking at it wrong, then please tell me I'm wrong!
VKB North America
Made for MCG Ultimate Add-On Grip for Gunfighter Mk.III Not compatible with Gunfighter IV Includes 1 MCG ‘Modern Combat Grip’ Ultimate Features MCG Ultimate Grip Right-hand grip design 24-32 programmable buttons, based on the module installed 5 analog axes (2x slew control mini stick axes / 2x trimmer mini stick axes /
VKB North America
Made for MCG Ultimate Add-On Grip for Gunfighter IV Not compatible with Gunfighter Mk. III Includes 1 MCG ‘Modern Combat Grip’ Ultimate Features MCG Ultimate Grip Right-hand grip design 24-32 programmable buttons, based on the module installed 5 analog axes (2x slew control mini stick axes / 2x trimmer mini stick axes
OI'm also having problems with the latest version of TelemFFB (15 Mar release). It literally won't start for me - i get the spinning cursor and then nothing. Tried restarting PC and same result. The previous version (in the backup folder) still works fine. Any thoughts or ideas?
NCan you create the support bundle from the help menu using the older version and then DM it to me?
OSure - will do
PIs there a way two use two different grips (thrustmaster and Virpil) and have MSFS recognize each and apply separate setting?
Abeen a minute since i played MSFS, but i would assume no, you'd have to save different profiles and switch between them? or have use different IDs when using different grips
Vjust a small question...I have winwing adapter and winwing f16 grip....in the VPForce configurator the POV (trim hat) is reported as POV1 while in DCS (and also the other sims) is seen as POV4...is there a way to change that behaviour?
PThanks for the help!
K@walmis So I have downloaded all the software and it appears to have made things worse. To begin, the stick when it powers up does not centre, so I’m unsure why that is. The emergency stop is not engaged or down. I have a winwing F-16 joystick and I wonder at the F18 joystick selection? I did note once when flying in DCS that I had roll control, but no pitch control in one of the jets. I’ve run that link you sent the button tester, and I’ve attached several screenshots to try and help solve whatever the issue is. The stick still does not recognise any of the joystick buttons. I wonder if I should uninstall the 2 VP force software and unplug and restart?
K
WThe first issue is that you cleared the settings to board defaults, that includes the calibration.
To recover you need to import the file
Afterwards you will need to calibrate the axes using
Check the invert tick boxes so the axis movement corresponds to the axis indicator.
Make sure to click
To recover you need to import the file
configs/RHINO-defaults.vpconf located where you extracted the configurator app.Afterwards you will need to calibrate the axes using
auto calibrate button. Make sure to move both X, Y axes to their limits while the calibrate button is checked (active).Check the invert tick boxes so the axis movement corresponds to the axis indicator.
Make sure to click
apply settings to check the changes and store settings so the settings are saved after device reboot.WAs for the winwing adapter - do the buttons light up in the configurator when you press them?
KOk I’ll do all that thanks mate. No they don’t light up in configurator

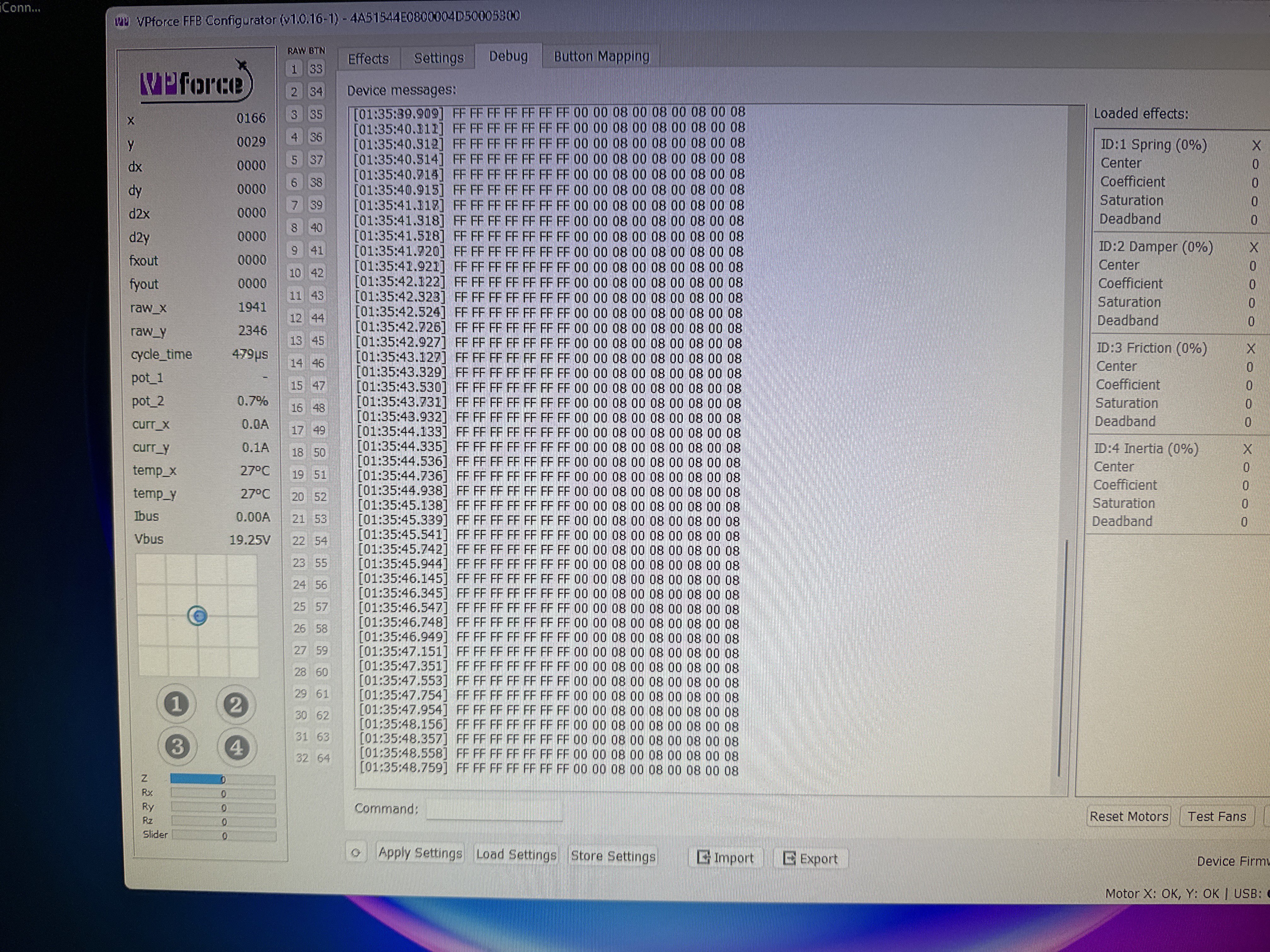

WCan you set the grip type to Debug, and make screenshot of the Debug tab?
KOk
V@walmis do you any clue why?
WNot sure, it's reported to the OS as the first hat though
VYes that's my thought as well, but also in windows control panel if you move it, it is in green (pov1 is red usually) so something strange is going on (minor I know, but if solved I could keep 1 to 1 the same bindings as with my winwing base which I use as side stick)
K
GWas using the stick this morning all fine, just plugged it back in and now totally dead. Checked the PSU which is outputting 19v fine, but stick itself is dead, windows also doesn't recognise it being plugged in anymore.
Anything I can check, I'm pretty ok with electronics? Didn't want to go digging in straight away.
Anything I can check, I'm pretty ok with electronics? Didn't want to go digging in straight away.
GLittle more checking, I get the beeps out of the base as I plug in the USB, but as above windows isn't seeing it and the joystick itself is limp like the stop button is pressed in.
WBeeping indicates that the mainboard is still working. Do the motors anti cogging work when you plug in the power?
Is it connected to the mainboard or via hub?
Is it connected to the mainboard or via hub?
WLooks like base communicates with the adapter OK, maybe your grip connector is not fully inserted?
GI assume you mean by anti cogging that it's smooth rather than the feeling of bumps as you move the stick? if so then yes thats working.
It was through a hub but have tried it directly with the same results
It was through a hub but have tried it directly with the same results
WProbably a good idea to try a different usb cable if you haven't done so already, before digging any deeper
GWas just in the process of doing that and yep, somehow the cable is faulty....... Oh well catastophy averted
POK, I reconnect the adapter with the stick and report back
Pok I will realign the arrow
Btoo exited to re read everything , but will start .....
Just built a DIY Rhino finished about an hour ago , all working in VPC mounted VKB via adaptor , joystick buttons all working , played with the TelemFFB configuration files and it updated the IL2 start up file BUT .... i start IL2 , i go to settings , it sees JOYSTICK 10 as the Rhino , and by moving the stick it records roll as X , pitch as Y , but when i try and fly i get no response on either axis in the plane . Tried a reboot , restarting game and stick , and ideas ,
Just built a DIY Rhino finished about an hour ago , all working in VPC mounted VKB via adaptor , joystick buttons all working , played with the TelemFFB configuration files and it updated the IL2 start up file BUT .... i start IL2 , i go to settings , it sees JOYSTICK 10 as the Rhino , and by moving the stick it records roll as X , pitch as Y , but when i try and fly i get no response on either axis in the plane . Tried a reboot , restarting game and stick , and ideas ,
BDevice Firmware: v1.0.16
NI know IL2 has issues when too many USB devices are connected.. that can manifest in different ways. Sounds like you have a lot of devices (joystick 10). Try disconnecting some thing or two and see if it registers while in the aircraft. Some folks also use HID Hide.
Also make sure you explicitly enable FFB in the IL2 input device settings, though this won't cause what you are seeing
Lastly, you mention TelemFFB config files.. you're probably using the "stable release" version... you'll want to grab the release version as it is much more feature rich (and no pesky text config files). Check the pinned messages in #VPforce-TelemFFB for a link to the downloads page.
Also make sure you explicitly enable FFB in the IL2 input device settings, though this won't cause what you are seeing
Lastly, you mention TelemFFB config files.. you're probably using the "stable release" version... you'll want to grab the release version as it is much more feature rich (and no pesky text config files). Check the pinned messages in #VPforce-TelemFFB for a link to the downloads page.
Bthanks , i did wonder about the Joystick 10 issue , i have a few that i would like to keep
1- VKB stick
And yes i have stable Telem FFB , will latest release
1- VKB stick
- Slaw Pedals
3 Throttle 1
4 Throttle 2
5&6 2x button boxes
7 The RHINO
And yes i have stable Telem FFB , will latest release
NYou don't need or want to do anything in the windows usb controller, all calibration and any necessecary axis inversions should be done through the configurator.
I can't really give you any further tips on the (potential) HID device count issue. I've never run into the issue myself, but I know many have. A lot of people end up using HidHide (https://github.com/nefarius/HidHide) to mask certain peripherals that are not needed from being seein by IL2 so they don't have to disconnect anything.
I'd test the theory out before going down that path though. Disconnect a couple devices and try IL2 again and see if it sees the Rhino device properly during flight.
I can't really give you any further tips on the (potential) HID device count issue. I've never run into the issue myself, but I know many have. A lot of people end up using HidHide (https://github.com/nefarius/HidHide) to mask certain peripherals that are not needed from being seein by IL2 so they don't have to disconnect anything.
I'd test the theory out before going down that path though. Disconnect a couple devices and try IL2 again and see if it sees the Rhino device properly during flight.
LAfter 1-2min of intense flying, like dogfight, fan starting. I suppose it's for cooling down motors. But is it normal the motors getting warm that quick? Power knob is set on about 50-60%.
AI'm not sure but sounds pretty quick for 50-60%
BThanks,I think i ve totally screwed up IL2 and controller setting as no longer even sees the rhino, i m going to reinstall IL2 then plug in only a few controllers and take it from there. Other than VPC is there any other way of checking all is working ok , from a windows / software perspective? Other sims i have but not tested are MSFS and DCS
AI suggest trying to reduce the number of controllers before reinstalling
AIl-2 controller setup is really funky stuff
LWhat's the correct temp?
AI don't know if there is a correct temp as such, it just sounds like pretty fast heating for 50-60% power
Sanother trick might be to use joystick gremlin and combine your pedals and switch boxes into a single "device" and then hidhide the real ones
KHow do I reimport that file into configurator? I can see it in the configs folder
TOpen configurator, click 'Import' browse to folder, select.
TMake your changes, click 'Apply' test, make changes 'Apply" etc, then Store (save)
