anyone had issues with the xplane 12 zibo 737 with control jitter while running telemffb?
anyone had issues with the xplane 12 zibo 737 with control jitter while running telemffb?
BWould this explain my power supply not working?
Nyou are very likely the first person to try, to be honest. What you describe sounds like the axis position that TelemFFB is sending is fighting with what X-Plane is reading. The xplane plugin for TelemFFB sends the commands to override the axes, but there is a lot of unknown about how different 3rd party modules are implemented in xplane. Even the default R22 helicopter doesn't listen to the override command for the collective axis. It is entirely possible that many of the more advanced 3rd party aircraft won't work.
You can try disabling the axis control in TelemFFB and see if it clears up (this will also disable any trim/autopilot following). You can also try un-binding the axes in X-Plane.
You can try disabling the axis control in TelemFFB and see if it clears up (this will also disable any trim/autopilot following). You can also try un-binding the axes in X-Plane.
Naxis control was definatly the issue thankfully still useable without.\
HPlease help, I’m not getting any ffb on il2.

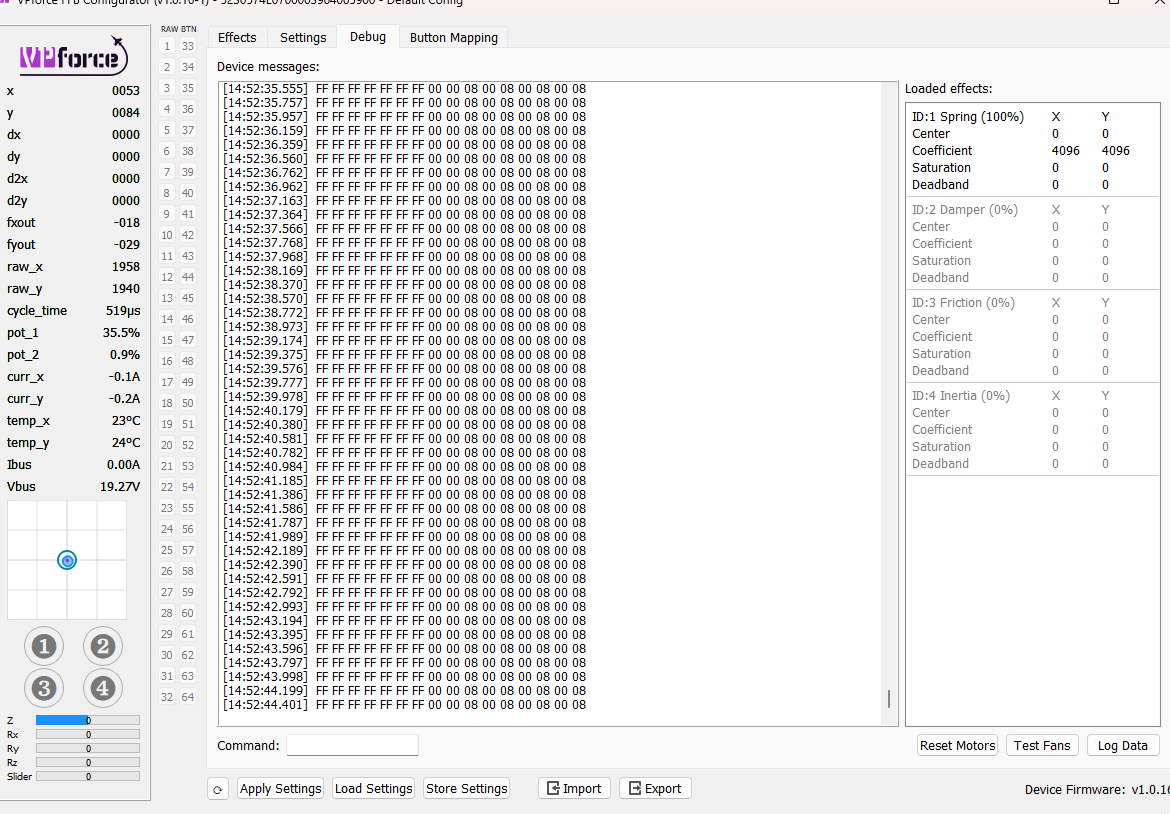

HThis is from rhino debug log
Nexplain more what you mean. There is nothing abnormal in that debug tab output
HWell I hoped it would work out of the box. I checked that ffb was enabled and everything else is default. In game I only have the rhino spring feeling, no ffb, rumble etc
Nthe native FFB in IL2 is limited to:
- Dynamic spring force based on airspeed
- ground bumps
- gunfire
- stall buffeting
FDid you use the TelemFFB?
Ntelemffb only adds supplemental and alternative (to the three I mentioned) effects. The actual 'FFB' (dynamic stick forces, trim following) are %100 handled by the game.
HNo telemffb, but it is not required right?
HDo I need to enable the effects in rhino to be overrided by the game?
Npost screenshots of your configurator effects and settings tab (win+shif+s for windows snip tool is your friend, vs pictures with your phone)
HYes I know I’m on a new setup and did not have Discord app installed yet
HOk there are ffb effects but they’re so weak it’s barely noticeable. 85% periodic effects and the stick barely vibrates when shooting. I guess I just need to crank everything to the max
Ncheck the "shake" slider in the IL2 FFB settings. It defaults to max, I believe, but just in case... Also your Periodic LPF value in the configurator expert settings will have an impact (default is 20Hz I believe).
HOk, thanks!
BIs there a setting to tighten up the center of the stick? When in top dead center it feels like ther is no resistance for the 1/8 inch all directions. There is just a little more play then I perfer and rather not have to set a big dead spot in game settings.
WIt's possible to tune the center using the spring mapping tool
WAlso "adaptive recentering" will help keeping it centered
BOk, thank you! I'll give it a try.

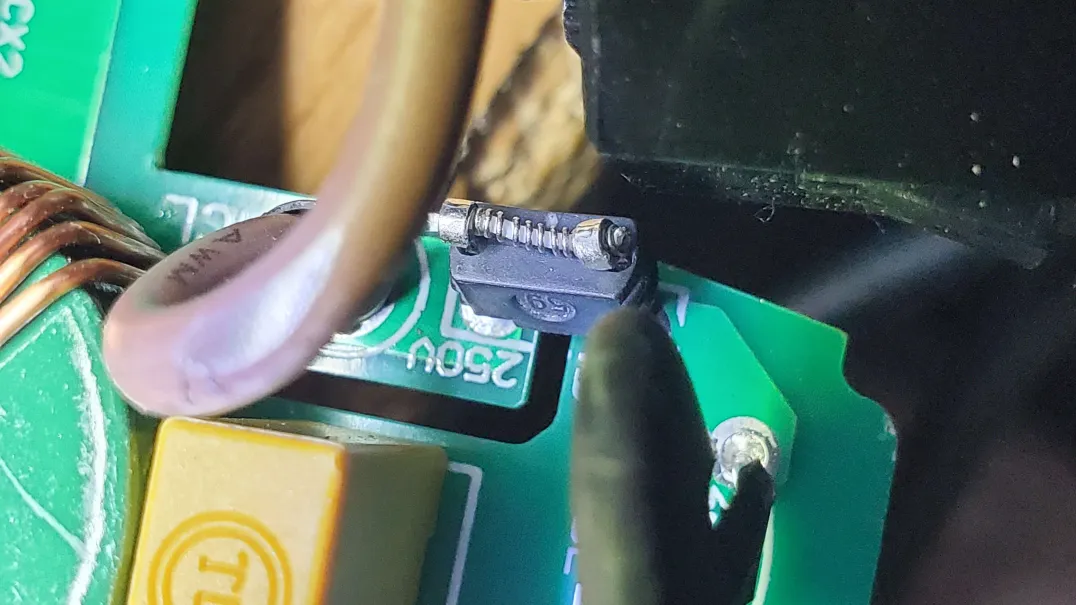

BI have ordered a replacement thermal Varistor,
But can someone tell me what this is?
But can someone tell me what this is?
Nlooks like it used to be a fuse?
Nwith the glass tube blown off? wild ass guess
Nlooks like the guts of one of these... but I've never seen a fuse holder like the one in your picture so

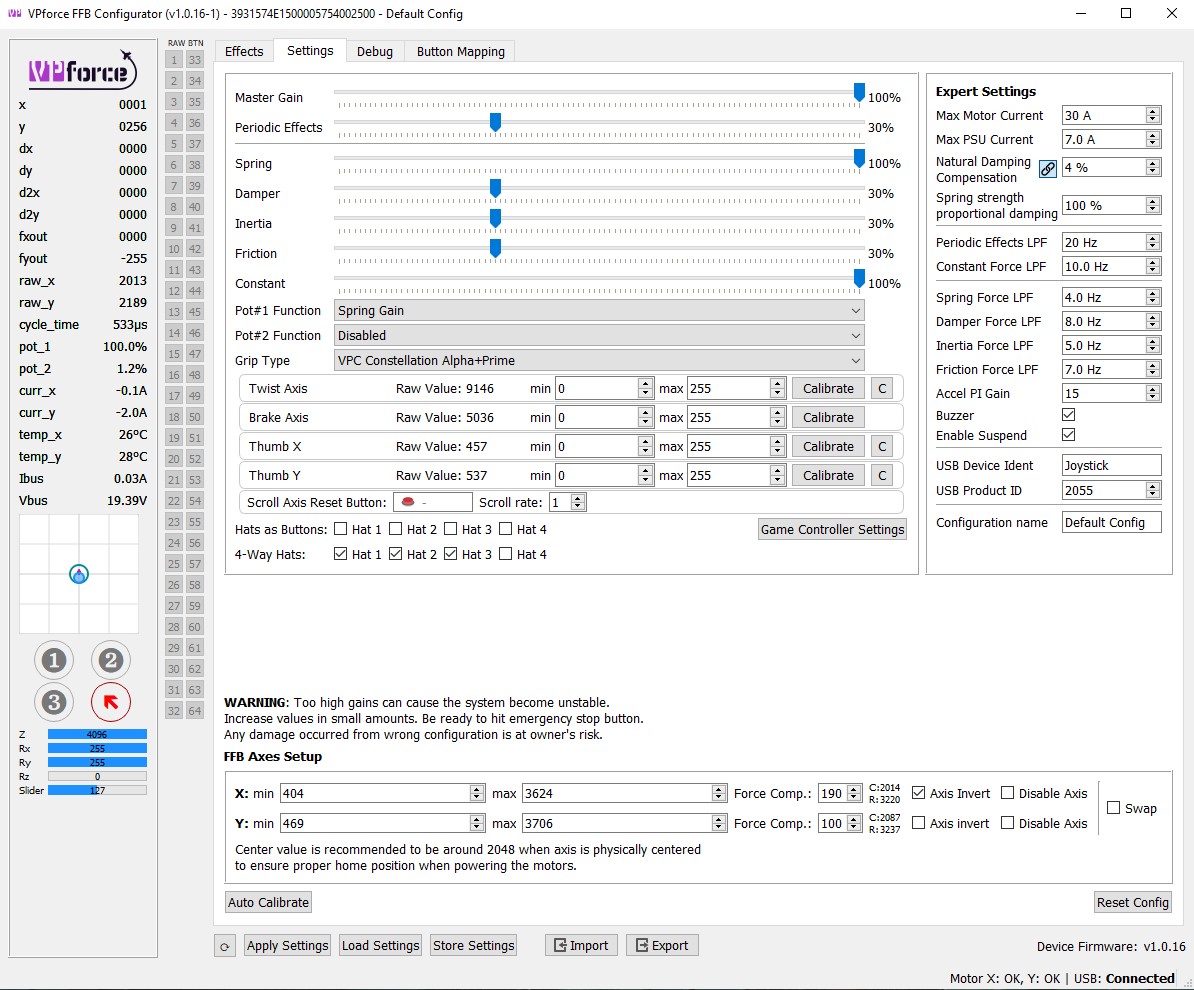

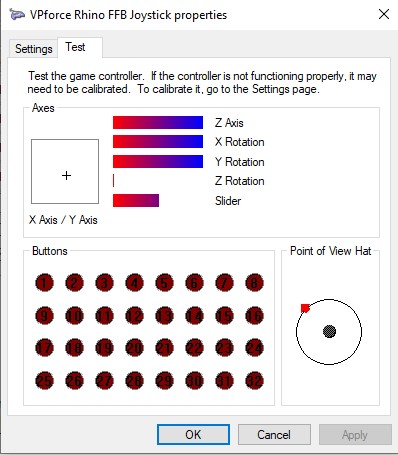

BDoes anyone know how to turn off the fourth hat option in the software? My Virpil Constellation does not have a fourth hat and the hat is being detected in some UI menus.
B
B
BThat worked!!! Thank you!!
Shey, small question, for dcs ww2 planes, when i fly low speed or stand still, the stick is feeling nice, getting a good feel when you reach low speed with less wind, but from above 200 to max speed, i cant feel a different, i think with a steep dive on max speed the stick would feel verry heavy to turn, but i cant feel that.
Sis there a setting to change that?
VI really wish I had read this, you are not wrong it seems. Just got rhino and mcgu mkiv at the same time and the adapter will not work.
SI have the same dilemma but I still have a little way to go on getting my rhino. I have reached out to Walmis a couple of times to ask if there is any intention to release an updated Rev.C adapter but I haven't had a response yet. However there is a solution…
I have spoken to VKB and you can purchase the MCGU revB twist adaptor which is fully compatible.
My issue is I use extensions which is a little more problematic - VKB are offering to send me a cable to change the internals on the RevC extensions but I'm still not sure how that works.
I have spoken to VKB and you can purchase the MCGU revB twist adaptor which is fully compatible.
My issue is I use extensions which is a little more problematic - VKB are offering to send me a cable to change the internals on the RevC extensions but I'm still not sure how that works.
WThe 4th hat works like axis-to-button for the thumb stick, so if you calibrate the thumbstick the hat will work properly
WI've finally received a revC extension today, and I'm pleased to say that I will be able to provide an adapter for the new revC mount
SAmazing news. Just after I spent all the money on adapters before I even get my rhino.
patience was never my strong suit.
patience was never my strong suit.VI guess I’ll cancel my return then
BThat worked. Thank you.
TJust set up my new unit with winwing adapter and no buttons register
T
Si've tried to recreate my settings but cannot. I still have the issue where a full forward deflection of the stick barely gives any down elevator. I tried axis rescaling but I cannot adjust the y up and y down scaling independently
FYou can rescale up and down independently
Sok i just figured that out-click the little chain link thingy
Sso i set up the vpconf as indicated in that screenshot-35% for Y forward,started DCS, jumped into an A10 and this is what full forward stick looks like
S
Sthe only thing I achieved with those settings is resistance in the stick starts with about 1/3 forward deflection
Sand for the last 2/3 of the excursion, no movement in the elevator is noted
Swithin dcs, the axis tune has no curve set on it. and i can see that the excursion output goes to 100% when the stick is pushed 1/3 forward so axis scaling is working properly
