Hi everyone. Sometimes it happens that when I fly my roll trim get stuck, so my stick push to one of

Hi everyone. Sometimes it happens that when I fly my roll trim get stuck, so my stick push to one of the sides. If I trim back the trim in the sim get back to full left (or right). I have more than one grip (virpil alpha and virpil vfx) and it happens with both. So I don't think it is the grips.
Did it happen to someone else?

FFr4Ged with your personal e-mail obviously

FlyDoc•5/28/24, 10:18 PM

Thanks! That worked. I really appreciate the help.

VVirus Hi everyone. Sometimes it happens that when I fly my roll trim get stuck, so my ...

Kowalsky•5/29/24, 4:40 AM

It happened to me 3 times but with nose down trim on pitch. I've switch off rhino, reloaded vpcvonfig and switched it back again, that cleared it. Unusual and very random

VirusOP•5/29/24, 5:22 AM

Ok so there must be some bug in the firmware

VirusOP•5/29/24, 5:23 AM

It happened to me 3 times in the same flight

VVirus It happened to me 3 times in the same flight

walmis•5/29/24, 6:00 AM

Which aircraft? Could be DCS is sending wrong trim data

VirusOP•5/29/24, 6:00 AM

The F-14

VirusOP•5/29/24, 6:01 AM

It is not the first time it happened to me, but now it happened 3 times in a row

VirusOP•5/29/24, 6:03 AM

In the DCS controls indicator the trim indicator moves (when it does happen) like If I was pressing the trim left (or right)

walmis•5/29/24, 6:06 AM

There's something bugged in the F-14 trim implementation. Last time I tested, sometimes trim runs away when switching pilot/rio seats.

VirusOP•5/29/24, 6:06 AM

To "reset" this behavior I just press the offending input (trim left in my above example) and then of course retrim back to center

Wwalmis There's something bugged in the F-14 trim implementation. Last time I tested, so...

VirusOP•5/29/24, 6:07 AM

Yeah that's I know, and also ACLS is not working

walmis•5/29/24, 6:07 AM

Rhino only gets commands like - set this new center at (x,y)

VirusOP•5/29/24, 6:07 AM

But I was in MP with an human rio

VirusOP•5/29/24, 6:09 AM

What I can try is to unbind trim left/right and see if that happens again

Kowalsky•5/29/24, 6:10 AM

I had that in F-4E

walmis•5/29/24, 6:10 AM

I doubt it's the buttons...

VirusOP•5/29/24, 7:33 AM

Yeah me too...but to rule out stuff

KKowalsky I had that in F-4E

VirusOP•5/29/24, 7:34 AM

so HB modules (for now)

VVirus so HB modules (for now)

Boggy•5/29/24, 10:29 AM

Just had it happen in the Av8b and I've had it happen in the F5 about 6 months ago

Number481•5/29/24, 11:34 AM

Can anyone confirm if this happens without TelemFFB running? Just want to confirm the trim workaround feature isn't bugged or something. Though it is only enabled by default on the AV8B and Mig-19

Boggy•5/29/24, 12:24 PM

I'll try to replicate it without the Telem and let you know

VirusOP•5/29/24, 12:53 PM

I had TelemFFB running, but the F14 has its own trim implementation, and I am sure trim workaround is not enabled on my end

NNumber481 Can anyone confirm if this happens without TelemFFB running? Just want to confi...

Kowalsky•5/29/24, 2:44 PM

I don't use trim workaround and had it again 1h ago, short bump of trim button in the same direction as runaway, fixed the problem. It occurred when pressed and hold so I suspect ghosting issue on reading phase by DCS

KKowalsky I don't use trim workaround and had it again 1h ago, short bump of trim button i...

VirusOP•5/29/24, 3:31 PM

exactly...short bump of tim button in the same direction fixes the issue (temporarly)

Ice•5/30/24, 1:09 AM

I have a 9.5A power brick that came with my Rhino, it's set to 7.0A in the software, shoud I change this to 9.5A?

Ice•5/30/24, 1:09 AM

Electricity is NOT my area of expertise, so I'm asking first lol.

Ice•5/30/24, 1:09 AM

Or is the "PSU Current" in the configurator unrelated to your power brick?

IIce I have a 9.5A power brick that came with my Rhino, it's set to 7.0A in the softw...

Asdforce•5/30/24, 5:29 AM

🧰support

DukeofHyrule•5/30/24, 9:36 AM

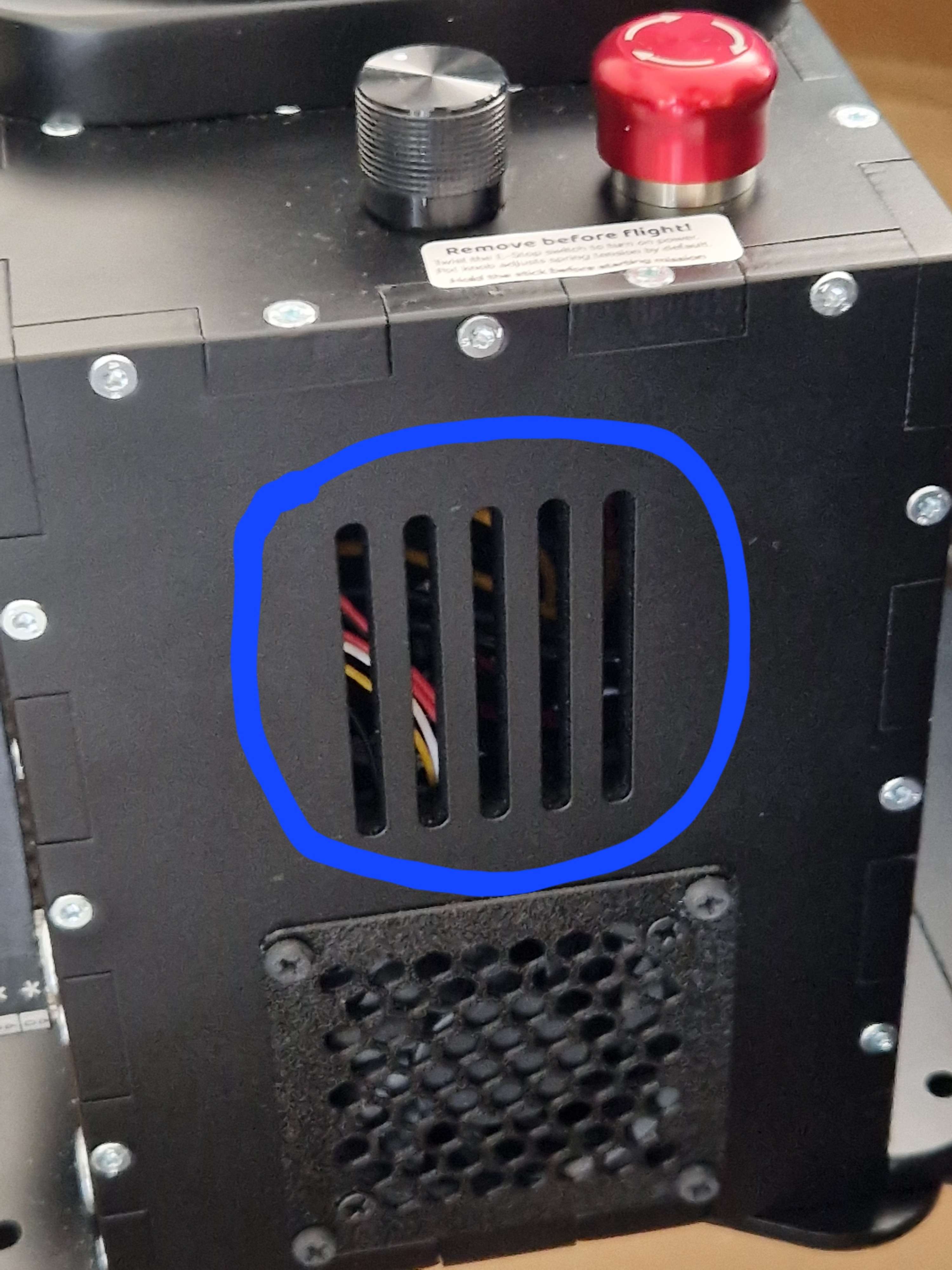

Maybe a stupid question but is it okay if the blue marked grid is blocked?
The cooler below has unrestricted airflow but the blue marked area is directly in front of my seat cushion, so the question is how close can i put it near the cushion?

Matchstick•5/30/24, 10:21 AM

Just noticed last night that the red stop button isn't disconnecting the motors when it's pressed so the only way stop the joystick moving is to physically unplug it.
Is this a known issue and if is there any way to resolve it ?

AlexS•5/30/24, 10:38 AM

Hey @walmis - any reason why my new toy would only recognise a TM Warthog grip and not a Realsimulator or Vipril Warbird?

AAlexS Hey @walmis - any reason why my new toy would only recognise a TM Warthog grip a...

walmis•5/30/24, 10:56 AM

If it recognizes the TM and not Virpil/RS is very odd. Since both use the same signalling. The only thing comes to mind is it's not making a proper electrical connection at the 5 pin mini din socket.

Wwalmis If it recognizes the TM and not Virpil/RS is very odd. Since both use the same s...

AlexS•5/30/24, 10:57 AM

Ok, any suggestions to rectify that?

AlexS•5/30/24, 10:57 AM

Thanks for such a speedy reply.

walmis•5/30/24, 11:06 AM

Make sure it's inserted fully. Try pressing a button on the grip and push/wiggle the connector in the base and see if the button indicator in the VP configurator shows any action.

Boo Berry•5/30/24, 12:58 PM

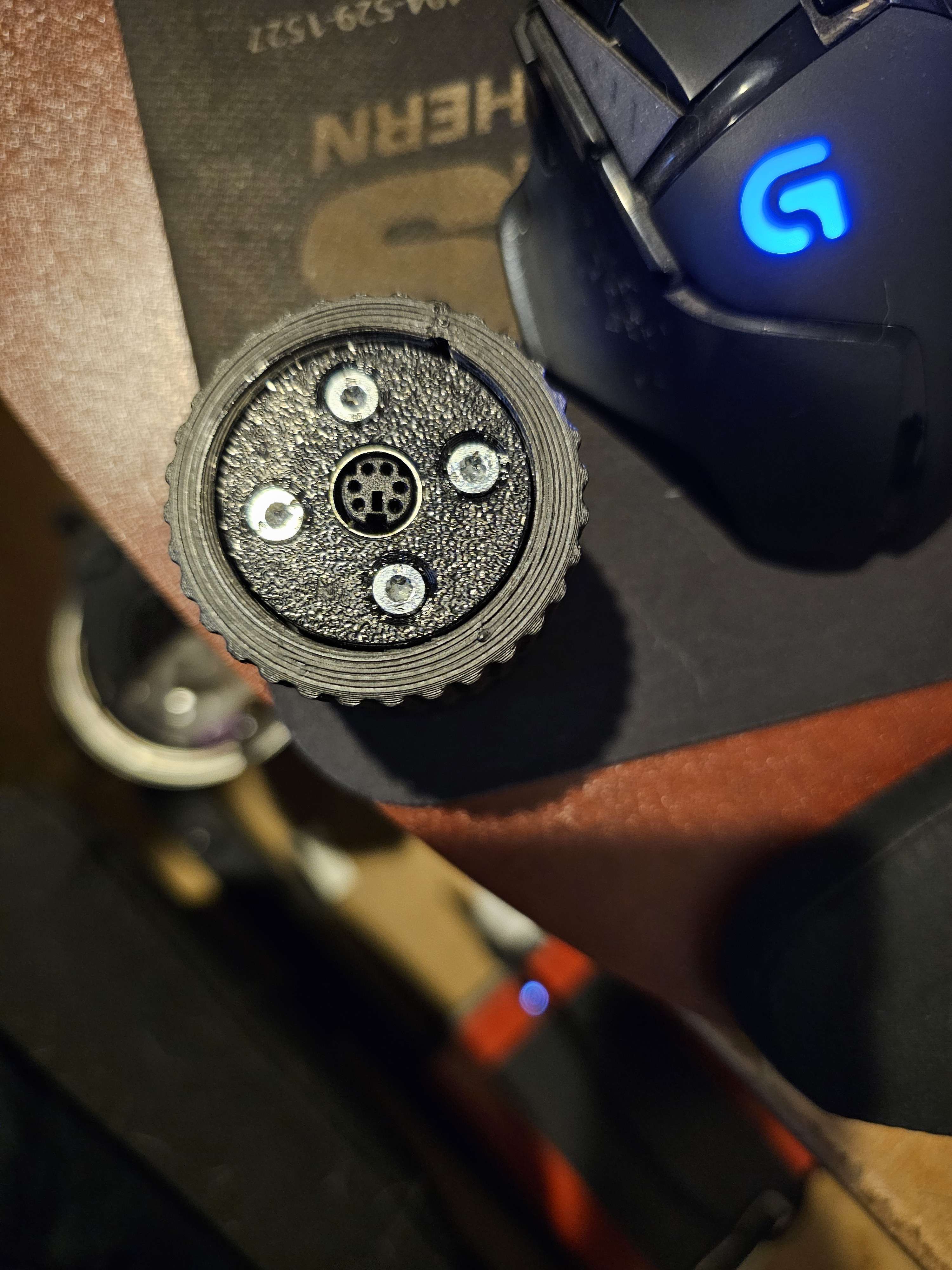

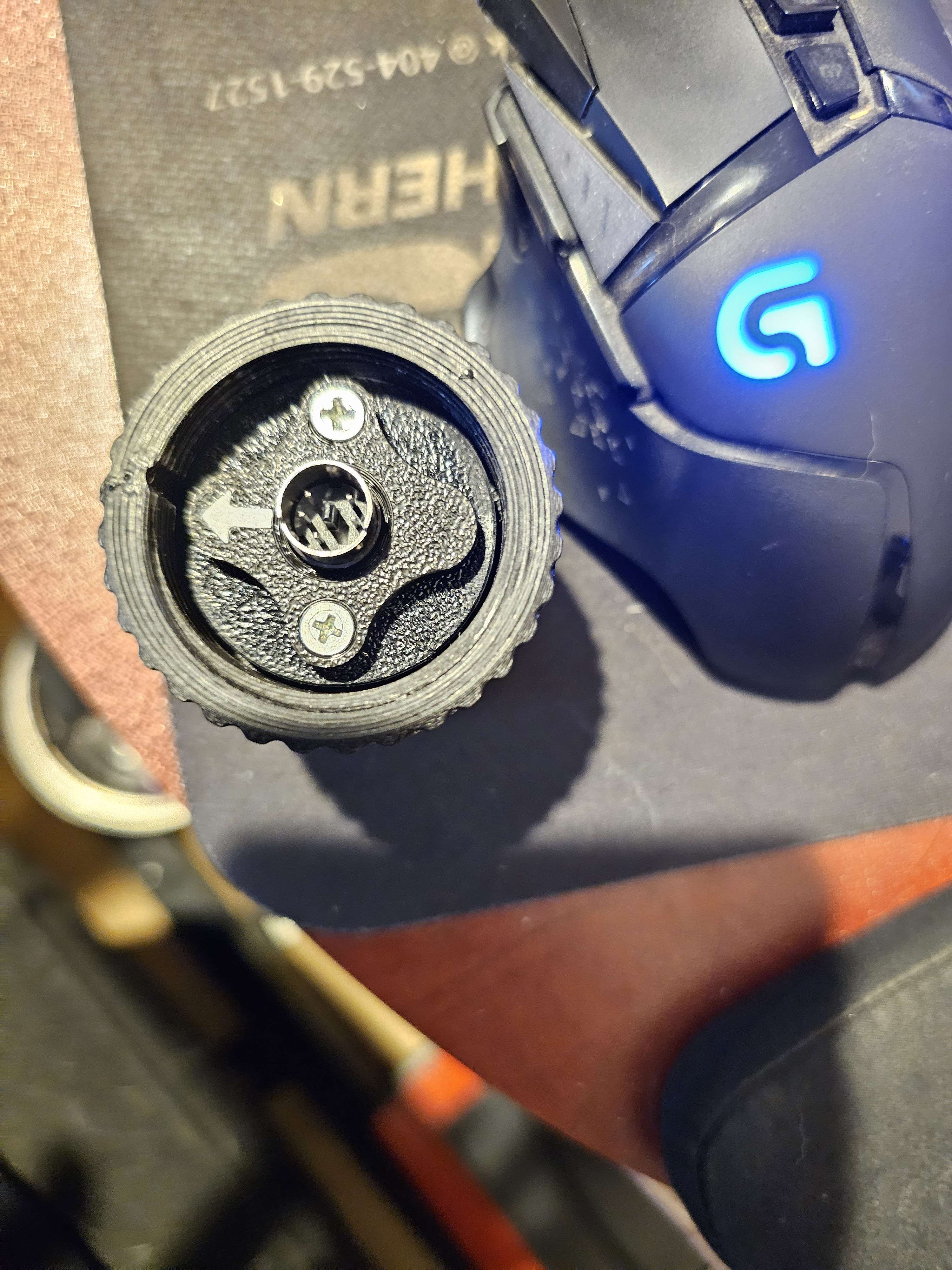

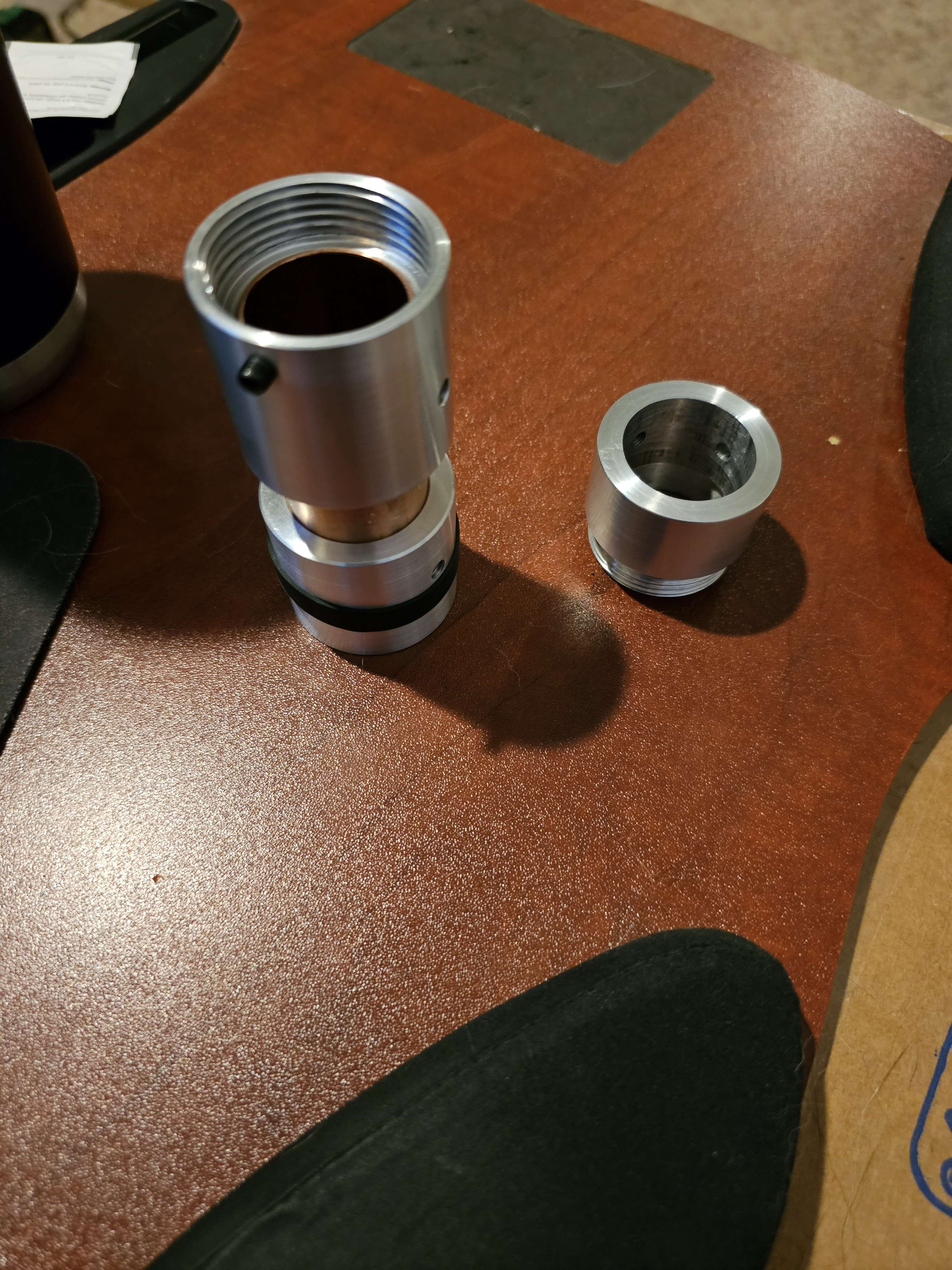

I have the winwing adapter but need the stick to be just a bit longer. I made my own adapter and extention to go from vp rhino to winwing grip but now I have to make/buy a plug for the wiring. I see that the rhino base uses a 5pin female and the winwing uses a 6pin male plug. What does 6th pin do, do i need it. I have a short 6pin to 6pin, can I pull the 6th pin out and use that cable?

TheAmazinGreat•5/30/24, 1:36 PM

Can you not put the WW adapter on top of your new adapter and go 5 pin to 5 pin?

Rhino (5) to new adapter (5 to 5) to WW adapter (5 to 6).

Boo Berry•5/30/24, 1:50 PM

Unfortunately it would be too long at that point. Plus the adapter doesn't really tighten very well. Always has this loose feel where you can't tighten it enough and twists.

TheAmazinGreat•5/30/24, 2:09 PM

I’ve seen a few people use a rubber oring to help snug it up. But have you tried removing the screws and seeing what’s inside the WW adapter? I don’t think it’s just a straight pass through cable with one pin removed. I think there is more to it. But if you can get it apart you may be able to transfer the guts over to your adapter.

Boo Berry•5/30/24, 2:23 PM

I did take the screws out but that's as far as I went. I was afraid to try and take the wires out in case I broke anything, still have to use it for now. I'm hoping there is a wire diagram showing which pins are being used and where they go.

TheAmazinGreat•5/30/24, 3:51 PM

I want to say there is a PCB in there from what I have seen others discuss on the topic but I am not sure, you may have to ping Walmis.

Aiva•5/30/24, 5:07 PM

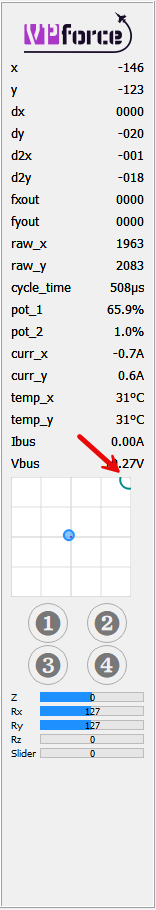

When I start VPforce Configurator any idea why the "green circle" is on the upper right corner?

walmis•5/30/24, 5:12 PM

Either hardware trim or an external application has set the trim position there

skyPickle•5/30/24, 6:15 PM

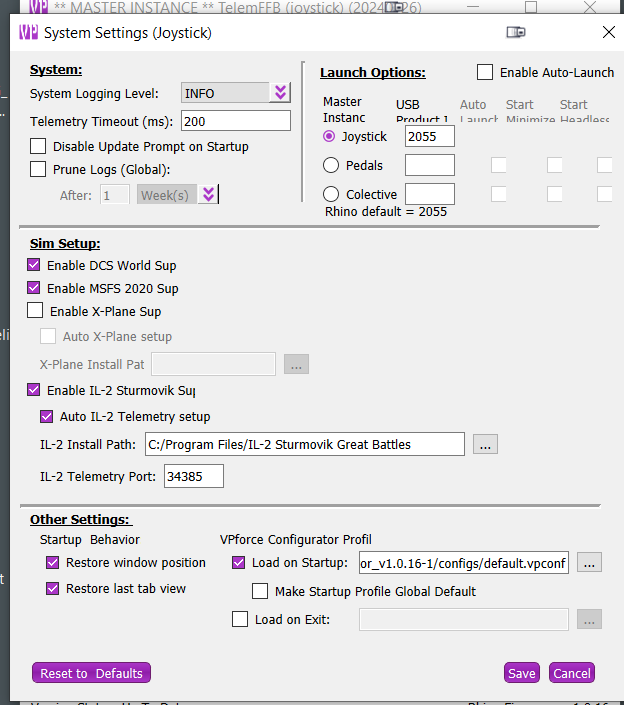

just updated telem-ffb. When I tick the checkbox for 'autolaunch' in the top right I get an error after saving

skyPickle•5/30/24, 6:15 PM

skyPickle•5/30/24, 6:16 PM

skyPickle•5/30/24, 6:17 PM

also the checkboxes after the joystick radio button are missing

SskyPickle just updated telem-ffb. When I tick the checkbox for 'autolaunch' in the top rig...

Number481•5/30/24, 6:26 PM

do you have multiple devices? The auto-launch is to automatically launch instances of TelemFFB for pedals/collectve. Theres no auto-launch checkboxes for the master device since that is the instance that gets created when you actually start the app.

Number481•5/30/24, 6:28 PM

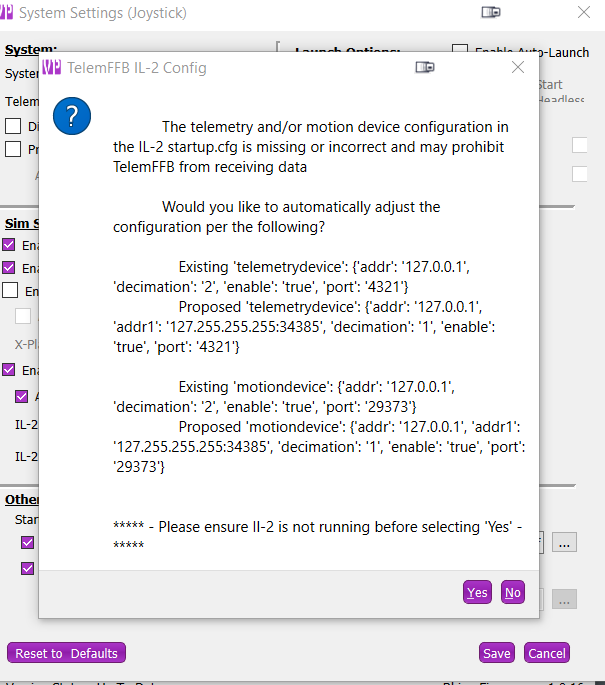

You didn't say anything about the 2nd image, but it is informing you what it is going to modify in the IL-2 config to enable telemetry export towards TelemFFB.

skyPickle•5/30/24, 6:36 PM

thank you for clearing that up
