Hey @walmis - any reason why my new toy would only recognise a TM Warthog grip and not a Realsimulat
Hey @walmis - any reason why my new toy would only recognise a TM Warthog grip and not a Realsimulator or Vipril Warbird?
WIf it recognizes the TM and not Virpil/RS is very odd. Since both use the same signalling. The only thing comes to mind is it's not making a proper electrical connection at the 5 pin mini din socket.
AOk, any suggestions to rectify that?
AThanks for such a speedy reply.
WMake sure it's inserted fully. Try pressing a button on the grip and push/wiggle the connector in the base and see if the button indicator in the VP configurator shows any action.
BI have the winwing adapter but need the stick to be just a bit longer. I made my own adapter and extention to go from vp rhino to winwing grip but now I have to make/buy a plug for the wiring. I see that the rhino base uses a 5pin female and the winwing uses a 6pin male plug. What does 6th pin do, do i need it. I have a short 6pin to 6pin, can I pull the 6th pin out and use that cable?
TCan you not put the WW adapter on top of your new adapter and go 5 pin to 5 pin?
Rhino (5) to new adapter (5 to 5) to WW adapter (5 to 6).
Rhino (5) to new adapter (5 to 5) to WW adapter (5 to 6).
BUnfortunately it would be too long at that point. Plus the adapter doesn't really tighten very well. Always has this loose feel where you can't tighten it enough and twists.
TI’ve seen a few people use a rubber oring to help snug it up. But have you tried removing the screws and seeing what’s inside the WW adapter? I don’t think it’s just a straight pass through cable with one pin removed. I think there is more to it. But if you can get it apart you may be able to transfer the guts over to your adapter.
BI did take the screws out but that's as far as I went. I was afraid to try and take the wires out in case I broke anything, still have to use it for now. I'm hoping there is a wire diagram showing which pins are being used and where they go.
TI want to say there is a PCB in there from what I have seen others discuss on the topic but I am not sure, you may have to ping Walmis.
AWhen I start VPforce Configurator any idea why the "green circle" is on the upper right corner?
WEither hardware trim or an external application has set the trim position there
Sjust updated telem-ffb. When I tick the checkbox for 'autolaunch' in the top right I get an error after saving
S
S
Salso the checkboxes after the joystick radio button are missing
Ndo you have multiple devices? The auto-launch is to automatically launch instances of TelemFFB for pedals/collectve. Theres no auto-launch checkboxes for the master device since that is the instance that gets created when you actually start the app.
N You didn't say anything about the 2nd image, but it is informing you what it is going to modify in the IL-2 config to enable telemetry export towards TelemFFB.
Sthank you for clearing that up
HQuick Question: How many VP devices (by circuit boards) can be operated at the same time? Is there a limit?
N6, I think. Only because you are limited to PID=2050 to 2055 in configurator. No idea there's a reason for that other than walmis probably never considered anyone would even have 3 going simultaneously
Hthank you!
THi how do I see where I am on the list to purchase
Fyou need to ask the bot.
https://discord.com/channels/965234441511383080/986474224241741884/1048909362028093450
https://discord.com/channels/965234441511383080/986474224241741884/1048909362028093450
SNot sure where best to post this, but I'm all set to receive my Rhino. Order is paid, and I think there's a few orders ahead of mine. I am concerned about when it will ship however. I travel for work every month. Who can I coordinate with to ensure that, when my order is ready, it ships so that it arrives when I am home?
AWalmis can probably try to help you, but in the end it's up to the delivery company to get it to you on time
TI would contact Walmis and ask for a delayed shipment.
Tell him the day you return so it can be shipped while you’re home and can deal with any local taxes or shipping fees directly.
Tell him the day you return so it can be shipped while you’re home and can deal with any local taxes or shipping fees directly.
SI'll reach out. Thanks
PAnyone else using the Jetpad or Sim Shaker for Aviators & getting problems with vpforce config app freezing?
PAlso getting a creaking sound in my gimbal recently

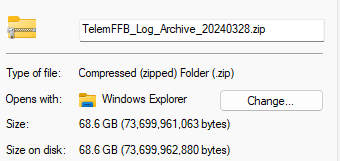

L@walmis Any idea why TelemFFB created a 68 GB log file?
LGot the text file open looks like it loops an error when TelemFFB is running and the device is disconnected, over 600,000,000 lines of code as it pushes a log every millisecond:
WThe latest version should handle device disconnection properly and attempt to reconnect. The log size is quite amazing though
S
Plooks like you have the making of a zip bomb there

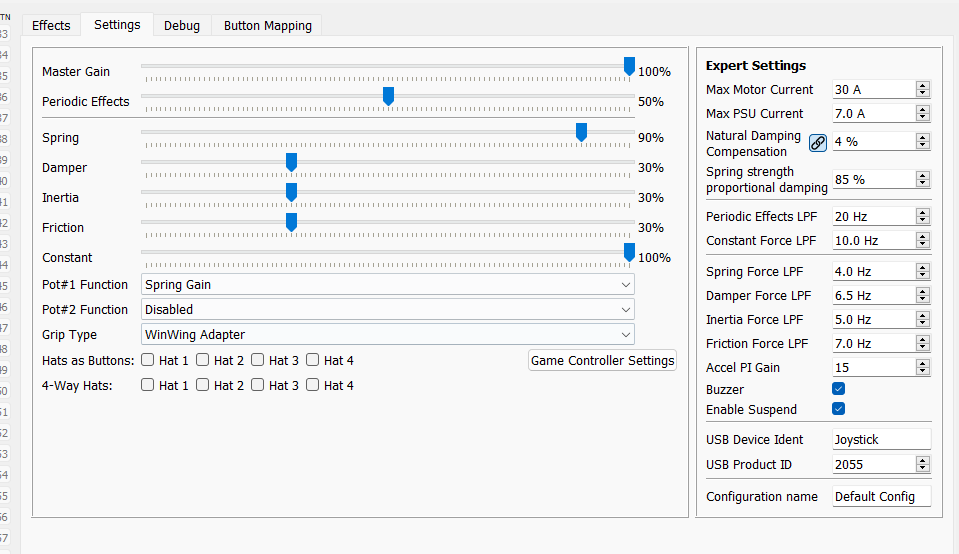

TWith damper enabled, I keep getting oscillations and shutdown. I've been messing with LPF tuning etc. and have reduced it where I dont get the shutdown for just touching the stick. However, I still get slight vibration/oscillation but only in the x-axis, yaxis is smooth. Any suggestions? Trying to fly DCS Apache. When I get the ETL vibration effect from TelemFFB, it goes bananas and vibrates strongly until I shut it off and back on.

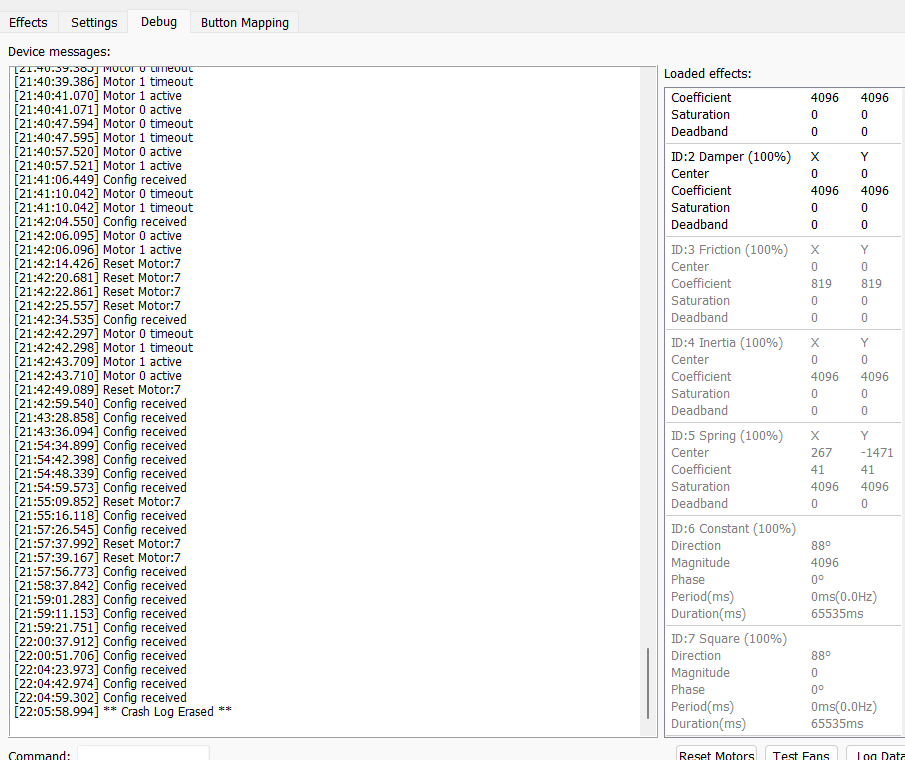

KMy Motor Y stays offline. I have removed PSU and USB, but it stays offline.
In the last 3 days the motors went offline 3 times when I was playing DCS.
But ever time they come back online after moving a axis to full aft/forward.
Any ideas?
In the last 3 days the motors went offline 3 times when I was playing DCS.
But ever time they come back online after moving a axis to full aft/forward.
Any ideas?
WTry damper filter at 4Hz, but yeah it shouldn't be this sensitive at those settings. Check the belt tension on the X axis too.
WMy bet would be to check the wiring, see if wiggling the data wires near the plugs give some connected/disconnected beeps. Also check if the motor LED blinks steadily when powered.

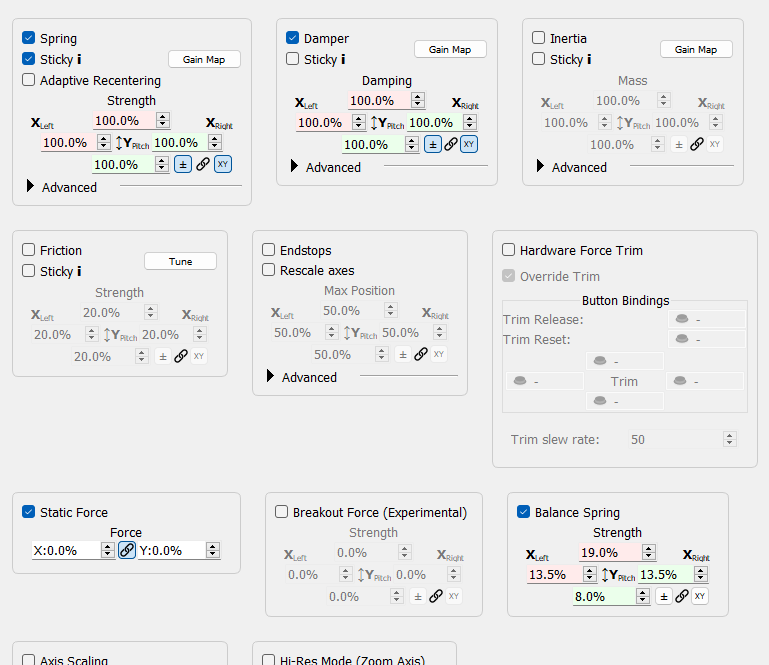

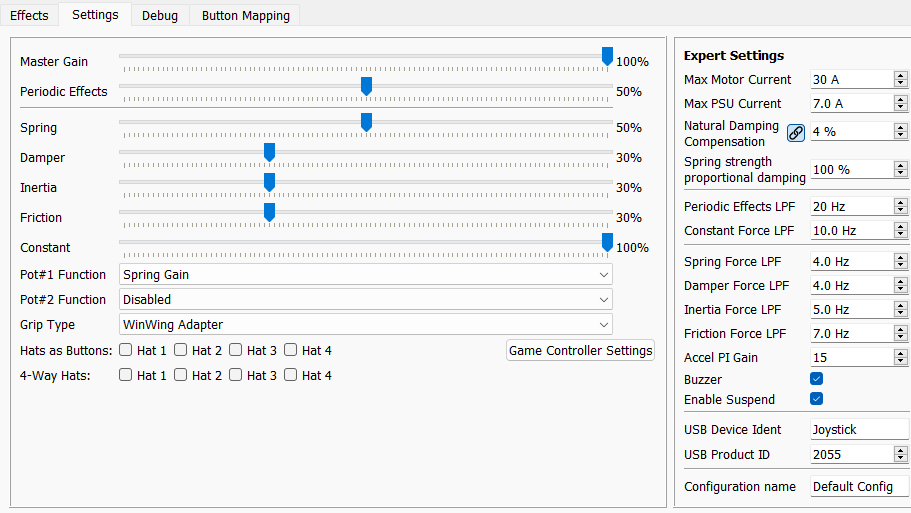

TThis is where I ended up through randomness. I would like to know how the dynamics interact between Spring force and damper with respect to LPF and the sliders. My objective was a spring centering, damped feel that reflects the slowness observed by the reaction of controls in DCS apache vs. the actual stick. If I deflect the stick and let it go, it lightly bounces like a spring on it's way back to center, but I have the damped feel/look I wanted.
RMine creaks in both x and y, but i havent had any issues and everything is tight.
TI think someone lifted up the leather boot and tightened the bolts at the TOP of the metal tube connector?
It was long ago but someone fixed this creak by doing that and I think the culprit was the square metal tube and those screws.
Maybe a search and you can find the pic of what screws he tightened
It was long ago but someone fixed this creak by doing that and I think the culprit was the square metal tube and those screws.
Maybe a search and you can find the pic of what screws he tightened
TSee above sorry I forgot to tag ya
TSee above above and good luck!
WHas anyone noticed the force in one of the axis for the motor going bad? I think my Y-axis motor may be going bad
WThe level of force is much less than X axis, all settings have each axis at 100%
WAlso, is there a way to reduce pot_2 to 0%? I don’t have it bound to anything, but it’s been sitting at 1.2% and changes to 0.7% if I scroll the potentiometer to 0.0% for pot_1.
WIf I hold it in full deflection at full spring strength the fans kick on in 10 seconds, climbs to 60 deg C, X axis motor is fine.
WMy guess is that the motor was preheated from earlier and does a bit of thermal throttling, it shouldn't be going 'bad' - it either works or doesn't
In the off chance - it could be a thermal paste issue between the motor and transistors on the driver pcb that impedes heat dissipation into the motor, that causes it to register higher temperatures.
When pot_2 is unconnected it floats a bit due to high electrical impedance, but if it's disabled in software it doesn't do anything regardless
In the off chance - it could be a thermal paste issue between the motor and transistors on the driver pcb that impedes heat dissipation into the motor, that causes it to register higher temperatures.
When pot_2 is unconnected it floats a bit due to high electrical impedance, but if it's disabled in software it doesn't do anything regardless
WOkay, thanks Walmis. I don’t know how it could have been preheated, but I’ll keep an eye on it.
