Hi thanks for having a look. It might have been the hind. I flew different aircraft in that session.

Hi thanks for having a look. It might have been the hind. I flew different aircraft in that session. The problem is that Telemffb's DCS status light remains yellow, no matter what aircraft I select. It seems intermittent, too. Yesterday, after asking for help, it was working for the mirage f1 in single player. 2 days ago was not working for hind, mirage 2000, f5 this was multiplayer, but another rhino user. in the same server doesn't have the issue Other times I test it in an instant action and it would work, but then it wont in multiplayer with the same AC. The error I see in the log is always the same, and it repeats itself A LOT. Let me know what info you need to troubleshoot.

Touch_Of_Legend•6/29/24, 11:12 AM

https://virpil.com/en/blog/42-the-mongoost-50-stick-grip

VirPil.COM - VPC MongoosT-50 Stick Grip

The best devices for virtual pilots

Touch_Of_Legend•6/29/24, 11:14 AM

That is the original T50 grip.

The one he has and has the Gray buttons and Gray palm rest.

The next version they switched to all black hats and added a 4way (that’s the one I have).

The newest version has the thumb button from both the older versions and switched it to an additional thumb Hat switch and is still all black in color.

Touch_Of_Legend•6/29/24, 11:16 AM

So I think… he doesn’t have 5 way hats? (4 way and a push)

I’m not sure if I do on the T50 (Black).

So I’m not sure it’s supposed to register as a 5 way

Touch_Of_Legend•6/29/24, 11:17 AM

(New version’s are all 4 and 8 ways with push like your original diagram)

That’s the Virpil T50CM2 mongoos.

Our older stick is the T50 Mongoos (no CM at all)

Touch_Of_Legend•6/29/24, 11:19 AM

Anyway.. same as I said before mine works every single thing perfect even the brake axis and every button works as it should… or as I assume it should.

I picked the CM2 profile and kept it moving.

I just assumed anything that didn’t exist on my stick… would simply go “un mapped”

And I kept it rolling

TTouch_Of_Legend But for what it’s worth I’ve had zero issues using that old T50 with the Rhino y...

EpyonOP•6/29/24, 11:34 AM

would love to know how you did it, because I can't get the paddle to work on mine. I too have the first virpil stick, and currently can't use the paddle because the configurator sees it as random button pushes. Walmis is aware of this.

Touch_Of_Legend•6/29/24, 1:24 PM

Maybe our sticks (mine is the black out version of yours but still the same buttons)

Are actually different inside.

That part I have no idea about.

How I got my pinky paddle (brake) axis to work was by selecting CM2 grip and when you do that it shows a new slider on the main Vp configurator page with a “calibrate” button.

Press the button and pull the pinky and then let it go. Save and done.

So maybe there’s more than just the color that changed

Touch_Of_Legend•6/29/24, 1:28 PM

Here is the official page from Virpil for our grips.

(Not for the newer CM2)

Touch_Of_Legend•6/29/24, 1:29 PM

I’m not around the stick but I’m pretty sure… yeah no center push and for sure we don’t have an 8 way do we?

Also we have thumb buttons (your hats and palm rest is Gray. Mine is Black)

SamNFTY•6/29/24, 2:19 PM

Dunno if anyone's around but my Rhino seems to have lost the Y Axis. It's stuck at -4096 no matter where I move it

SamNFTY•6/29/24, 2:24 PM

Auto calibrate didn't help

SamNFTY•6/29/24, 2:32 PM

I reset config and that seemed to work

walmis•6/29/24, 2:52 PM

Hmm, the raw motor position is interesting. Did the belt slip by any chance, can you check the tension?

walmis•6/29/24, 2:54 PM

Also I recommend importing and storing the configuration from 'configs/RHINO-defaults.vpconf'

Wwalmis Hmm, the raw motor position is interesting. Did the belt slip by any chance, can...

SamNFTY•6/29/24, 3:40 PM

I did hit the e-stop in game to try to reset it. It was at that point that it started. The reset worked it out.

SamNFTY•6/29/24, 3:41 PM

Did it go into some kind of protection mode?

SSamNFTY Did it go into some kind of protection mode?

Bozo VFA-86•6/29/24, 7:55 PM

not sure if this is related but there is a suspectged bug with the heatblur f4 where the y axis drops out typically on restarts of airstart instant action...happens to me repeatedly

TTouch_Of_Legend I’m not around the stick but I’m pretty sure… yeah no center push and for sure w...

EpyonOP•6/29/24, 8:46 PM

Yes. Everything you said checks out. Mine is not the black one, but regular one. I can't remember which profile I ended up using. It was between generic grip and cm2. I think the cm2 would read the pinky axis but as different button presses, rather than an axis.

EEpyon Hi thanks for having a look. It might have been the hind. I flew different aircr...

EpyonOP•6/29/24, 8:47 PM

I'd appreciate if someone can help me with this. It is driving me crazy, and it is a shame I can't use telemffb effets half the time or more.

EEpyon I'd appreciate if someone can help me with this. It is driving me crazy, and it ...

Touch_Of_Legend•6/29/24, 8:59 PM

For sure I understand your frustration and I would jump right on so we could compare screens since we’re using the same grip (minus some color change) but I’m away from home this weekend.

I know someone out there can help so hopefully they will pop up sooner than later!

If not try the CM2 profile and click that “calibrate axis”

It shows as random buttons until you assign the pinky axis.

The button is on the main page around the middle or so.. with I could help more.

EEpyon I'd appreciate if someone can help me with this. It is driving me crazy, and it ...

Number481•6/30/24, 12:17 AM

The error is on DCSs part, not the export script. DCS is failing to return any data for a basic call to the "get engine info" API call. Why is anybodys guess. Could be a mod interfering, could be another export script (SRS, SSA, etc), could be corrupted game files. That error message is more of a symptom than the actual cause though. There may be something in the full dcs log that would indicate what the actual issue is.

In terms of troubleshooting steps I would suggest:

Rename your Save Games folder. DCS will create a new clean one when it next starts up. You'd then want to copy the config and inputs from the old save games folder to the new one.
- Re-start TelemFFB. It will insert itself into the fresh export.lua and copy its export script into the new save games directory.
- Don't re-setup any other utilities that add their own export script setup to DCS.

If the issue still occurs after that:

Remove all 3rd party mods

If the issue still occurs after that:

Slow repair DCS

ddrake1984•6/30/24, 1:24 AM

Hey, my Winwing joysticks are not working atm, does anyone else have this issue atm?

ddrake1984•6/30/24, 1:26 AM

I have plugged the WW grips into my WW base and all works perfectly fine and I tried the VIRPIL grips on my Rhino base and all is working fine

ddrake1984•6/30/24, 1:26 AM

but for some reason my WW grips wont work on my Rhino

ddrake1984•6/30/24, 1:26 AM

I have 2 x WW adapters and I have tested them both.. so I am not sure if suddenly both adapters are now dead, or there is something else that is preventing them from working

ddrake1984•6/30/24, 1:27 AM

Dddrake1984 I have 2 x WW adapters and I have tested them both.. so I am not sure if suddenl...

PiNKSH!T•6/30/24, 7:54 AM

do you use any extension? I found the virpil extension is a bit finicky. I tried plugging the grip into adapter then straight into base & that worked

ddrake1984•6/30/24, 9:52 AM

I normally do, but I just tried without it

ddrake1984•6/30/24, 9:52 AM

I'll try again another tiem

Stryker990•6/30/24, 11:47 AM

@walmis is there a way to see if my winwin adapter is working properly? i suddenly dont get stick inputs anymore but the stick is still working (it works in my winwing base) so i wanna see if its the adapter or the rhino itself

ddrake1984•6/30/24, 12:07 PM

I’m having same issue

SStryker990 @walmis is there a way to see if my winwin adapter is working properly? i sudden...

SamNFTY•6/30/24, 1:49 PM

Did you check to confirm that the WW grip is selected in the Configurator? If you load another profile it may have deselected it.

SSamNFTY Did you check to confirm that the WW grip is selected in the Configurator? If yo...

Stryker990•6/30/24, 1:51 PM

nothing changed to the software and yes i checked

SStryker990 nothing changed to the software and yes i checked

SamNFTY•6/30/24, 1:54 PM

Sorry I'm realizing I'm acting like this guy

Stryker990•6/30/24, 1:56 PM

its okay do the same thing when trying to help people with DCS problems dont know you so you could do the most basic mistake

Wwalmis Also I recommend importing and storing the configuration from 'configs/RHINO-def...

SamNFTY•6/30/24, 3:26 PM

Problem is still occuring. I loaded the RHINO-defaults.vpconf and it's not recognizing the Y axis movment and providing this force.

SamNFTY•6/30/24, 3:27 PM

I reset the device and it's fine

Bozo VFA-86•6/30/24, 4:23 PM

I lose both axis if I run Sim Racing Studio software. It apparently intercepts the telemetry and doesn't share it. Do you have stuff running?

SamNFTY•6/30/24, 9:29 PM

So everytime I use it, I need to do some kind of reset on it. What is the best way to shut her down if I'm also removing USB power? I've been doing the estop first then remove USB power. Could that be causing this?

Bob Bushman•6/30/24, 11:41 PM

I just disconnect the pit hub and and the rhino psu.

I don't beef around with the e stop.

(

(41F) RAFAIR Dave H•7/1/24, 7:39 AM

I also us sim racing studio to run my motion setup and when I first got it , it screwed with my racing wheel which ran on simhub , it’s to do with the polling of the com port and either on si m racing studio or simhub ther was a setting to disable polling on particular ports that fixed my issue. Not at PC just now but will try and look later today for actual setting

Boeing757sim•7/1/24, 8:12 AM

Anyone having issues with Xplane 11 ??

SSamNFTY So everytime I use it, I need to do some kind of reset on it. What is the best w...

Fr4Ged•7/1/24, 9:31 AM

I just e stop and don't bother with anything else.
your y axis motor seems to be working a lot being 22°C hotter than the x. something is going on with your Rhino.

SSamNFTY Problem is still occuring. I loaded the RHINO-defaults.vpconf and it's not recog...

walmis•7/1/24, 9:40 AM

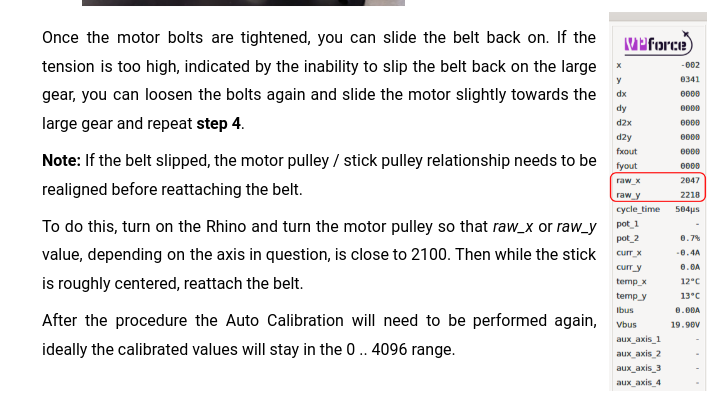

I think somehow the axis position is on the edge of encoder wraparound and it starts in the wrong angle. It's an easy fix, by readjusting the belt.
Basically slip off the Y axis belt, turn the motor pulley so the raw_yraw_y reads something around 2000-2100, center the stick and reattach the belt.
Then run the auto calibrate on both axes. Final calibration values should stay within 0 .. 4096 range.

Wwalmis I think somehow the axis position is on the edge of encoder wraparound and it st...

SamNFTY•7/1/24, 11:02 AM

Ok. Thanks. I'll do that

mark turner•7/1/24, 11:40 AM

Just doing some PC housekeeping and found a folder in app data for Telem FFB that was 170GB

....log files.....why is this and is there a setting somewhere to disable this?

Hiob•7/1/24, 11:47 AM

@walmis Is there a way to have VP telemetry (raw position, temperature etc.) as an "always on top" window? While running DCS?

Hiob•7/1/24, 11:47 AM

I can't figure it out....

SSamNFTY Problem is still occuring. I loaded the RHINO-defaults.vpconf and it's not recog...

Hiob•7/1/24, 12:22 PM

What I found helpful to center the motor for mounting the belt is, deactivate all effects but spring. Set it to 50% by 50% by 100% mastergain and manually enter 0 and 4096 as calibration values, before attaching the belt. That will keep the motor nicely centered while attaching the belt and it can't move by mistake. After that you need to do a proper calibration of course.

Mmark turner Just doing some PC housekeeping and found a folder in app data for Telem FFB tha...

Fr4Ged•7/1/24, 12:28 PM

dang. you must be flying a lot. mine is 6 MB.
