report about il2 spring force of some planes is too low, it feels like almost there is no ffb whil

report about il2

spring force of some planes is too low, it feels like almost there is no ffb while other effects working absolutely fine.

and I found that I cannot raise spring force gain because it is already 100%.

and master gain is already 100%

and spring force of some other planes are strong enough.

for example - tempest, spitfire vb is too low

t152h, il2 is strong enough

I think it need to be fixed. all other ffb is working fine. only spring force is the issue. Thanks.

PPokePoke report about il2 spring force of some planes is too low, it feels like almost ...

Number481•9/5/24, 4:35 PM

This should be raised with the IL2 devs. IL2 has native FFB, meaning the spring forces are generated by the sim. A given FFB base just "does what its told" in this regard.

Col. Sanders•9/5/24, 11:31 PM

I took my rhino apart some and am reassembling now. I did not realize the pulley gears had a couple longer screws. Does anyone know which spot the longer screws go?

NNumber481 This should be raised with the IL2 devs. IL2 has native FFB, meaning the spring...

PokePokeOP•9/6/24, 12:47 AM

I pushed it to il2 devs but it will be more simple if I can increase spring gain more than 100% though

CCol. Sanders I took my rhino apart some and am reassembling now. I did not realize the pulley...

Hiob•9/6/24, 7:41 AM

What do you mean? The long screws attach the belt pulley to the gimbal. 5 or 6 each iirc. These are the longest screws in the rhino I can think of - and they can't go anywhere else. I have a DIY rhino though.

CCol. Sanders I took my rhino apart some and am reassembling now. I did not realize the pulley...

walmis•9/6/24, 7:42 AM

The two longer screws go at the base of the gimbal frame - the two "deeper" holes

Hiob•9/6/24, 7:43 AM

I'll shut up....

TheAmazinGreat•9/6/24, 1:09 PM

As walmis mentioned, the long screws go on the base of the gimbal frame. Just remember that one of the bases faces the floor and the other faces the top.

Wwalmis The two longer screws go at the base of the gimbal frame - the two "deeper" hole...

Col. Sanders•9/6/24, 1:43 PM

Thank you!

TeufelHunden•9/6/24, 5:54 PM

ok I'm sorry for whoever is brave enough to attempt to help me lol. I just recieved my Rhino. I have never touch a FFB joystick/ base in my life.

TeufelHunden•9/6/24, 5:55 PM

Which way does the base come configured? the red button far away from pilot or the red button close to the pilot?

TTeufelHunden ok I'm sorry for whoever is brave enough to attempt to help me lol. I just recie...

Number481•9/6/24, 5:58 PM

normally e-stop (red button) toward pilot... but its literally 3 clicks in the configurator software to invert the axes, so install it whichever way makes the best geometry for your setup

TeufelHunden•9/6/24, 5:59 PM

ok next question is there a tutorial or a page for me to go to for setup or how do I get the software?

TTeufelHunden ok next question is there a tutorial or a page for me to go to for setup or how ...

Matei•9/6/24, 5:59 PM

https://vpforce.eu/usb/rhino/

TeufelHunden•9/6/24, 6:00 PM

thank you so much

Kamini•9/6/24, 6:36 PM

@walmis i think my winwing adapter is dead on arrival. None of the buttons are working and error button 32 isnt on either

KKamini @walmis i think my winwing adapter is dead on arrival. None of the buttons are w...

Prometheus [Prom]•9/6/24, 7:03 PM

poor connection between stick and adaptor, test whether the winwing plug goes into the adaptor sufficiently (mine didn’t)

Kamini•9/6/24, 7:05 PM

Doubt thats it. I really used some force to make sure its properly connected with and without screwing it. But I think the issue is between the adapter and the base cause I just got it today and according to the manual the newer versions should show bad connections between the stick by turning on input 32 which is off

Kamini•9/6/24, 7:06 PM

As if the base doesnt detect the adapter

Kamini•9/6/24, 7:06 PM

KKamini Doubt thats it. I really used some force to make sure its properly connected wit...

Prometheus [Prom]•9/6/24, 7:06 PM

Quite so

Kamini•9/6/24, 7:08 PM

And I know the grip works cause I tried it back on the orion so I can confirm thats not bricked

KKamini And I know the grip works cause I tried it back on the orion so I can confirm th...

Prometheus [Prom]•9/6/24, 7:09 PM

you’re right that the 32 indicates poor connection, not a failed stick…..mine would register the correct buttons only on firmly pressing in the stick plug to adaptor. Sounds like your issue isn’t that though

jskibo•9/6/24, 7:28 PM

Just finished a build and it worked for about an hour before the USB disconnected (while still plugged in).

jskibo•9/6/24, 7:28 PM

Unplugging and plugging mostly gives 3 beeps (three green light flashes on board) but no USB connection

jskibo•9/6/24, 7:29 PM

Every 25 or 30 tries I get a quick connect and disconnect, or it may stay connedcted for 10-15 seconds

jskibo•9/6/24, 8:13 PM

Tried 3 other powered hubs as well as direct to PC, also the three cables I have, Same issues

jskibo•9/6/24, 10:56 PM

jskibo•9/6/24, 10:56 PM

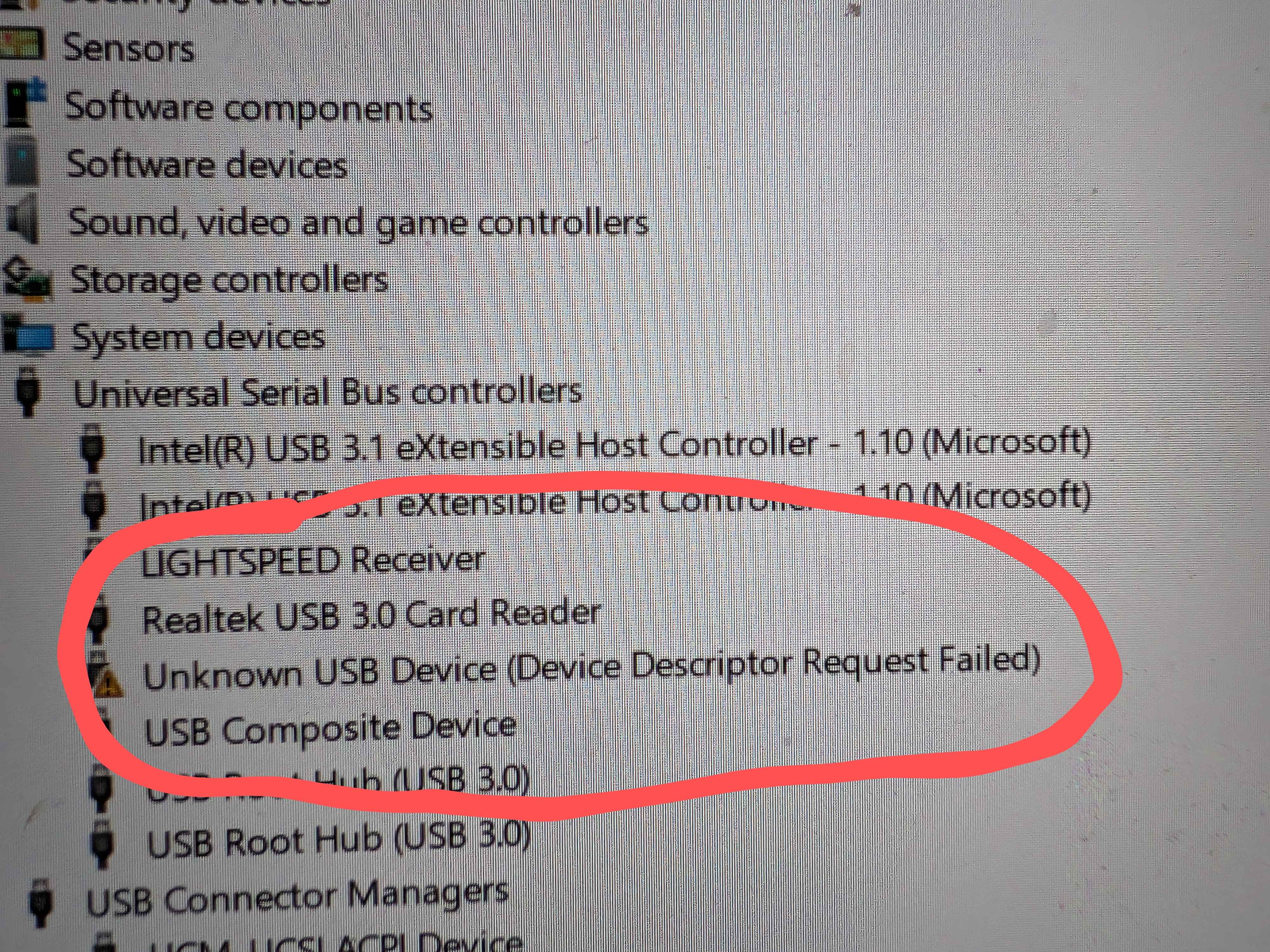

Put it on the laptop and I get this

TheAmazinGreat•9/7/24, 5:25 AM

bad usb cable?

TheAmazinGreat•9/7/24, 5:26 AM

sorry just saw the part baout trying other cables. eliminate powered hub all together maybe as another troubleshooting method.

TheAmazinGreat•9/7/24, 5:27 AM

also maybe check to make sure the USB cable internal between the board and the USB socket hasnt come loose somewhere.

jskibo•9/7/24, 1:52 PM

OK this is driving me nuts now. SO far have tried 7 cables including 2 new Startec ones, four powered hubs, 2 unpowered as well as pluging into every USB port on the motherboard with restarts of the OS between each try. I thin tried my laptop, then my Son's PC and finally my driving SIm PC. All fail with the above "Unknown USB Device (Device Descriptor Request Failed". Its the only thing plugged into the PC beside the mouse and keyboard and nothing is currently plugged into the board itself except the USB connector. I also have the USB power saving mode turned off on all PCs

jskibo•9/7/24, 1:53 PM

@walmis any help on the above?

Jjskibo OK this is driving me nuts now. SO far have tried 7 cables including 2 new Star...

walmis•9/7/24, 1:59 PM

Hey, I'd check the breakout USB wire that's included with the board. Maybe there's a bad solder joint under the heat shrink. It would be the fastest way of fixing it, otherwise I could mail you another one.

Wwalmis Hey, I'd check the breakout USB wire that's included with the board. Maybe there...

jskibo•9/7/24, 2:02 PM

Thanks. I'll break out the solder station and hit each one. Will let you know

Kamini•9/7/24, 2:36 PM

@walmis did you have a chance to look at this:
🧰support

Ice•9/8/24, 3:08 AM

My brother is putting his Rhino together with the same exact parts I used. Winwing adapter -> extension -> Winwing 16EX. He's having trouble getting the top part of the adapter to lockup and stop turning.

Ice•9/8/24, 3:09 AM

Any ideas? He's got it tight tight but it still has a little left/right play.

Stryker990•9/8/24, 9:28 AM

Is it possible to make a custom default config for MSFS? I got to create a new config for every plane with every single livery which is kinda annoying

SStryker990 Is it possible to make a custom default config for MSFS? I got to create a new c...

Number481•9/8/24, 11:56 AM

Yes, you can use the Sim/Class Defaults editor to change the defaults for an entire sim and/or a class of aircraft.

But also, when you are creating a new aircraft entry, it tells you that you can use regex for the match string. So for example,

Cessna 152.*

Cessna 152.*

matches both

Cessna 152 Asobo

Cessna 152 Asobo

and

Cesna 152 01 Livery

Cesna 152 01 Livery

.

There will be the odd case where a developer (and even some of the default aircraft) are not consistent in the livery naming and a simple "dot star" will not match all of them. In that case, more advanced regex can be used. For example

Cessna( 208B)? Grand Caravan.*

Cessna( 208B)? Grand Caravan.*

will match any aircraft name containing the string

Cessna Grand Caravan

Cessna Grand Caravan

with or without

208B

208B

smitty•9/8/24, 8:01 PM

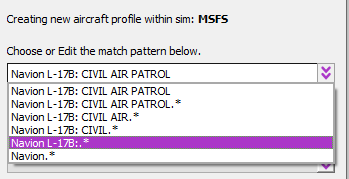

also you can pull down the airplane/livery name to get suggestions when making the new plane. just pick the one where the full livery name is replaced with .*

VPS_Choki•9/8/24, 8:56 PM

hello guys

im trying to set up my vprhino for flying with f-5 but it seems that the trim is very strange i cannot trim down enough is there a workaround or something?

Kaidrick•9/9/24, 4:09 AM

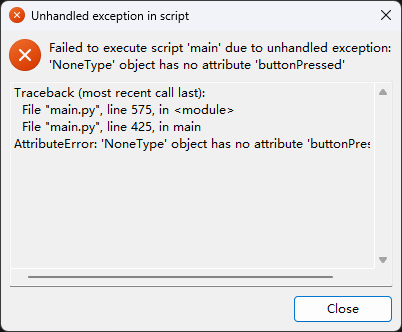

I can't seem to start telemffb normally since the last update (20240812). I've also tried the newest 20240908, same problem. 20240726 works perfectly. Any thoughts?

KKamini @walmis i think my winwing adapter is dead on arrival. None of the buttons are w...

walmis•9/9/24, 7:43 AM

Hey, did the adapter insert nicely into the base? If all troubleshooting steps have failed, you can request a replacement via the order form.

KKaidrick I can't seem to start telemffb normally since the last update (20240812). I've a...

Number481•9/9/24, 10:57 AM

seems like an issue connecting to the base. Are you on the latest firmware? Can you post the whole log file from

%localappdata%\VPForce-TelemFFB\log

%localappdata%\VPForce-TelemFFB\log

Jumara•9/9/24, 3:24 PM

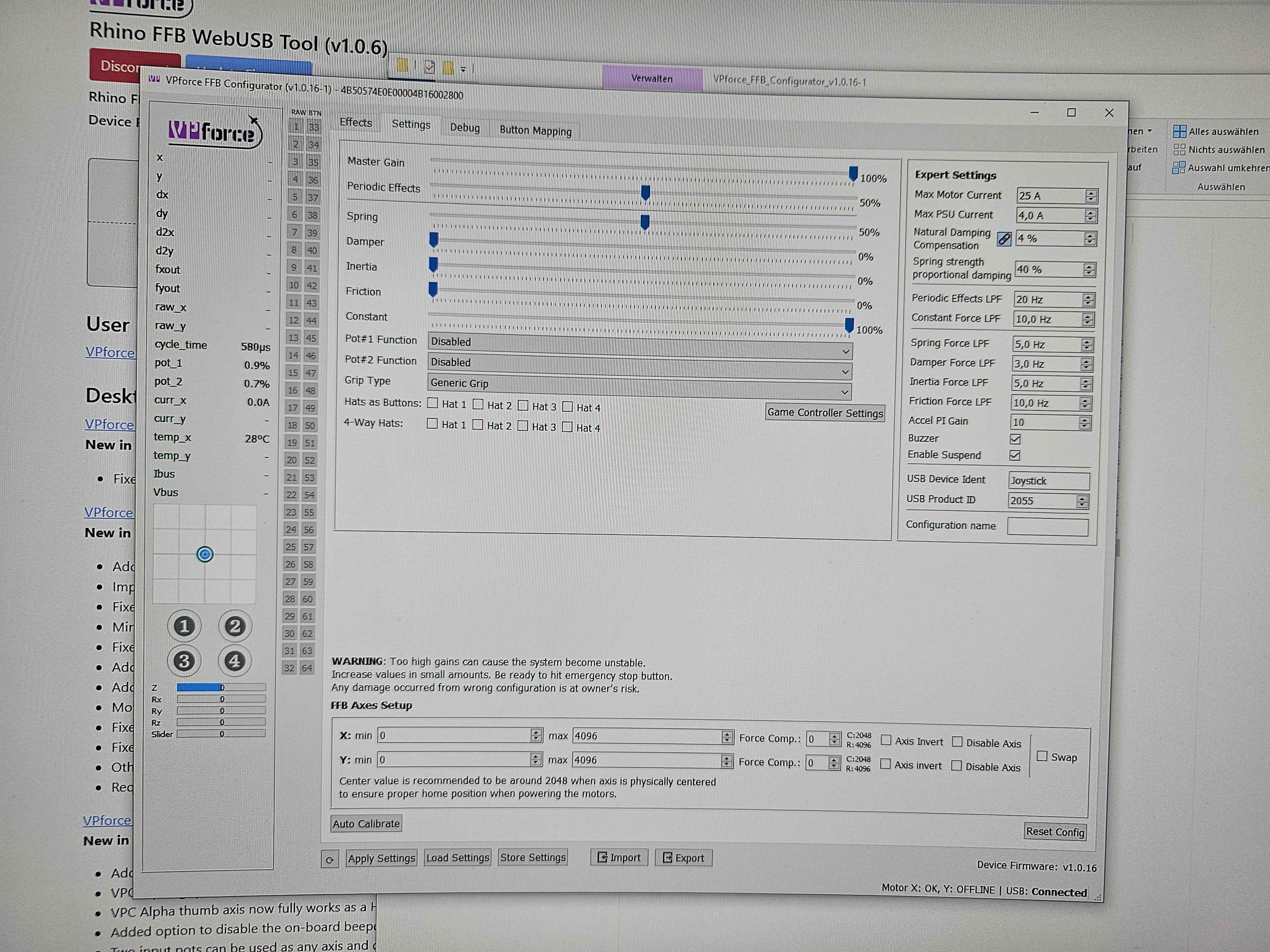

Hi, just started with building my FFB Setup. Today I finished modifying my MFG Pedals, according to the build in the knowledge section. So I pluged it in and it got instantly recognised. But when I turn the master gain and spring up nothing is happening. In my understanding I should get some resitance on the motor. Also it doesn't show any raw value for the axis. I'm sure the wiring is correct, checked it several times and it matches all the reference pictures I can find. The motor status in the software shows ok and I can feel that the anti cogging Kicks in when i power it up. Any suggestions?

Jumara•9/9/24, 3:24 PM

JJumara Hi, just started with building my FFB Setup. Today I finished modifying my MFG P...

Number481•9/9/24, 3:31 PM

you need to disable the y axis in configurator in order for it to be recognized as a single motor setup.

Glaive(Rikk)•9/9/24, 4:07 PM

My emergency stop button has stopped working again, is it a logic switch or does it actually cut the power? Just wondering if I can do the same in telemffb rather than stripping it all down for the third time?

GGlaive(Rikk)My emergency stop button has stopped working again, is it a logic switch or does...

Hiob•9/9/24, 5:55 PM

The „emergency“ switch is a real switch that cuts the power physically.
