Bummer, so will need to sell mine and buy a Monster Rhino , have you tried the stronger motors? wort
Bummer, so will need to sell mine and buy a Monster Rhino , have you tried the stronger motors? worth it?
CCant find it in the manual
CWhat do you mean hardware trim in the Viggen?
CI mean, when I trim nose down, the stick travels backwards, and becuase everything is off center after trimming, the "autopilot" cant be engaged, since letting go of the stick will command nose up or down if you have used any trim
CSound like you trim bindings are backwards
CThey are good ingame, any way to flip them in the rhino sw then?
CWhat else did you change in DCS or Vpconfig? This is not the normal usage. I just trim like normally and my stick follows
TI have, but have never tried the standard Rhino to compare to. The regular 60/15 gear ratio of the monster makes it about 1.7x more torque than the standard Rhino but I recently upgraded to 72/15 which is just a hair over 2x the torque of the standard Rhino.
TThe Winger kits are in fact kits though, so you do have to assemble yourself. Plus buy the 86 series motors from Walmis.
TMake sure if you are inverting your pitch axis that it is inverted in the VPForce configurator. And not inverted in DCS.
CAble to fix it?
CI tried the F4, there everything works out of the box. But for the viggen the stick moves the wrong way when trimming
N1.) Make sure your axes move correctly in configurator. If one or both are backwards, invert them in configurator, not the sim.
2.) if the trim is backwards for an aircraft, invert the axis in the FF Tune for that axis. Pretty sure the F5 x axis needs this treatment, there are probably others I don’t know about.
2.) if the trim is backwards for an aircraft, invert the axis in the FF Tune for that axis. Pretty sure the F5 x axis needs this treatment, there are probably others I don’t know about.
CWhat are we talking abouth ere ? FF tune? Is that Telem FFB?
CIm reading something about inverting FFB axis in DCS. But I can not find any options for that in the game
NThat’s cause DCS retarded. You have to uncheck the “foldable view” in the controls binding, then you will see the FF Tune button
HHey. It is. Still it deserves love!
NTough love
COk down at the bottom, after you have selected the regular axis inside
CNever know those options exsited really
CThanks a lot, now it works fine
DAre you sure this is the case. Maybe Im not describing in correctly. Sorry for the warped view from VR. The control indicator has more travel on the bottom than the top. I seem to have sorted it out with some axis rescaling. Is there a way to have it just set the neutral position like the F5 does? without having to tweak the axis scaling for different aircraft?
NSend over your TelemFFB config if you want, here or DM me (Help->Create Support Bundle).
Did you verify if it is the actual in-game trim that is running away? Should be able to see the trim position moving un-commanded if that is the issue
Did you verify if it is the actual in-game trim that is running away? Should be able to see the trim position moving un-commanded if that is the issue
AYes, last time it was full nose down trim and that trim indicator was all the way at the top
AI'll send it to you tonight after class
NHmm. Yeah, there’s nothing in TelemFFB that sets the trim. Even if you were using the hardware trim in the spring override feature, that doesn’t change the trim value…only the spring center.
I don’t even think it’s possible to externally set the trim in DCS.
Send over your Telem config anyway and I’ll have a look at it.
I don’t even think it’s possible to externally set the trim in DCS.
Send over your Telem config anyway and I’ll have a look at it.
AWonder if something in my DCS install is corrupted then because I even deleted the keyboard trim bindings just to be sure there was nothing else that could input
*Guys... did anyone design a plastic cover for the front cable & power connectors...?
I already stumbled over those protruding cables and it's gonna get wrecked if I do it again...
I already stumbled over those protruding cables and it's gonna get wrecked if I do it again...
KI turned my Rhino, so the connectors are on the backside.
Also you can buy angled usb & power cable/adapters. This helps, too.
I didn't see a cover for them here.
Also you can buy angled usb & power cable/adapters. This helps, too.
I didn't see a cover for them here.
Vso after adding force comp. my stick starts to oscillate on the x axis what can i do to go around that? i only get it when i put force comp im pretty new sorry the questions
PHi Guys how do i find my position in the que ..i found the bot to use ..i think ..not to sure what to type in said didnt understand ? new to the discords any help much appreciated .thx
HWould anyone happen to know how I've screwed over my config so bad it makes the joystick disconnect when I load into modules in DCS?
I was wondering if it was because I disabled hot swap in DCS, but apparently thats not it either. I have no other USB issues as far as I can tell.
EDIT I do have a B650 motherboard - AMD / 7800 X3D cpu.
I was wondering if it was because I disabled hot swap in DCS, but apparently thats not it either. I have no other USB issues as far as I can tell.
EDIT I do have a B650 motherboard - AMD / 7800 X3D cpu.
HJust by trying to load the default Rhino profile in VPForce FFB Configurator, I get this error log in TelemFFB - seems it disconnects
2024-10-09 21:22:04.535 - joystick - INFO - Launching VPforce Configurator....
2024-10-09 21:22:41.615 - joystick - ERROR - Exception
Traceback (most recent call last):
File "telemffb\hw\ffb_rhino.py", line 659, in timerEvent
File "telemffb\hw\ffb_rhino.py", line 787, in read_reports
File "telemffb\hw\hid.py", line 163, in read
File "telemffb\hw\hid.py", line 148, in __hidcall
telemffb.hw.hid.HIDException: hid_read_timeout/GetOverlappedResult: (0x0000048F) The device is not connected.
2024-10-09 21:22:41.615 - joystick - WARNING - Reconnecting HID device in 1s
2024-10-09 21:22:42.623 - joystick - INFO - HID connected!
2024-10-09 21:22:04.535 - joystick - INFO - Launching VPforce Configurator....
2024-10-09 21:22:41.615 - joystick - ERROR - Exception
Traceback (most recent call last):
File "telemffb\hw\ffb_rhino.py", line 659, in timerEvent
File "telemffb\hw\ffb_rhino.py", line 787, in read_reports
File "telemffb\hw\hid.py", line 163, in read
File "telemffb\hw\hid.py", line 148, in __hidcall
telemffb.hw.hid.HIDException: hid_read_timeout/GetOverlappedResult: (0x0000048F) The device is not connected.
2024-10-09 21:22:41.615 - joystick - WARNING - Reconnecting HID device in 1s
2024-10-09 21:22:42.623 - joystick - INFO - HID connected!
HMuch appreciated suggestion, Number481. I’ll try the script tomorrow.
WHmm, do you use a USB hub?
HI have a powered usb hub connected to the pc, but haven’t plugged the rhino into it. Tested it out as well yesterday with the same disconnect.
WDoes this disconnect happen only when using telemFFB ?
HI suspect so, yes. I’ll have a try with only using the config later on. But I suspect it’s only with telemFFB active.
WOne thing that could cause a reconnect normally is if the config profile changes either the "device ident" or the "device ID"
HI’m assuming that would produce a different usb product ID in the vpforce ffb configurator. Vaguely certain it stays the same, but also going to look into that. Any other way to tell if the configs force a new id?
NThis shouldn't be possible.. TelemFFB reads the config file first to check that the PID matches the device its getting ready to send it to.
WYeah, but device name change will def cause a usb reconnection
Ntrue.. we don't check for that. I guess I should also check the Ident against the
dev.product_string in addition to the PID check.

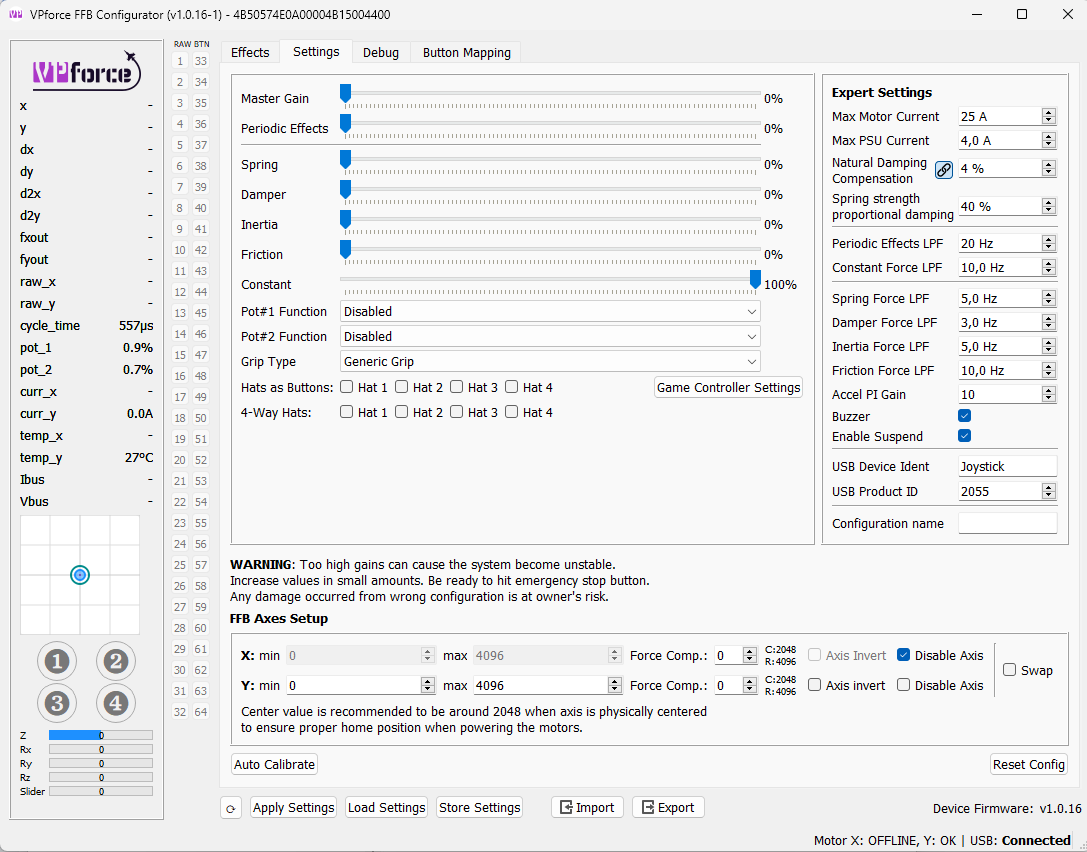

SHello everyone, I have just finished the mechanical construction of my diy collective and am trying to get the electronics up and running. I am experiencing the following problem. In the FFB Configurator I do not get a display of the motor position (see screenshot). I have connected the ID:0 (y) pitch motor to MOT 2. I have checked the power supply to the motor and it is OK. What have I overlooked? Any help is welcome.
Many thanks
Martin
Many thanks
Martin
Ndisable the x axis in configurator so it knows its a single motor setup
H@walmis @Number481 I just found something interesting. Some of the profiles I load changes the USB Device Ident from "joystick" to "Rhino" (for my helo build). When the ident changes away, the stick disconnects ...
SThank you but that does not change the problem
NOK. This is what walmis was saying. The Ident and PID must be identical across all the profiles for the same device, otherwise you will see exactly what you are seeing.
I'm extending the logic in TelemFFB that would have prevented you from assigning those profiles in the first place
I'm extending the logic in TelemFFB that would have prevented you from assigning those profiles in the first place
HIdiot-proof it, you say?
TIt’s not showing any input power to the controller board. Is your power supply connected and switched on?
