hey guys. Im getting this weird error , which stated undervoltage issue. Any idea what could cause t

hey guys. Im getting this weird error , which stated undervoltage issue. Any idea what could cause this ?

.Eagle.OP•12/1/24, 2:41 AM

..Eagle.hey guys. Im getting this weird error , which stated undervoltage issue. Any ide...

Hiob•12/1/24, 8:23 AM

Hey, 4A max PSU current may be a little on the short side. Especially with this high gains. Try 6A (or more if you come close to this. Have a look at the telemetry when you pull max force)

Hiob•12/1/24, 8:24 AM

(Even though, if the PSU is capable enough, the voltage shouldn't falter. But I don't know how the controller regulates if the set limit is reached. When the Motor Amp limit is reached they simply don't increase the force anymore. But I never tried the PSU limit.)

Hiob•12/1/24, 8:48 AM

Ok, just tried it. Settings the PSU limit too low, simply limits the max force output. But doesn't give me any errors.
Sorry, was just an idea.

.Eagle.OP•12/1/24, 10:00 PM

Yeah I tried 6.0 and still does it.

.Eagle.OP•12/1/24, 10:00 PM

I have not idea

.Eagle.OP•12/1/24, 10:01 PM

I double check connection and psu seen working fine.

.Eagle.OP•12/1/24, 10:01 PM

It all started after I stop using it for 5 months

..Eagle.I have not idea

Hiob•12/1/24, 11:00 PM

Have you updated the firmware?

Andre•12/1/24, 11:02 PM

I updated my firmware to the latest version and am getting this message. I have tried downloading an older version of the configurator and I am still getting the same error message

HHiob Have you updated the firmware?

.Eagle.OP•12/1/24, 11:12 PM

I did

AAndre I updated my firmware to the latest version and am getting this message. I have ...

Hiob•12/1/24, 11:13 PM

You need to use the latest version of VP config as well. The one in your screenshot is outdated and diesn't work with the newest firmware

Hiob•12/1/24, 11:14 PM

https://vpforcecontrols.com/downloads/VPforce_FFB_Configurator_v1.0.17b2.zip

Andre•12/1/24, 11:32 PM

thanks! I don't know why I couldn't find that link earlier

Mack•12/2/24, 4:11 AM

hey - looking for some help. I upgraded to win 11, and fresh install on new drive. now telemFFB isn't seeing DCS.

Mack•12/2/24, 4:11 AM

anyone run into this?

Mack•12/2/24, 4:11 AM

i regenerated the export.lua.

H145Rotor-Sims•12/2/24, 1:08 PM

Any way to rename the controllers?
What if I have 3 boards connected all at once, does the software all me to see all three or do you have disconnect each board from usb and do one board at a time for programming?

walmis•12/2/24, 1:11 PM

Yes, you can change the device PID and name

MMack hey - looking for some help. I upgraded to win 11, and fresh install on new driv...

Hiob•12/2/24, 1:25 PM

Did you remove (or rename) any other .lua files in the scripts folder as well? If not try that.

Wwalmis Yes, you can change the device PID and name

H145Rotor-Sims•12/2/24, 2:29 PM

Thank you. And what about if I have 3 boards connected all at once, does the software all me to see all three or do you have disconnect each board from usb and do one board at a time for programming?

walmis•12/2/24, 2:31 PM

All three will work fine

HHiob Did you remove (or rename) any other .lua files in the scripts folder as well? I...

Mack•12/2/24, 3:49 PM

No i didn’t. I’ll do that with the others in there.

peteg•12/2/24, 3:52 PM

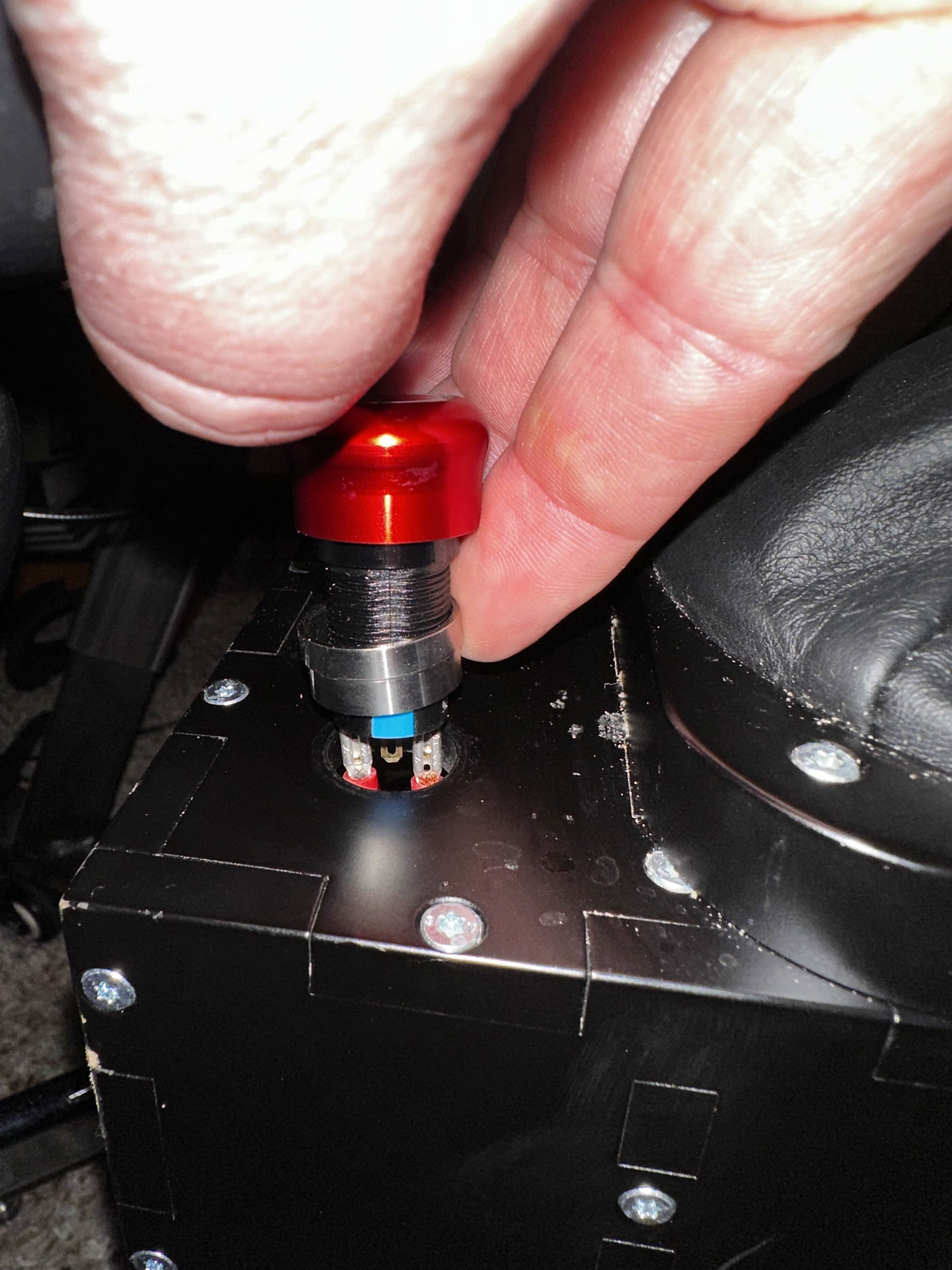

The red knob on my Rhino has come off. Can anyone tell me how to fix this?

Ppeteg The red knob on my Rhino has come off. Can anyone tell me how to fix this?

walmis•12/2/24, 5:54 PM

You can open the rear panel (the one with the fan) and it tightens with a nut from the other side

Wwalmis You can open the rear panel (the one with the fan) and it tightens with a nut fr...

peteg•12/2/24, 6:27 PM

Will do thanks Walmis!

H145Rotor-Sims•12/4/24, 6:24 PM

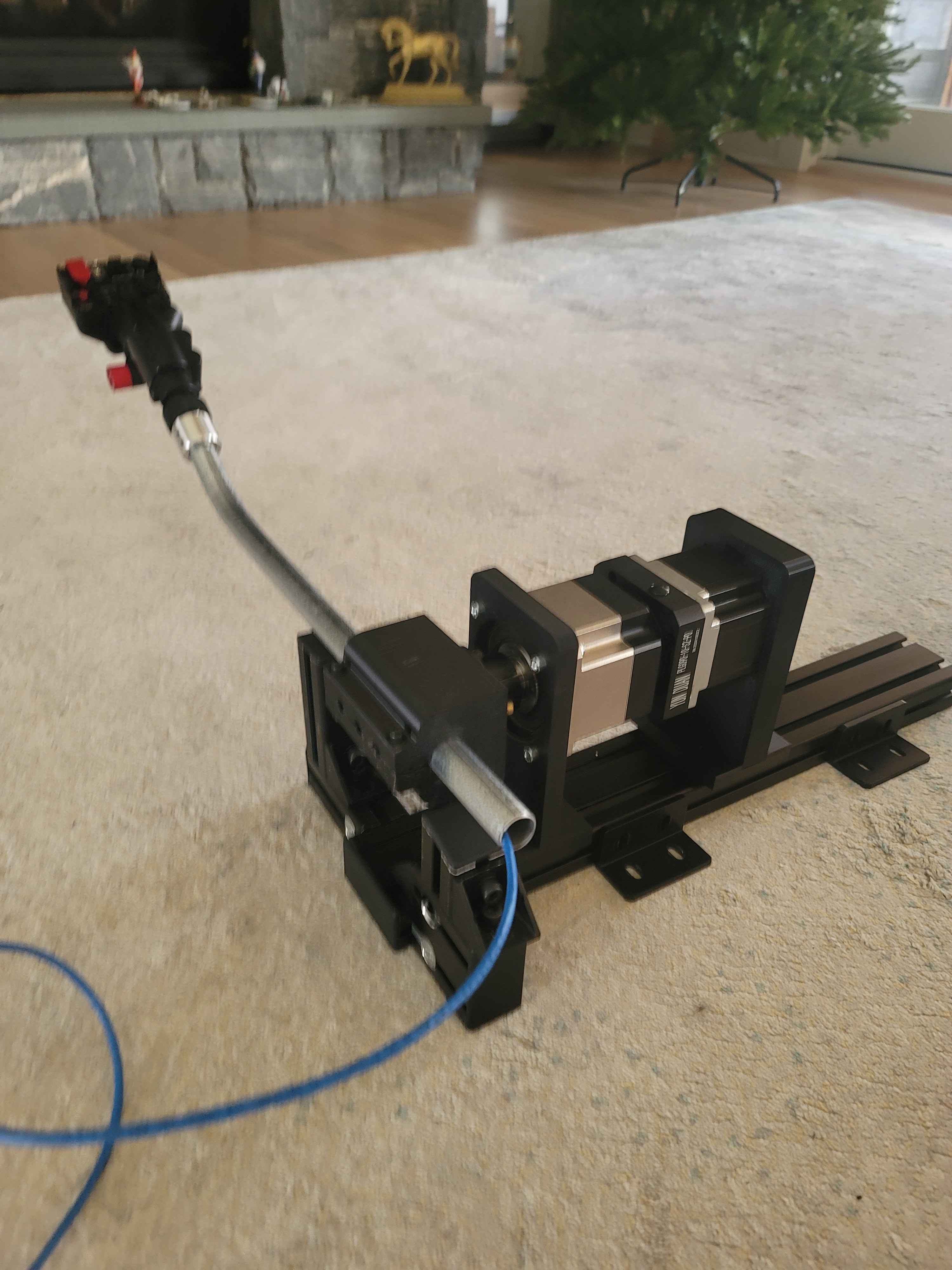

Hi guys, just got my collective calibrated with 86 motor on a gear box. Due to the length of the pole and the grip (metal) I'm not sure if I need to counter balance or the motor is strong enough. Not really sure what I should set. Currently I have the grip off, set the spring 100% and then found a setting for static force which I set to 50% so now when I move the collective handle it stays were I left it. Global gains and Global effects are at zero.

TonyZ2525•12/4/24, 6:47 PM

@H145Rotor-Sims i think you should always counterweight a collective control since speed of movement is not an issue so extra mass should not hurt anything

TTonyZ2525 @H145Rotor-Sims i think you should always counterweight a collective control sin...

H145Rotor-Sims•12/4/24, 6:58 PM

Hi Tony, I have it connected to a 10:1 gear box and noticed if I set static force it can balance but I am using this strictly for the H145 HPG. I'm reading the documentation on it and it mentions to use balance spring and adaptive force to bring it to center. So I'm not sure if I'm not allowed to use static force in conjuction with that

H145Rotor-Sims•12/4/24, 7:01 PM

TonyZ2525•12/4/24, 7:01 PM

I dont mean to use the forces on the motor to balance...i mean to attach a physical weight to the end of the tube to balance the entire arm before ever putting it on the motor.

smitty•12/4/24, 7:02 PM

physical weight counterbalance would be best

TonyZ2525•12/4/24, 7:02 PM

yes

H145Rotor-Sims•12/4/24, 7:03 PM

Okay that's what I'll do. I guess the goal is put as little resistance load on the motor as possible

TonyZ2525•12/4/24, 7:03 PM

yes exactly

H145Rotor-Sims•12/4/24, 7:04 PM

Now time to find some weight

TonyZ2525•12/4/24, 7:05 PM

try ring weights or mic stand balance weights maybe on a threaded tube so they are adjustable.

TonyZ2525•12/4/24, 7:06 PM

https://www.amazon.com/OnStage-CW-6-On-Stage-Cw-6-Counterweight/dp/B0010HCI66

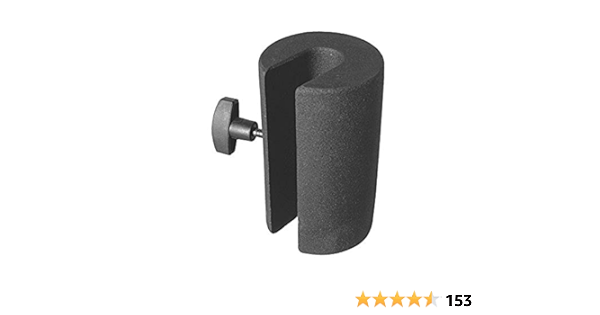

On-Stage Cw-6 6Lb. Counterweight

Solid-steel constructed counterweight attaches easily and securely to your boom or shaft for added balance and stability. On-Stage is a leader, changing the way musicians display, support, and protect their prized instruments and equipment. Music people proprietary product like On-Stage stands an...

TonyZ2525•12/4/24, 7:07 PM

https://www.bhphotovideo.com/c/product/494362-REG/K_M_21105_000_55_21105_Counter_Weight.html?ap=y&smp=Y&srsltid=AfmBOorO6oPkC_CXUJ0w4EZbMHBqcAOeTrxRPm_CXIXO9MXlniRrDCyWt_I

TonyZ2525•12/4/24, 7:08 PM

https://www.bhphotovideo.com/c/product/1133785-REG/latch_lake_4wtst_4_lb_countweight.html?ap=y&smp=Y

TonyZ2525•12/4/24, 7:09 PM

https://www.amazon.com/ZSHJG-Stabilizer-Counterweight-Vibration-Dampener/dp/B07HLJ7X8J?th=1

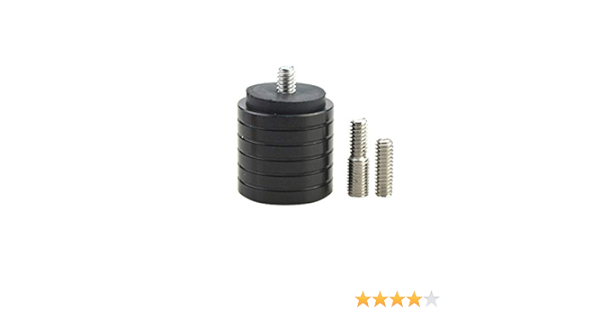

ZSHJG Archery Stabilizer Weight Counterweight Kit Bow Stabilizer Vi...

Specification Item name: Archery Stabilizer Weight Weight: 51.1g Material: Aluminum Alloy Color : Red, Silver, Black Package include: 1 set stabilizer Our Story and Purpose We are a Professional factory focus on Archery Products, If you love Archery And need some related products, Just contact us...

TonyZ2525•12/4/24, 7:09 PM

just a few ideas

H145Rotor-Sims•12/4/24, 7:10 PM

I just did a quick test with some weights. I need about 12 lbs or need to extend the rear

TonyZ2525•12/4/24, 7:13 PM

probably best to extend the rear with a slightly larger tube and attack the weights to that...even a pvc tube to fit inside the collective tube and still have the wire come through the middle

TTonyZ2525 probably best to extend the rear with a slightly larger tube and attack the weig...

H145Rotor-Sims•12/4/24, 7:17 PM

As an electrician the first thing that came to mine was a 4 sq j box filled with concrete

TonyZ2525•12/4/24, 7:17 PM

that works

H145Rotor-Sims•12/4/24, 7:18 PM

Is there anything wrong with using 50% constant force?

TonyZ2525•12/4/24, 7:18 PM

or lead pellets

TonyZ2525•12/4/24, 7:20 PM

aside from constant power draw and possible heat in the motors not really...but if the motor powers off or ps shuts off the the copter is going down unless you constantly hold the collective in place...hard balance w weights eliminates that issue

H145Rotor-Sims•12/4/24, 7:22 PM

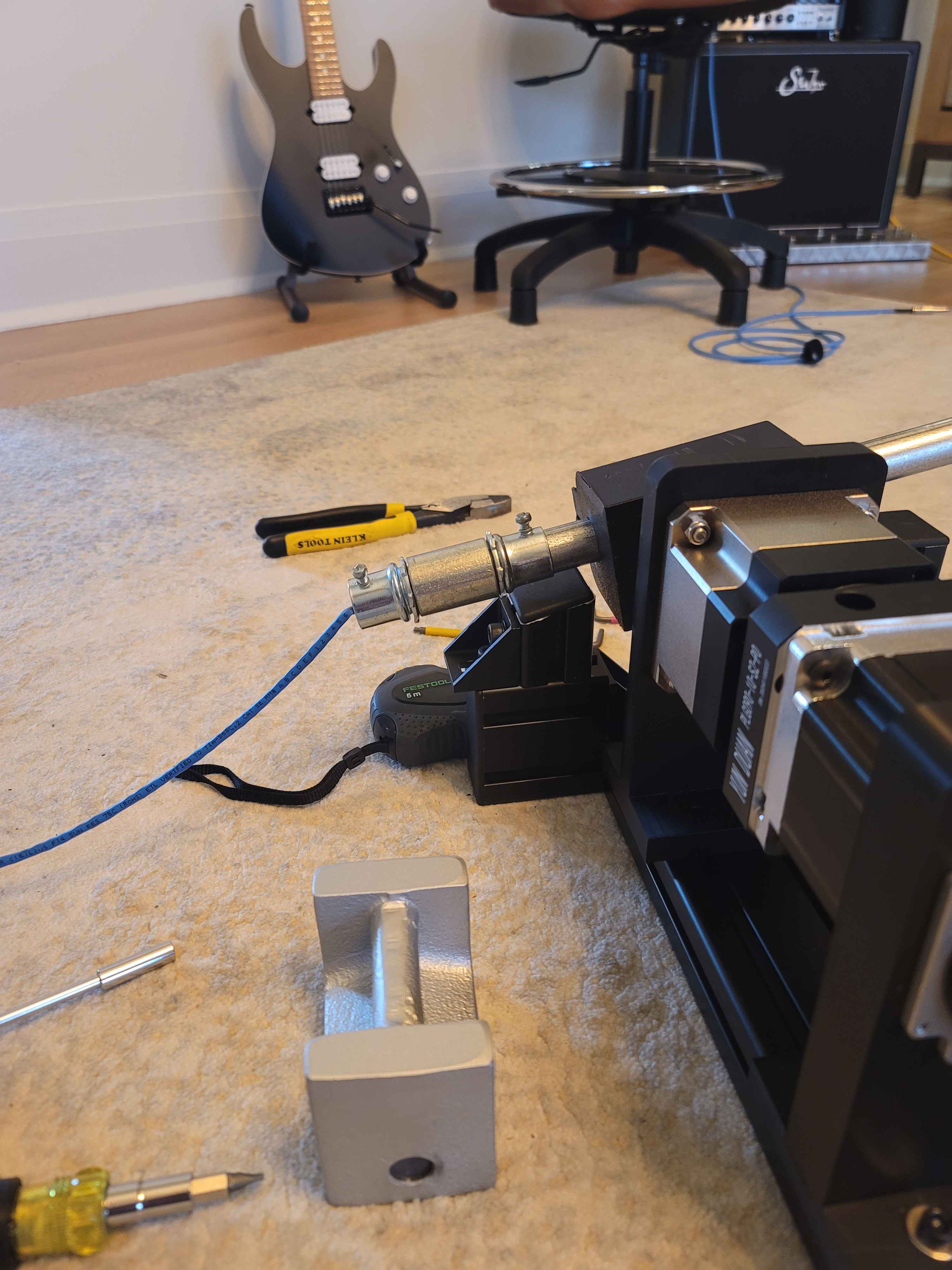

Just by adding two emt connectors and 1 rigid coupling my static force is 12% and holding. I gave nothing else set
