Okay. So this is "global" in the VpForce but may be doable in telemffb. I'll dig into this. Thank
Okay. So this is "global" in the VpForce but may be doable in telemffb. I'll dig into this. Thank you.
NThere are no endstop settings in TelemFFB, but you can use the Dynamic Configurator Profile Assignement feature to push a profile when a specific aircraft is loaded.
FMaybe static force is getting in the way. I would disable it and then make sure you calibrate the balance spring well.
Cdoes anyone know why telemffb may not be recognizing or reading inputs from my VKB MCG?
ICan I buy a base for when upgrading the motors? Or I need to make it?
F@SR-FWinger[73]_David offers the base for the 86 motors already pre assembled
H@SR-FWinger[73]_David Get it from him. He makes an awesome base. I physically have one. I just dropped in my 86 motors, did the wiring and done
Ngrip type in configurator must be set for loopback.
loopback app must be running and set to tie your black-box to your Rhino
loopback app must be running and set to tie your black-box to your Rhino
Cwhere is the loopback app located
FIn the Rhino configuration app in the drop down list where to chose the type of grip
Coh ok i thought there was a seperate app you needed
NIt is a separate app, the exe is in the same folder with the configurator exe.
FOh, don't mind me then
NGoogle Docs
VPforce RHINO FFB User Manual Version 0.81 (WIP) Table of Contents 1. Welcome 1 2. Getting Started 3 2.1. Technical Specifications 4 2.2. Physical Setup 5 2.2.1. The VKB Adapter 6 2.2.2. The WinWing Adapter 6 2.2.3. The RHINO Throw Limiter Adapters 7 2.3. Initial Connection and Updating ...
Cthank you
![[OR] SerGeant](https://cdn.discordapp.com/avatars/290181622832168961/338cff3e564800fa5a1068e9c25e28f5.webp?size=40)
[Hey,
Since the last update of TelemFFB, the VP configurator behaves very strange.
It takes several seconds till I got the device selection window. And then switching between the devices inside the configuration takes also very long. Sometimes they are not initialized correctly in the configurator.
Can anyone else confirm this problem or can someone help?
Since the last update of TelemFFB, the VP configurator behaves very strange.
It takes several seconds till I got the device selection window. And then switching between the devices inside the configuration takes also very long. Sometimes they are not initialized correctly in the configurator.
Can anyone else confirm this problem or can someone help?
![[OR] SerGeant](https://cdn.discordapp.com/avatars/290181622832168961/338cff3e564800fa5a1068e9c25e28f5.webp?size=16)
WSounds like USB driver/hardware related issues - try rebooting
[Itβs since several sessions. So many reboots have been inbetween.
Maybe isolating the USBs of the VP force devices leads to a solution.
Maybe isolating the USBs of the VP force devices leads to a solution.
WIs it via USB hub?
[Yes.I have a simpit with 11 USB devices.
But I have not changed a thing. It has been running without issues since I first plugged the rhino in. 2 years ago.
But I have not changed a thing. It has been running without issues since I first plugged the rhino in. 2 years ago.
WIt could be various reasons - for example Windows update updated something
[Found the culprit. An usb cable has been squeezed between two alloy profiles. One wire was cut. So I had the USB error you predicted
IAre there any 3D print files of the base for larger motors?
HFor the Rhino base. Yeah for sure there is. All the stl etc are on github.
HPost in the DIY section not support
BBefore I attack stuff, is there a guide to switching the din connector 180 degrees as I am running with the emergency stop at the front and already reversed things in the software. just be nice to fit my TM WH stick
FJust remove the two screws and there should be enough slack to pull it out and turn it.
IHey, looking at grabbing the VKB adaptor, what would the wait time for it to be shipped be like?
BPerfect thanks, I was about to do that and thought I would ask JIC
(@Blackrat just be carful when pulling out the din as the other side is a jst conector so ensure thatβs seated securely when putting all back together also ensure you donβt trap and nick a wire
BAlready rotated, but I literally pulled it up just enough to rotate 180 degrees without fouling the seating area so never saw a wire or what was underneath. If I have an issue I will strip it down, but tested with my TM grip and all buttons work.
(
BHelp! Got the Rhino in yesterday and installed in my simpit. I gave MSFS, DCS working properly. Recognize pitch and roll axis.
Got the Rhino in yesterday and installed in my simpit. I gave MSFS, DCS working properly. Recognize pitch and roll axis.BIL2GB on the other hand does not recognize the Rhino axis and I canβt map them in setup.
BSince the other simulators recognize the rhino base it must be Il2 specific. Anyone else here had issues? Solutions?
BIf you cannot see it at all then I think IL2 only sees the first so many controllers plugged in and ignores the rest, maybe you have hit that limit. Its been a few years since I flew it.

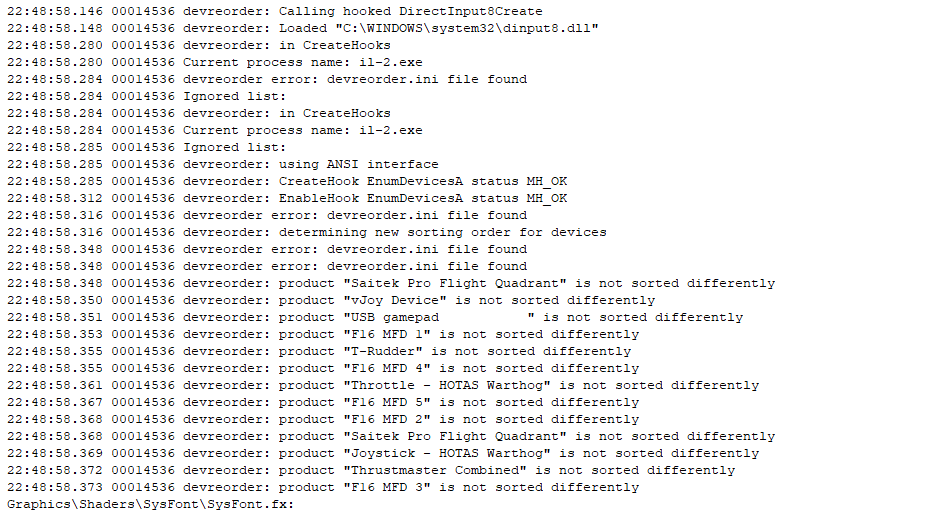

NBlackrat is likely on the right track. IL2 only supports 8 devices and will only see the first 8 that it sees. The order it sees them is seemingly random and likely dependant on in what order the devices were connected to windows. Check this thread on how to re-order the devices that IL2 will see. https://forum.il2sturmovik.com/topic/72473-so-you-went-and-bought-too-many-peripherals/
IL-2 Sturmovik Forum
Il-2 supports up to 8 devices. It's possible to exceed that limit, either because you have multiple vjoy devices, have racing gear attached in addition to your flight hardware, or maybe you just went a little wild building your home cockpit. This is a short guide to fixing that problem. If You On...
BOr grab a hub with switches for each device.
MOr use program called "usbdeview" to selectively shut off unneeded USB devices (also works for regular games that insist on treating every piece of your expensive HOTAS as a gamepad)
BThanks for the help guys! I downloaded the Devreorder utility and hid a bunch of controllers I donβt use in Il2. I had already unplugged some of them but apparantly had to put them in the right order. I know have all my my axis working. Thx again.
TYeah if you visit the IL2 forums or the Reddit youβll see this posted every so often because the whole βit can only see 8 devicesβ thing is a well known, but under the radar, type of bug.
Glad youβre back flying!
Glad youβre back flying!

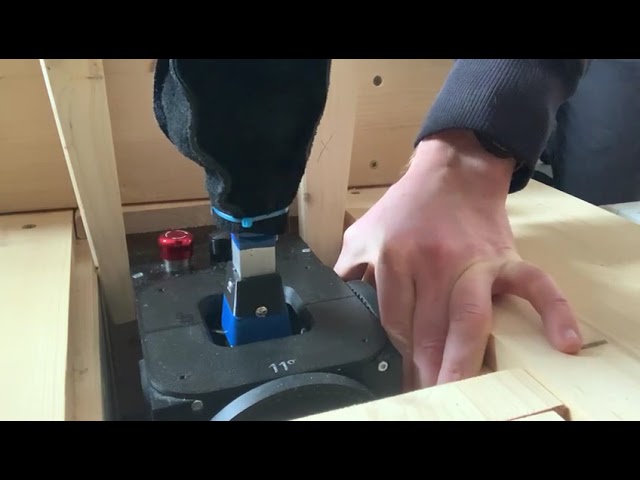

FI do have a cracking noise on the elevator. When holding the outer wheel and moving the stick, there is some play in the system which causes the noise. Is there some screw to tighten? If yes, which one? You can see the effect on this video: https://youtu.be/Z0OZHrEYDCQ
FRemoving the top wall should give you good access to the gimbal screws. Try tightening them and see if that fixes it.

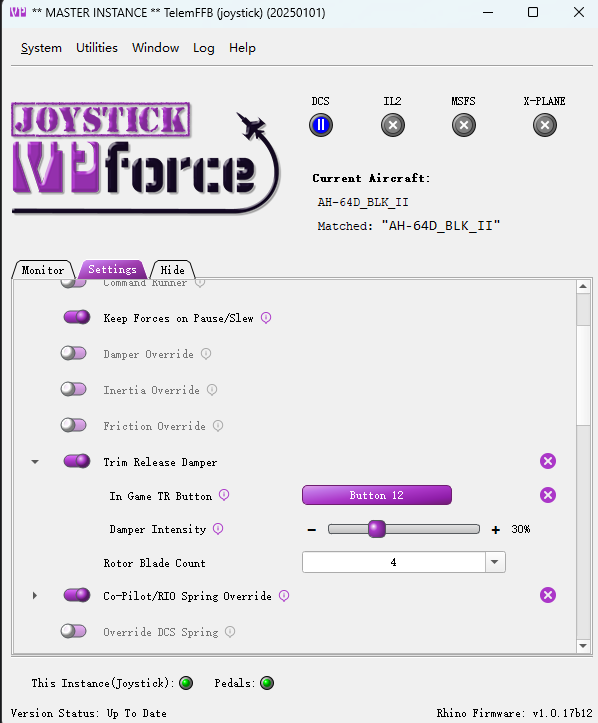

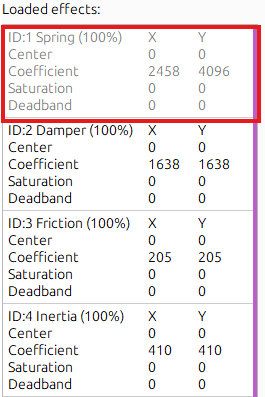

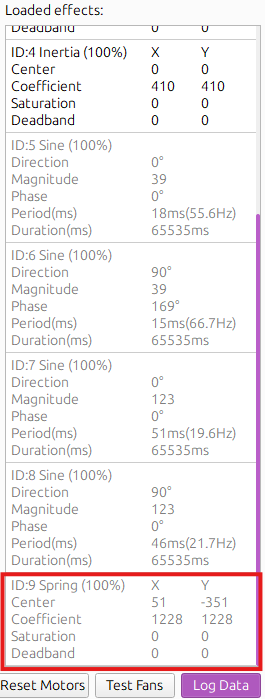

KDCS AH-64 TRIM ISSUE! οΌHELP!!I had update the newest firmware an telemffb software. When i press the Trim release button, there is a ID9 spring effect with a new center position and the ID1 spring effect with the 00 center is fade .then i release the Trim button and a few second later,the ID9 spring effect is gone and the ID1 spring effect is back .My stick get a force back to the 00 center. It's not the way for a heli Triming. the stick should be stay in the new certer position.
N"Trim release Damper" is not "force trim". It is a effect which, temporarily overrides the games spring effect in order to provide a configurable dampening feel while you have trim-release depressed. When you release the button, it hands control of the spring effect back to DCS. DCS itself manages the center position of the primary spring effect.
Disable the trim release damper feature, then troubleshoot why force trim isn't working with DCS (doesn't require telemffb to be running at all).
Disable the trim release damper feature, then troubleshoot why force trim isn't working with DCS (doesn't require telemffb to be running at all).
Kthanks , i will try the dcs force trim tomorrow

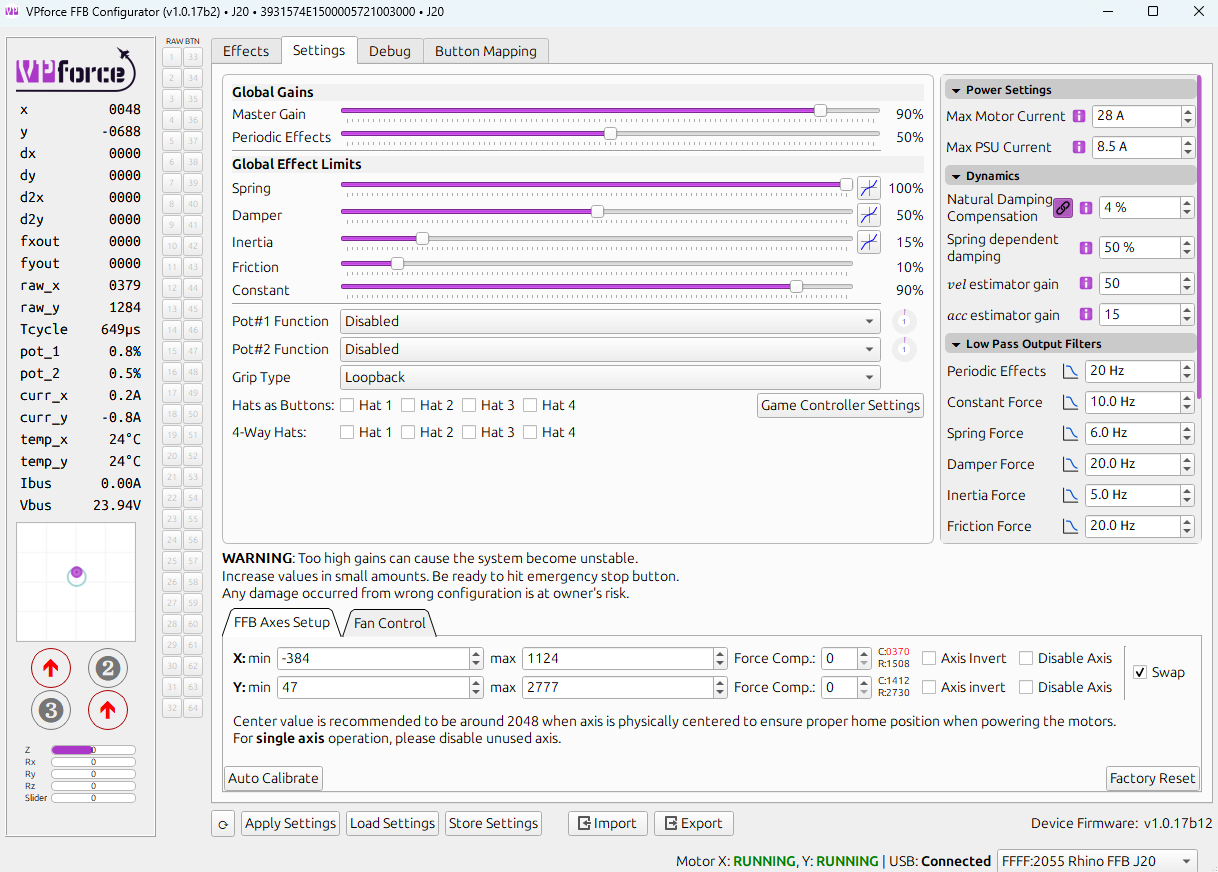

DHello, I have a problem with ffb inversion and there is a chance it's because I mounted rhino backwards with usb ports facing back.
After that I disabled inversion for X axis and enabled inversion for Y axis - so pitch and roll control displayed correctly. After that in Il-2 - when I am trimming elevator - it is correct, stick goes into nose heavy or tail heavy according to both button description and cockpit indication if present.
But aileron trim works the opposite way - when I trim left - stick goes to the right, opposing both default keybinding, button desctiption, cockpit indication and visually aileron should be moving the opposit way, it follows the trimmer deflection which is incorrect and should be oppossite, trimmer should push aileron and not make it follow it.
ELP.
After that I disabled inversion for X axis and enabled inversion for Y axis - so pitch and roll control displayed correctly. After that in Il-2 - when I am trimming elevator - it is correct, stick goes into nose heavy or tail heavy according to both button description and cockpit indication if present.
But aileron trim works the opposite way - when I trim left - stick goes to the right, opposing both default keybinding, button desctiption, cockpit indication and visually aileron should be moving the opposit way, it follows the trimmer deflection which is incorrect and should be oppossite, trimmer should push aileron and not make it follow it.
ELP.
DIf I invert X axis - seems ffb works correctly, but axis is now inverted in tester utility and in game (which is not really a problem since game can invert it anyway)
But probably there is some setting I need to do if I want to mount device in backward orientation?
But probably there is some setting I need to do if I want to mount device in backward orientation?
D... ok, seems axis inversion inverts both axis and ffb effect on said axis, because in DCS I have both ffb and axis inverted now. In that case for some reason roll FFB is inverted in Il-2 great battles specifically for some reason.
BYou need to invert in the vpconfigurator not the games.
