Yep, I'm somewhat along that path. I'll post some details when I get a chance.
Yep, I'm somewhat along that path. I'll post some details when I get a chance.
SOh wow sorry to hear that
haven't seen em sold out in a while, glad to see it's still as popular as ever though!
haven't seen em sold out in a while, glad to see it's still as popular as ever though!SI'm also kind of curious to try out rhino in scam(star) citizen
VIf you ship me parts i would be happy to be your tester
Joking aside i have an mfg V3 with dampers if needed
Joking aside i have an mfg V3 with dampers if needed
NSince I got my Rhino ship notification, I’ve been staring at my Virpil Ace pedals thinking about how I could add a motor to them
SSo Brunner finally came out with Direct X support.. Tried it, went back to using the Arduino
SThe VP force just looks like a better system
RPaid for mine and just waiting for it to ship.
WTuesday is the day, after the 'Labour day' holiday in Europe
LFfb doesnt really make sense on rudder pedals doesnt it?
WSide slip for GA and helicopter trim?
LWdym by sideslip?

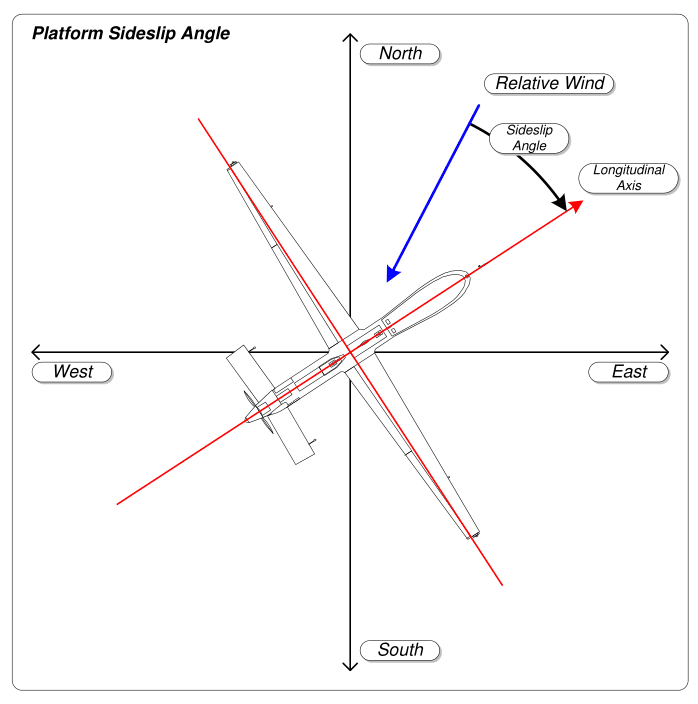

WA slip is an aerodynamic state where an aircraft is moving somewhat sideways as well as forward relative to the oncoming airflow or relative wind. In other words, for a conventional aircraft, the nose will be pointing in the opposite direction to the bank of the wing(s). The aircraft is not in coordinated flight and therefore is flying inefficie...
LI know a sideslip from gliders but in those you dont feel anything in the rudder
WI guess neutral position should change somewhat, or maybe some turbulence from cross wind?
LThats possible, havent really experimented
SFor helos it would make a lot of sense for me, vs the damper mod I have on it. Very ambitious, but I would love it if there was an easy way to add motors to toe break to simulate hydraulic pressure. I feel like I would feel some haptic sensation from the pedals during turbulence and what not
AIt could be a decent artificial feedback for it
AAnd as @stonedkakapo just said, also good for helos
RNice. No rush homie. Appreciate your hard work.
KIt's next on my list after finishing my mini-Rhino. I've got the crosswind pedals already and can start working on the CAD as soon as I finish my first stick.
KAbsolutely it does. Especially for GA and gliders. As @walmis pointed out, it's super strong during a slip but even airspeed vs pressure on a cessna is super noticeable in real life. My legs are tired from pressing the right rudder after a long flight doing pattern work (where lots of slips are used). For gliders it's even more pronounced: Almost no resistance on the ground but increasingly so as speed increases. I think you fly a K-21 @leninjahd , I haven't flown one of those yet, but in the 2-33 I fly learning the "feel" of the pedals is certainly part of the flight training.
MGlider pilot here.. there is nothing you feel on the rudder in a side slip or even full forward slip that would have any benefit from active feedback. Air is still just trying to push it back to center. Helicopter anti torque pedals would benefit from a trimmer though. Varying strength of rudder centering would be nice and all but imo ff rudder is still a solution looking for a problem
KInteresting perspective. You don't experience the feel of the rudder changing with speed? I don't think FFB would add "required" feedback but I do think it would bring added realism. At least in my experience the required force during a pre-flight check is significantly weaker than when doing a turn at speed. I'd describe it kinda like you can feel your foot swinging the rear of the glider back into position. Edit: Another example from GA is when doing stalls and spins. When you bring that nose up and airspeed drops the rudder becomes very "floppy" as that stall horn starts to whine. Then as you dive to gain airspeed it tightens back up pretty quickly.
PI've been thinking about this, but aren't toe brakes just, well, brakes? so what about a load cell mod for the toe brakes & the ffb for the rudder axis?
Pyeah all good reasons to have ffb. What I've come to believe personally since having the Rhino is that ffb is really good for emulating the different feelings you get in flight controls through different flight regimes & even on the ground feel, as you stated with the rudder pedals feeling 'floppy' at some points compared to their stiffening when going at higher speeds. I think ffb effects like gun shake etc. are great bonuses for immersion/fun, but the ability to customize the feel of stick/rudder for each aircraft & have those differing feelings in the controls for each is the major 'selling point' for ffb imho.
SI guess it would depend what brakes you're using and when. Like in the av8b, I remember when towing, the brakes would gradually get stiffer as I kept pumping em. Incredibly small detail, but would be nice to experience in VR . By load cell, you mean those spring l looking things some sim racing pedals have?
. By load cell, you mean those spring l looking things some sim racing pedals have?Pyeah typically the brake pedal on decent sim racing sets will have a load cell, usually with a spring then a soft rubber then harder rubber pads that push onto the load cell, the load cell just registers the amount of pressure pressed down on it. All this gives the feeling similar to a real car brake pedal
BI see that you guys are talking about rudder pedals with ffb; for those interested in what it does to your game go check out some reviews about the new Simucube Pedals with ffb
BThose that also do sim racing know what I’m talking about
BYouTubeBoosted Media
Ever since I got into Sim Racing, it's been pretty clear to me that there has been three things missing when compared with real-life racing. A sense of danger, a sense of sustained cornering g-forces, and a sense of how the brakes are actually performing underfoot. So when Simucube announced the world's first ACTIVE Force Feedback Sim Racing Ped...
BHis face when he pressed the brake for the first time
Bi hope the price of a single pedal is just an attempt to fish for how much people are willing to pay, beause i can not see even an enthusiast justify that price
Bthat is the price of a motion rig
JSimucube is the highest end company big sim company on the market all of their stuff is super expensive. I agree it is overpriced AF but that's what their demographic is. Their demographic is used to paying such premium pricing for premium things.
I'd argue motion rigs are also overpriced. DIY is so much cheaper to achieve the same thing (pending on what motion rig you get ofc)
If someone just wants some rumble, Sim3d makes a rumble kit for pedals
I'd argue motion rigs are also overpriced. DIY is so much cheaper to achieve the same thing (pending on what motion rig you get ofc)
If someone just wants some rumble, Sim3d makes a rumble kit for pedals
JBoosted Media has like a $100k sim rig themselves, if that tells you anything about how they view prices of things
JSpeaking of FFB in non-traditional things there's a DIY FFB shifter kit. Makes the shifter feel like a real one mechanically, with proper resistance, vibrations, etc. and can change between H and Sequential

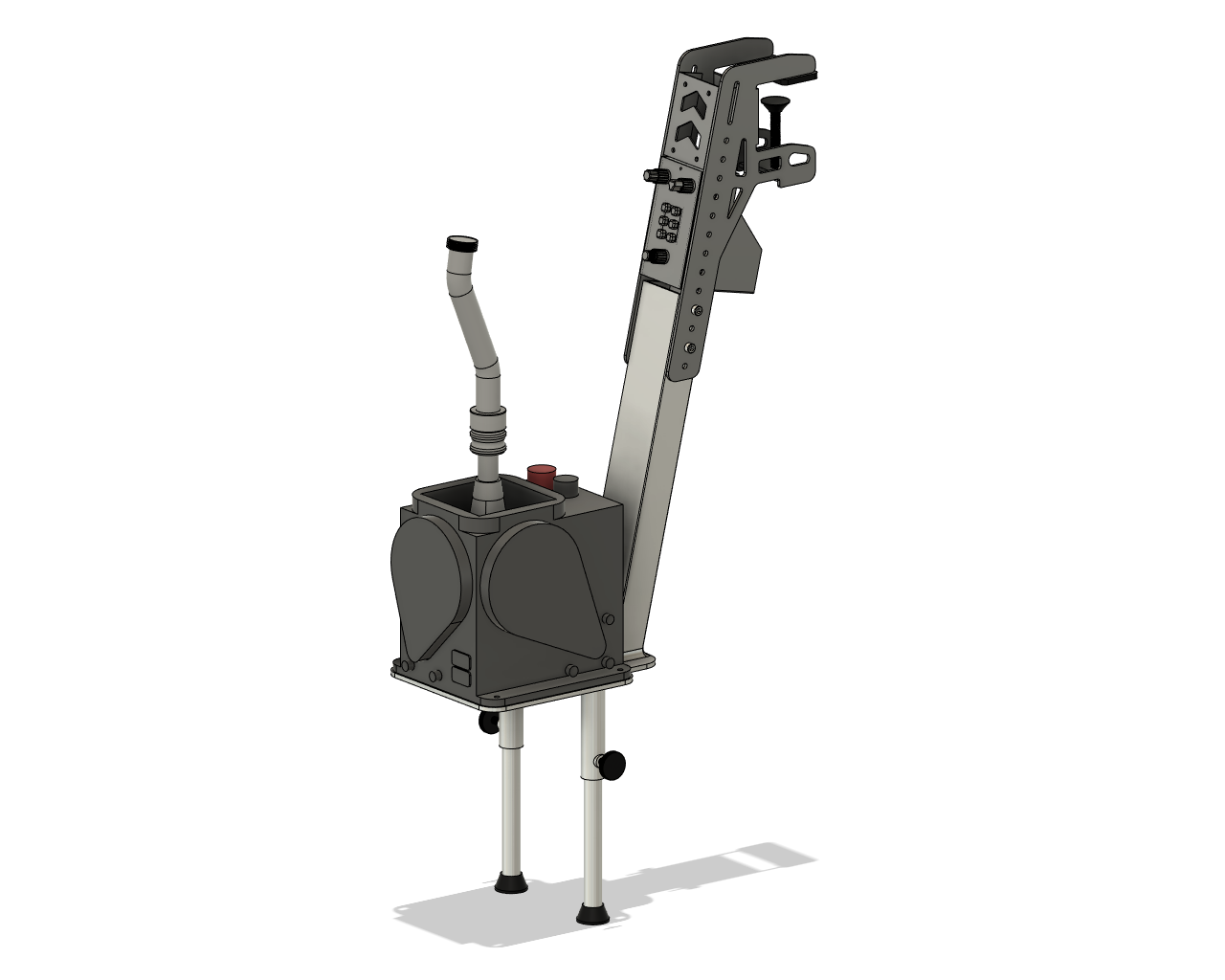

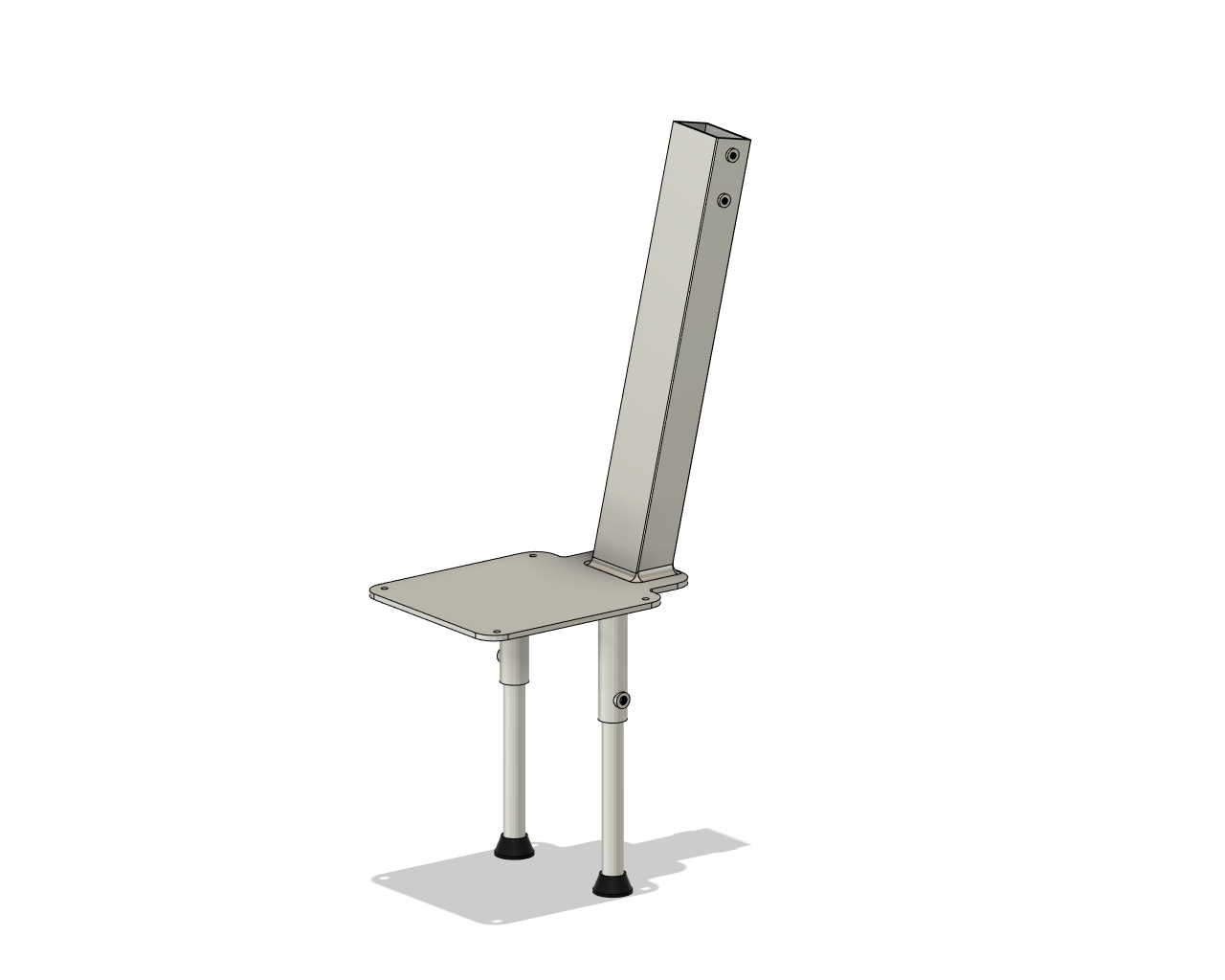

NHas anyone successfully mounted their Rhino to a Virpil desk mount? I've come up with a design I think will work using aluminum box tubing and plates (if I can figure out how to build it or have it built).
I'm trying to keep the overall stick height and position the same as my current setup (Virpil CM3). I plan on keeping the 200cm offset extension I am using as that will put the Rhino low enough to clear my chair.

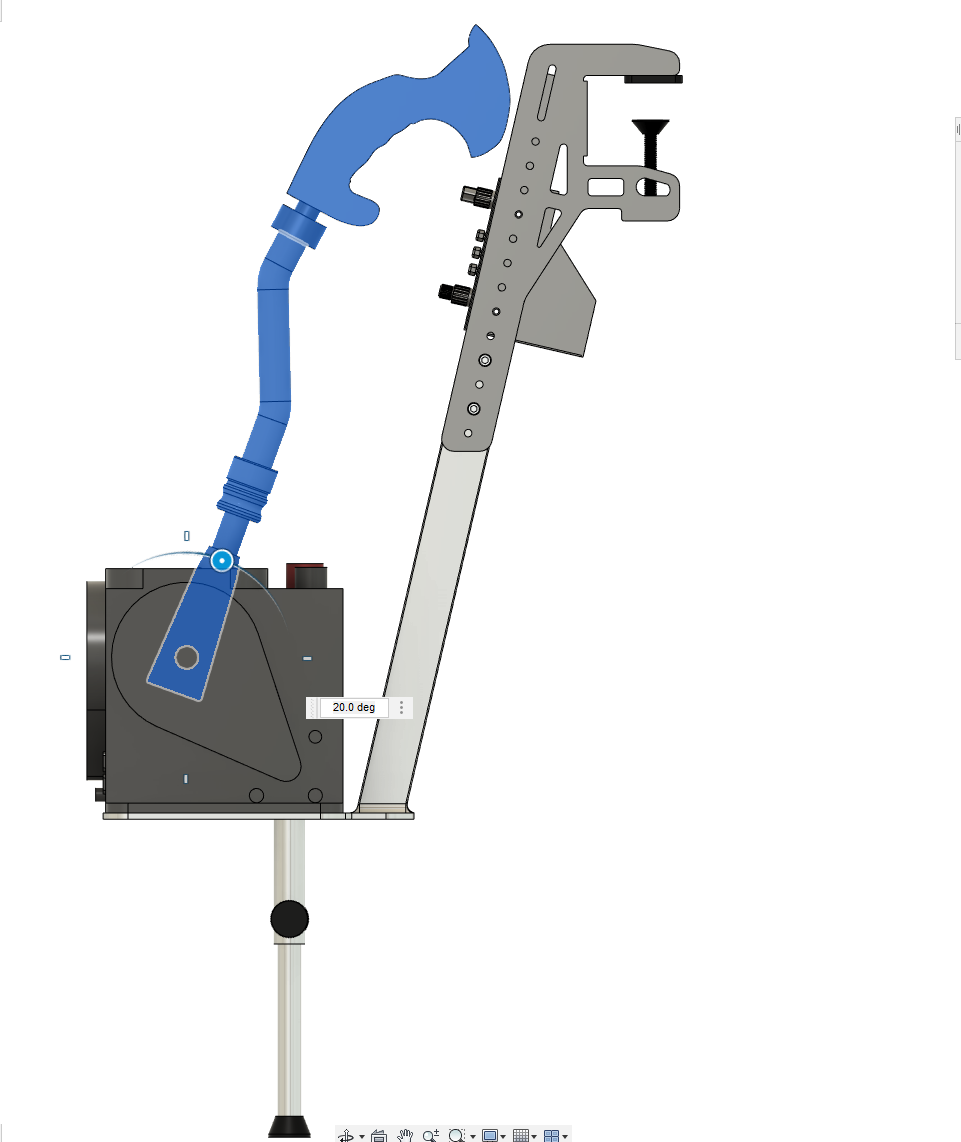

Here's my rough design.. looking for feedback or to see if anyone has any better ideas. Seems I'd be able to get away with 20deg throw.. perhaps could get full deflection if I pulled the Rhino a bit farther from the mount.
I'm trying to keep the overall stick height and position the same as my current setup (Virpil CM3). I plan on keeping the 200cm offset extension I am using as that will put the Rhino low enough to clear my chair.
Here's my rough design.. looking for feedback or to see if anyone has any better ideas. Seems I'd be able to get away with 20deg throw.. perhaps could get full deflection if I pulled the Rhino a bit farther from the mount.
N
N
N

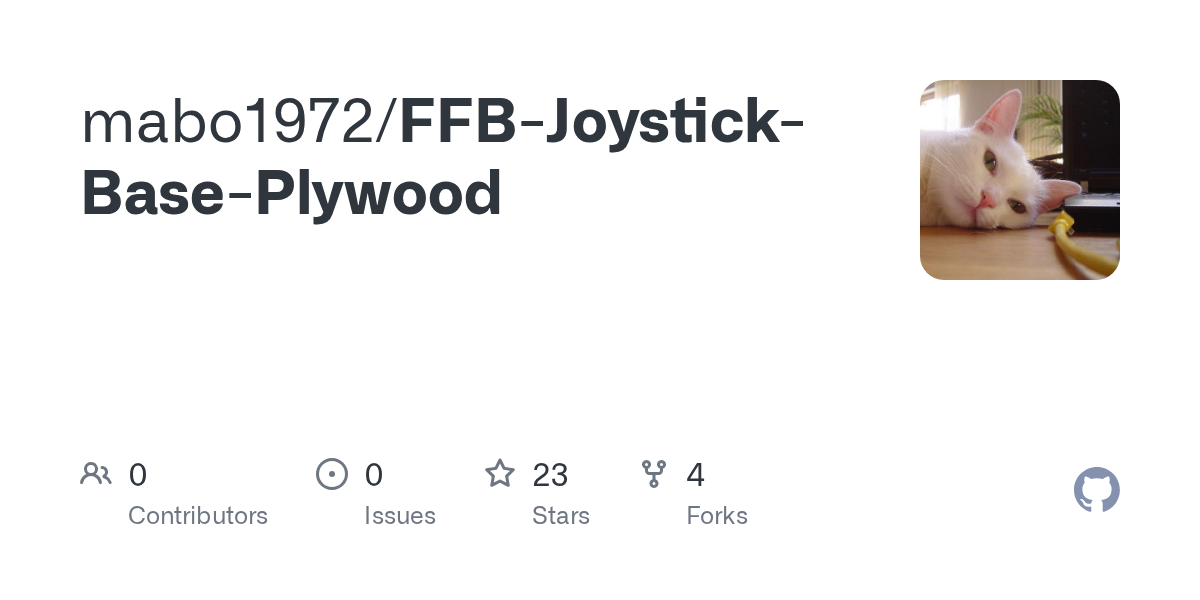

KI’m building the plywood version of @mabo1972 ‘s mount from GitHub. I’d like to build it to be tolerant of different belt setups (slightly different teeth count or different gear ratios). Does anyone have any experience on whether it’s better to add an adjustable idler or to add slots to the motor bolt holes to allow it to slide? https://github.com/mabo1972/FFB-Joystick-Base-Plywood
GitHub
Contribute to mabo1972/FFB-Joystick-Base-Plywood development by creating an account on GitHub.
KI've got plenty of plywood. I'll try an idler in a slot first. If that doesn't work, I'll make the motor mounts into slots.
RAny news on Telemffb supporting MSFS2020?
LWe are working on it, but there is still a lot to do and it isnt documented at all yet
RNo worries mate, cheers. Be great to get a better solution than XPForce.
LIf you know a bit of python you can try it out on the wip branch on github. Most effects are missing. I have implemented engine rpm rumble, but it is not on the branch yet
RIs a trim solution implemented? I'll take a look
IQuestion about directinput ffb and dcs. Does dcs command an exact amount of force to the stick based on what a pilot would experience in the real plane? Could you simulate this exactly if the length of the stick, motors etc was known? The master gain functionality on the stick works great, but a bit confused om how to get the most realistic result.
MYou’d need bloody strong motors
MThe current iteration just gives you an indication
Some stick forces are massive
Some stick forces are massive
