Yeah, would be best to probe the adapter for opens/shorts
Yeah, would be best to probe the adapter for opens/shorts
AOkay I’ll do that in about 7 hours if you’re still around not entirely sure of the time difference
AMy buddy has a TM grip he’s gonna let me barrow to test also
AOne pin has .6v one pin has .4 and two are open. @walmis
WThat's not good, which pins are open?
ALatch and Data. VDD is .4v and Clock is .6v @walmis
AVerified a TM grip does in fact work
HHi Folks, just trying to get my head around some of the settings in the vpforce config. So do all of the sliders have an impact into the actual ffb effects encountered, not just on applications which dont use ffb? I ask as I am trying to set up the controls to be used in msfs and dcs and hopefully not have to touch it again. I have had my spring set at 50%, is that a reasonable setting to use? Or will that then reduce the effectiveness of somethings in telem? I have no extension on my stick, would appreciate some feedback on the settings.
JAlso depends on your "effects" tab settings... These "settings" tab settings are global settings. Additionally with the TelemFFB, there are config file setting that can be adjusted.
AAnyone else experienced quite bad FPS drop when doing coop plane in MP and the airbrake is deployed?
Mso I have a 10K Ohm pot and would like to plug it in. I have tried it and it works, from the electronics point of view (correctly connected and the configurator works). I would just need to make an appropriate size hole on the top mdf plate of the rhino. What would be the best way to go about it? I would like to remove it completely, it looks I will have to remove a wheel to access one of the screws AND unplug the original pot and the panic button? for removing the wheel, would I need to loosen the belt (by loosening the motor) first, and then unscrew the 5 bolts keeping the wheel attached?
Does that sound reasonable?
Does that sound reasonable?
Fhey guys does the Rhino work with MechWarrior 5?
MAs a controller, there's no reason it shouldn't. I doubt MW5 has any kind of FFB integration though
Ai've gotten this interesting problem that seems to manifest itself occaisionally when playing DCS, and it's unclear if it's a Rhino issue or a DCS issue, and if there's potentially a workaround for it that we can do (if it is a DCS issue?) this problem seems to manifest with or without telemFFB. Basically with the F14 sometimes the elevator trim will stop working (and i think it's supposed to work by re-centering the spring. And when i quit the match that i'm flying, and in the main menu for DCS, i see a stuck spring effect that doesn't go away even if i start more F14 games/etc. If i fully quit DCS, then the spring effect does go away. Assuming this is some sort of DCS bug, it might be nice if there was a button i could press to like reset all effects? might help me not having to fully quit DCS to get it working again, which would be nice. unclear if it would cause problems in game if i pressed a button like that though
Nyou could start an instance of TelemFFB with the -r runtime flag. That will kill any effects on the Rhino. Just dont do it while you are in the aircraft and un-paused or it will certainly kill all of the DCS generated effects that are active
AWould the DCS effects re-apply in those cases?
AOr would you have to restart the game? Kinda curious to test lol
NHonestly I dontt hink I've tried it.. It depends on if it only pauses the effects or if it re-creates them when you enter/exit pause
AIt definitely kills the current game you’re in xD
ABut, if you restart the game, it definitely fixes the stray effects, kinda curious to test this on a multiplayer server now
ABut yeah, this might be a respawn workaround for me, so def appreciate that!

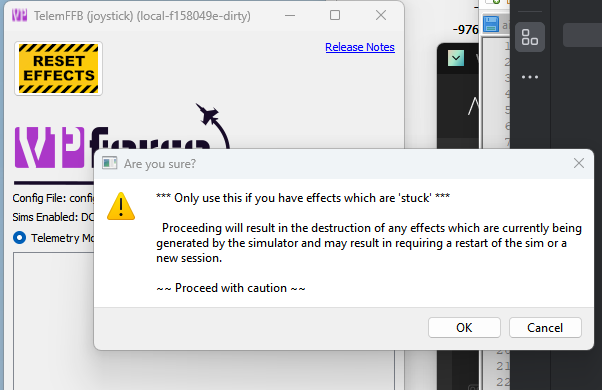

Nmight be able to put a "reset all effects" hot button on the TelemFFB UI...
AYeah, that would be good — just throw a confirm window on it, so you don’t accidentally yeet your game lol
AOr the 80/20 — require you to hold shift when clicking the button lol
N3 consecutive "Are you sure" popups that appear in random corners of your screen
ALmao, that might be a bit much
NI wonder if it depends on a modules FFB implementation.. I was just testing the P51 and it doesnt seem to care one bit if you start with -r mid flight
AOk, yeah, it def breaks the F14 completely for that multiplayer session, probably need to leave the server and re-join
Nprob only re-initializes the effects if you pause/unpause which isn't available in MP
AOk, some quick experiments, if I go back to spectators, and run that -r command, then I can re-spawn in an F14 and it does seem to properly initialize again. One of my test runs though, re-spawning in an F14 did result in a dead stick still, however changing to another plane and back to the F14 did fix it, but yeah, this is def a lot better than completely closing DCS and re-launching
ASo having a button would be nice
NI'm sure @walmis would be interested in some debugs when the loss of force is occurring with DCS though...
N
ABased! Although not sure if the button should be that big xD
Ndangerous buttons should be big, in your face and enticing....
AI’m using a 19a 180w power supply and I just burnt up the psu. What should I set max motor amp to to allow overhead with telem FFB effects? Or does that matter? It was a 19.5a and I had the motors at 19a.
JI'm not sure if you are referring to your power supply settings or the software...
the power supply that came with my Rhino is
input 120/240 3.5a
output 19v 9.5a
configurator is set for
Max motor current 30a
Mas PSU current 7.0a
the power supply that came with my Rhino is
input 120/240 3.5a
output 19v 9.5a
configurator is set for
Max motor current 30a
Mas PSU current 7.0a
AMore so the software
DI tried this for IL2 and this works below to add VPForce Rhino + Sim Shaker Wings Buttkicker. Has anyone tried to get all 3 to work like this successfully?
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
decimation = 1
enable = true
port = 29373
[END]
How would I add in another one for IL2 SRS to get it to work???
I tried the following and it just come up with errors
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
addr2 = "127.0.0.1:4322"
decimation = 1
enable = true
port = 29373
[END]
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
decimation = 1
enable = true
port = 29373
[END]
How would I add in another one for IL2 SRS to get it to work???
I tried the following and it just come up with errors
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
addr2 = "127.0.0.1:4322"
decimation = 1
enable = true
port = 29373
[END]
WThat's strange, kinda looks like a dcs bug. This appeared only recently right? I wonder if you jump into a different AC it still doesn't get reinitialized?
AIt’s happened before, don’t believe it’s a recent thing. But it did happen to me today which is why I tried to debug a bit further. It’s unclear if spawning another type of plane will fix, but going back to main menu and re-spawning an F14 definitely did not fix
NThe TelemFFB automatic telemetry setup insertion code for IL2 knows how to deal with an existing configuration and will add itself as

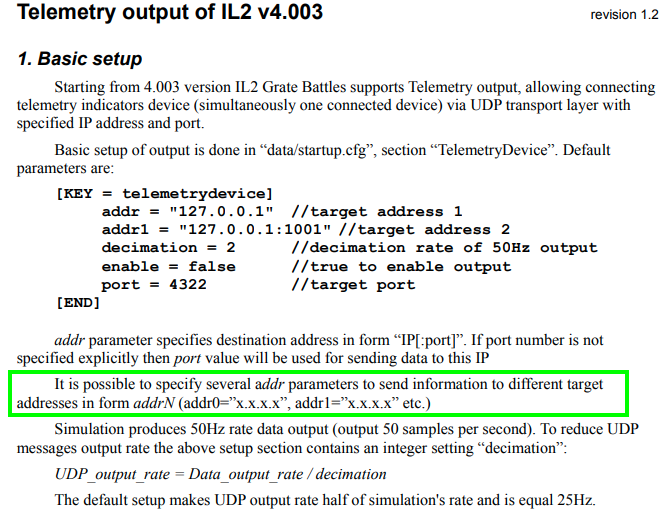

It looks like they released actual documentation on the telemetry stream and setup at the beginning of October... that would have been useful information when writing the decoder module for TelemFFB!
What you have written above should work per the configuration part of the document. As long as TelemFFB is set up as either
When you say 'it just comes up with errors'. Are you talking about TelemFFB or IL-2? I tested the format you show above and TelemFFB did not throw any errors.
addr1 if a configuration already exists, but it does not account for multiple entries. It looks like they released actual documentation on the telemetry stream and setup at the beginning of October... that would have been useful information when writing the decoder module for TelemFFB!
What you have written above should work per the configuration part of the document. As long as TelemFFB is set up as either
addr or addr1 (which it is in your example), it should pass the validation in TelemFFBWhen you say 'it just comes up with errors'. Are you talking about TelemFFB or IL-2? I tested the format you show above and TelemFFB did not throw any errors.
N
DCorrect that's what I tried and that worked. Now to add IL2 SRS back in. How do I do that with all 3 VPForce Rhino + Buttkicker + SRS ?
I tried with the following :
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
addr2 = "127.0.0.1:4322"
decimation = 1
enable = true
port = 29373
[END]
and it threw the error I had stated above
I tried with the following :
[KEY = telemetrydevice]
addr = "127.0.0.1"
addr1 = "127.255.255.255:34385"
addr2 = "127.0.0.1:4322"
decimation = 1
enable = true
port = 29373
[END]
and it threw the error I had stated above
DIL2 SRS comes up with errors and Buttkicker software Sim Shaker Wings Software came with errors. TelemFFB works with no errors and IL2 works
Nhmm.. those apps probably work like TelemFFB and only understand addr and addr1. TelemFFB doesn't barf if addr2 exists, only if itself is not either addr or addr1.
Can you configure the address/port in either SRS or SSW?
Can you configure the address/port in either SRS or SSW?
Nalso, do either of those apps support telemetry forwarding? some telemetry app does, but I dont remember if its one of those two
DSo i don't really understand how the stuff works, I had just usually put it in. There is a good support forum that Andre the dev is pretty responsive in. I can submit the question to him there. Is there anything else?
DThe only one that really went further was the SRS guy to add the addr1. Makes me curious as well how are you guys adding a second FFB rudder pedals in IL2?
NThis is why I use 127.255.255.255 as the destination address in the config I write to IL-2. Then any receiver can open a socket on any address in 127.0.0.0/8 on the right port and recieve the stream
Nif everyone is using their own ip/port pairings, then the sim has to replicate the stream that many times. If everyone used the broadcast address, it only has to send it out once
