The e-stop and WW are unrelated. Firstly the E-stop doesn't cut power to the logic board. It's powered by USB and so is the grip (and the adapter).
The E-stop only cuts power to the motors.
Does the grip debug show any data or all FFs?

Wwalmis The e-stop and WW are unrelated. Firstly the E-stop doesn't cut power to the log...

PiNKSH!T•6/15/24, 11:04 AM

sry I should of been clearer there. When using the estop tonight while trying to swap over to my WW grip, which I was having trouble with, my estop stopped working. I'll turn things back on soon & try it

Wwalmis The e-stop and WW are unrelated. Firstly the E-stop doesn't cut power to the log...

PiNKSH!T•6/15/24, 11:22 AM

I'm getting all FF's in debug & the estop still isn't cutting the power

PiNKSH!T•6/15/24, 12:08 PM

got my WW grip/adapter working, it is really finicky & doesn't like being swapped over. The estop still isn't working & I'm really not keen on flying without it

PiNKSH!T•6/15/24, 12:09 PM

what sort of estop is it? what specs is it?

Fletch•6/15/24, 2:58 PM

These folks have some very similar looking switches.

https://www.langir.com/emergency-stop-switch/

Langir Electriclangir_admin

Emergency Stop Switch - Langir Electric

The Turn to Release Emergency Stop Switch provides you with a way to stop your ctuator instantly in case of emergency. All you do is press the button down and it will lock in the Off position, stopping the movement of your actuator. To put it back in the On position, just turn the switch clockwise to release it. Please be aware you may require a...

Fletch•6/15/24, 2:59 PM

That said, the safest bet would be to get one from @walmis directly or at least a mfr&part# from him.

Bob Bushman•6/15/24, 3:30 PM

It's almost like there is a commonly used symbology for e-stop switches.

PPiNKSH!T got my WW grip/adapter working, it is really finicky & doesn't like being swappe...

walmisOP•6/15/24, 4:11 PM

Glad you got the adapter working, for the e-stop you can drop me an order request, we'll ship one out asap.

Soy•6/15/24, 4:56 PM

does anyone know what connectors the pcb for the grip and to the motors?

Soy•6/15/24, 5:08 PM

also the connectors for powering the motor

walmisOP•6/15/24, 5:34 PM

Grip: 5pin JST XH 2.54
Motor data: 2pin JST PH 2.0
Motor power: 2 pin JST VH 3.96

NNumber481 Ya, thats a weird one. You are correct. Without TelemFFB, pedals should exactl...

J2_NobiWan•6/15/24, 7:42 PM

Hi, I finally figured out what was causing this weird behaviour... It was a problem with vjoy...

Even though vjoy was configured as a non ffb device, it was still listed in DCS.log as ffb device. And somehow this caused DCS to stop sending ffb commands to more than one VPforce device. Surely some users are using vjoy without problems, but in my case disabling vjoy made my stick/pedals/collective setup work perfectly every time. Could be it was just a screwed up vjoy install, but it annoyed me for sure...

Maybe something to keep in the back of your mind in case others have a similar problem. Cheers, Nobiwan

A. Palmetto•6/15/24, 10:14 PM

Does Telemffb work for BMS?

Soy•6/16/24, 5:44 AM

does anyone know the thread for the thrustmaster extension i found someone saying it was M36x2 but i printed a test and its not fitting on my base

walmisOP•6/16/24, 5:46 AM

It's M36x2, the tolerances need to be pretty tight or the nut should be slightly enlarged, since most plastics shrink a bit after printing.

Wwalmis Glad you got the adapter working, for the e-stop you can drop me an order reques...

PiNKSH!T•6/16/24, 5:57 AM

Ok looking at trying to make this virpil cable fit better to the ww adapter & I've taken the adapter apart & found that the pcb is bent twisted, I take it this happened when twisting the adapter tight? it still works atm. I'll look at gluing it in place maybe, or it might be better now that it can move a bit not & won't have forces on it when twisting the adapter threads tight

Wwalmis It's M36x2, the tolerances need to be pretty tight or the nut should be slightly...

Soy•6/16/24, 6:01 AM

thanks

James T•6/17/24, 12:50 PM

Has anyone else had poor print quality from VPForce?

Is there an STL for this piece so I can print it myself? Thanks.

JJames T Has anyone else had poor print quality from VPForce? Is there an STL for this ...

walmisOP•6/17/24, 1:01 PM

While it's not the prettiest of prints, it's certainly functional

Probably one from an older batch.
You can find the .stl here https://discord.com/channels/965234441511383080/1198547200058347670/1252245760293208115

PiNKSH!T•6/18/24, 11:27 AM

hey there guys I was wondering if a grip with a (2041) Shift Register (5pin) would work with the Rhino? cheers

PPiNKSH!T hey there guys I was wondering if a grip with a (2041) Shift Register (5pin) wo...

TheAmazinGreat•6/18/24, 12:05 PM

Do you have a data sheet? Are you sure it’s not 4021? CD4021B will work for sure.

TheAmazinGreat•6/18/24, 12:07 PM

What is the grip?

TTheAmazinGreat What is the grip?

PiNKSH!T•6/18/24, 12:28 PM

Nah no data sheet. I've had my eye on the KG Iron Joy KG-12 style grip. They're in the hotas discord if you want to check them out

PiNKSH!T•6/18/24, 12:29 PM

they said it should work with the Rhino

TheAmazinGreat•6/18/24, 12:38 PM

Their latest reply says it uses a BM4021 which I would bet is just a knockoff CD4021B. So I would think it would work.

PPiNKSH!T Nah no data sheet. I've had my eye on the KG Iron Joy KG-12 style grip. They're ...

SamNFTY•6/18/24, 12:42 PM

Interesting. Looks like they're modeling it after a WWII Luftwaffe style.

SSamNFTY Interesting. Looks like they're modeling it after a WWII Luftwaffe style.

PiNKSH!T•6/18/24, 1:04 PM

yeah I've got the vkb kg-12 v2 & it's ok, feels nice on the Rhino cause it's light but tbh I like the look of this kg-12 & it actually has a push on the hat, I can't believe vkb did a 4 way hat with no push. VKB should do drop in replacements for the side hat on their kg12. 4 way + push, push button, smi flush push button or even just a plain cover.

Panny•6/20/24, 7:11 PM

Have just fitted a VirPil V.F.X grip onto my rhino base. I don't have the axes for the DLC or paddle switch - anyone have any idea what I'm doing wrong?

Pickles•6/21/24, 12:02 AM

Do they not show up in game or in the configurator software? If it's just in game than try calibrating in the software. Of it's not showing up in the software than idk.

Pickles•6/21/24, 12:04 AM

My roll axis is grainy/sticky. It feels like there are tiny detents in the motor, or that it feels like a step motor. Either way it's making fine inputs tough. Is there possibly a go to spot to check or possibly lubricate?

PiNKSH!T•6/21/24, 1:18 AM

https://www.jaycar.com.au/latching-emergency-stop-switch/p/SP0786?

PiNKSH!T•6/21/24, 1:18 AM

would this e stop work in the Rhino?

walmisOP•6/21/24, 9:02 AM

Rhino e-stop is 16mm diameter mount

PPanny Have just fitted a VirPil V.F.X grip onto my rhino base. I don't have the axes f...

Touch_Of_Legend•6/21/24, 9:57 AM

First choose CM2/3 stick. I’m sure the others work like the alpha with its LED’s (but the LED’s don’t work so far as I know)

After that you’ll have the option for the pinky paddle axis.

The axis for the pinky paddle has to be calibrated so click on that and calibrate and done.

Not sure what the DLC is so I’ll allow others to help with that.

Wwalmis Rhino e-stop is 16mm diameter mount

PiNKSH!T•6/21/24, 10:01 AM

what are the specific specs for the estop?

PPickles My roll axis is grainy/sticky. It feels like there are tiny detents in the motor...

Touch_Of_Legend•6/21/24, 10:02 AM

Any creaking or noise or feel from the unit is most likely a loose or loosening screw.

A lot of folks find the screws that hold the grip connector onto the square metal tube can get a bit loose over time because of torsional stresses.

They lift up the leather boot and check the screws.

Also check the pulley screws and remember anything with belt drive will need maintenance eventually as belts either pull the rig in or the belts themselves slack over times.

So don’t forget to every so often check your belt tension.

Outside that those are the fixes for random squeaks, creeks, cricks, and/or wiggles and wobbles.

Good luck and keep up posted!

TTouch_Of_Legend Any creaking or noise or feel from the unit is most likely a loose or loosening ...

Pickles•6/21/24, 10:59 AM

Copy that. I'll take a look under the boot and check the security of thr pulleys. Thanks for the input I'll let you know how it goes

Reaktionslos•6/21/24, 9:24 PM

Unfortunately I have to cancel my pre-order at position 68. Where can I do that?

FlatSpin•6/21/24, 9:32 PM

dm walmis

Epyon•6/21/24, 9:46 PM

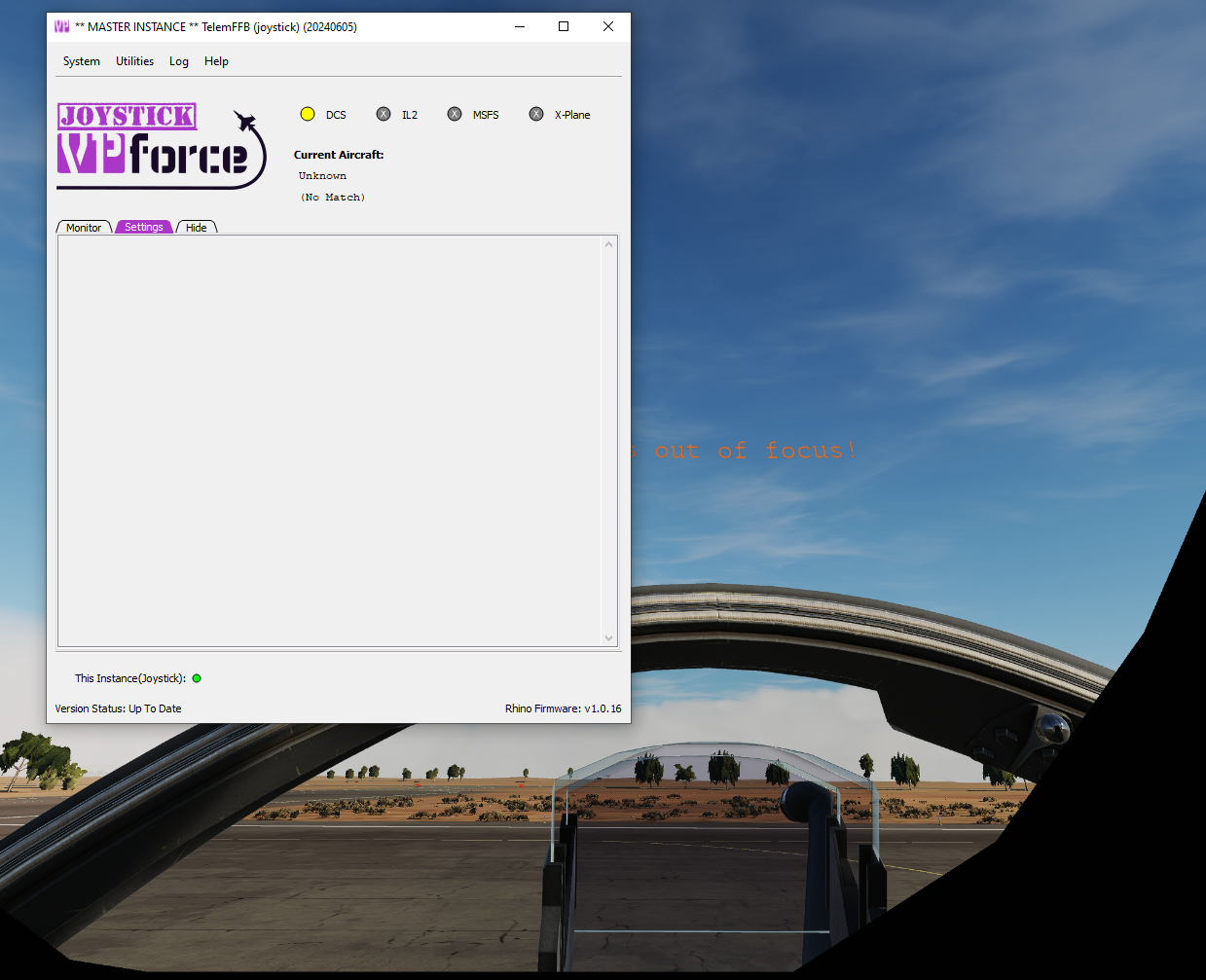

Hello, I hope someone can help me. The teleffb app stopped recognising when DCS is on, or when I'm in an airplane?

I deleted the line for telem in the export.lue in saved games, and the app copied the line back as expected.

any help apprciated!

Pickles•6/21/24, 9:49 PM

Is there an easy/obvious way to tension the belts? I'm trying to troubleshoot my grainy roll axis and I'm not sure the best way to disassemble this.

Pickles•6/21/24, 9:51 PM

If I can get this belt off I can at least determine if it's the drive or the pully/gear connected to the stick

EEpyon Hello, I hope someone can help me. The teleffb app stopped recognising when DCS ...

Number481•6/21/24, 10:07 PM

Did you recently install SimHaptic by chance?

If not, check the DCS logs for errors related to TelemFFB.luaTelemFFB.lua or any other errors related to export lua scripts that may be interfering.

PPickles Is there an easy/obvious way to tension the belts? I'm trying to troubleshoot my...

Number481•6/21/24, 10:10 PM

https://docs.google.com/document/d/1YL5DLkiTxlaNx_zKHEYSs25PjmGtQ6_WZDk58_SGt8Y/edit#heading=h.z337ya

NNumber481 https://docs.google.com/document/d/1YL5DLkiTxlaNx_zKHEYSs25PjmGtQ6_WZDk58_SGt8Y/...

Pickles•6/21/24, 10:26 PM

Thank you. I believe I've identified the hang up. I looks/feels like the motor gear/pulley is rubbing against the case. I'm struggling to get a gap in there

NNumber481 Did you recently install SimHaptic by chance? If not, check the DCS logs for er...

Epyon•6/21/24, 11:26 PM

Not Simhaptic, but openkneeboard. I thought I had uninstalled it (because immediately telemffb stopped working), but as soon as I ctrl+f the log for telemffb, next line under that, was openkneeboard. I found the files in the hook folder. deleted those, and telmffb works again. Thanks for your help.

Pickles•6/21/24, 11:39 PM

I'm happy to report that as I suspected, I'm just dumb. I only saw the one set screw on the drive gear, when in fact there was two. Pulling that gear out a few hairs relieved the interference.

EEpyon Not Simhaptic, but openkneeboard. I thought I had uninstalled it (because immedi...

Number481•6/22/24, 12:52 AM

interesting... I've used OpenKneeboard pretty extensively and have never had an issue with it interfering with TelemFFB or any other export script (simshaker, etc..).

FFlatSpin dm walmis

Reaktionslos•6/22/24, 1:24 AM

I did on 07.05. no response. Anyone else I can contact?

TrigaNZ•6/22/24, 1:51 AM

@Number481 Did you recently install SimHaptic by chance?

I’m about to for my new Dayton base shakers, is there something I should watch out for?
