VYea F16EX. I will have to check the WW simapppro and find the exact button numbers but the gray (trim) hat switch in all 4 directions plus pressing down doesn’t work. As well as the black 4 way hat switch below it and to the left of it. But again i will have to get back on here in a bit and see which exact buttons don’t work.
THave you tried using the option for hats as buttons? Either checked/unchecked.
VI will try that here shortly and report back. Thanks!
WAlso make sure to select WW adapter grip profile
VI just saw that in the manual as well! Thank you! I will check the manual better next time before reaching out.
Absolutely love my Rhino!
Absolutely love my Rhino!
VThis was it! Thanks again!
MI had a look around and I could not find an answer, only somebody asking a similar question before: I can not get the configurator to recognize the brake lever as well as some of the buttons on my first generation T-50CM, when using the T-50CM2 grip type. Is there any workaround, or solution?
T@Touch_Of_Legend may be able to help if not Walmis himself
TI’m using that grip (Virpil CM not the CM2) but I’m not home at the moment.
I remember you have to select the CM2 and someplace in the configurator you select (something) and it brings up the box so you can calibrate the brake lever as Axis.
I got it all working great but it’s been awhile since I did it so it “might” be in my previous posted comments or else I’ll try to dig the info out for ya later today
I remember you have to select the CM2 and someplace in the configurator you select (something) and it brings up the box so you can calibrate the brake lever as Axis.
I got it all working great but it’s been awhile since I did it so it “might” be in my previous posted comments or else I’ll try to dig the info out for ya later today
CHello all. I have been having a problem with the Rhino.
Sometimes when I start DCS, the stick loses all motor function untill I reboot DCS and the telemffb software.
Also, when flying the Apache in DCS, if change seats to the gunner position and spend too much time without using the stick, when I return to the pilot's seat the stick is dead as well.
How do I go about determining if this is a Windows issue, DCS issue or otherwise in the software?
The only steps i have taken so far is to verify that USB Selective Suspend is disabled
Sometimes when I start DCS, the stick loses all motor function untill I reboot DCS and the telemffb software.
Also, when flying the Apache in DCS, if change seats to the gunner position and spend too much time without using the stick, when I return to the pilot's seat the stick is dead as well.
How do I go about determining if this is a Windows issue, DCS issue or otherwise in the software?
The only steps i have taken so far is to verify that USB Selective Suspend is disabled
MIf it is the boxed option, then that is the problem, it reads no raw value, so calibrating it yields no result. The raw buttons are recognized, but the configurator isn't picking them up as the Virpil axis. One of the 4 way hats is also not recognized
MFunnily enough, if I set the grip type to VPC V.F.X, it recognizes all buttons and the lever is assigned as the twist axis
HDo you hear the disconnect chirp?
TI’m sure you could use it this way, doesn’t have to be bound as twist in game.
TCheck the debug/log file. Sounds like maybe a timeout issue on the gunner seat. But stick does go limp when starting DCS until a module/mission is loaded.
MIt is almost a solution, yes, but even then I have been unable to tune it so that it actually uses the entire range. I tried several tunings, but I could only get it to give me 1/4 of the axis
TTry selecting the debug grip and post a screenshot of the debug tab. Walmis will able to ID right away if he sees it but for my sake flex the brake axis a bit while the debug is running to show how the bits are processing.
TYou could also try the warbrd profile.
CNo chirps or anything on either problem and the software shows motors OKAY
CI will test tonight.
If it is a timeout issue, is there anything workaround or setting I'm missing?
If it is a timeout issue, is there anything workaround or setting I'm missing?
MHere you can see the 4th byte being the lever, then me using the missing 4-way, doing its thing on the bits 20-24
TIt looks like bits 5-8 are getting involved too. FF to FB when byte 4 is changing.
Unfortunately I don’t have a fix for you. I am more up on TM/WW protocols with VPF. My hope was it would look more like one of those. Might be time to ping Walmis.
Unfortunately I don’t have a fix for you. I am more up on TM/WW protocols with VPF. My hope was it would look more like one of those. Might be time to ping Walmis.
MOh, the early bit is the lever "button" which works, so that ain't an issue and can be ignored.I had a feeling there was no easy fix, this is on the driver-isch level
TDid the 4 way work as expected on the debug profile? Were all 4 directions lighting up a RAW BTN?
MYup, there they lit up
CHey @TheAmazinGreat , I want to build your version of the stick with the 86 motors. Which motor type did you use, or does your design work with either of the 86 motors? They have different lengths
CI've recreated the issue and have a log file to share.
Although there appears to be no errors when the problem occurs.
Although there appears to be no errors when the problem occurs.
TIt will work for both motor lengths, I made mine with the longer 86BLF04 motors.
TOkay if you don’t get it fixed I’ll try to get myself plugged in when I’m home tonight.
It works and every single button works AND the brake lever is recognized as Axis
And I have no “twist” option on the CM
It works and every single button works AND the brake lever is recognized as Axis
And I have no “twist” option on the CM
T
TThis is an older photo I had but I’ll take a new one for you so we can sort out your grip and get you flying again.
To be clear I have the original “Black” version of the Mongoos CM.
The original (1st run) has silver buttons and levers. Mine was v2 which has all black and red.
The next actual version was the CM2 which they replaced the thumb button with a Hat and changed out the 4 ways for 4 way + center press.
Some other comsmetic changes like lettering options in English/Russian but otherwise it’s pretty much the same grip as the CM2 without the thumb hat.
Anyway I’ll plug it in later to see what we see and how we can get this fixed for ya
To be clear I have the original “Black” version of the Mongoos CM.
The original (1st run) has silver buttons and levers. Mine was v2 which has all black and red.
The next actual version was the CM2 which they replaced the thumb button with a Hat and changed out the 4 ways for 4 way + center press.
Some other comsmetic changes like lettering options in English/Russian but otherwise it’s pretty much the same grip as the CM2 without the thumb hat.
Anyway I’ll plug it in later to see what we see and how we can get this fixed for ya
UHello here, I've just made an order and got invoice request, but realised I've made a mistake - tried to reply to the email and/or send it to vp@vpforce.eu, but it gets bounced back that it could not be delivered. How else I can get into contact with someone about that ?
HTalk to @walmis
UThanks yeh just realised who it redirects to so I am on it
MEven using the same settings as pictured, my brake lever isn't recognized as an axis. I'm starting to wonder what kind of bastard of a grip i've got
Bsame firmware?
GHello. Need help to troubleshoot VKB grip. MCG Pro Add-On Grip for Gunfighter IV + blackbox 3 (brand new). Rhino VKB adapter.
Blackbox is blinking red - all 3 red lights. VKB software sees blackbox but not grip.
I disassembled Rhino adapter checked voltage. There is +3.3 and 2.7 for signal .
Any suggestions?
Blackbox is blinking red - all 3 red lights. VKB software sees blackbox but not grip.
I disassembled Rhino adapter checked voltage. There is +3.3 and 2.7 for signal .
Any suggestions?
CFlash the correct firmware and should be good.
GI did flash firmware in first place - but didn't press "magic" Default button - that did the trick of device init
CYep if you have the right firmware you just have to click default anytime you switch the stick. I go between 3 vkb sticks depending on what I'm flying. Slightly annoying process but pretty simple once you remember to always do it
TIs you grip the original T50 with the silver buttons and palm rest or the black edition like mine?
When I get plugged in I’ll snap a pic of the grip so we can compare but for sure don’t worry I’ll help you get this sorted out
When I get plugged in I’ll snap a pic of the grip so we can compare but for sure don’t worry I’ll help you get this sorted out
TI got you bro (see above)
MIt has the black buttons and lever
TGot it.
Here is a photo of the grip I use.
Virpil Mongoos T-50CM
This is the second release version called “Black Edition”
It’s the original controller as you can see we don’t have the Thumb Hat we have a Button and some of our 4 ways don’t have center press where the CM2 does and some of the 4 ways are 8 way now on the CM2.
Here is a photo of the grip I use.
Virpil Mongoos T-50CM
This is the second release version called “Black Edition”
It’s the original controller as you can see we don’t have the Thumb Hat we have a Button and some of our 4 ways don’t have center press where the CM2 does and some of the 4 ways are 8 way now on the CM2.
T
TSee the photo on the left has no 4 way where the thumb is.
I assume yours is the same?
Or you have the OG version with silver buttons, brake, and palm rest.
Either way it’s the same we are NOT the CM2
I assume yours is the same?
Or you have the OG version with silver buttons, brake, and palm rest.
Either way it’s the same we are NOT the CM2

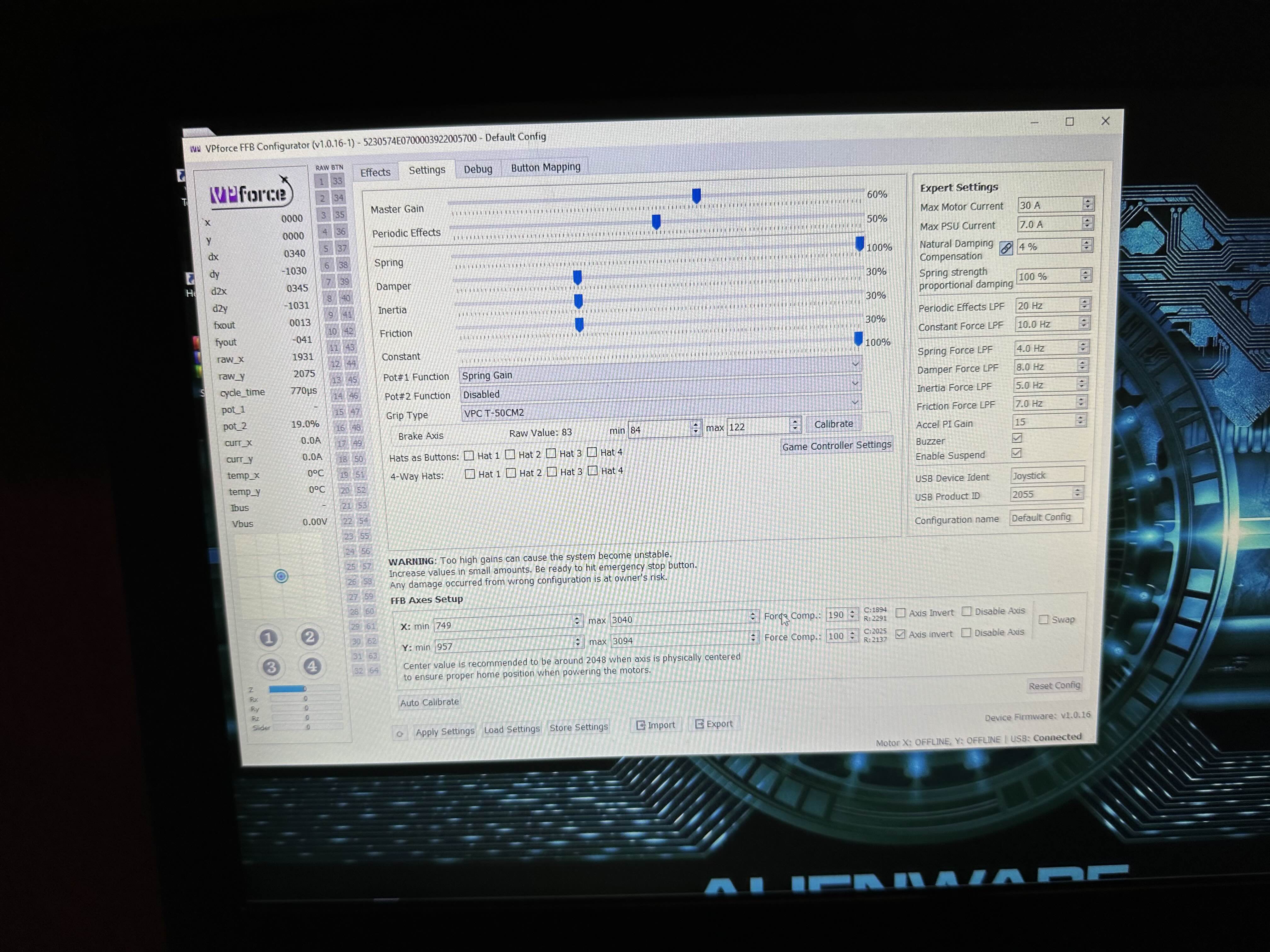

TBelow I’ll post the settings I use but “Buyer beware” I haven’t plugged it in for a while so I might be using outdated software.
When I set it up to fly I’ll redo ALL my software so it’s up to date but yeah… this was how I used it and it works great.
When I set it up to fly I’ll redo ALL my software so it’s up to date but yeah… this was how I used it and it works great.
TAnd here is a video of the brake lever in action.
Works great
Works great
THopefully that can help but if not I’ll try to dig around and see what I actually did…
I remember having the same issue you describe like it was acting like the brake lever was a bunch of buttons and some of them were intermittently firing at random times..
Setting it to an Axis and calibrating it fixed it
I remember having the same issue you describe like it was acting like the brake lever was a bunch of buttons and some of them were intermittently firing at random times..
Setting it to an Axis and calibrating it fixed it
TSo yeah that’s how the Rhino sits for now..
I’ll get it all set up again soon once thing settle back down and I can Fly again.
I’ll get it all set up again soon once thing settle back down and I can Fly again.
