Default is you need to calibrate them every time the computer starts, simply push it to full limits

Default is you need to calibrate them every time the computer starts, simply push it to full limits on all axis including brakes. You can turn it off in the software, I found out like you lol.

BBlackrat Default is you need to calibrate them every time the computer starts, simply pus...

Oneill•10/15/24, 9:03 PM

Cool.
At least it’s not fucked lol.

m2times_•10/15/24, 11:19 PM

Hello! Is it possible to order the rhino with a differently shaped stick/shaft (the part that the grip attaches to)?

m2times_•10/15/24, 11:23 PM

Due to my seat slider lever I would have to install the rhino a bit away from the seat (the stick/shaft would be like 8 cm away from where the thigh support ends)

Ideally the stick would be the same or similar height, but offset 8-10 cm towards the closer end of the box (the one with a gear)

m2times_•10/15/24, 11:23 PM

I thought about extensions but they would place the grip too high

m2times_•10/15/24, 11:25 PM

Thank you

m2times_•10/15/24, 11:39 PM

something like this

DARRYL•10/16/24, 12:16 AM

Yes, there are various offset extensions you can find. Either purchase from your grip supplier, or else 3D print one yourself from your design or somebody else's existing design.

m2times_•10/16/24, 5:31 AM

I do not want to use an extension

Mm2times_I do not want to use an extension

Col. Sanders•10/16/24, 5:44 AM

You can build your own with any modifications you want

Mm2times_I do not want to use an extension

Fierce_Fire•10/16/24, 5:45 AM

Then you'll have to redesign the middle connector

m2times_•10/16/24, 5:59 AM

https://qr4rigs.com/index.php?main_page=product_info&cPath=48_53_54&products_id=206

Joystick Extension for Rhino 50 x 80 [StickExt50Rh80] : QR4rigs, Qu...

QR4rigs, Quick Release Mounts for Sim Rigs Joystick Extension for Rhino 50 x 80 [StickExt50Rh80] - This joystick extension is designed exclusively to fit the the VPforce Rhino with the standard or metal stick connector and is for use with Thrustmaster Warthog/Cougar and Virpil (VPC) joystick grips. The main tube is 30mm in diameter and extends t...

m2times_•10/16/24, 5:59 AM

I guess this is minimal height added possible

m2times_•10/16/24, 6:16 AM

Could someone please measure how far is the center of the connector from the closer end? Seems like around a third of the way, so 7-8 cm

RReapDaddy Mine just shipped yesterday!! But I will have to wait til Christmas to play wit...

Flo-Soft•10/16/24, 6:57 AM

You can try to argue that you need 10 weeks to configure the device and then start playing at Christmas...

m2times_•10/16/24, 7:13 AM

That is a fair point though, I assume getting this to be perfect for a given sim/plane of preference is some work

Mm2times_Could someone please measure how far is the center of the connector from the clo...

Hiob•10/16/24, 7:37 AM

if you mean in the horizontal plane, it is exactly 6,5 cm on the short end and sides (not accounting for the belts).

Hiob•10/16/24, 7:38 AM

11,5 to the long end. The Body of the Rhino is ~~180~~ 190 (sorry, memory fooled me) by 130 and the Gimbal is 130 by 130.

HHiob if you mean in the horizontal plane, it is exactly 6,5 cm on the short end and s...

m2times_•10/16/24, 8:16 AM

I have to account for the gears/belts too

m2times_•10/16/24, 8:16 AM

I assume they're 2.5 cm each?

Hiob•10/16/24, 8:17 AM

The Production Rhino comes with 10mm Belts afaik. Plus clearence on both sides - lets say 20mm total. The Kit-Rhinos use 15mm belts,

Hiob•10/16/24, 8:18 AM

I turned my Rhino 90 degrees to have a short side without belt close to my chair for that very reason......

m2times_•10/16/24, 8:18 AM

I mean the vpforce rhino
Says in the documentation that it's 205 mm long

m2times_•10/16/24, 8:18 AM


m2times_•10/16/24, 8:19 AM

I mean the distance from left end of the belt to the center of the stick

m2times_•10/16/24, 8:21 AM

If the body is 180 mm and doc says body + belt is 205 then the belt has to be 25 mm but it seems like a bit too much so something is off

m2times_•10/16/24, 8:21 AM

@Hiob do you happen to use a quick release?

m2times_•10/16/24, 8:26 AM

I won't really be able to use the quick release I found sideways, and I will need it... But it seems that the mounting holes on the rhino are spaced only 0.32 mm differently when turned sideways

m2times_•10/16/24, 8:26 AM

I wonder if that will fit if I keep the QR orientation the same but rotate the rhino. Doesn't seem like too much of a difference

Mm2times_I mean the vpforce rhino Says in the documentation that it's 205 mm long

Hiob•10/16/24, 8:28 AM

Sorry, my memory fooled me. The body is 190 by 130

Mm2times_@Hiob do you happen to use a quick release?

Hiob•10/16/24, 8:34 AM

no, but I made several custom modifications to my Rhino, including the base plate.

Mm2times_I wonder if that will fit if I keep the QR orientation the same but rotate the r...

Flo-Soft•10/16/24, 9:39 AM

As far as I know the qr4rig quick releases have a modular design - that means if you create the plate between the Rhino and the quick release plate yourself (3D printing, wood) you can freely choose placement and orientation (e.g. QRUHD Universal Quick Release Plate Kit (DIY) and using the hex pattern https://qr4rigs.com/index.php?main_page=product_info&cPath=24&products_id=140).

QRUHD Universal Quick Release Plate Kit (DIY) [QRUHDUniQR] : QR4rig...

QR4rigs, Quick Release Mounts for Sim Rigs QRUHD Universal Quick Release Plate Kit (DIY) [QRUHDUniQR] - This QRUHD Universal Quick Release Plate Kit is designed to allow mounting of unsupported controllers on to our QRUHD Quick Release System and also provides a stable surface for mounting our QRDee Base Mount 40 or QRPro Base Mount 40 to enable...

VPforceBot•10/16/24, 1:08 PM

:package:

RHINO #0738 Has Shipped!

VPforceBot•10/16/24, 1:08 PM

:package:

RHINO #0736 Has Shipped!

VPforceBot•10/16/24, 1:08 PM

:package:

RHINO #0737 Has Shipped!

WhiteHawk77•10/16/24, 2:20 PM

IT’S HAPPENING!!!

I got an aircraft number too, lol, though the one plane I won’t be using it with.

Fr4Ged•10/16/24, 3:54 PM

Almost 300 units since I got mine this year. Mental

AndyHill•10/16/24, 3:57 PM

I don't feel like a unique snowflake anymore

Fr4Ged•10/16/24, 4:02 PM

FFB becoming mainstream in flight simming. Lol

Blaubär | Michael•10/16/24, 4:16 PM

Do newer Rhinos (SN 0656) have fans at all? When I test this with the VPforce_FFB_Configurator nothing seems to happen.

Warwolf09•10/16/24, 4:18 PM

Has come a long way mine is SN 0078 lol

LeLv30_Superbus•10/16/24, 4:26 PM

SN 0072 says hello

AAndyHill I don't feel like a unique snowflake anymore

Fierce_Fire•10/16/24, 4:26 PM

I do, but only cause I made one myself (should've chosen a more rugged gimbal though, meed some time to rectify that)

BBlaubär | Michael Do newer Rhinos (SN 0656) have fans at all? When I test this with the VPforce_FF...

Hiob•10/16/24, 4:37 PM

I would be puzzled if not. You should be able to see it through the grill though. Have you tried the in the debug page?

Hiob•10/16/24, 4:37 PM

It takes quite some time from playing (depending on what you’re doing)

HHiob I would be puzzled if not. You should be able to see it through the grill though...

Blaubär | Michael•10/16/24, 4:46 PM

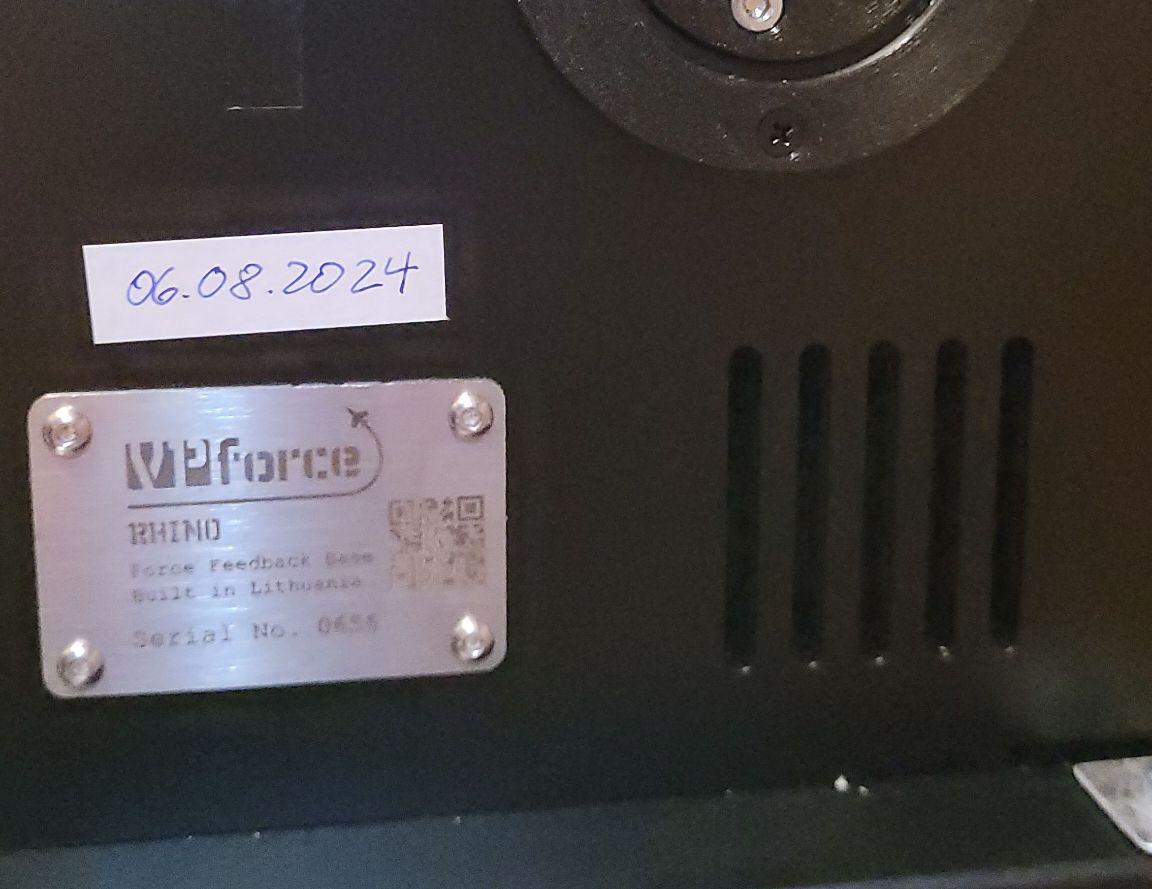

Yes, I startet "Test Fans" on the debug page. The fan (found it with a torch) does not move.

Blaubär | Michael•10/16/24, 4:50 PM

right of the plate

m2times_•10/16/24, 4:53 PM

Could someone please tell me what is the length of the shaft in the vpforce rhino? Calculating what kind of extension would fit on my setup

m2times_•10/16/24, 4:54 PM

Given 22 degrees throw every millimeter counts with my setup :p

BBlaubär | Michael right of the plate

walmis•10/16/24, 4:59 PM

Make sure it's fully powered via DC plug and e-stop switch is on (motors are running), the fans are one on the opposite side of the pic and one on the rear.

Mm2times_Could someone please tell me what is the length of the shaft in the vpforce rhin...

walmis•10/16/24, 5:00 PM

https://discord.com/channels/965234441511383080/1118790519103967242/1139070730198319184
Here's the drawing
