Its also not detecting stick movements or button presses in the browser UI. If I launch vpforce conf
Its also not detecting stick movements or button presses in the browser UI. If I launch vpforce configurator, that all works with no problems
Vthat did it (after a reboot), thanks!
VOne more question. Max PSU current is for some reason set to 4A. I have the "stock" PSU that came with my rhino, it says 19.5A @19V. Can I just set that PSU current to 19.5A or am I misunderstanding something?
HYou could drive more than one device of certain PSUs, then you need to limit the per device draw. In your case, you can safely put that to 10 Amps. That is more than you will ever need probably.
HI wouldn’t go to the advertised amps though. leave some wiggle room for safety.
Vsounds like a plan. Honestly, even 4A is enough, but I was just curious how far I can drive it.
H4A may(!) become a bottleneck if you pull diagonally and both motors draw maximum power at the same time, Kind of an edge case, but the only scenario I can think of.
HI‘m driving three motors from a 15A PSU and set the Rhino Stick (2 Motors) to 10A and the pedals (1 Motor) to 6A. Pretty unlikely that all three will pull max A at the same time.
H@walmis regarding the current beta of the VP configurator. Don’t know if bug or feature. When you enable the hardware trim and offset the center, it stays offset when you disable the hardware trim again. And another thing I encounter. When opening the VP config, it doesn’t always read and display the current config from the stick without forcing it. With the last release version, that worked reliably as far as I can tell.
PAfter applying all of the recent updates I don’t have any spring forces. Can anyone offer some advice on how to fix this?
P
NPot 1 is assigned to spring gain and set to 3.7%
N
PThanks! How do I change the pot 1 settings? I don’t see instructions on that.
NTurn the black knob on your Rhino
PGot it thanks!

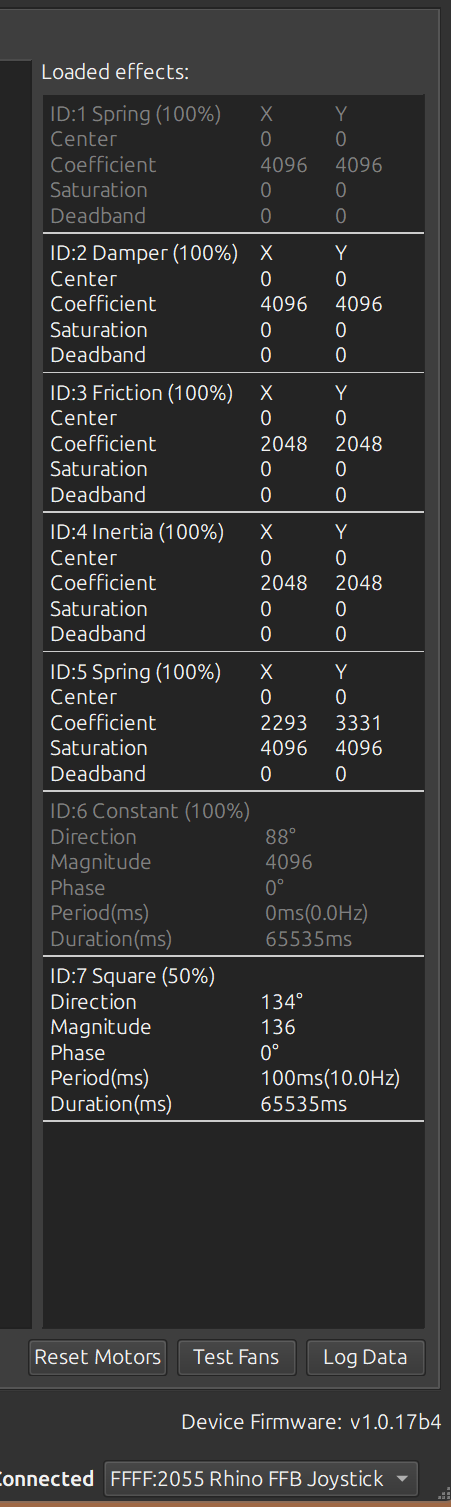

VIm having some issues with oscillations when using software endstops. I think this issue is new in 1.0.17b, but Im not positive. If I move the stick towards the software endstop (with no other forces being active, or master gain to zero) it can induce oscillations, with or without holding the stick. I tried a few things, like low pass and notch filters, but nothing seems to cure it.
V
DOne of my motor wires power looks like it wasn't crimped enough
DIt slid right out when I tried to put the motor in my housing
D
DWhat size JST connector is it?
SI lost trim in the A1 0 in DCS. I have the trim button properly mapped. I can see the trim button move forward in the cockpit, but my physical stick does not move in the cockpit and trim is no longer working in the A-10. Any ideas what I messed up? It was working, but I tried downloading a different profile. I have since restored my original profile, but trim has not returned. I have confirmed that “sticky” is not selected in any of my spring damper, inertia or friction effects. I also have no trim effects in the F 14 if I go into special options for the F-14 in DCS and uncheck trim, then I can make the trim cockpit indicator move with the trim hat, but with force feedback trim enabled trim does not function in the F-14 either. (For anyone who runs across this issue the solution was to go into the effects tab and check hardware for trim and relaunch DCS and trim effects returned I have since gone back to the effect tab and disabled hardware trim and it is still working in DCS so this may be a possible bug after loading a different profile)
KDoes trim on the A10c move the stick to does it adjusted a trim tab?
SYes, I got it working and now when you press the trim hat, the stick moves forward and back with the trim hat. (Both the virtual stick in the cockpit and the rhino stick.)
GI used the webusb tool to flash my rhino to the latest firmware. Now I'm running into some problems. Is there a way to flash the firmware back to a previous version? Like 1.0.16 I believe. Thanks.
WWhich problems?
HED Forums
Hey, usually when I trim the F-4 the FFB Stick would follow. So if trim nose down for fast cruise, the sticks center position (or force free position) would move forward (quite a bit). However, that doesn’t work anymore. I can see that the trim hat inputs are registered and the bob weight indicat...
VI dont have the F4, but for the F14 you have to enable this in DCS options / special / F14 / use FFB trim implementation
HUnless I‘m blind (not impossible
) there is no such option in the F-4 special options. And I didn’t change anything there either from when it worked.
Does the trim following still work for you in the Tomcat?
) there is no such option in the F-4 special options. And I didn’t change anything there either from when it worked.Does the trim following still work for you in the Tomcat?
WJust tried free flight on F-4 - trim seems to work fine
WDo you get changing center values ?
HI assume you are using the latest beta versions of all software? Is this with or without TelemFFb running?
Hlet me check…
WYeah, without telemFFB, latest beta
Hgimme a sec
HComputer rebooting to be sure. I enabled a deadzone in VP config. Might that be the issue?
H3%
WThat shouldn't affect it
H
HNo, the center value isn't changing
WDo you have Override trim checked by any chance?
HNo not in the Profile I‘m using for the F4.
HI have two basic profiles. One for fixed wing one for Helicopters, The latter has Trim and trim override enabled. The first doesn’t
WDoes trim work for other DCS modules?
HAs far as I can tell, no. But I‘m not exactly sure which module would be the best to test this.
WSU-25T
HI‘m sure I messed something up on my end, but I can’t figure out what exactly…..
WPushed a new beta firmware (b5). Found a single case when trim center could be stuck due to hw trim leftovers.
