HI‘m sure I messed something up on my end, but I can’t figure out what exactly…..
WPushed a new beta firmware (b5). Found a single case when trim center could be stuck due to hw trim leftovers.
HAwesome, will try immediately!
HNo, unfortunately no change. Sorry.
HWait, after re-connecting the USB it seems to work. Let me double check something.
H@walmis It is working again! Thank you so much!
It worked after I plugged the Rhino in a different USB port. It kept working though after I plugged it in the original USB-hub again. I can think of two possibilities here. Either the logic board needed a 5V power cycle after the firmware update or somehow the order of how the devices were plugged in the Hub mattered. (I did some cable management lately, so the order may have changed).
It worked after I plugged the Rhino in a different USB port. It kept working though after I plugged it in the original USB-hub again. I can think of two possibilities here. Either the logic board needed a 5V power cycle after the firmware update or somehow the order of how the devices were plugged in the Hub mattered. (I did some cable management lately, so the order may have changed).
GThanks for the quick response! Problems wise: trim not working anymore (at all!) especially noticable off course in heli´s. But even F-18 didn´t work when telemFFB was active. Also busy with testing other device (MIGS) which apparently also had an issue when working together with the rhino. That was fixed with a software update from the migs side so I figured that was playing up again. Anyway, I´ll try the new firmware and disconnecting USB when I have some time later. However, would be nice to have at least to possibility to downgrade the firmware..
BIs there a way to roll firmware update back?
Balso after firmware update started having issues with spring force applied momentarily while moving joystick in about center area. In the video clip you can see that sometimes spring force jumps very high for a split second.

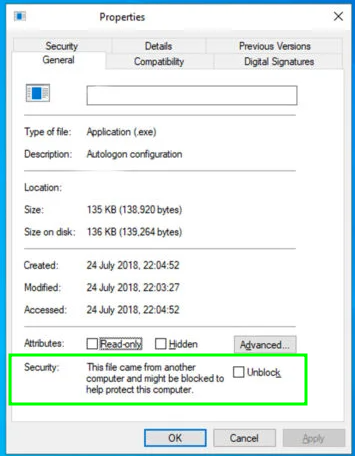

Nright click->properties on the EXE for the new configurator version. See if there is an option to unblock the file. This has happened to one person I know of for unknown reasons.
BThank you for an advice. I think I had issue with windows archive extract function. Once I used winrar to extract archive, configurator started working. Still having issues with jerking forces on the joystick. Seems like it happens when joystick crosses zero point on the axis.
GFlashed to the b5 firmware and all working great again, thanks Walmis!
Bsamples.csv1.1MB
WSo yeah, found the issue, but you can fix it on your end, fix the belt position relative to the motor so the calibration is within the 0 .. 4096 range
CIf you are interested in critical issues related to I think firmware, my rhino keeps "crashing". Shutdown chime plays in the middle of flying, and I have to cycle the emergency stop to get it up running again.
Started after I updated the firmware + configurator + telemffb (to WIP version) in order to solve another issue, where I cant run telemffb more than like once, before the .exe stops working and I have to unpack the whole telemffb from the zip again in order for it to run.
My original issue wasnt solved by this so now I have both of these issues
Started after I updated the firmware + configurator + telemffb (to WIP version) in order to solve another issue, where I cant run telemffb more than like once, before the .exe stops working and I have to unpack the whole telemffb from the zip again in order for it to run.
My original issue wasnt solved by this so now I have both of these issues
CAlso, any fix for this issue on the configurator?
I keep having to reinstall so much software constantly because it just stops running, doesnt start, after a while. Both the configurator and telemffb...
I keep having to reinstall so much software constantly because it just stops running, doesnt start, after a while. Both the configurator and telemffb...
WTry maybe excluding telemFFB/configurator paths from windows defender?
CThey are
BHow to do that? I tried to set raw_x and raw_y values close to 0 and then put belt on with joystick in center position. Still same jittering
WThe best way is to reset calibration manually to min 0, max 4096. Apply settings. Enable spring force so it recenters the motors then put on the belt while everything is centered.
WThe raw values will be around 2000 when properly centered
WThen after auto calibration the values will stay between 0 and 4096
WWell this is new. What issue does the telemFFB have?
BThank you. This worked.

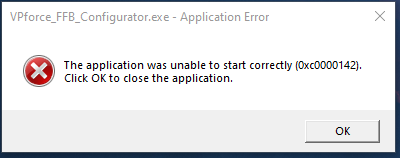

CThe telemffb just does not start. running the exe does nothing, I get the loading spin thing on my cursor for a few fractions of a second, then its just a no start.
WFeels like some runtime libraries are messed up
FHi @walmis I sent you a DM regarding one of the limiters in my last order that was sent with the wrong angles. It was supposed to be Y22 and X16 and I received the standard 11 on both axis.
IRight click on it, then click properties and tick unlock
BHi everyone,
How can I amplify the default TelemFFB plane effects ? So basically what it is for Bf109 in Il.-2 but a notch more
Thx !
How can I amplify the default TelemFFB plane effects ? So basically what it is for Bf109 in Il.-2 but a notch more
Thx !
HIncrease the gain for periodic effects (guns, shudder) and constant force (g-force, de-accel) in the VP config…..and of course master gain if it isn’t on 100
Assuming you already maxed out the settings in TelemFFB
Assuming you already maxed out the settings in TelemFFB
HMake sure you haven’t accidentally limit any force by means of the potentiometer.
Bi have pot #1 to 50% as spring, and the actual Spring force is 100%...so basically 50% spring if i am not mistaken....btw. I have the smaller diamater wheels.
Hcorrect. But spring doesn’t affect the aforementioned effects.
Baffirmative
Bor the smaller cog is slipping ?...as i did 3d print them myself
HYou mean the motor side pulley?
HBold to make those out of 3D prints. I wouldn’t bet on their longevity.
Bjup
Bme neither
HWell at least they are cheap and quick to replace….
HHow many teeth?
Bthats true....i have the alu ones, but the shaft hole is too small
HThey come in different bore sizes. 8mm is what you need
HMaybe you can drill it up? (be careful, wear glasses and clamp them down properly)
Balready thougth bout it...and will try it out. definitely need a good clamp
HBest to use a standing push down drill. Freehand will be hard to aline.
H(or bite the apple and by new ones)
H*buy
TI'm using throw limiter that is not assymetric. I have 20 degree pitch foward but only 15 deg backward. My stick center is now foward 3-4 degree. How do I correct this?
