My issue was that for the first week I had it, I was just hitting the Big Red Button BRB from now on

My issue was that for the first week I had it, I was just hitting the Big Red Button BRB from now on. and after a week FFB was just not working as it should. Realised the BRB was just cutting the power to the motors but leaving everything else fully powered. Unplugged for a minute and all went back to normal and have unplugged from power brick ever since. USB still connected to PC but I do shut it down at night. Been good ever since until recently and the F-5E in DCS has no trim effects anymore but all the other modules seem fine?

August•1/31/25, 10:05 PM

I've managed to get my settings dialed in after a couple of test flights. 2 questions remain. How do I disconnect the standard spring effect from the spring dynamic effect? I would like to have no spring effect at all when standing still and as air speed increases have more and more spring like effect. Second question, how do I decrease the inertia effect time. Now it feels a bit sluggish. I would like to have the inertia kick immediately when stopping the stick from moving. Now there is a bit of a delay, when the stick is stopped until I feel the 'inertia kick/effect.

NNemisis Wolf My issue was that for the first week I had it, I was just hitting the Big Red Bu...

Number481•1/31/25, 11:48 PM

I only have the FC F5, and while it has bindings for rudder trim, they don’t seem to do anything. IDK about the full fidelity versions.

The pedal trim feature in TelemFFB reacts to the physical movement of the control surface. If that doesn’t move with rudder trim, it won’t work.

NNumber481 I only have the FC F5, and while it has bindings for rudder trim, they don’t see...

Nemisis WolfOP•1/31/25, 11:58 PM

HI I can confirm that the F-5E trim both stick and Rudder used to work fully without issues, The Stick and Rudders would both move and react to trim inputs. But since ED updated DCS on the 24th of Dec I could not fly as they buggered something up for me! They seem to have fixed the issue I had with the latest update but now the F-5E cannot be trimmed out and is basically unflyable with the Rhino! All other modules that I have tried and I have most seem to be absolutely fine!

GGTOfire Good to know, thanks! And yeah I've definitely enjoyed a few beautiful moments w...

OldmateHC•2/1/25, 2:07 AM

Hit the awacs up and start getting a soak before you taxi to help SA

NNumber481 I only have the FC F5, and while it has bindings for rudder trim, they don’t see...

Nemisis WolfOP•2/1/25, 10:15 AM

Well I don't know how I fixed it but ALL is well in F-5E Tiger II world!!

I reset the configurator to factory defaults and used the standard config file for the F-5E and the Trim is now working properly!

TTheAmazinGreat Have you tried cycling the e-stop?

Ourorborus•2/1/25, 11:34 AM

It was a good suggestion but having just tried it, it makes the game lose the whole stick. Going to give "autohotkey" a go

Padinn•2/1/25, 11:59 PM

Has anyone found a reliable way to get the cog covers to stick? Mine unfortunately keeps coming off. Tried a couple things so far but no luck

PPadinn Has anyone found a reliable way to get the cog covers to stick? Mine unfortunate...

walmis•2/2/25, 12:49 PM

Hmm, did you try a foam double sided tape?

55earchkaine hi, does anybody know how to set my VKB grip as default device in the Rhino Inpu...

Jaeger•2/2/25, 12:57 PM

This is still a pain in the butt. Is there any help to get it back to remember it's last setting?

Wwalmis Hmm, did you try a foam double sided tape?

Padinn•2/2/25, 1:48 PM

Been using a silicone one but I'll give foam a try

PPadinn Been using a silicone one but I'll give foam a try

Number481•2/2/25, 1:51 PM

I cut up some command strips. Never moved until I took them off.

Leodis•2/2/25, 7:55 PM

Hey all, I got 1h40m into a DCS campaign mission yesterday when my Rhino suddenly disconnected in the middle of a Case III approach. The stick went limp and there were no inputs reaching the game. I pressed and reset the emergency stop and unplugged and reconnected the USB cable on the base and it reconnected, but there was no longer any FFB. I restarted TelemFFB and got the periodic effects back, but there were no spring forces. I managed to trap, but wondering if there's anything else I can do to recover from a disconnect and restore all forces in the future. I'm worried about this happening during a multiplayer squadron mission as those often run over 2 hours. Thanks!

LLeodis Hey all, I got 1h40m into a DCS campaign mission yesterday when my Rhino suddenl...

Touch_Of_Legend•2/2/25, 8:06 PM

I have never had an issue but someone the other day said that they experienced “random FFB disconnects” similar to what you’re describing.

The issue and fix for this person was Vjoy or joystick gremlin virtual joystick? (One of those) was causing a dual input.

To fix the issue they just disabled “ FFB” check box in the virtual joystick or the Vjoy.

Maybe it was under the support channel so see if you can find it AND double check yourself (if your running any virtual joystick) that the “FFB” is unchecked.

That’s the only thing recently I’ve seen so maybe that’s a start for troubleshooting

Leodis•2/2/25, 8:14 PM

Thanks, I appreciate the response. I am using vJoy and Joystick Gremlin, but I just double checked and "Enable Effects" is already disabled in vJoy. I don't see any FFB related options in Joystick Gremlin. I will search the channel for the history though. Thanks again.

TTouch_Of_Legend I have never had an issue but someone the other day said that they experienced “...

Rocco Thamanoidis•2/2/25, 8:47 PM

I use vjoy for my pedals, but ffb effects are all disabled there. Two weeks ago I thought I found the solution, in disabling MSFS support in TelemFFB ... then one full week no ffb loss/disconnect. But this week it returned. What a nasty "bug".

ono•2/3/25, 11:37 AM

Hello a question: if I set the spring to 100% in the ffb configurator, then the maximum stroke distance in y is only half as long. What am I doing wrong or how can I adjust this?

When I send spring off, it's 100% of the total length again

Oono Hello a question: if I set the spring to 100% in the ffb configurator, then the ...

TheAmazinGreat•2/3/25, 11:41 AM

Check description of force comp settings. Down by the calibration values. It is shorter due to flex in the system.

Jaeger•2/3/25, 11:44 AM

For me it's a hid disconnect that gets DCS to stop sending FFB effects (spring). Only a DCS restart fixes that. In my case it is PointCTRL, which I painstakingly have to make sure not to reset while dcs is running.

ono•2/3/25, 12:07 PM

Hardware trim in ffb or the trim in the applications? What is better?

Fr4Ged•2/3/25, 12:14 PM

Applications. Only use the hardware trim as last resort imo.
E.g. the DCS Apache hates being used without its trim. Lol

FFr4Ged Applications. Only use the hardware trim as last resort imo. E.g. the DCS Apache...

ono•2/3/25, 1:12 PM

Dentedend10•2/3/25, 9:16 PM

Hi. My Rhino was working fine yesterday. Today when I turn on the Y axis does not work. I get the error code Faulty Encoder 12C

Dentedend10•2/3/25, 9:16 PM

Please someone help

JJaeger For me it's a hid disconnect that gets DCS to stop sending FFB effects (spring)....

*NOB*Aries•2/4/25, 8:13 AM

PointCTRL can take down even my VR sometimes if it's USB connection goes in and out...

*NOB*Aries•2/4/25, 8:14 AM

*NOB*Aries•2/4/25, 8:16 AM

my USB port holder casing just broke... where could I get STL file to re-print it?

walmis•2/4/25, 8:22 AM

@NOBAries here you go

usb-flange.zip22.35KB

Jaeger•2/4/25, 8:26 AM

Great, I killed mine as well, glued it together for the time being. Price too pay for a removable setup, I guess.

*NOB*Aries•2/4/25, 9:58 AM

it's the cables... I have to rotate base for 180 and flip pitch axis... cause this way me or my son always nudge the cables acidentally...

**NOB*Aries it's the cables... I have to rotate base for 180 and flip pitch axis... cause th...

kaltokri•2/4/25, 10:10 AM

You can also buy 90° angled adapters/cables.

Jimmy•2/4/25, 11:05 AM

Could I request views for and against mounting the Rhino on a LONG Monstertech mount on an IKEA desk, with vibration settings turned down very low to avoid it shaking the desk to bits - thanks.

(NB: My personal interest is in the Rhinos realistic trimming and aerofoil pressure NOT sensations of gear or airbrake travelling etc.)

JJimmy Could I request views for and against mounting the Rhino on a LONG Monstertech m...

Blackrat•2/4/25, 11:09 AM

You can turn all effects down or even select which ones you want and customise each one, lets face it you can always buy a stronger desk

Festr ᶬꞙƨ•2/4/25, 12:15 PM

Festr ᶬꞙƨ•2/4/25, 12:15 PM

hello, is this compatible with the VPC virpil sticks or do I have to order something more?

FFestr ᶬꞙƨ hello, is this compatible with the VPC virpil sticks or do I have to order somet...

Anthony•2/4/25, 12:23 PM

No, that’s all that’s necessary for a VPC grip

Anthony•2/4/25, 12:23 PM

No adapters or such required

pju38•2/4/25, 1:56 PM

Everthing was working fine.
I've open the case to tighten main gimbal screw and remount.
The stick center wasn't correct any longer. So tried a calibration.

But now I'm unable to have motor provide force any longer.
TM warthog buttons works.
I can see stick moves in windows game controller window.

I have try
Reset Firmware defaults.
Auto calibrate.
Master Gain Main 100%
Effects Springs 100%

Everything works, except there is no force, stick can move freely.
Motors have a green light. There is 24V on all pins with screws.
Firware update button cannot be activated even if connected,
may be because FW version is latest one.

I'm lost.
Except return the DIY kit 57BLF03x2 for check I have no idea what to do.

Ppju38 Everthing was working fine. I've open the case to tighten main gimbal screw and ...

walmis•2/4/25, 2:00 PM

Can you post a screenshot of your configuration?

pju38•2/4/25, 2:12 PM

Got your answer per email " your global spring gain is currently at 0% - hence no centering spring force will be available",will try this. Thanks

walmis•2/4/25, 2:13 PM

Don't forget to "Store Config" so your configuration doesn't reset after device restart

pju38•2/4/25, 2:30 PM

Solved. Thanks.

pju38•2/4/25, 6:17 PM

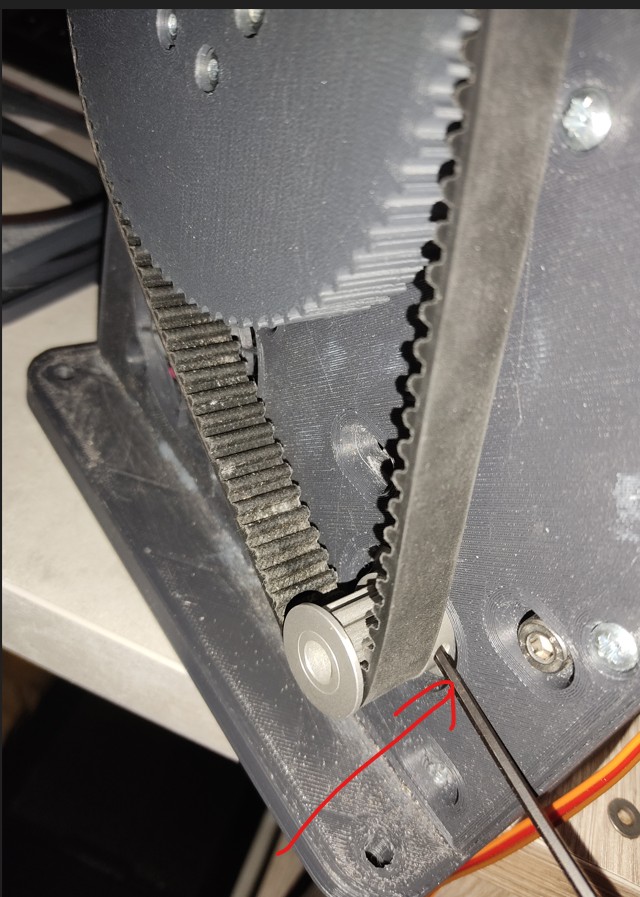

I don't understand how to have a correct center.
1) I turn the pulley to have rawX,rawY belt not installed near to 2048 in Auto calibration
Than apply/store.
2) Mount centering tool. Mount the pulley.
Autocalibration. Apply/store.
And sitck is not center.

Do I have to unscrew the pulley to have stick center (which is impossible for my case,
I need to unmount the motors to have access to pulley tiny screws) at some time ?

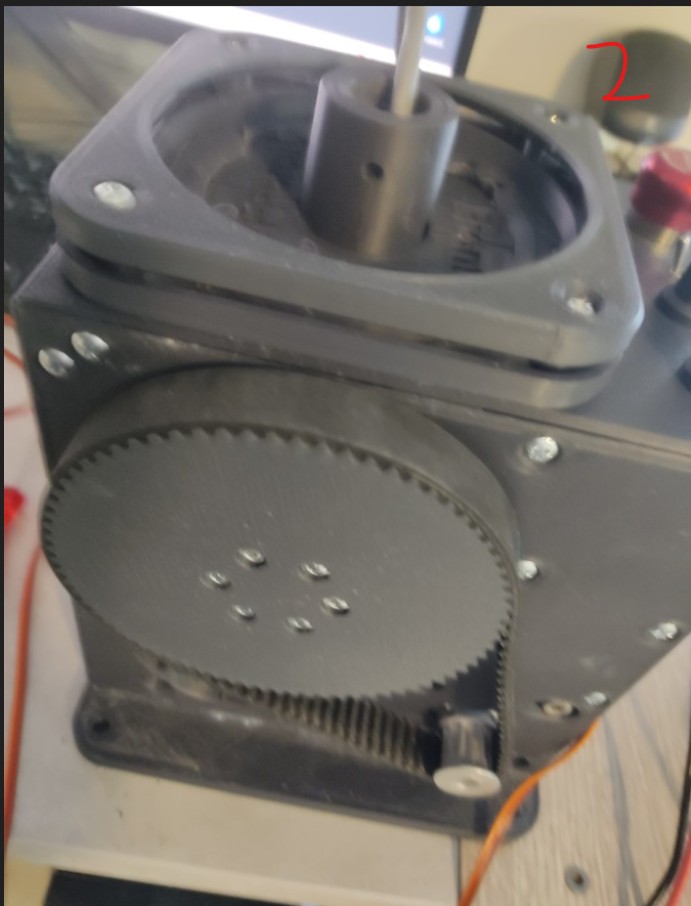

With centering tool set as in picture 2, how store 'this is my center' ?

pju38•2/4/25, 6:19 PM

walmis•2/4/25, 6:32 PM

You don't have to change anything more physically - your calibration is within 0-4096 bounds, which is good.
Do the auto calibration routine and save the settings.

pju38•2/4/25, 7:35 PM

Ok, thanks.
There is no 'store center'.

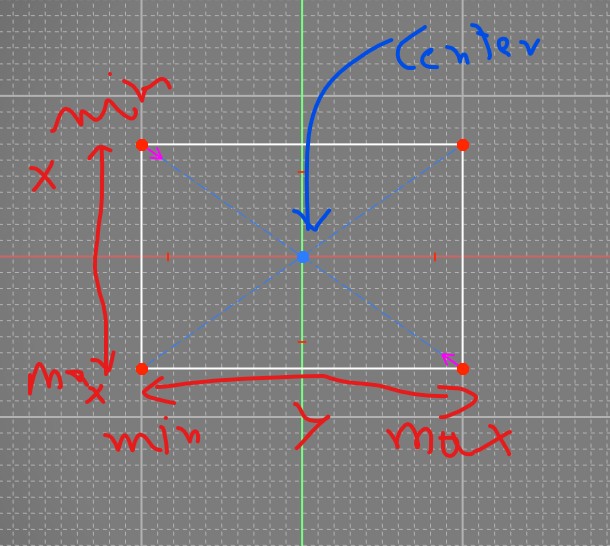

Center is computed from Xmin/max Ymin/max calibrated.
Correct ?

Ppju38 Ok, thanks. There is no 'store center'. Center is computed from Xmin/max Ymin/ma...

akabosse•2/4/25, 7:50 PM

Yes, correct. You should be able to just press "auto calibrate", read what it says in the box and press OK, move the stick forward, back, left, right, and press the auto calibration button again to exit calibration mode. Then press "store settings" for it to take effect.
Btw, personally I don't see the need of the centering tool but maybe it's me not thinking it through (as long as you are within the one rotation of the motors, at least when connecting/powering on). I didn't use the centering tool when I assembled mine but maybe I'm lucky

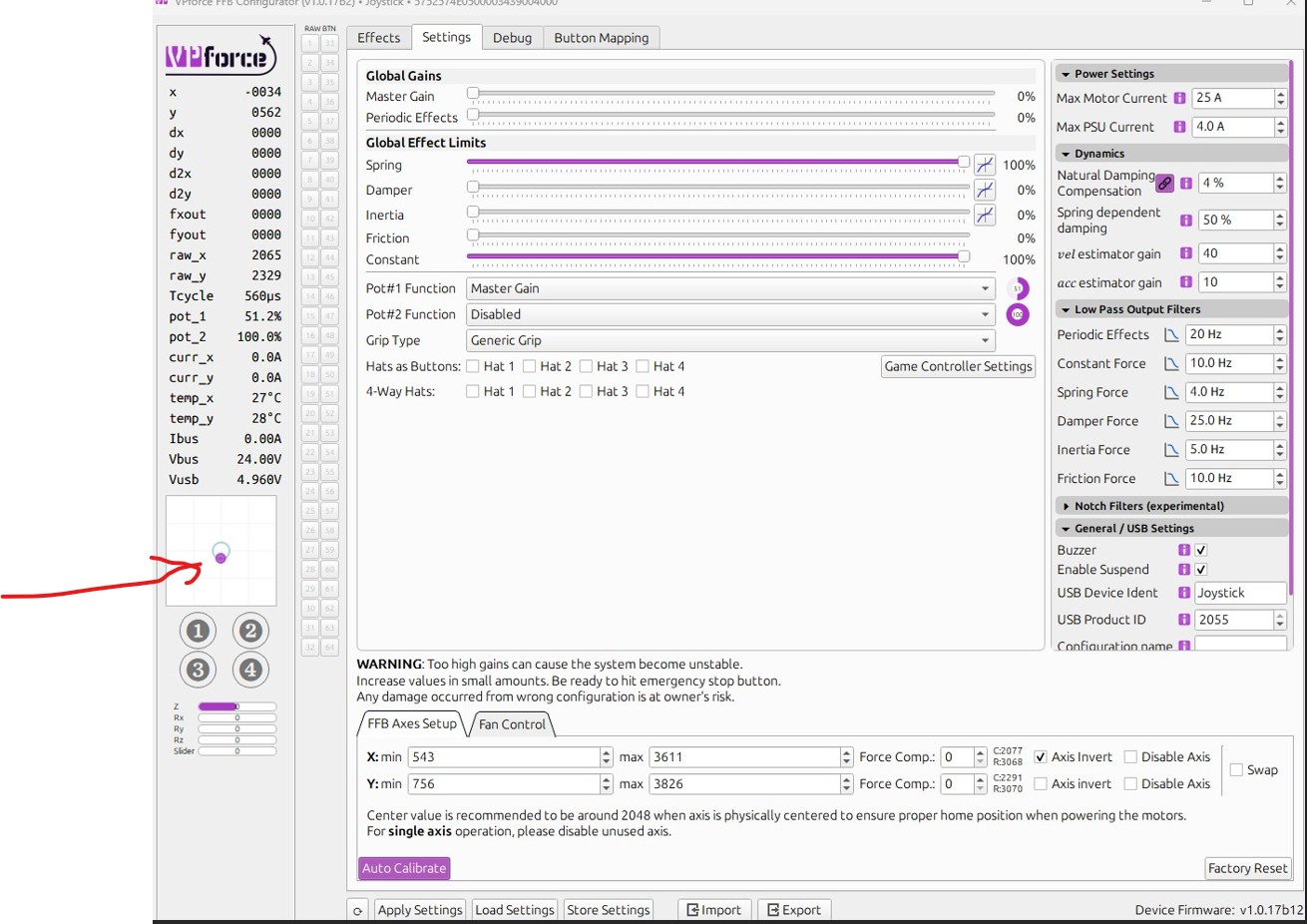

Ppju38 Click to see attachment

Number481•2/4/25, 7:58 PM

your stick is sagging from center, most likely due to grip weight and extension offset (can't see what you've got attached in your photos). Also, your pot is assigned to master gain and set to %50, so you're only getting %50 of whatever spring effect strength you have started in the effects tab.

Spring is weakest at center. You should use the Balancing Procedure to counteract the sag caused by the grip. Once you have that satisfactorily configured, I recommend using the "adaptive recentering" feature in the effects tab spring settings.

Bras•2/5/25, 8:43 PM

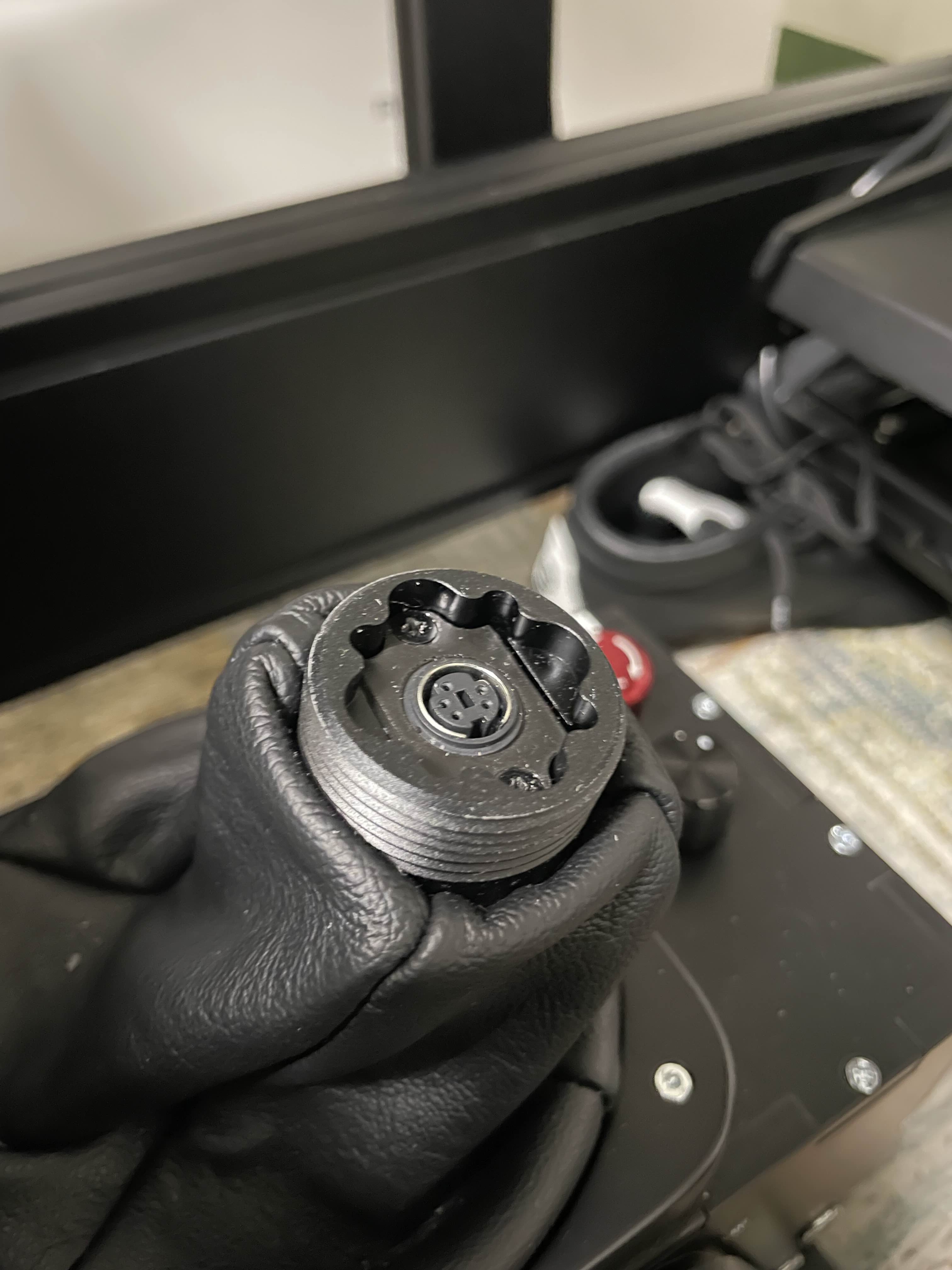

Hi guys, does anyone has the 3D print model of the threaded insert to attach the grip when I take it out from the Rhino? I need to be taking it out frequently as I have a flight/racing sim setup and would like to have a nice place to keep the grip near the rig once I take it out instead of the floor

Bras•2/5/25, 8:44 PM

Thank you!

SHAFT•2/6/25, 2:20 AM

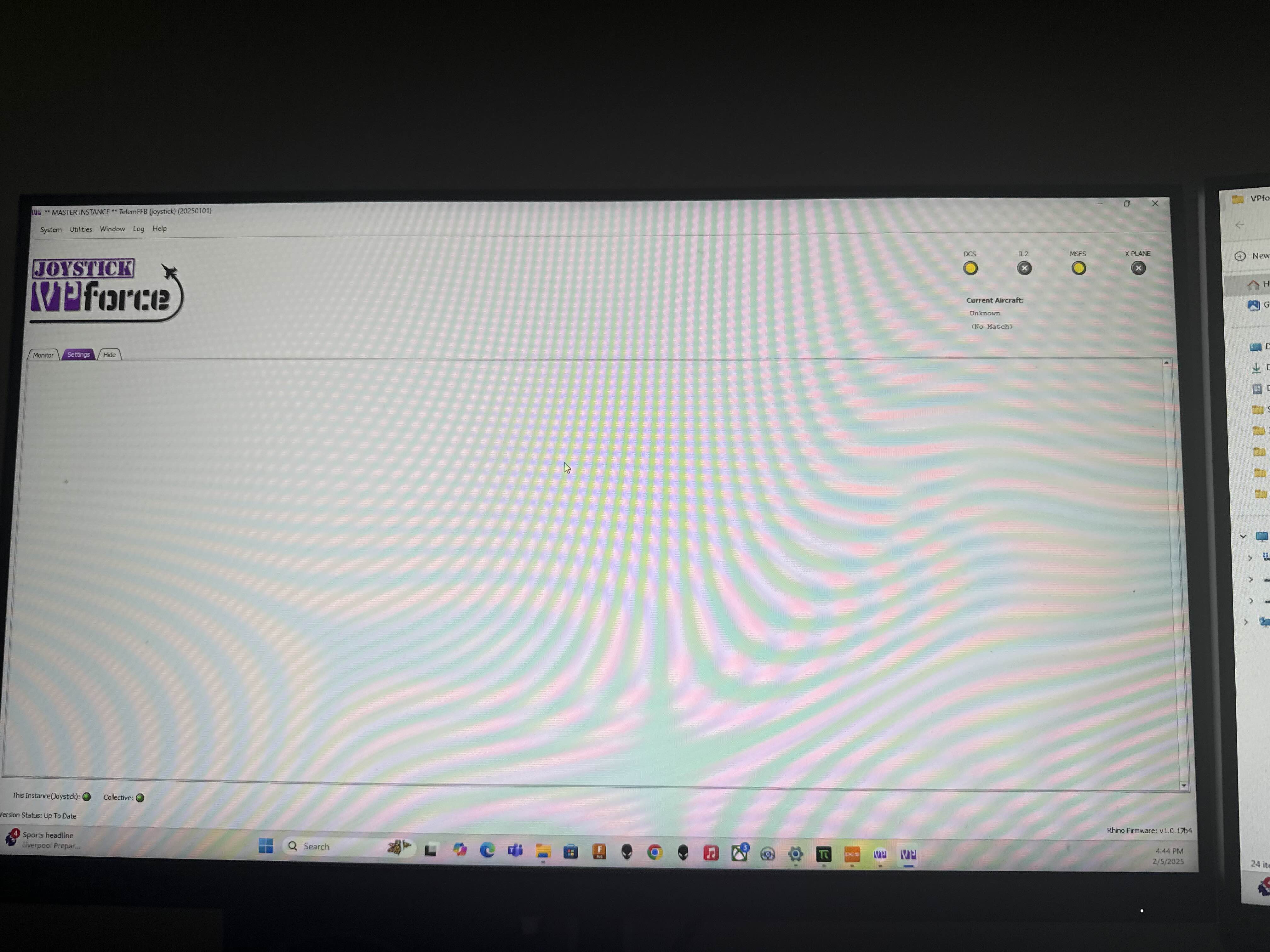

I’m having issues with telemFFB connecting to DCS. Worked with no issues a few days ago, haven’t changed anything. Any ideas?
