I know a few RS users that successfully use their grips, so this instance is kinda strange. Since the grip receives power and BLE works fine, I assume the connection is good with the grip.

LLei I saw your video first but then after several tries it works pretty okay now wit...

ddrake1984•2/9/24, 8:05 AM

Needs washer, you don’t want to over tighten

LLei I saw your video first but then after several tries it works pretty okay now wit...

PiNKSH!T•2/9/24, 8:48 AM

A plywood sheet 10-15mm (depth) that's big enough for your seat to sit on with the Rhino mounted in front, you can even have it big enough to go under your desk & have rudder pedals sit on top too. Just measure where the Rhino will go drill the 4 holes & put some small bolts in from what will be the bottom & then once in place you can bolt the Rhino in place on the "floor" right in front of your chair.

PPiNKSH!T A plywood sheet 10-15mm (depth) that's big enough for your seat to sit on with t...

Lei•2/9/24, 9:53 AM

Thanks for the suggestion, I just finished a quick and dirty version (Just drilled 4 screws into a piece of plywood and placed in front of the seat) works perfectly fine.

LLei Thanks for the suggestion, I just finished a quick and dirty version (Just d...

PiNKSH!T•2/9/24, 9:56 AM

nice works well

Rob EB•2/9/24, 2:27 PM

@walmis
FFB Configurator

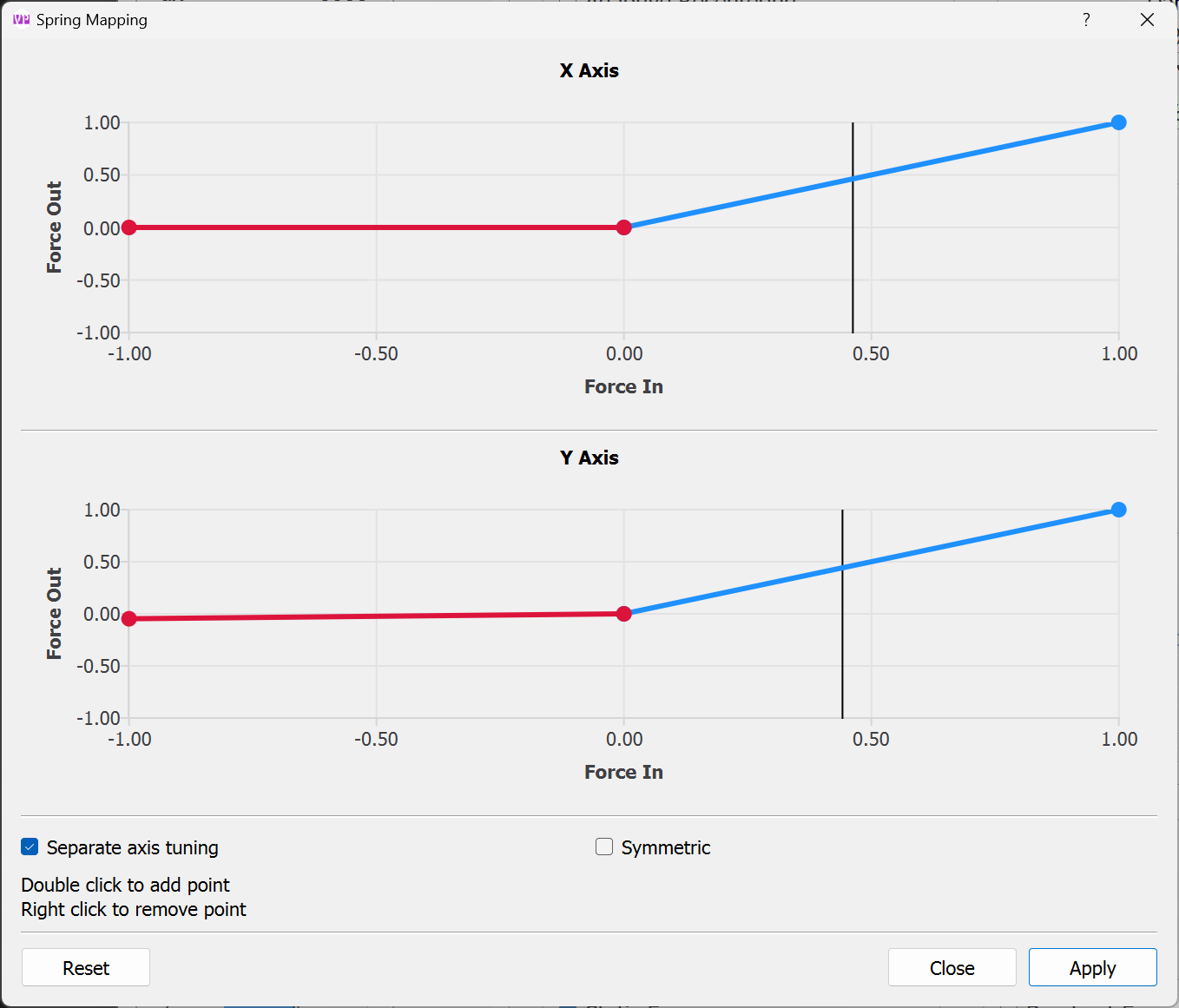

Spring Gain Map Graph Appears to be Reversed
When adjusting the spring map, the graph adjusts the gain in the opposite sense to the axis movement displayed. In the attached image the position of each axis as indicated should result in the mapped spring gain. However, the gain is as mapped for the opposite direction. In this example, the gain is zero for the indicated postions but follows the map when moved in the opposite direction.

My Rhino Y-axis is inverted (e-stop facing forward). X-axis is not inverted but the direction of movement displays in the map graph and in the display on the settings tab as expected.

RRAFFT Hey guy I just put the Winwing F18 stick on the VPforce with the winwing adapter...

Isimus•2/9/24, 2:43 PM

Same ting to me. I have just mounted a Winwing F18 stick with the winwing adapter and is not recognizing the trim switches. Have you managed to make it work? Anybody else has the same issue?

IIsimus Same ting to me. I have just mounted a Winwing F18 stick with the winwing adapte...

walmisOP•2/9/24, 2:51 PM

Did you change the profile to WinWing adapter?

RRob EB @walmis FFB Configurator **Spring Gain Map Graph Appears to be Reversed** When ...

walmisOP•2/9/24, 2:51 PM

Thanks, I will make sure to correct this in the new version

Wwalmis Did you change the profile to WinWing adapter?

Isimus•2/9/24, 4:17 PM

Done, now is recognized. Thanks

Isimus•2/9/24, 4:19 PM

Wwalmis Thanks, I will make sure to correct this in the new version

amadeus•2/10/24, 7:42 PM

new version you say? :blobsmirk:

Boeing757sim•2/11/24, 2:43 PM

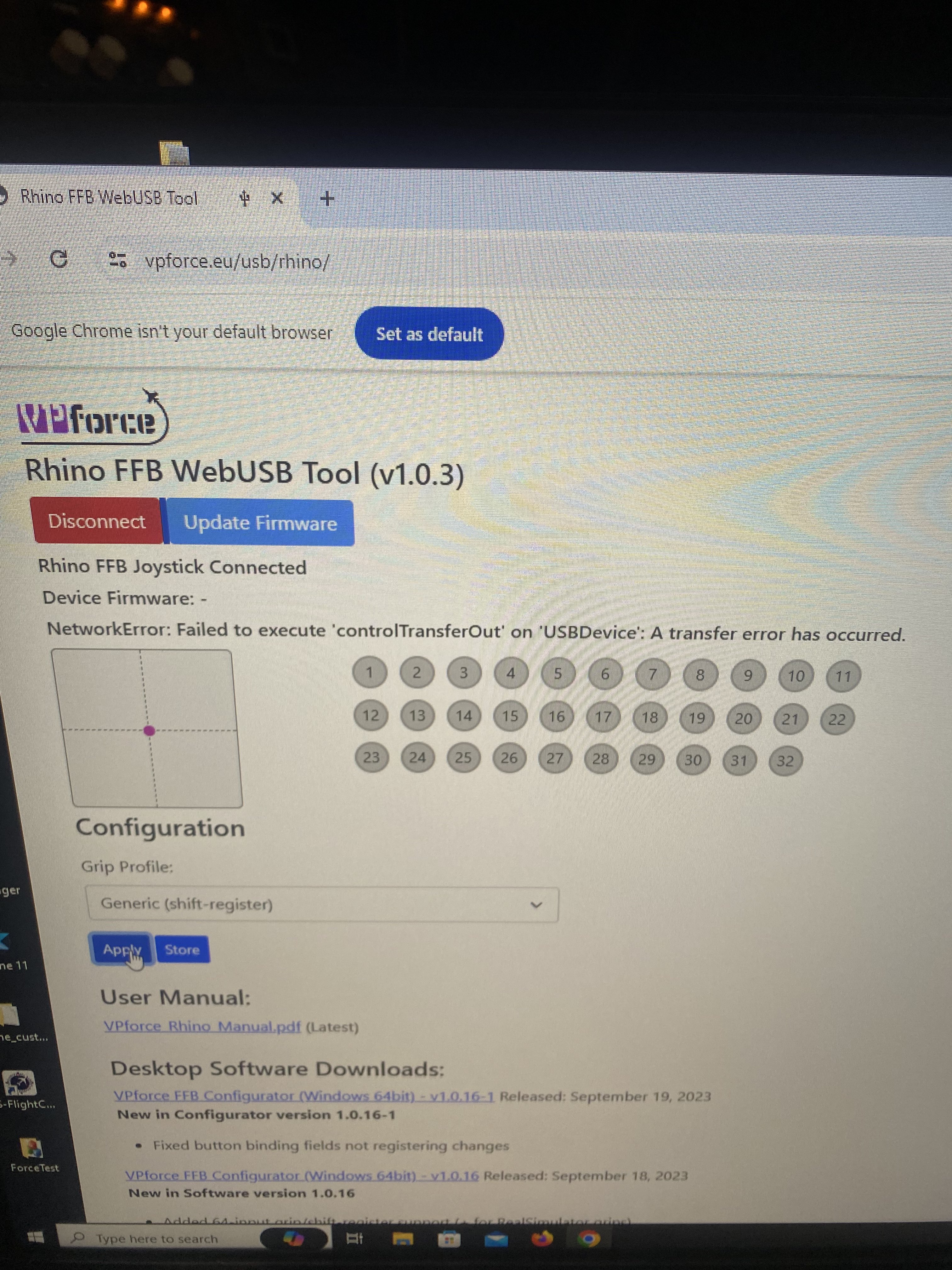

Hi , any suggestions on how to update the firmware, getting this error @walmis

Boeing757sim•2/11/24, 2:48 PM

Windows 11, tried with Edge, chrome no luck

walmisOP•2/11/24, 2:50 PM

Hi, try this: 🧰support

Boeing757sim•2/11/24, 4:09 PM

I did try that once, will try again tomorrow after a re-boot

Boeing757sim•2/12/24, 6:45 AM

@walmis It’s updated, thanks a lot

tmz•2/12/24, 12:03 PM

Hi! I'm encountering a strange behavior on my Rhino, occurs with both aircraft I tried this morning (DCS Tomcat and Hornet). It's almost like effects from TelemFFB are full force, but I get no resistance (compared to yesterday) when pushing/pulling the stick. Would this ring a bell? I did not remember modifying the settings since yesterday, tried unplugging both USB and power brick. Pot is 100% and set to Master Gain.

Ttmz Hi! I'm encountering a strange behavior on my Rhino, occurs with both aircraft I...

walmisOP•2/12/24, 12:32 PM

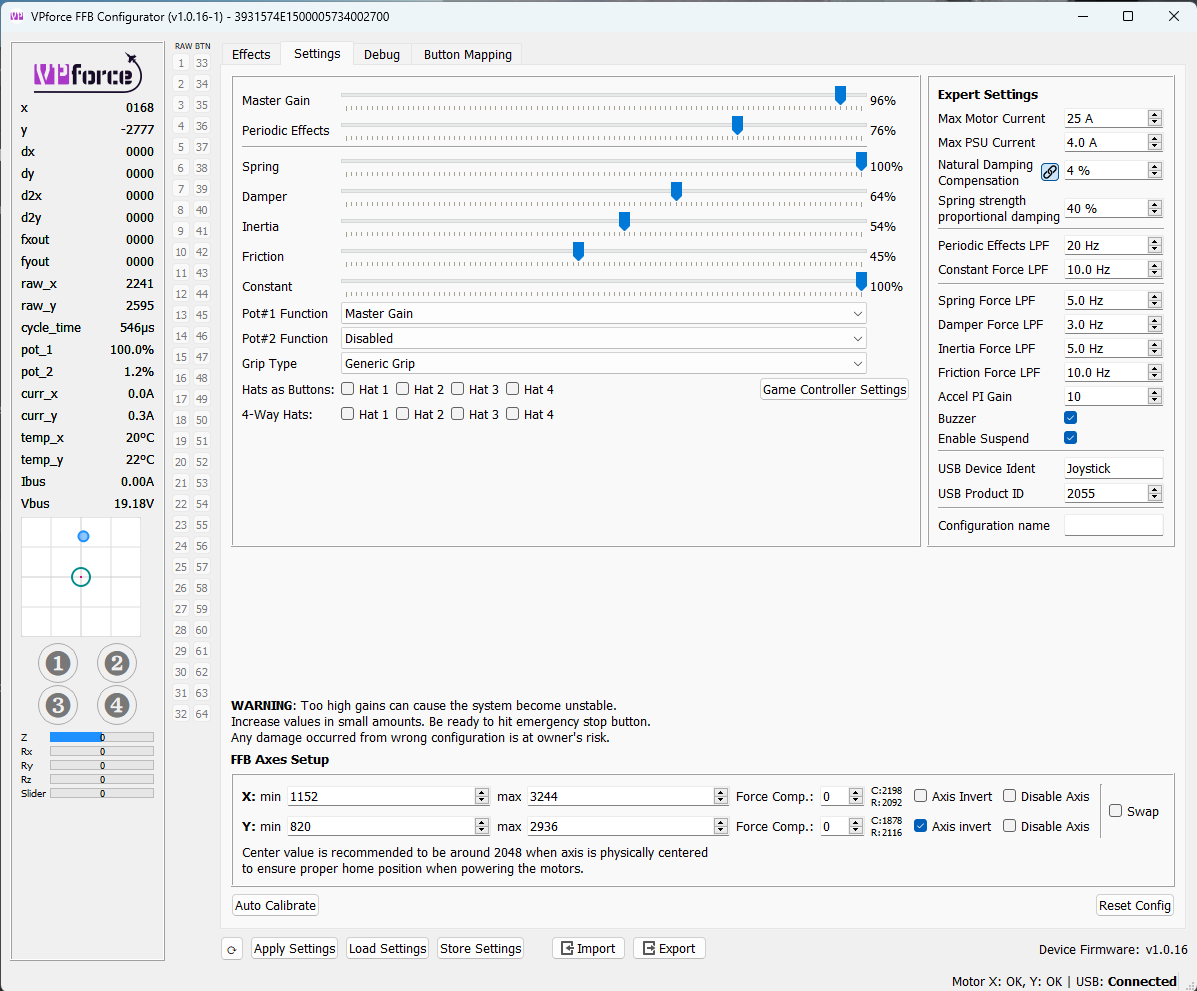

Can you show you configurator settings? Did you run telemFFB during these tests ? Is the spring ok when out of the sim ?

Wwalmis Can you show you configurator settings? Did you run telemFFB during these tests ...

tmz•2/12/24, 12:33 PM

Spring is typically OK only in the sim, not really a spring effect out of the sim

walmisOP•2/12/24, 12:34 PM

It's not connected

tmz•2/12/24, 12:34 PM

Sorry

tmz•2/12/24, 12:34 PM

Just realized that after posting

tmz•2/12/24, 12:35 PM

tmz•2/12/24, 12:35 PM

walmisOP•2/12/24, 12:37 PM

Try importing the default Rhino configuration in configs/Rhino-defaults.vpconfconfigs/Rhino-defaults.vpconf

tmz•2/12/24, 12:51 PM

Works like out of the box, didn't realize that the defaults file was there, thanks!

tmz•2/12/24, 12:51 PM

Actually just turned on TelemFFB, and without it, spring effect, with it no spring effect

Ttmz Actually just turned on TelemFFB, and without it, spring effect, with it no spri...

Number481•2/12/24, 1:30 PM

Are you loading any vpconf profile via TelemFFB? It doesn’t do anything to affect the spring forces on the joystick axis in DCS.

tmz•2/12/24, 1:35 PM

OK, just found it on the TelemFFB KB, it is this issue : https://discord.com/channels/965234441511383080/1093558100713279508/1203549616189214784

tmz•2/12/24, 1:35 PM

No joy with vJoy, disabled it and it works!

Anthony•2/13/24, 2:53 AM

The WinWing adapter, can that be used on Virpil’s extensions?

I’m considering a WW stick, but with my current setup I can’t really do without the VPC Z extension, hence the question.

Anthony•2/13/24, 2:56 AM

So it’d be:

WW grip
+
WW adapter
+
VPC Z extension
+
Rhino

(Best way I can describe it without a poor attempt at using MS Paint)

RRAFFT Hey guy I just put the Winwing F18 stick on the VPforce with the winwing adapter...

Aileron_Hubbard•2/13/24, 3:19 AM

any chance you got simapp pro working with your rhino? im using the f16ex grip and trying to get it to work as well thanks!

Floki•2/13/24, 9:14 AM

Hi, I'm building a grip. I would like to know the diagram of the mini dim 5 pin connector of the VP Force base to connect it to the controller inside the grip. Thank you very much.

mark turner•2/13/24, 10:06 AM

Is it possible to make VP config & VP telem load an individual profile automatically for different modules?

FFloki Hi, I'm building a grip. I would like to know the diagram of the mini dim 5 pin ...

walmisOP•2/13/24, 10:10 AM

Here's the pinout for the TM/Virpil/VPforce interface

Mmark turner Is it possible to make VP config & VP telem load an individual profile automatic...

walmisOP•2/13/24, 10:11 AM

Yes, see here: https://docs.google.com/document/d/1YL5DLkiTxlaNx_zKHEYSs25PjmGtQ6_WZDk58_SGt8Y/edit#heading=h.aydqa1fz6my5

Google Docs

VPforce Rhino Manual

Wwalmis Here's the pinout for the TM/Virpil/VPforce interface

Floki•2/13/24, 10:11 AM

Thank you very much

Wwalmis Yes, see here: https://docs.google.com/document/d/1YL5DLkiTxlaNx_zKHEYSs25PjmGtQ...

mark turner•2/13/24, 10:38 AM

Nice, did not realise we have a spiffy new manual! will get reading!

mark turner•2/13/24, 10:58 AM

May have a muddle going on.....seem to have 2 folders called VPforce-TelemFFB-wip-dbdbb26f. They have different contents and dates, see screenshots

mark turner•2/13/24, 10:59 AM

One, which is the newest does not have any config.user file....?

mark turner•2/13/24, 10:59 AM

Which one do I need?

mark turner•2/13/24, 11:39 AM

May I also ask ( been reading the manual...) in what circumstances would you use the endstops function & axis rescale and why? The manual expalins what they do, but not why and how you might use them. thanks

Mmark turner May I also ask ( been reading the manual...) in what circumstances would you us...

walmisOP•2/13/24, 11:43 AM

Axis scaling : for example to stiffen controls, to mimic F-16 force sensing somewhat.
Endstops: to (soft) limit travel, the same purpose as the hardware throw limiter, but less reliable.

Swoop•2/13/24, 11:45 AM

Hey all - sorry if this is a daft question. I'm nearly at the point where I need to buy a DIY kit and was wondering what the difference between all the options are. Any advice on which I should purchase?

Mmark turner May have a muddle going on.....seem to have 2 folders called VPforce-TelemFFB-wi...

Number481•2/13/24, 11:52 AM

the one in your downloads folder is the new file structure

Wwalmis Axis scaling : for example to stiffen controls, to mimic F-16 force sensing some...

mark turner•2/13/24, 2:52 PM

Great, I already have the throw reducer fitted, so basically, I dont need to worry about using either of those 2 options? thanks

NNumber481 the one in your downloads folder is the new file structure

mark turner•2/13/24, 2:53 PM

Thanks 481, do I need to copy over my user ini file to the downloads location? then delete the other?

Mmark turner Thanks 481, do I need to copy over my user ini file to the downloads location? t...

Number481•2/13/24, 3:02 PM

suggest just creating a "VPForce-TelemFFB" folder somewhere and moving the contents of the folder in your downloads directory to it. You can place your config.user.ini file in the directory with the new version. It will offer to import the settings into the new config structure (see 4.2.1.2 in the manual).

mark turner•2/13/24, 3:30 PM

OK, have done all that. I have 3 different vpconf files, for different modules (F14, F5 and F18) To enable automatic running of each when I use that module, I went to System/Edit Sim class defaults 7 offline models. I then in the 3rd column dropdown selected all the F14 variants there ( there are 3..?) and scrolled to the bottom to configurator file. I checked this box, then I highlighted the line and used the browse button to navigate to the location of the saved config files ( in my case in "configs" in my main VPforce configurator file location) . On selection, I was returned to the GUI, but there was no where I could see that link was made. Was that the correct procedure for linking a profile to a particular module? Assuming that is correct, I can then in the same GUI edit the Telem FFB effects for that module to differing values using the slider after highlighting each one....correct?
