Sthanks mate i will upgrade it
TFriction and inertia are really high, try reducing to <30%. Or import default Rhino profile for baseline.
HWe need to see his effects settings. Maybe he has it on 10% there or not even enabled. I would recommend though to leave it on 100 on the effects page and dial in the desired intensity on the settings page. Such values wouldn’t work then of course.
@slowmover You can reset the motors on the debug page if they tilt out.
@slowmover You can reset the motors on the debug page if they tilt out.
SThanks i will try it
IWhat material are the parts for the Winwing adapter printed out of? My Rhino and adapter were of course made by Walmis himself.
IIs it just PLA?
TAre you using telemFFB at all?
HSo friction and inertia are not even enabled. Damper 60% x 100% is A LOT. I would probably reduce that .
Syeap
Swhen i enable friction the stick goes crazy
TDo you have any of the effects settings activated in TelemFFB (spring, damper, inertia, etc)?
Si am not sure but i think no
HNo wonder with those gains. I have none of them above single digit (100% x 5% e,g,)

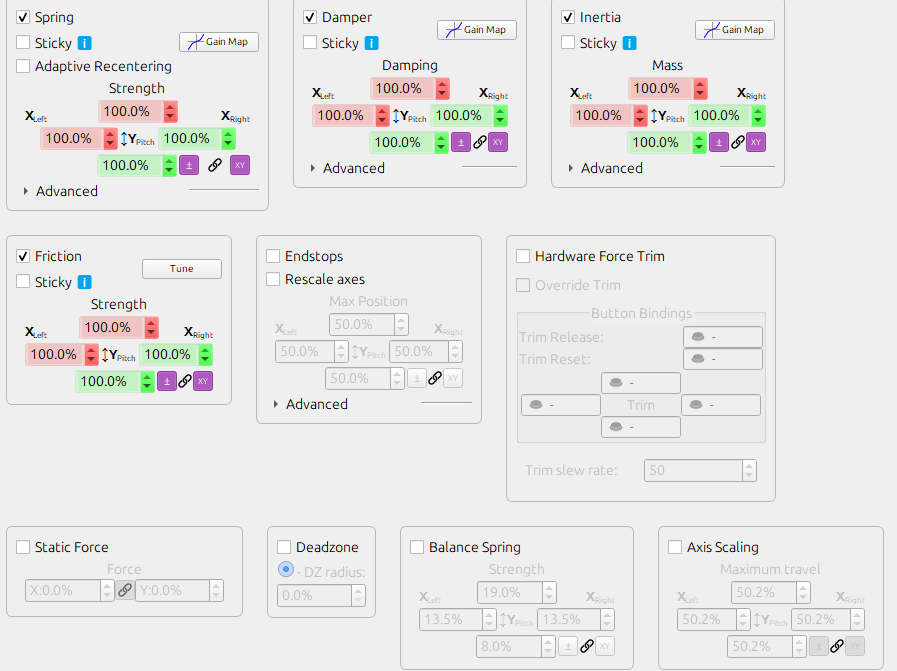

Scan you post your settings?
IThank you! Got it printed, replaced, installed, and fixed!
HNot right now, sorry. But it is easy. On the effects page enable all four (spring, inertia, damping and friction) and set them to 100%. Then on the settings page, set spring to 0 and start dialing in the other three one by one (start small and increase step by step). When it feels good, increase spring again.
FHow did you achieve that? telemFFB doesn't work for me.
HI assume you have enebled MSFS support in TelemFFB. Have you created a new profile (or copied one over) for the aircraft you attempted to fly?
HDoes the yellow light for MSFS turn green when you run the game?
FFor me to have telemffb work with MS 2024 I have to run it AFTER an aircraft is loaded in the sim. Otherwise it won't detect it.
KIt's working fine out of the box for me
FI just got my rhino hooked up today and I was wondering if my joystick is supposed to be able to spin 360 degrees. I have a winwing orion 2 stick and I have the appropriate adapter for it.
Alike the grip just freely rotates 360 degrees?
FYes
FAi'm not familiar with how that adapter works, but i would assume it needs to be able to tighten to prevent that? but will probably need someone who knows more about the winwing adapter works to comment
Rjust got my Rhino today. Any quick and dirty guide or vid for DCS setup? The PDF is a little daunting
HRegarding DCS, make sure FFB is enabled in the game options.
HTelem will automatically intall an export script on first start up (may have to enable DCS in the settings)
RJust loaded TelemFFB. I thought I wasn’t getting many effects. Very different with it. Already had FFB enabled in DCS
RNo idea what I should be setting stuff at. I’ll read your link later tonight, cooking dinner now. Thank you
HDont worry, you'll get there.
It is a little bit overwhelming in the beginning, but it'll make sense eventually.
GN8
It is a little bit overwhelming in the beginning, but it'll make sense eventually.
GN8
RI’m a Viper guy mainly. Ordered the rhino for use with other jets, have FSSB MKII Ultra for the Viper
Rstick doesnt want to recenter at all in Hornet
R
FAdaptive recentering is your friend!

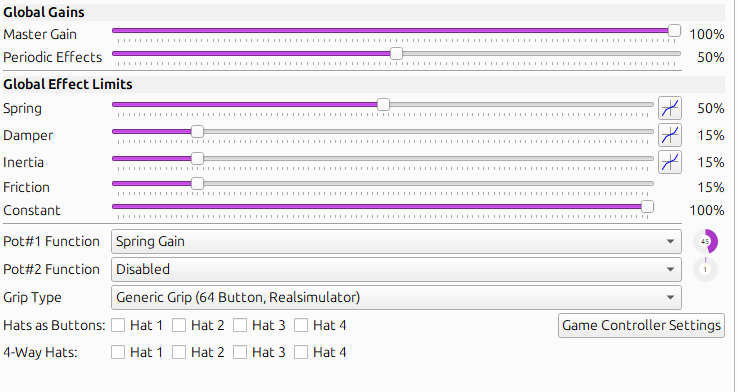

FAlso having spring gain at 50% and the potentiometer at 45% means your spring gain is less than 25%. I'd say set spring gain to 100% and adjust the potentiometer to the spring gain setting that works for you while in the hornet.

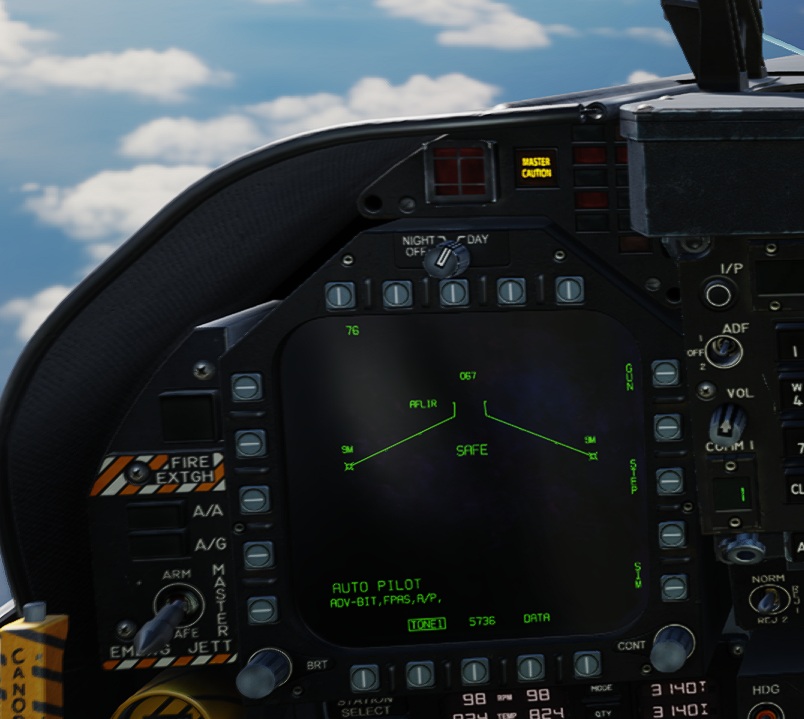

Rgetting close on centering. My problem now is everytime I hit autopilot I get a master caution and the AP won't stay on because the stick is moving
R
Rjust like I was thinking, appears to be a deadzone thing. Slowly increasing DZ in VP until I don't get the caution
RI think this does it
R.7%]

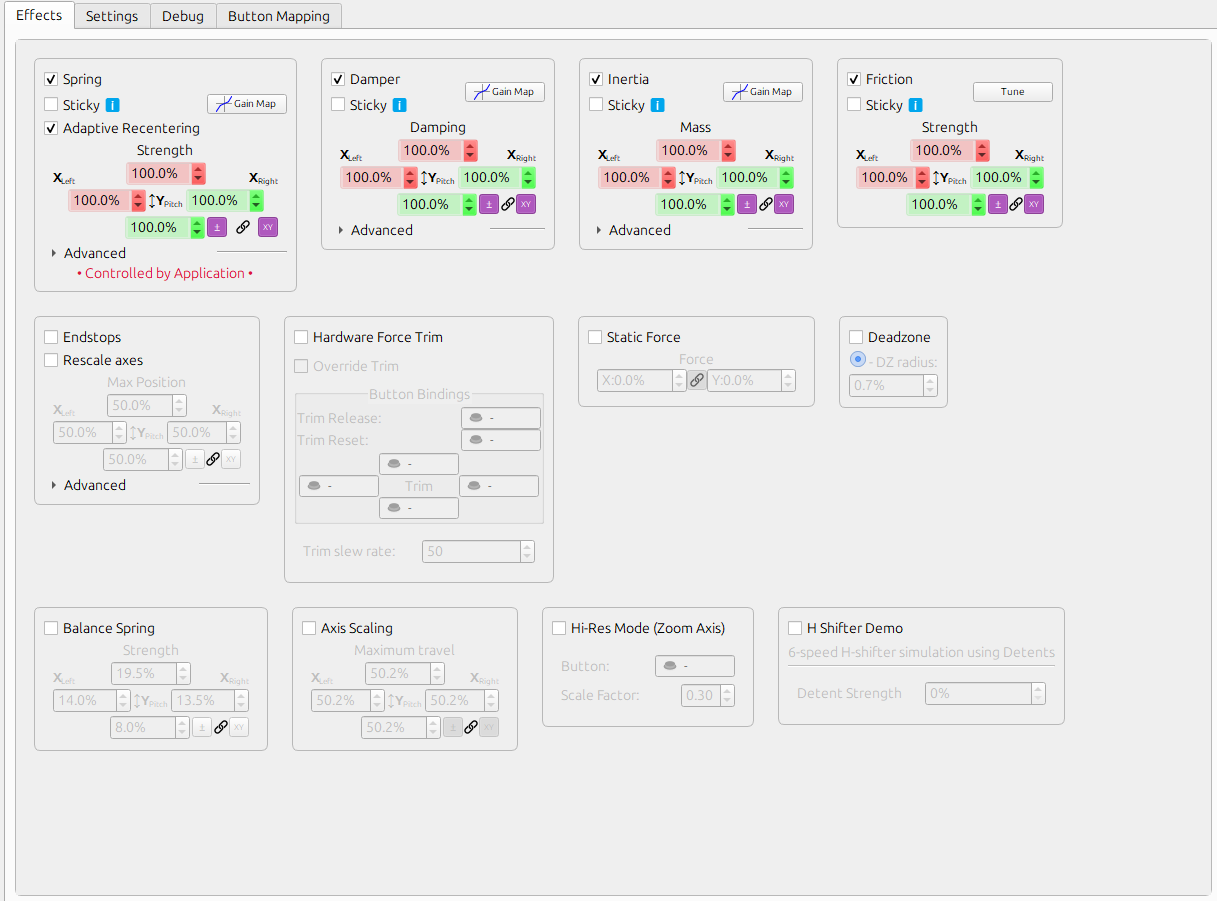

FDid you enable adaptive recentering? With that you shouldn't need any deazone and the stick would stay centered during autopilot in the hornet.
Ryes I did, but it still jittered around when centered

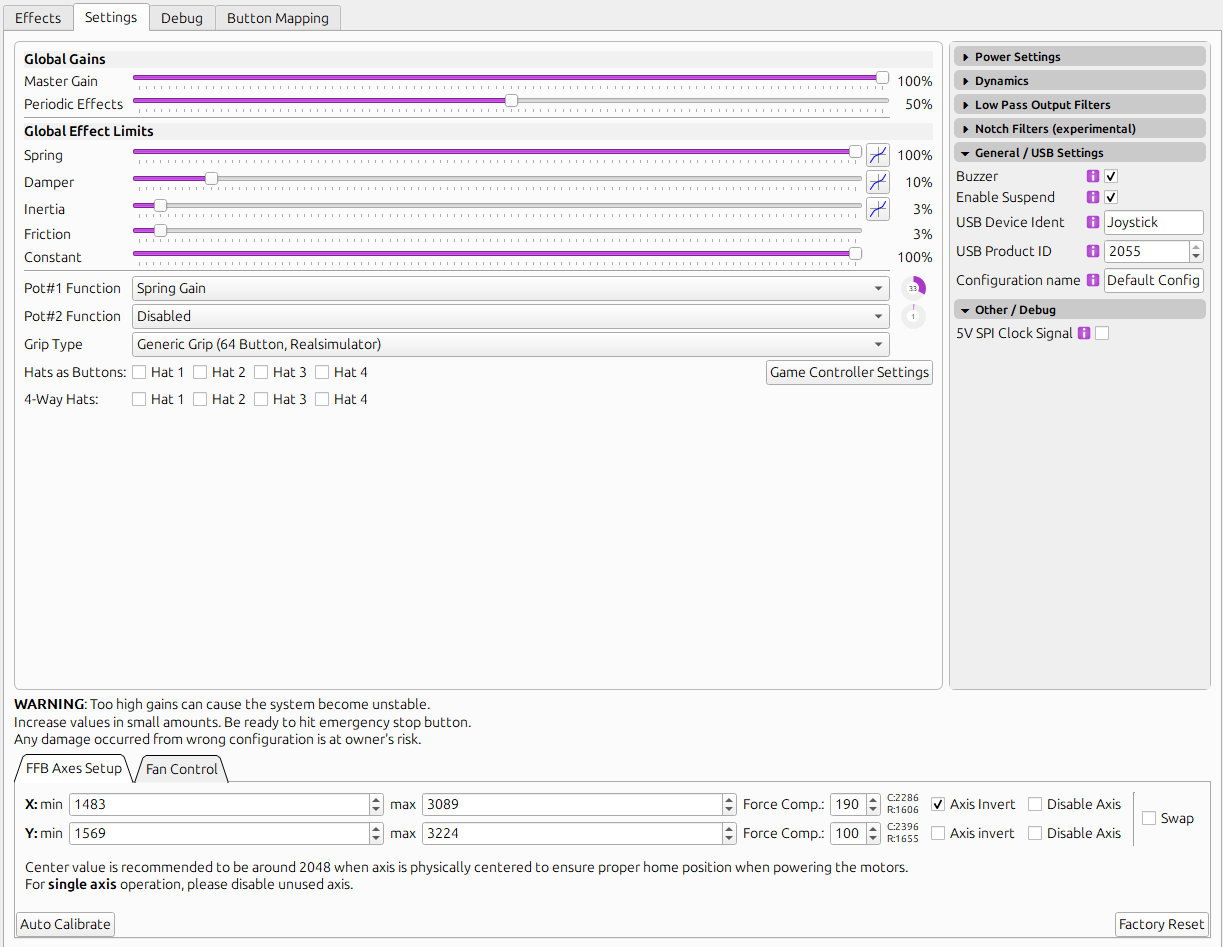

FI've never experienced any jittering when in the hornet using the autopilot. I wonder if any of the filter settings may be causing that. A screenshot do the whole configuration page help to see if anyone notices an unusual value there. And maybe a video of the jittering showing the stick movement and also the config page as it happens.
RRYou can very slightly see the in game stick shaking
R
