Does swapping the axis have a negative impact on performance, functionality ffb? I swapped engines,
Does swapping the axis have a negative impact on performance, functionality ffb? I swapped engines, roll motor to pitch, pitch motor to roll.
Nthe Rhino is functionally equivalent on both axis'. You could turn the base 90 degrees and use roll as pitch and pitch as roll like you said. As long as it's bound properly in the sim.
NJust if you need to invert an axis because of the orientation of the base, do it in the base configuration software, not in the sim. Some modules (in DCS) don't respect the in-sim invert axis and the FFB effects would be opposite.
T@walmis - as I have been moving apartments the last two + weeks, don't know whether it was me buying a new 200mm extension from Virpil, or downloading the new firmware, but now I have no errant buttons on my T-50CM2, which is good, but now need to remap DCS, which is not so good. Many thanks.
THave you got the metal tubular extensions? - I made that mistake going straight to the 200mm extension, and then used a tubular extension to bed in the male screw threads, but a little too late. Nonetheless, worth doing if you have them - as always with 3d printing they err on the side of too big...
Jyou shouldn't have to remap. you can just load one of your profiles backups. This is what i did. you can find them
C:\Users\USERNAME\Saved Games\DCS\Config\Input
C:\Users\USERNAME\Saved Games\DCS\Config\Input
TThe new one is showing different virtual buttons for same physical, this time correctly so will have to do it. No worries, will only take a few and the hardware now doing what it should, which is progress.
KIm assuming everyone knows about JoyPro. Saved me so much time when installing the new stick.
Shttps://tenor.com/view/wow-oh-my-woah-whoa-cute-gif-15272603
How is it I have never seen this.
Use joystick gremlin for all my control box mapping, but this....I like!
May help preventing the nuking of controls sometimes on DCS update.
How is it I have never seen this.
Use joystick gremlin for all my control box mapping, but this....I like!
May help preventing the nuking of controls sometimes on DCS update.
Tenor
STo all the Tomcat Drivers....
I am currently working through setting the Rhino up.
I am struggling with getting trim adjustments to move the stick when trimmed.
I have tried all combinations of turning the "FFB Trim implementation" on in DCS module and the "Force Trim" in VP Config.
I can either trim the ld fashioned way as in the stick does not move but trim adjusts...or...
I cannot adjust trim at all.
I have read through pretty much everything here and I must be missing something.
Thanks in advance....
I am currently working through setting the Rhino up.
I am struggling with getting trim adjustments to move the stick when trimmed.
I have tried all combinations of turning the "FFB Trim implementation" on in DCS module and the "Force Trim" in VP Config.
I can either trim the ld fashioned way as in the stick does not move but trim adjusts...or...
I cannot adjust trim at all.
I have read through pretty much everything here and I must be missing something.
Thanks in advance....
Hdo you have the force feedback option checked in misc DCS options?
SSure do
Even tried the Trim option in special for the F-14 on and off
I can get buffet shake and those effects, but trim to work and move the stick...no bueno
Even tried the Trim option in special for the F-14 on and off
I can get buffet shake and those effects, but trim to work and move the stick...no bueno
Hstrange... I had my stick fail to move properly a couple times, but I got it working eventually. Trying to remember if I did anything other than restart DCS.
HYou might check that your trimmer controls are bound properly. If you've got a stick preset applied in VPForce config, sometimes it got reset back to default for me after I made edits in it
Hthe button names were different between the default config and my virpil stick
Hthe buffeting working makes me think the FFB is active but it's not recieving trim commands
Hwhen my FFB wasn't working, no effects worked at all
M@walmis Hi, I have your Rhino base with an 20 cm extension and a VPC Alpha PRIME grip. Now everty time I press one of the 4 way hats I get multiple inputs. In the configurator I seleced the apha grip. I hope somebody finds the step I'm doing wrong.
WCan you show us your settings?
WHi, can you show how it behaves, video/screenshot?
MI will do it when I’m back home on Sunday.
AIs ffb enabled both in DCS and the F-14 settings specifically?
SThanks for the responses folks.
Vp Effects...
Vp Effects...
S
SVp settings, Hardware Force Trim currently off, but button mapping settings can be seen...
These correcspond tothe Virpil VFX hat up, down, left, right
These correcspond tothe Virpil VFX hat up, down, left, right
S
SDCS misc, FFB on
S

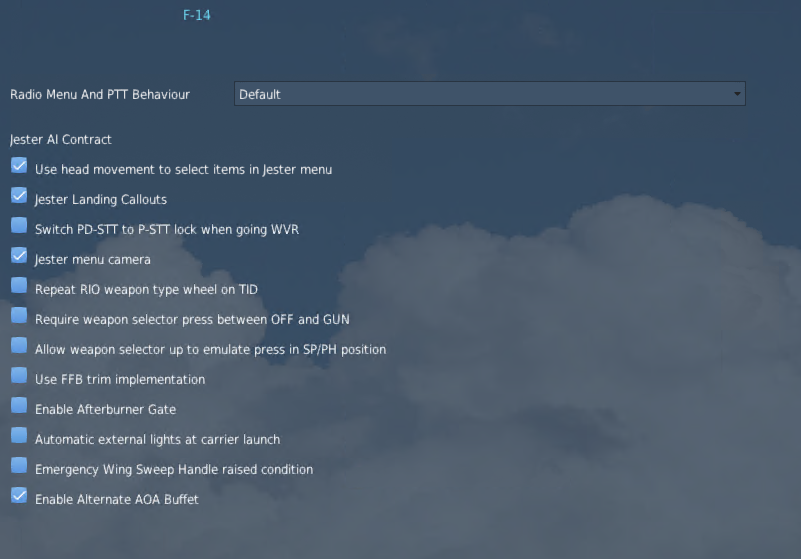

SDCS Special for the F14, with the FFB Trim setting currently OFF, I have tried with this on or off.
S

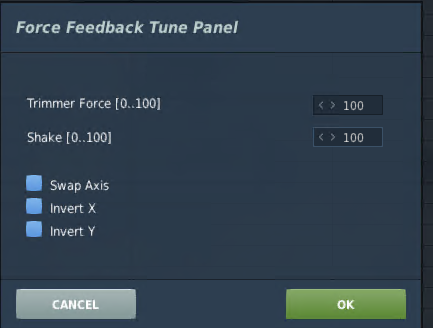

SFFB tune for reference...
S
SThanks!
A“Use FFB trim implementation” should be ticked in. Reckon that’s your problem right there
AThough “Spring” looks like it might cause some issues since you’ve set pitch to just 1% and have it override game ffb. I wouldn’t say that I’m certain of it, but I imagine that it has the potential for causing issues.
Try unticking all “Sticky”, tick “Use FFB trim implementation” and see what happens re FFB trim, so we might figure out if that’s on the correct path
Try unticking all “Sticky”, tick “Use FFB trim implementation” and see what happens re FFB trim, so we might figure out if that’s on the correct path
WYou need to uncheck "sticky". That will override any effects the game sends.
SAs I mentioned, it shows off now since it is just off, but I have set it to on as it should be
SThe "spring" sticky?
WYes, disable that.
SThanks.....Will do!
ALso, meant to ask....should I use the VP Hardwre Force trim? Or just use the DCS settings and leave VP force Trim off and map the game trim controls as normal?
ALso, meant to ask....should I use the VP Hardwre Force trim? Or just use the DCS settings and leave VP force Trim off and map the game trim controls as normal?
ADCS one
Sdang this software is powerful!
S
A“Sticky” means that your software settings will override in game FFB. In DCS, “Spring” is the only effect that’s implemented though AFAIK
WYes, spring and some periodic shake/rumble effects
AAlso - spring shouldn’t be at 0% either? /cc @walmis?
WOh yes, def should not be zero
SYup, understood that from all the docs and chats, never thought it would override teh trim in that way though
Ssaturation?
AHe’s talking about the screenshot I linked — put all those sliders at 100%
