Is there a keybind for the "reset Motors" function? If not can I make it a feature request? Occasion

Is there a keybind for the "reset Motors" function? If not can I make it a feature request? Occasionally (particularly when getting the settings right for a new aircraft) I find the motors overload and require resetting. This requires getting out of VR, leaving the simpit, alt-tabbing from the the sim(possibly mid-flight) to reset. A simple keybind would be fantastic.

Reed•1/12/25, 4:09 AM

OOurorborus Is there a keybind for the "reset Motors" function? If not can I make it a featu...

TheAmazinGreat•1/12/25, 5:58 AM

Have you tried cycling the e-stop?

mark turner•1/12/25, 7:46 AM

again this morning on turning on the PC, my profile balance spring settings are all changed to linked and 20%........

Mmark turner again this morning on turning on the PC, my profile balance spring settings are ...

TheAmazinGreat•1/12/25, 1:00 PM

Are you clicking apply or are you clicking store? If you click apply it’s temporary and will revert. You should hear two chirps from the board when clicking store. I usually click both apply and store for good measure.

Mmark turner again this morning on turning on the PC, my profile balance spring settings are ...

Dracks•1/12/25, 1:35 PM

You're sure you don't load a specific profile at startup ? Settings menu (VP config app)

Dracks•1/12/25, 1:36 PM

Because you're issue is strange ! A file/folder don't modify itself (but because update/writing or thing like that)

Dracks•1/12/25, 1:37 PM

I say this in all benevolence! (I translate my thoughts into English)

Dracks•1/12/25, 1:40 PM

(And check what TheAmazinGreat said)

walmis•1/12/25, 2:01 PM

I wasn't able to reproduce it - so it's probably like @Dracks said - my guess is telemFFB is configured to load a FFB profile on startup?

mark turner•1/13/25, 7:19 AM

Will double check, cheers

mark turner•1/13/25, 3:02 PM

I found that telemFFB is loading a version of a config, so changed that. What was strange was that the version it loads has no effects boxes ticked, in the balance spring section, which is greyed out, I can see the settings are all at 20%. So when it loads that config, it also somehow checks the box to make balance spring section active.

mark turner•1/13/25, 3:03 PM

However, my stick motors did need re setting again today, I have reduced by 5% the suggested setting, but it is obviously not doing the trick......any ideas?

Hhariskut I'd like to report an issue that I've encountered twice, although the probabilit...

Rocco Thamanoidis•1/13/25, 6:03 PM

Rocco Thamanoidis•1/13/25, 6:04 PM

That "outage" if u mean this, happens regularely for me. I changed the wall outlet for the supply without any effect. Trying different USB next.

Wworld I had motors report UNDERVOLTAGE and go OFFLINE. I dropped max motor current fro...

Rocco Thamanoidis•1/13/25, 6:21 PM

I'll try that too.

walmis•1/13/25, 6:24 PM

Hmm, do those faults happen on idle or during spring forces? Which ones are you hitting the red stop button and resetting and which happen randomly? Do you have the latest firmware b12 installed?

RReed Click to see attachment

OurorborusOP•1/13/25, 11:32 PM

Yes that one. Is there a way to map a keybind for it?

TTheAmazinGreat Have you tried cycling the e-stop?

OurorborusOP•1/13/25, 11:33 PM

I'll give it a go but I think that disconnects the device entirely

Reed•1/14/25, 1:10 AM

Weird issue. My lights on the virpil constellation grip came on, they've been off since swapping to rhino, how do I turn them back off. Also the grip is no longer found the virpil software.

RReed Weird issue. My lights on the virpil constellation grip came on, they've been of...

OurorborusOP•1/14/25, 2:18 AM

Do you mean the constellation grip attached to the rhino or the constellation plugged in as well as the rhino? If the latter have you tired differnt usb ports. Virpil can sometimes not play well with usb3

Wwalmis Hmm, do those faults happen on idle or during spring forces? Which ones are you ...

Rocco Thamanoidis•1/14/25, 2:59 AM

They most of the time happen on low demand situations. Yes, b12. And to reset I push the stop button and unlock it again. If I unlock it too quickly it acts like it's not ready to start up again. But it always recovers its functions.

Ipsissmus•1/14/25, 3:10 AM

Hey guys. I'm loving my pre-built Rhino except for the fact that I'm using a 200mm virpil extension with tm F/18-18 grip (heavy af and lots of leverage) so I would like more force. If I buy a set of the 86BLF motors how much change to the housing would I need to make? I have a meanwell 12v 50amp psu coming in to try increasing the power a bit to the 57BLF's, but I know there isn't much headroom for them before they start to overheat.

OOurorborus Do you mean the constellation grip attached to the rhino or the constellation pl...

Reed•1/14/25, 3:49 AM

The constellation grip attached to the rhino. Very weird. I haven’t changed anything

IIpsissmus Hey guys. I'm loving my pre-built Rhino except for the fact that I'm using a 200...

H145Rotor-Sims•1/14/25, 4:37 AM

The housing is longer. Width is the same. @SR-FWinger[73]_David has one kit left in stock with a fully build laser sinthered gimbal. I'm using it for my monster rhino and it works beautifully

HH145Rotor-Sims The housing is longer. Width is the same. @SR-F_Winger_[73]_David has one kit le...

SR-F_Winger_[73]_David•1/14/25, 6:17 AM

Thanks for the mention. The PA12 one is gone. More can BE Made to order

SR-F_Winger_[73]_David•1/14/25, 6:18 AM

Roughly 3 weeks and one can be ready

IIpsissmus Hey guys. I'm loving my pre-built Rhino except for the fact that I'm using a 200...

TheAmazinGreat•1/14/25, 11:30 AM

I can’t comment on how much the power supply will make a difference but you would want a 24V and most people for DIY kits are getting the 14.5 amp meanwell LRS-350-24

I/JG7_Moto•1/14/25, 12:12 PM

I have the Rhino, like it very much , but during long dogfights, the stick forces just fade away, how hard would it be to upgrade to the more powerfull motors and install them on my current RHINO?

II/JG7_Moto I have the Rhino, like it very much , but during long dogfights, the stick force...

H145Rotor-Sims•1/14/25, 12:25 PM

If you are planning going to 86 motors you'll need to change the base. It's not that hard.

slowmover•1/14/25, 12:46 PM

I am having trouble with the F-18 the stick can not stay in center and now i can not enable autopilot. Any advises here?

slowmover•1/14/25, 12:47 PM

I increased a little the balanced spring

Sslowmover I am having trouble with the F-18 the stick can not stay in center and now i can...

Rocco Thamanoidis•1/14/25, 1:20 PM

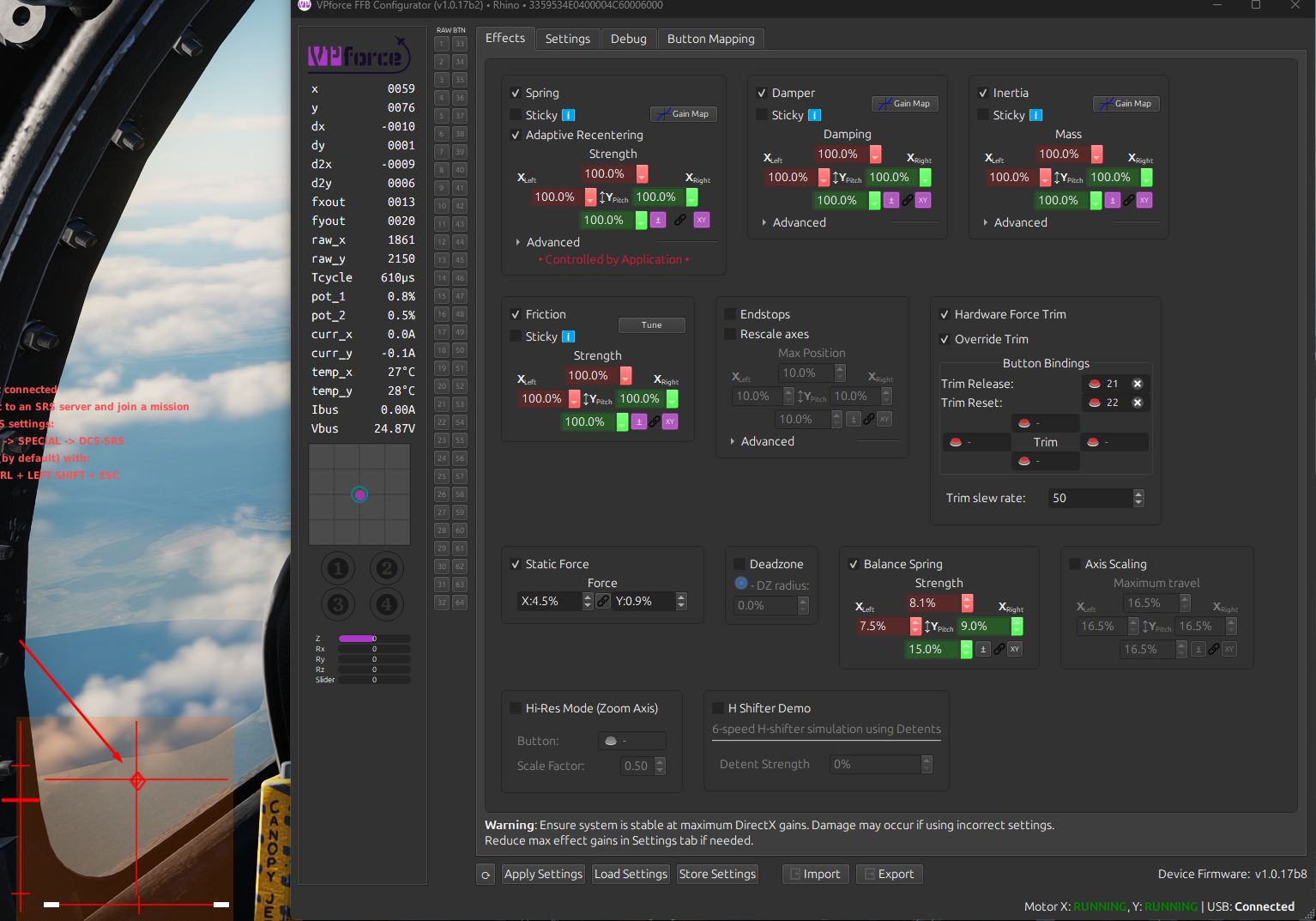

Just give it a bit deadzone and adjust your static force or balance spring until its centered. Also update to the latest build 1.017b12.

Rocco Thamanoidis•1/14/25, 1:22 PM

Thats what I use currently. Note I use the sticky option for Spring, so I can override the ingame ffb, which I have switched off.

slowmover•1/14/25, 2:12 PM

Thanks mate i will try it

Sslowmover I am having trouble with the F-18 the stick can not stay in center and now i can...

f14billy•1/14/25, 2:58 PM

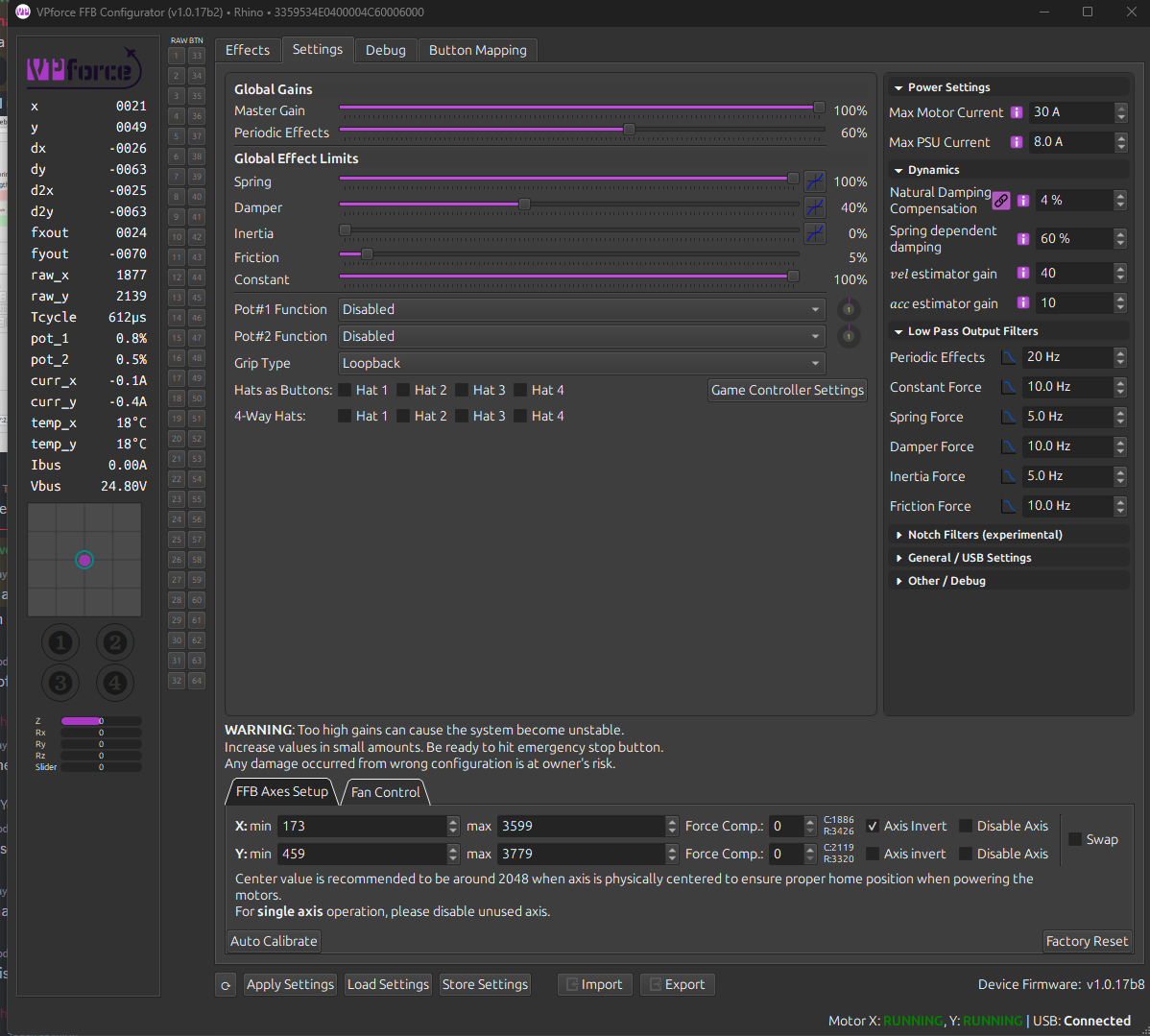

Your pot1 is at 0.8%. If you have it assigned to spring gain then you have no spring force to center it. You can see if it's assigned to something in the settings tab under Pot#1 function.

f14billy•1/14/25, 3:03 PM

Also friction is very high. A screenshot of your settings tab would help.

maleioch•1/14/25, 3:39 PM

which part of the VPForce software acts as a throw limiter for the joystick? Is it the "Endstop" secion?

Mmaleioch which part of the VPForce software acts as a throw limiter for the joystick? I...

f14billy•1/14/25, 3:43 PM

Yes that's the one.

Ff14billy Yes that's the one.

maleioch•1/14/25, 3:44 PM

Can this be set "per aircraft" as well? For example: to bring the A-10 warthog center back.

f14billy•1/14/25, 3:45 PM

You would have to see if telemffb has that setting in the aircraft's profile.

maleioch•1/14/25, 3:47 PM

Okay. So this is "global" in the VpForce but may be doable in telemffb. I'll dig into this. Thank you.

Mmaleioch Okay. So this is "global" in the VpForce but may be doable in telemffb. I'll d...

Number481•1/14/25, 4:08 PM

There are no endstop settings in TelemFFB, but you can use the Dynamic Configurator Profile Assignement feature to push a profile when a specific aircraft is loaded.

Ff14billy Your pot1 is at 0.8%. If you have it assigned to spring gain then you have no sp...

slowmover•1/14/25, 4:51 PM

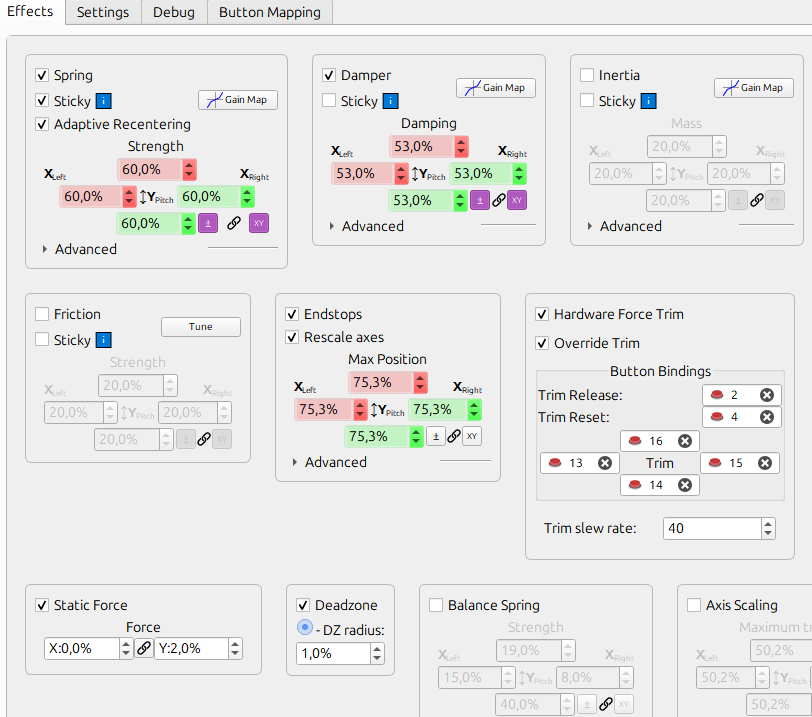

Sslowmover Click to see attachment

f14billy•1/14/25, 4:54 PM

Maybe static force is getting in the way. I would disable it and then make sure you calibrate the balance spring well.

CaiJ•1/14/25, 5:43 PM

does anyone know why telemffb may not be recognizing or reading inputs from my VKB MCG?

HH145Rotor-Sims If you are planning going to 86 motors you'll need to change the base. It's not...

I/JG7_Moto•1/14/25, 5:58 PM

Can I buy a base for when upgrading the motors? Or I need to make it?

II/JG7_Moto Can I buy a base for when upgrading the motors? Or I need to make it?

f14billy•1/14/25, 5:59 PM

@SR-FWinger[73]_David offers the base for the 86 motors already pre assembled

II/JG7_Moto Can I buy a base for when upgrading the motors? Or I need to make it?

H145Rotor-Sims•1/14/25, 6:00 PM

@SR-FWinger[73]_David Get it from him. He makes an awesome base. I physically have one. I just dropped in my 86 motors, did the wiring and done

CCaiJ does anyone know why telemffb may not be recognizing or reading inputs from my V...

Number481•1/14/25, 6:51 PM

grip type in configurator must be set for loopback.
loopback app must be running and set to tie your black-box to your Rhino

CaiJ•1/14/25, 7:15 PM

where is the loopback app located
